Advanced Metal-Free Synthesis of Polysubstituted Benzo[b]azepines for Commercial Scale-up

The pharmaceutical and fine chemical industries are constantly seeking more efficient, sustainable, and cost-effective pathways to synthesize complex heterocyclic scaffolds. Patent CN112574108A, published on March 30, 2021, introduces a groundbreaking methodology for the preparation of polysubstituted benzo[b]azepine compounds. These seven-membered nitrogen-containing heterocycles are critical structural motifs found in numerous bioactive molecules and approved drugs, such as Clomipramine for depression and Benazepril for hypertension. The disclosed invention utilizes a transition metal-free strategy, employing simple 1,4-diarylalkynes and hydroxylamine trifluoromethanesulfonate as starting materials. By leveraging an iodine-catalyzed amination and intramolecular cyclization sequence, this process achieves high atom economy and yield under remarkably mild conditions. For procurement and supply chain leaders, this represents a significant opportunity to secure a reliable pharmaceutical intermediate supplier capable of delivering high-purity compounds with reduced environmental liabilities and simplified manufacturing protocols.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of benzo[b]azepine derivatives has relied heavily on transition metal catalysis or harsh reaction conditions that pose significant challenges for industrial scalability. For instance, previous literature describes methods utilizing copper oxide (CuO) catalysts at elevated temperatures of 135°C, which not only consume substantial energy but also risk thermal degradation of sensitive functional groups. Other approaches involve expensive palladium complexes combined with N-heterocyclic carbenes (NHC) or phosphine ligands, introducing complex purification steps to remove toxic metal residues to meet stringent regulatory standards for active pharmaceutical ingredients (APIs). Furthermore, many traditional routes require pre-functionalized, complex nitrogenous substrates that are difficult and costly to prepare in bulk quantities. These factors collectively result in prolonged lead times, higher production costs, and increased waste generation, creating bottlenecks for the commercial scale-up of complex pharmaceutical intermediates.

The Novel Approach

In stark contrast to these legacy methods, the technology described in CN112574108A offers a streamlined, one-pot synthetic route that fundamentally simplifies the manufacturing process. The core innovation lies in the use of molecular iodine as a benign, inexpensive, and highly effective catalyst, replacing costly transition metals entirely. The reaction proceeds efficiently in hexafluoroisopropanol (HFIP) at a moderate temperature range of 20-80°C, typically optimized at 60°C, which drastically reduces energy consumption compared to the 135°C required by older copper-catalyzed methods. This approach utilizes readily available 1,4-diarylalkynes and hydroxylamine triflate, eliminating the need for complex substrate pre-synthesis. The result is a robust process with excellent substrate compatibility, tolerating diverse electronic and steric environments, which ensures consistent quality and yield across a wide range of derivatives, thereby enhancing supply chain reliability for high-purity pharmaceutical intermediates.

Mechanistic Insights into Iodine-Catalyzed Cyclization

The mechanistic pathway of this transformation involves a sophisticated yet efficient sequence of amination followed by intramolecular cyclization. Initially, the iodine catalyst activates the alkyne moiety of the 1,4-diarylalkyne substrate, facilitating a nucleophilic attack by the nitrogen source derived from hydroxylamine trifluoromethanesulfonate. This step generates a key vinyl-iodide or activated intermediate that subsequently undergoes an electrophilic aromatic substitution or a similar cyclization event to close the seven-membered ring. The use of HFIP as a solvent is critical, as its unique hydrogen-bonding donor capability stabilizes cationic intermediates and enhances the electrophilicity of the iodine species, driving the reaction forward without the need for strong acids or bases. This precise control over the reaction trajectory minimizes the formation of polymeric byproducts or regioisomers, ensuring a clean impurity profile that is essential for downstream pharmaceutical applications.

From an impurity control perspective, the mildness of the reaction conditions plays a pivotal role in maintaining product integrity. Unlike high-temperature processes that can induce decomposition or rearrangement of the azepine ring, this iodine-catalyzed method preserves sensitive functional groups such as halogens and ethers. The absence of transition metals eliminates the risk of metal-catalyzed side reactions, such as homocoupling of alkynes or oxidative degradation, which are common pitfalls in copper or palladium-mediated chemistries. Consequently, the crude reaction mixture is significantly cleaner, reducing the burden on purification units and allowing for higher overall recovery rates. This mechanistic elegance translates directly into operational efficiency, making it an ideal candidate for the cost reduction in pharmaceutical intermediates manufacturing where purity and consistency are paramount.

How to Synthesize Polysubstituted Benzo[b]azepines Efficiently

The practical implementation of this synthesis is designed for ease of operation, requiring standard laboratory equipment and straightforward workup procedures. The process begins with the sequential addition of the 1,4-diarylalkyne substrate, hydroxylamine trifluoromethanesulfonate, and the iodine catalyst into a reaction vessel containing hexafluoroisopropanol. The mixture is then heated to the specified temperature, typically 60°C, and monitored via thin-layer chromatography (TLC) to ensure complete conversion, which usually occurs within 4 hours. Following the reaction, standard extraction techniques using ethyl acetate and brine are employed, followed by drying and solvent removal. The final product is isolated through silica gel column chromatography, yielding the target benzo[b]azepine derivative in high purity. For detailed standardized synthesis steps, please refer to the guide below.

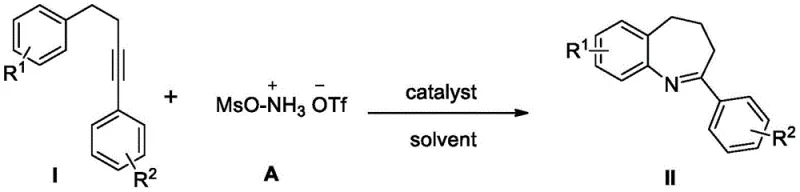

1. Combine 1,4-diarylalkyne substrate, hydroxylamine trifluoromethanesulfonate (Compound A), and iodine catalyst in hexafluoroisopropanol (HFIP) solvent.
2. Heat the reaction mixture to a temperature between 20-80°C (optimally 60°C) and stir for approximately 4 hours until TLC indicates completion.
3. Perform extraction with ethyl acetate and saturated brine, dry over anhydrous sodium sulfate, and purify the residue via silica gel column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this iodine-catalyzed methodology offers transformative benefits that extend beyond mere chemical efficiency. The elimination of precious metal catalysts such as palladium and copper removes a significant cost driver from the bill of materials, while simultaneously simplifying the regulatory compliance landscape regarding heavy metal residuals in the final product. The use of inexpensive, commodity-grade starting materials like 1,4-diarylalkynes ensures a stable and resilient supply base, mitigating the risks associated with sourcing specialized reagents. Furthermore, the mild reaction conditions allow for the use of standard glass-lined or stainless steel reactors without the need for specialized high-pressure or high-temperature equipment, facilitating seamless technology transfer from pilot plant to full-scale commercial production.

• Cost Reduction in Manufacturing: The replacement of expensive transition metal catalysts with molecular iodine results in substantial raw material cost savings. Iodine is abundant, inexpensive, and easily recoverable, contrasting sharply with the volatile pricing and scarcity issues often associated with palladium and rhodium catalysts. Additionally, the simplified workup procedure reduces solvent consumption and waste disposal costs, contributing to a leaner manufacturing budget. The high atom economy of the reaction ensures that a greater proportion of the input mass is converted into valuable product, minimizing waste generation and maximizing resource efficiency throughout the production lifecycle.
• Enhanced Supply Chain Reliability: By utilizing readily available 1,4-diarylalkynes and hydroxylamine salts, this process decouples production from the supply constraints of complex, custom-synthesized precursors. This accessibility ensures consistent availability of raw materials, reducing the risk of production delays caused by supplier bottlenecks. The robustness of the reaction across a wide range of substrates means that a single manufacturing line can be adapted to produce various derivatives with minimal changeover time, enhancing flexibility and responsiveness to market demand fluctuations for diverse pharmaceutical intermediates.
• Scalability and Environmental Compliance: The operation at moderate temperatures (20-80°C) significantly lowers energy requirements compared to traditional high-heat methods, aligning with global sustainability goals and reducing the carbon footprint of the manufacturing process. The absence of toxic heavy metals simplifies effluent treatment and waste management, ensuring compliance with increasingly stringent environmental regulations. This green chemistry profile not only safeguards the environment but also protects the brand reputation of downstream pharmaceutical partners who prioritize sustainable sourcing and eco-friendly production practices in their supply chains.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding this synthesis technology, derived directly from the patent specifications and experimental data. Understanding these details is crucial for R&D teams evaluating the feasibility of integrating this route into their existing pipelines. The answers highlight the versatility of the catalyst system, the breadth of the substrate scope, and the practical advantages observed during the optimization of reaction conditions. This information serves as a foundational reference for assessing the potential impact of this methodology on your specific project requirements.

Q: What catalyst is used in this novel synthesis method?

A: The method utilizes molecular iodine (I2) as a non-metal catalyst, avoiding the need for expensive transition metals like copper or palladium.

Q: What are the primary advantages over conventional transition metal methods?

A: This approach eliminates heavy metal contamination risks, operates under milder temperatures (60°C vs 135°C), and uses readily available substrates, significantly reducing production costs and environmental impact.

Q: What is the substrate compatibility of this reaction?

A: The reaction demonstrates excellent substrate tolerance, accommodating various substituents such as methyl, methoxy, fluorine, chlorine, and tert-butyl groups on the aromatic rings.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable Polysubstituted Benzo[b]azepines Supplier

At NINGBO INNO PHARMCHEM, we recognize the strategic value of adopting innovative synthetic routes like the one described in CN112574108A to enhance product quality and operational efficiency. As a leading CDMO partner, we possess extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your transition from laboratory discovery to market supply is seamless and secure. Our state-of-the-art facilities are equipped to handle the specific requirements of iodine-catalyzed reactions, and our rigorous QC labs enforce stringent purity specifications to guarantee that every batch meets the highest industry standards. We are committed to delivering high-purity pharmaceutical intermediates that empower your drug development programs with reliability and speed.

We invite you to collaborate with us to leverage this advanced technology for your next project. Our technical team is ready to provide a Customized Cost-Saving Analysis tailored to your specific volume needs, demonstrating how this metal-free approach can optimize your budget without compromising quality. Please contact our technical procurement team today to request specific COA data for our benzo[b]azepine portfolio and discuss route feasibility assessments. Let us help you build a more resilient and cost-effective supply chain for your critical pharmaceutical ingredients.
