Scalable Visible Light Catalyzed Synthesis of Phosphonylated Imidazopyridines for Commercial Production

The pharmaceutical and fine chemical industries are constantly seeking robust methodologies to construct carbon-phosphorus bonds, particularly within heterocyclic frameworks that serve as critical scaffolds for bioactive molecules. Patent CN112375102B introduces a groundbreaking preparation method for phosphonylated imidazopyridine compounds utilizing visible light catalysis. This technology represents a significant paradigm shift from traditional thermal or transition-metal-mediated processes, offering a greener, more sustainable pathway for generating high-purity pharmaceutical intermediates. By employing Rhodamine B as an inexpensive organic photocatalyst and lauroyl peroxide as a mild oxidant, this protocol achieves efficient C-H phosphonylation under ambient conditions. For R&D directors and procurement specialists, this innovation addresses key challenges regarding catalyst cost, operational safety, and environmental compliance, positioning it as a vital asset for modern API manufacturing pipelines.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the introduction of phosphorus substituents into imidazopyridine cores has relied heavily on cross-coupling reactions that necessitate pre-functionalized substrates, such as halogenated precursors, and expensive transition metal catalysts like palladium or copper. These conventional routes often suffer from stringent reaction requirements, including high temperatures, inert atmospheres, and the use of hazardous solvents, which complicate process safety and increase operational expenditures. Furthermore, the residual presence of heavy metals in the final product poses a severe regulatory hurdle for pharmaceutical applications, requiring additional, costly purification steps to meet stringent ppm limits. The limited substrate tolerance of these older methods also restricts the chemical diversity accessible to medicinal chemists, slowing down the optimization of lead compounds.

The Novel Approach

In stark contrast, the visible light catalyzed method disclosed in the patent utilizes a direct C-H functionalization strategy that bypasses the need for pre-halogenation, thereby streamlining the synthetic sequence and reducing raw material costs. The use of Rhodamine B, a commercially available and non-toxic organic dye, coupled with white LED irradiation, allows the reaction to proceed under mild conditions with excellent atom economy. This approach not only simplifies the operational workflow but also inherently improves the impurity profile by avoiding metal contaminants. The versatility of this system is demonstrated by its compatibility with a wide range of substituents, enabling the rapid synthesis of diverse libraries of phosphonylated imidazopyridines essential for drug discovery and development.

Mechanistic Insights into Rhodamine B Photocatalyzed C-H Phosphonylation

The core of this transformative synthesis lies in the photoredox catalytic cycle initiated by Rhodamine B upon exposure to visible light. When irradiated, the photocatalyst enters an excited state capable of engaging in single-electron transfer (SET) processes with the oxidant, lauroyl peroxide (LPO). This interaction generates reactive radical species that facilitate the homolytic cleavage of the P-H bond in the phosphine oxide substrate, producing a phosphonyl radical. This highly reactive intermediate then selectively attacks the electron-deficient C-3 position of the imidazopyridine ring, forming a new carbon-phosphorus bond. The subsequent oxidation and deprotonation steps restore aromaticity and regenerate the ground state catalyst, completing the cycle. Understanding this mechanism is crucial for process chemists aiming to optimize reaction parameters such as light intensity and oxygen exclusion to maximize yield and selectivity.

From an impurity control perspective, the radical nature of this transformation offers distinct advantages over ionic pathways. The mild conditions minimize side reactions such as over-oxidation or decomposition of sensitive functional groups often found in complex drug intermediates. The use of diethyl carbonate as a solvent further enhances the green chemistry profile, providing a stable medium that supports the radical propagation while being easier to recover and recycle compared to traditional chlorinated solvents. This mechanistic clarity allows for precise tuning of the reaction environment, ensuring consistent batch-to-batch reproducibility which is a fundamental requirement for reliable pharmaceutical intermediate supplier operations.

How to Synthesize Phosphonylated Imidazopyridine Efficiently

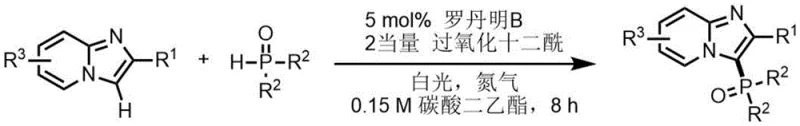

The practical implementation of this synthesis involves a straightforward procedure where imidazopyridine derivatives and phosphine oxides are dissolved in diethyl carbonate. The addition of catalytic amounts of Rhodamine B and stoichiometric LPO initiates the reaction upon exposure to white LED light. The detailed standardized synthesis steps, including specific molar ratios and workup procedures, are outlined below to ensure successful replication in your laboratory.

1. Dissolve the imidazopyridine substrate and phosphine oxide in diethyl carbonate solvent within a reaction vessel.
2. Add Rhodamine B (5 mol%) as the photocatalyst and Lauroyl Peroxide (LPO) as the oxidant under a nitrogen atmosphere.
3. Irradiate the mixture with white LED light for 8 hours, followed by extraction, drying, and column chromatography purification.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this visible light catalyzed technology translates into tangible strategic benefits beyond mere chemical efficiency. The elimination of precious metal catalysts drastically reduces the raw material cost base and removes the logistical burden associated with sourcing and handling expensive transition metals. Additionally, the mild reaction conditions reduce energy consumption related to heating and cooling, contributing to a lower overall carbon footprint for the manufacturing process. These factors collectively enhance the economic viability of producing high-purity pharmaceutical intermediates at scale.

• Cost Reduction in Manufacturing: The substitution of expensive palladium or copper catalysts with Rhodamine B results in substantial cost savings, as the organic dye is significantly cheaper and used in minimal quantities. Furthermore, the avoidance of heavy metals eliminates the need for specialized scavenging resins and extensive purification protocols, streamlining the downstream processing and reducing waste disposal costs associated with metal-contaminated effluents.
• Enhanced Supply Chain Reliability: The reagents required for this process, including diethyl carbonate and lauroyl peroxide, are commodity chemicals with stable global supply chains, mitigating the risk of production delays caused by raw material shortages. The robustness of the reaction conditions ensures high success rates across different batches, fostering a dependable supply of critical intermediates for downstream API synthesis and reducing the lead time for high-purity pharmaceutical intermediates.
• Scalability and Environmental Compliance: The use of visible light and ambient pressure makes this process inherently safer and easier to scale from gram to kilogram quantities without the need for specialized high-pressure reactors. The green solvent system and lack of toxic metal waste align with increasingly strict environmental regulations, facilitating smoother regulatory approvals and supporting sustainable manufacturing initiatives within the fine chemical sector.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this visible light catalyzed phosphonylation technology. These insights are derived directly from the patent data to assist decision-makers in evaluating the feasibility of integrating this method into their existing production workflows.

Q: What are the advantages of using Rhodamine B over transition metal catalysts?

A: Rhodamine B is an inexpensive organic dye that eliminates the need for costly and toxic transition metals like palladium or copper, significantly reducing heavy metal residue concerns in pharmaceutical intermediates.

Q: Is this phosphonylation method suitable for large-scale manufacturing?

A: Yes, the reaction utilizes mild conditions, common solvents like diethyl carbonate, and standard white LED light sources, making it highly adaptable for commercial scale-up without specialized high-pressure equipment.

Q: What is the substrate scope for this visible light catalyzed reaction?

A: The method demonstrates broad compatibility with various substituents including electron-donating and electron-withdrawing groups on both the imidazopyridine ring and the phosphine oxide, yielding products with high purity.
