Advanced Photocatalytic Synthesis of 11-Sulfenyl Naphtho[2,3-b]benzofuran Derivatives for Commercial Scale-up

The pharmaceutical and fine chemical industries are constantly seeking more sustainable and efficient pathways to construct complex heterocyclic scaffolds, particularly those found in bioactive molecules. Patent CN112442002A introduces a groundbreaking methodology for the synthesis of 11-sulfenyl naphtho[2,3-b]benzofuran compounds, a structural motif with significant potential in drug discovery and material science. This innovative approach leverages visible-light photocatalysis to drive a tandem cyclization and sulfenylation reaction, effectively bypassing the limitations associated with traditional thermal methods. By utilizing an organic photosensitizer, specifically Na2-Eosin Y, in conjunction with thiosulfonates and disulfide additives, the process achieves high atom economy and operational simplicity. The technology represents a paradigm shift towards greener chemistry, offering a robust platform for generating diverse libraries of sulfur-containing heterocycles that are often challenging to access through conventional means.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of dibenzofuran and related fused ring systems has relied heavily on transition metal-catalyzed cross-coupling reactions or intramolecular oxidative cyclizations. These traditional protocols frequently necessitate the use of expensive noble metals such as palladium, rhodium, or copper, which not only inflate raw material costs but also introduce significant downstream processing burdens. The removal of trace metal residues to meet stringent pharmaceutical purity standards often requires specialized scavenging resins or multiple recrystallization steps, drastically reducing overall process efficiency. Furthermore, many classical methods employ harsh oxidants or require extreme temperatures that can compromise sensitive functional groups, limiting the substrate scope and leading to the formation of complex impurity profiles that are difficult to separate. The reliance on stoichiometric metal reagents also generates substantial heavy metal waste, posing environmental compliance challenges and increasing the ecological footprint of the manufacturing process.

The Novel Approach

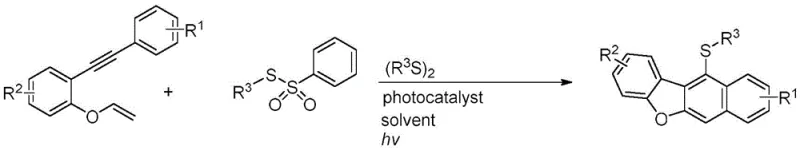

In stark contrast, the method disclosed in CN112442002A utilizes a metal-free photocatalytic system that operates under mild thermal conditions with visible light irradiation. This novel strategy employs 2-vinyloxyphenylacetylene and thiosulfonates as key building blocks, mediated by a catalytic amount of Na2-Eosin Y and a disulfide additive. The reaction proceeds through a radical cascade mechanism that efficiently constructs the naphtho[2,3-b]benzofuran core while simultaneously installing the sulfur substituent at the 11-position. This dual functionality eliminates the need for pre-functionalized substrates or separate sulfenylation steps, streamlining the synthetic route significantly. The use of white LEDs as the energy source provides a safe, renewable, and easily controllable input, allowing for precise regulation of reaction kinetics without the safety hazards associated with high-pressure or high-temperature thermal processes.

Mechanistic Insights into Visible-Light Photocatalytic Cyclization

The core of this transformation lies in the sophisticated interplay between the excited state of the organic photosensitizer and the sulfur-based reagents. Upon irradiation with white light, the Na2-Eosin Y catalyst absorbs photons and transitions to an excited singlet state, which subsequently undergoes intersystem crossing to a long-lived triplet state. This energetic species is capable of engaging in single-electron transfer (SET) processes with the disulfide additive or the thiosulfonate substrate, generating highly reactive sulfur-centered radicals. These radicals initiate the cascade by adding across the alkyne moiety of the 2-vinyloxyphenylacetylene, forming a vinyl radical intermediate that is poised for intramolecular cyclization. The resulting cyclic radical then undergoes further oxidation and deprotonation steps to restore aromaticity, ultimately yielding the stable 11-sulfenyl naphtho[2,3-b]benzofuran product. This mechanistic pathway is distinct from ionic mechanisms, offering unique selectivity patterns that tolerate a wide array of electronic environments on the aromatic rings.

From an impurity control perspective, the radical nature of this reaction offers distinct advantages over ionic pathways that might suffer from competing nucleophilic attacks or rearrangement side reactions. The mild conditions (90°C) prevent thermal degradation of the sensitive vinyl ether linkage prior to cyclization, ensuring that the starting material is consumed primarily through the desired productive channel. Moreover, the use of acetonitrile as a polar aprotic solvent stabilizes the charged intermediates formed during the electron transfer events, minimizing the formation of non-specific polymeric byproducts. The specific stoichiometry of the disulfide additive, typically around 50 mol%, is critical for maintaining the radical flux without overwhelming the system with excess sulfur species that could lead to over-sulfenylation or dimerization issues. This precise balance allows for the isolation of the target molecule with high purity, reducing the burden on downstream purification units and enhancing the overall yield of the process.

How to Synthesize 11-Sulfenyl Naphtho[2,3-b]benzofuran Efficiently

To implement this synthesis effectively, operators must adhere to strict protocols regarding light intensity and atmospheric control to maximize the efficiency of the photocatalytic cycle. The procedure involves charging a quartz reaction vessel with the alkyne substrate, thiosulfonate, disulfide additive, and the eosin Y catalyst in acetonitrile, followed by thorough degassing to remove oxygen which can quench the excited catalyst states. Detailed standardized synthesis steps see the guide below.

1. Charge a quartz tube with 2-vinyloxyphenylacetylene substrate, thiosulfonate coupling partner, disulfide additive, and Na2-Eosin Y photosensitizer in acetonitrile solvent.
2. Purge the reaction vessel with inert gas such as nitrogen or argon to establish an oxygen-free environment essential for radical propagation.
3. Heat the mixture to 90°C while irradiating with 30W white LEDs for approximately 12 hours, followed by purification via flash column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this photocatalytic technology presents a compelling value proposition centered on cost optimization and risk mitigation. By eliminating the dependency on volatile precious metal markets for catalysts like palladium, manufacturers can stabilize their raw material costs and avoid supply disruptions caused by geopolitical factors affecting mining regions. The simplified workflow reduces the number of unit operations required, translating directly into lower labor costs and reduced consumption of solvents and energy per kilogram of product. Furthermore, the avoidance of heavy metals simplifies waste disposal logistics, as the effluent streams do not require specialized treatment for toxic metal removal, thereby lowering environmental compliance costs and accelerating the timeline for regulatory approvals in different jurisdictions.

• Cost Reduction in Manufacturing: The most significant economic driver is the complete removal of transition metal catalysts, which are often the single most expensive component in fine chemical synthesis. Without the need for expensive ligands or metal salts, the bill of materials is drastically reduced, and the costly downstream processing steps associated with metal scavenging are rendered unnecessary. This leaner process architecture allows for substantial margin improvement, making the final API intermediate more competitive in the global market while maintaining high quality standards.
• Enhanced Supply Chain Reliability: The reagents utilized in this protocol, such as Na2-Eosin Y and common thiosulfonates, are commodity chemicals with robust and diversified global supply chains. Unlike specialized organometallic complexes that may have single-source suppliers and long lead times, these organic reagents can be sourced from multiple vendors, ensuring continuity of supply even during market fluctuations. The stability of these materials also simplifies storage and handling requirements, reducing the risk of spoilage or degradation during transit and warehousing.
• Scalability and Environmental Compliance: The reaction conditions are inherently safer and more scalable than traditional high-pressure hydrogenation or cryogenic reactions, as they operate at atmospheric pressure and moderate temperatures. The use of LED lighting arrays is easily adaptable from laboratory flask scales to industrial flow reactors or large batch tanks, facilitating a smooth technology transfer from R&D to commercial production. Additionally, the green chemistry credentials of using visible light and organic catalysts align perfectly with modern corporate sustainability goals, enhancing the brand value of the final product in eco-conscious markets.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this photocatalytic synthesis route. These answers are derived directly from the experimental data and technical specifications outlined in the patent documentation to ensure accuracy and relevance for process development teams.

Q: What are the primary advantages of this photocatalytic method over traditional transition metal catalysis?

A: This method eliminates the need for expensive and toxic transition metal catalysts like palladium or copper, thereby removing the costly and complex heavy metal removal steps typically required in pharmaceutical manufacturing. Additionally, it utilizes visible light as a clean energy source, operating under milder conditions with excellent functional group tolerance.

Q: What is the role of the disulfide additive in the reaction mechanism?

A: The disulfide additive acts as a crucial mediator in the radical cascade process, facilitating the generation of sulfur-centered radicals that initiate the cyclization sequence. It helps maintain the catalytic cycle efficiency and ensures high yields of the desired 11-sulfenyl substituted product without requiring stoichiometric oxidants.

Q: Is this synthesis method scalable for industrial production of pharmaceutical intermediates?

A: Yes, the protocol is highly amenable to scale-up due to the use of commercially available organic photosensitizers and standard heating/lighting equipment. The absence of sensitive transition metal complexes simplifies the engineering requirements for large-scale reactors, making it a robust choice for commercial manufacturing.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 11-Sulfenyl Naphtho[2,3-b]benzofuran Supplier

At NINGBO INNO PHARMCHEM, we recognize the transformative potential of this metal-free photocatalytic technology for the production of high-value pharmaceutical intermediates. As a leading CDMO partner, we possess extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your transition from benchtop discovery to full-scale manufacturing is seamless and efficient. Our state-of-the-art facilities are equipped with advanced photoreactors and rigorous QC labs capable of meeting stringent purity specifications, guaranteeing that every batch of 11-sulfenyl naphtho[2,3-b]benzofuran delivered meets the highest international quality standards.

We invite you to collaborate with our technical team to explore how this innovative synthesis route can optimize your specific supply chain requirements. Please contact our technical procurement team to request a Customized Cost-Saving Analysis tailored to your volume needs. We are ready to provide specific COA data and comprehensive route feasibility assessments to demonstrate how we can support your long-term strategic goals with reliable, high-quality chemical solutions.
