Advanced One-Pot Synthesis of Benzo[7,8]indolizino[1,2-c]quinoline Derivatives for Commercial Scale-Up

The rapid evolution of medicinal chemistry continues to demand efficient access to complex polycyclic scaffolds that serve as the core structures for next-generation therapeutics. Among these, the benzo[7,8]indolizino[1,2-c]quinoline skeleton has emerged as a privileged structure due to its potential biological activities, ranging from anticancer properties to enzyme inhibition. However, the construction of such densely fused heterocyclic systems has historically presented significant synthetic challenges, often requiring tedious multi-step sequences with poor atom economy. A groundbreaking development in this field is detailed in Chinese Patent CN114716438A, which discloses a novel, copper-catalyzed annulation strategy. This innovation provides a robust pathway for generating these valuable derivatives through a streamlined one-pot process, utilizing isoquinolinium salts and α,β-unsaturated O-acetyl ketoximes as key building blocks. For research and development teams focused on oncology and neuroprotection, this methodology represents a critical advancement, offering a reliable route to high-purity intermediates that were previously difficult to access in substantial quantities.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of pyrrolo[3,4-c]quinoline and related fused skeletons has relied on classical condensation reactions that are fraught with inefficiencies. Traditional approaches, such as those involving the reaction of methyl pyridine-2-acetate with o-benzylamino-acetophenone followed by acid-induced cyclization, often suffer from harsh reaction conditions and limited substrate scope. Furthermore, methods utilizing TosMIC reagents or multi-step cyclizations involving nitro reduction frequently necessitate the isolation of sensitive intermediates, leading to significant material loss and increased operational costs. These legacy processes typically involve multiple purification stages, extensive solvent consumption, and the use of stoichiometric amounts of reagents that generate substantial chemical waste. For procurement managers and supply chain heads, these factors translate into higher raw material costs, longer lead times, and greater environmental compliance burdens, making the commercial viability of such routes questionable for large-scale API manufacturing.

The Novel Approach

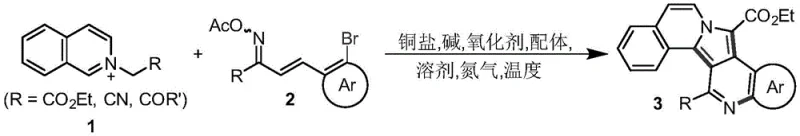

In stark contrast to these cumbersome traditional pathways, the methodology described in CN114716438A introduces a highly efficient copper-catalyzed oxidative annulation. This novel approach leverages the reactivity of isoquinolinium salts with α,β-unsaturated O-acetyl ketoximes under mild thermal conditions. The reaction proceeds in a single pot, effectively merging bond formation and cyclization steps that would otherwise require separate operations. By employing a catalytic amount of inexpensive copper salts alongside a compatible oxidant and ligand system, the process achieves excellent yields with remarkable functional group tolerance. This streamlining not only accelerates the timeline from discovery to development but also drastically simplifies the downstream processing requirements. The ability to construct the complex benzo[7,8]indolizino[1,2-c]quinoline core in one step represents a paradigm shift, enabling the rapid generation of diverse libraries for structure-activity relationship studies while laying the groundwork for cost-effective commercial production.

Mechanistic Insights into Copper-Catalyzed Oxidative Annulation

The success of this transformation hinges on the intricate interplay between the copper catalyst, the oxidant, and the unique electronic properties of the substrates. Mechanistically, the reaction is believed to initiate with the coordination of the copper species to the nitrogen atom of the isoquinolinium salt, enhancing its electrophilicity. Subsequently, the α,β-unsaturated O-acetyl ketoxime acts as a nucleophile or undergoes activation to form a reactive radical or cationic intermediate, depending on the specific oxidation state of the copper center. The presence of an external oxidant, such as pyridine N-oxide or tert-butyl peroxide, is crucial for regenerating the active catalytic species and driving the oxidative cyclization forward. This redox-neutral or oxidative manifold allows for the formation of multiple carbon-carbon and carbon-nitrogen bonds in a concerted fashion. Understanding this mechanism is vital for R&D directors, as it highlights the importance of precise control over reaction parameters such as temperature and oxygen exclusion to prevent side reactions and ensure the formation of the desired regioisomer with high fidelity.

Furthermore, the impurity profile of the final product is heavily influenced by the choice of ligand and base. The patent data indicates that ligands like 2-picolinic acid or 1,10-phenanthroline play a pivotal role in stabilizing the copper intermediate and directing the regioselectivity of the cyclization. Inadequate ligand selection can lead to the formation of polymeric byproducts or incomplete conversion, complicating the purification process. The base, typically an inorganic carbonate like potassium carbonate, serves to neutralize acidic byproducts generated during the acetoxy leaving group departure, thereby maintaining the catalytic cycle's efficiency. By optimizing these components, the process minimizes the generation of hard-to-remove impurities, resulting in a crude product that is amenable to straightforward purification techniques. This level of mechanistic control ensures that the final pharmaceutical intermediates meet the stringent purity specifications required for subsequent biological testing and clinical development.

How to Synthesize Benzo[7,8]indolizino[1,2-c]quinoline Efficiently

Implementing this synthesis in a laboratory or pilot plant setting requires adherence to specific operational protocols to maximize yield and safety. The general procedure involves charging a reaction vessel with the isoquinolinium salt, the ketoxime derivative, the copper catalyst, base, ligand, and oxidant in a suitable organic solvent such as toluene or acetonitrile. The mixture is then heated under an inert nitrogen atmosphere to temperatures ranging from 80°C to 120°C. Reaction progress is monitored via thin-layer chromatography (TLC) until the starting materials are fully consumed. Upon completion, the reaction mixture is quenched with water and extracted with an organic solvent like dichloromethane. The combined organic layers are dried and concentrated, and the residue is purified by column chromatography to afford the target compound. For detailed standardized synthesis steps and specific optimization parameters, please refer to the guide below.

1. Combine isoquinolinium salt, alpha,beta-unsaturated O-acetyl ketoxime, copper catalyst, base, ligand, and oxidant in an organic solvent under nitrogen protection.
2. Heat the reaction mixture to 80-120 degrees Celsius and stir until the starting materials are consumed, monitoring progress via TLC.
3. Quench the reaction with water, extract with organic solvent, dry over anhydrous sodium sulfate, and purify the crude product via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, the adoption of this copper-catalyzed one-pot synthesis offers transformative benefits for supply chain stability and cost management. The primary advantage lies in the drastic reduction of process steps. By consolidating multiple transformations into a single reactor charge, manufacturers can significantly reduce the consumption of solvents, energy, and labor hours associated with intermediate isolation and purification. This consolidation directly translates to a lower cost of goods sold (COGS), making the final API or intermediate more competitive in the global market. Additionally, the reliance on earth-abundant copper catalysts instead of precious metals like palladium or rhodium mitigates the risk of price volatility and supply shortages, ensuring a more predictable procurement landscape for long-term production contracts.

• Cost Reduction in Manufacturing: The elimination of intermediate isolation steps removes the need for extensive drying and handling equipment, thereby lowering capital expenditure and operational overhead. Furthermore, the high atom economy of the annulation reaction minimizes waste disposal costs, contributing to a leaner and more sustainable manufacturing model that aligns with modern green chemistry principles.
• Enhanced Supply Chain Reliability: The starting materials, specifically isoquinoline derivatives and substituted chalcones or ketoximes, are commodity chemicals that are readily available from multiple global suppliers. This abundance reduces the risk of single-source dependency and ensures consistent raw material quality. The robustness of the reaction conditions also means that the process is less susceptible to minor variations in reagent quality, further stabilizing the supply chain against disruptions.
• Scalability and Environmental Compliance: The use of common organic solvents like toluene and the absence of highly toxic reagents simplify the scale-up process from gram to kilogram scales. The reduced generation of hazardous waste facilitates easier compliance with environmental regulations, avoiding costly remediation efforts. This environmental friendliness enhances the corporate social responsibility profile of the manufacturing entity, appealing to partners who prioritize sustainable sourcing practices.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology. These insights are derived directly from the experimental data and beneficial effects reported in the patent documentation, providing clarity on the practical aspects of adopting this method for industrial applications.

Q: What are the key advantages of this copper-catalyzed method over traditional multi-step syntheses?

A: This method utilizes a one-pot strategy that eliminates the need for isolating unstable intermediates, significantly reducing processing time and solvent waste compared to conventional multi-step routes.

Q: Is this synthesis scalable for industrial production of pharmaceutical intermediates?

A: Yes, the use of inexpensive copper catalysts, readily available starting materials, and mild reaction conditions (80-120°C) makes this process highly suitable for commercial scale-up.

Q: What is the functional group tolerance of this reaction system?

A: The protocol demonstrates excellent tolerance for various substituents including electron-withdrawing groups like nitro and halogens, as well as electron-donating groups like methoxy, ensuring broad applicability.
