Advanced Organocatalytic Route for High-Purity Spiro[2,5]octane Derivatives Commercial Manufacturing

Introduction to Patent CN113527141B Technology

The landscape of fine chemical synthesis is undergoing a paradigm shift towards sustainability and operational simplicity, a trend vividly exemplified by the technology disclosed in Chinese Patent CN113527141B. This intellectual property introduces a groundbreaking methodology for the construction of spiro[2,5]octane derivatives, a structural motif prevalent in bioactive natural products and potent agrochemical agents. Unlike legacy processes that rely on hazardous reagents or scarce resources, this invention leverages a metal-free organocatalytic strategy to achieve complex molecular architectures through a streamlined one-pot tandem reaction. For R&D directors and procurement specialists alike, this represents a critical opportunity to secure a reliable agrochemical intermediate supplier capable of delivering high-value scaffolds without the baggage of heavy metal contamination or exorbitant raw material costs. The technical elegance of this approach lies in its ability to transform simple, commercially available starting materials into highly functionalized spirocyclic systems under remarkably mild conditions.

Furthermore, the strategic importance of spiro[2,5]octane cores cannot be overstated in the context of modern drug discovery and crop protection. These structures serve as rigid, three-dimensional building blocks that can significantly enhance the binding affinity and metabolic stability of candidate molecules. By adopting the synthetic route outlined in CN113527141B, manufacturers can bypass the logistical nightmares associated with light-sensitive or thermally unstable precursors. The process utilizes cyclopropyl formaldehyde and bisactivated methylene compounds, reacting them in the presence of common organic bases such as DBU or DABCO. This transition from precious metal catalysis to organocatalysis not only aligns with green chemistry principles but also drastically simplifies the downstream purification workflow, thereby enhancing the overall economic viability of producing these high-purity OLED material precursors or pharmaceutical intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of spiro[2,5]octane derivatives has been plagued by significant technical and economic hurdles that hinder large-scale adoption. Traditional routes, such as those pioneered by Becker and Field or later refined by the Baran group, predominantly rely on the decomposition of quinone diazo compounds, often necessitating photocatalysis or the use of expensive noble metal catalysts like rhodium. These methodologies introduce severe bottlenecks: the preparation of quinone diazo precursors is inherently cumbersome, requiring multi-step functionalization that drives up the cost of goods sold. Moreover, the stability issues associated with diazo compounds pose serious safety risks in a manufacturing environment, as they can decompose unpredictably or form hazardous carbene dimers. From a supply chain perspective, dependence on rhodium creates vulnerability to market volatility and geopolitical supply disruptions, making long-term planning for commercial scale-up of complex polymer additives or active ingredients exceedingly difficult.

Beyond the economic and safety concerns, the chemical efficiency of these legacy methods leaves much to be desired. The harsh reaction conditions required to drive the decomposition of stable diazo species often lead to poor selectivity and the formation of complex impurity profiles. This lack of specificity forces manufacturers to invest heavily in extensive purification protocols, such as repeated recrystallizations or preparative HPLC, which further erodes profit margins. Additionally, the presence of transition metal residues in the final product is a major regulatory red flag for pharmaceutical and agrochemical applications, necessitating costly metal scavenging steps to meet stringent purity specifications. Consequently, the industry has long sought an alternative pathway that could deliver the same structural complexity without the associated operational risks and financial burdens of metal-mediated diazo chemistry.

The Novel Approach

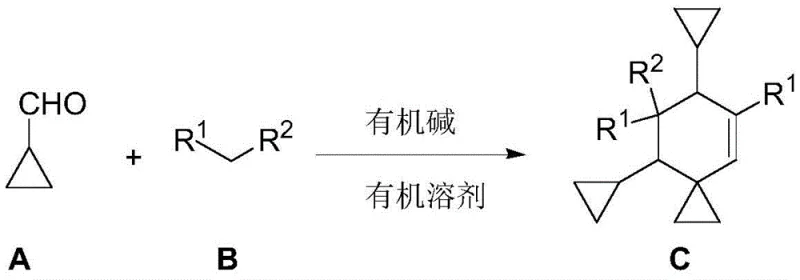

The technology encapsulated in CN113527141B offers a transformative solution by replacing hazardous diazo chemistry with a benign, base-catalyzed cascade reaction. This novel approach utilizes cyclopropyl formaldehyde and readily accessible bisactivated methylene compounds as the primary building blocks, reacting them in a single vessel to construct the spiro[2,5]octane skeleton. The elimination of noble metals and photochemical equipment represents a massive leap forward in process intensification, allowing for reactions to proceed efficiently at moderate temperatures between 70°C and 100°C. This shift not only reduces the energy footprint of the manufacturing process but also enables the use of standard stainless steel reactors, facilitating immediate scalability from laboratory benchtop to multi-ton production without the need for specialized infrastructure.

Moreover, the versatility of this new synthetic platform is demonstrated by its tolerance for a wide array of functional groups, as evidenced by the diverse substituents (R1 and R2) compatible with the reaction conditions. Whether incorporating nitrile, ester, or ketone functionalities, the process maintains high specificity and yield, typically ranging from 60% to 90%. This robustness ensures that the resulting spiro[2,5]octane derivatives are produced with exceptional purity, minimizing the need for aggressive downstream processing. For procurement managers, this translates to a more predictable supply chain with reduced lead times, as the reliance on exotic catalysts is completely removed. The simplicity of the workup procedure, involving basic aqueous quenching and extraction, further underscores the commercial attractiveness of this method for cost reduction in fine chemical manufacturing.

Mechanistic Insights into Organocatalytic Tandem Cyclization

At the heart of this innovative synthesis lies a sophisticated yet elegant mechanistic sequence driven by organic base catalysis. The reaction initiates with the deprotonation of the bisactivated methylene compound by the organic base, generating a highly nucleophilic carbanion species. This activated intermediate then undergoes a Knoevenagel-type condensation with the carbonyl group of the cyclopropyl formaldehyde, forming an alpha,beta-unsaturated intermediate. Subsequently, a second equivalent of the activated methylene compound, or an intramolecular variant depending on the specific substrate design, performs a Michael addition to the newly formed double bond. This cascade of nucleophilic and electrophilic events is meticulously orchestrated to close the ring and establish the characteristic spiro-center with high stereocontrol. The absence of metal coordination spheres allows the reaction to proceed through purely electronic interactions, which are less sensitive to steric hindrance and more forgiving of minor variations in reagent quality.

From an impurity control perspective, this mechanism offers distinct advantages over radical-based or metal-carbene pathways. Because the reaction avoids the generation of free carbenes or radical intermediates, the formation of dimerization byproducts and polymeric tars is significantly suppressed. The use of mild organic bases like DBU or DABCO ensures that the reaction environment remains sufficiently basic to drive the equilibrium forward without promoting unwanted side reactions such as ester hydrolysis or retro-aldol fragmentation. This clean reaction profile is crucial for maintaining the integrity of sensitive functional groups attached to the spiro-cycle. Furthermore, the kinetic profile of the reaction allows for precise monitoring via TLC or HPLC, enabling operators to quench the process immediately upon consumption of the limiting reagent, thereby maximizing yield and minimizing degradation of the product.

How to Synthesize Spiro[2,5]octane Derivatives Efficiently

Implementing this synthesis in a production setting requires adherence to specific operational parameters to ensure optimal performance and safety. The process is designed to be user-friendly, utilizing common solvents such as acetonitrile, ethanol, or toluene, which are easily recovered and recycled. The molar ratio of cyclopropyl formaldehyde to the methylene compound is typically maintained between 3:2 and 3.5:2 to drive the reaction to completion while minimizing excess waste. Reaction temperatures are carefully controlled within the 70°C to 100°C window to balance reaction rate with thermal stability. Detailed standardized operating procedures regarding mixing rates, addition sequences, and quenching protocols are essential for reproducibility. The detailed standardized synthesis steps are provided in the guide below.

1. Combine cyclopropyl formaldehyde and bisactivated methylene compound with an organic base catalyst (e.g., DBU, DABCO) in an organic solvent.
2. Heat the reaction mixture to 70-100°C and stir for 8-12 hours until the starting material is consumed.
3. Quench with water, extract with organic solvent, dry, concentrate, and purify via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For stakeholders responsible for the bottom line and supply continuity, the adoption of this organocatalytic route presents a compelling value proposition that extends far beyond mere technical novelty. The primary driver of value is the drastic simplification of the supply chain; by eliminating the need for custom-synthesized diazo precursors and scarce rhodium catalysts, manufacturers can source all raw materials from bulk commodity chemical suppliers. This shift significantly mitigates the risk of supply disruptions caused by the limited availability of specialty reagents. Furthermore, the removal of heavy metals from the process flow means that the costly and time-consuming steps associated with metal scavenging and validation are no longer necessary. This streamlining directly contributes to substantial cost savings in the overall manufacturing budget, allowing for more competitive pricing in the global market for agrochemical and pharmaceutical intermediates.

• Cost Reduction in Manufacturing: The economic benefits of this process are rooted in the substitution of high-cost inputs with low-cost alternatives. Organic bases such as triethylamine or DABCO are fractions of the price of rhodium complexes, and their usage does not require inert atmosphere handling, reducing facility overheads. Additionally, the high atom economy of the tandem reaction minimizes waste generation, lowering disposal costs. The simplified purification process, often requiring only standard column chromatography or crystallization rather than specialized metal-removal resins, further reduces operational expenditures. These factors combine to create a leaner, more cost-effective production model that enhances margin potential for high-volume contracts.
• Enhanced Supply Chain Reliability: Reliability is paramount in the fine chemical sector, and this technology bolsters supply security by decoupling production from volatile precious metal markets. The raw materials, cyclopropyl formaldehyde and activated nitriles or esters, are produced on a massive industrial scale globally, ensuring consistent availability and price stability. The robustness of the reaction conditions also means that the process is less susceptible to batch-to-batch variability caused by catalyst degradation or sensitivity to trace impurities. This consistency allows for tighter production scheduling and more accurate delivery commitments to downstream customers, fostering stronger long-term partnerships and reducing the need for safety stock inventory.
• Scalability and Environmental Compliance: Scaling chemical processes often introduces new challenges, but this one-pot method is inherently scalable due to its reliance on thermal activation rather than photon flux or complex mixing regimes. The use of common organic solvents facilitates easy integration into existing multipurpose plants without the need for capital-intensive retrofitting. From an environmental standpoint, the absence of toxic heavy metals simplifies wastewater treatment and reduces the regulatory burden associated with hazardous waste disposal. This alignment with green chemistry principles not only improves the corporate sustainability profile but also ensures compliance with increasingly stringent environmental regulations in key markets like Europe and North America.

Frequently Asked Questions (FAQ)

Understanding the nuances of this new synthetic technology is vital for making informed sourcing decisions. The following questions address common inquiries regarding the practical implementation and benefits of the spiro[2,5]octane synthesis method described in CN113527141B. These answers are derived directly from the technical data and experimental examples provided in the patent documentation, ensuring accuracy and relevance for technical buyers.

Q: What are the advantages of this organocatalytic method over traditional rhodium-catalyzed routes?

A: This method eliminates the need for expensive and toxic noble metal catalysts like rhodium, significantly reducing production costs and simplifying the removal of metal impurities, which is critical for pharmaceutical and agrochemical compliance.

Q: How does the new process improve safety compared to diazo compound routes?

A: Traditional routes often require unstable quinone diazo compounds that pose explosion risks. This patent utilizes stable cyclopropyl formaldehyde and activated methylene compounds, operating under mild thermal conditions without hazardous gas evolution.

Q: What is the typical yield range for these spiro[2,5]octane derivatives?

A: The patented process demonstrates robust yields ranging from 60% to 90% across various substrates, ensuring high material efficiency and consistent output for commercial scale-up.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable Spiro[2,5]octane Derivatives Supplier

As the demand for complex spirocyclic scaffolds continues to grow in the pharmaceutical and agrochemical sectors, partnering with a manufacturer who possesses deep technical expertise is essential. NINGBO INNO PHARMCHEM stands at the forefront of this innovation, leveraging advanced organocatalytic technologies to deliver superior quality intermediates. Our team has extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that we can meet your volume requirements without compromising on quality. We operate with stringent purity specifications and utilize rigorous QC labs to guarantee that every batch of spiro[2,5]octane derivatives meets the highest industry standards, free from the metal contaminants that plague older synthetic routes.

We invite you to explore how our optimized manufacturing processes can enhance your supply chain efficiency and reduce your overall project costs. Our technical sales team is ready to provide a Customized Cost-Saving Analysis tailored to your specific project needs, demonstrating the tangible economic benefits of switching to our metal-free synthesis platform. We encourage you to contact our technical procurement team today to request specific COA data and route feasibility assessments for your next development program. Let us be your trusted partner in navigating the complexities of fine chemical synthesis and bringing your innovative molecules to market faster and more economically.
