Advanced One-Pot Synthesis of Alpha-Halogenated Unsaturated Carbonyls for Commercial Scale-Up

The landscape of fine chemical manufacturing is constantly evolving, driven by the need for more efficient, cost-effective, and environmentally sustainable synthetic routes. As detailed in Chinese Patent CN110467514B, a significant breakthrough has been achieved in the preparation of alpha-halogenated unsaturated aldehydes and ketones, which serve as critical building blocks in the synthesis of complex organic molecules. These compounds are indispensable intermediates in the production of active pharmaceutical ingredients (APIs), agrochemicals, and functional materials, owing to their unique reactivity in transition metal-catalyzed cross-coupling reactions. The patented technology introduces a novel tandem reaction strategy that merges the Meyer-Schuster rearrangement with immediate halogenation, offering a streamlined alternative to traditional multi-step processes. By leveraging readily available propargyl alcohol derivatives and inexpensive acid catalysts, this method addresses long-standing challenges in yield optimization and operational simplicity. For R&D directors and procurement managers seeking a reliable pharmaceutical intermediates supplier, understanding the mechanistic nuances and commercial implications of this innovation is essential for securing a competitive edge in the global supply chain.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of alpha-halogenated unsaturated carbonyl compounds has relied heavily on the direct halogenation of pre-formed alpha,beta-unsaturated aldehydes or ketones. While conceptually straightforward, this approach often suffers from poor regioselectivity, leading to mixtures of poly-halogenated by-products that are difficult and costly to separate. Furthermore, alternative strategies involving the use of alkynyl acetates or sulfonates as substrates necessitate a multi-step sequence where the propargyl alcohol must first be activated before undergoing halogenation. This not only increases the overall step count and associated labor costs but also generates substantial chemical waste, negatively impacting the atom economy of the process. More recently, methods utilizing propargyl alcohol derivatives directly have been explored, such as the bimetallic catalytic systems developed by research groups like Liming Zhang. However, these advanced protocols frequently depend on precious metal catalysts, specifically gold complexes paired with secondary metal co-catalysts. The reliance on gold renders these methods economically prohibitive for large-scale industrial applications, as the cost of the catalyst can drastically inflate the production budget. Additionally, the removal of trace heavy metals from the final product to meet stringent pharmaceutical purity specifications adds further complexity and expense to the downstream processing workflow.

The Novel Approach

In stark contrast to these conventional limitations, the methodology disclosed in patent CN110467514B presents a paradigm shift by utilizing a simple acid-catalyzed tandem reaction. This innovative approach allows for the direct conversion of 1,3-substituted propargyl alcohols into the desired alpha-halogenated products in a single reactor vessel. By carefully selecting the appropriate acid catalyst—ranging from strong organic acids like trifluoromethanesulfonic acid to various metal triflates such as bismuth, scandium, or iron triflates—the process effectively promotes the Meyer-Schuster rearrangement while simultaneously facilitating the subsequent halogenation. This tandem nature ensures that the reactive intermediate generated during the rearrangement is immediately trapped by the halogen source, thereby driving the equilibrium towards the product and minimizing side reactions. The elimination of expensive noble metals like gold significantly lowers the barrier to entry for commercial scale-up of complex pharmaceutical intermediates. Moreover, the reaction conditions are remarkably mild, typically operating between 40°C and 120°C, which enhances safety profiles and reduces energy consumption compared to harsher traditional methods. This robustness makes the process highly attractive for cost reduction in fine chemical manufacturing, providing a scalable solution that aligns with modern green chemistry principles.

Mechanistic Insights into Acid-Catalyzed Tandem Rearrangement

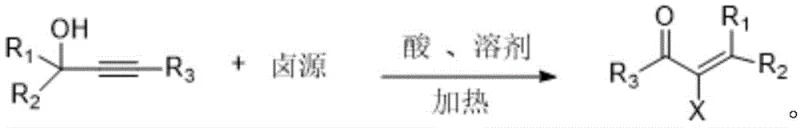

The core of this technological advancement lies in the intricate interplay between the acid catalyst and the halogen source during the tandem transformation. The reaction initiates with the protonation or Lewis acid coordination of the hydroxyl group in the propargyl alcohol derivative, which activates the molecule for the Meyer-Schuster rearrangement. This classic rearrangement involves a 1,3-migration of the hydroxyl functionality to the adjacent carbon, resulting in the formation of an alpha,beta-unsaturated carbonyl intermediate. In traditional settings, isolating this intermediate would require separate steps; however, in this patented system, the presence of the halogen source allows for an immediate electrophilic attack at the alpha-position of the newly formed enone system. The acid catalyst plays a dual role: it not only drives the initial rearrangement but also enhances the electrophilicity of the halogen source, ensuring rapid and selective halogenation. This synchronized mechanism prevents the accumulation of the unsaturated carbonyl intermediate, which could otherwise undergo polymerization or other degradation pathways. The choice of halogen source is equally critical, with options including molecular iodine, bromine, N-iodosuccinimide (NIS), N-bromosuccinimide (NBS), and others, allowing for precise tuning of the reaction kinetics to match the electronic properties of the specific substrate being employed.

From an impurity control perspective, this mechanism offers distinct advantages over prior art. One of the major challenges in halogenating propargyl alcohols is the competing direct substitution of the hydroxyl group by the halogen, which leads to undesired propargyl halide by-products. The patented method overcomes this by optimizing the molar ratios of the reactants and selecting specific acid catalysts that favor the rearrangement pathway over direct substitution. For instance, the use of metal triflates like bismuth trifluoromethanesulfonate has been shown to effectively suppress direct halogenation, thereby channeling the reaction flux towards the target alpha-halogenated unsaturated ketone. This selectivity is crucial for maintaining high purity levels, often exceeding 99.5% after standard purification techniques like column chromatography. The ability to tolerate a wide range of functional groups on the R1, R2, and R3 substituents—including electron-withdrawing groups like trifluoromethyl and cyano, as well as electron-donating groups like methoxy and tert-butyl—demonstrates the versatility of this catalytic system. Such broad substrate compatibility ensures that this method can be applied to the synthesis of diverse libraries of intermediates required for drug discovery and process development.

How to Synthesize Alpha-Halogenated Unsaturated Ketones Efficiently

Implementing this synthesis route in a laboratory or pilot plant setting requires careful attention to reaction parameters to maximize yield and reproducibility. The general protocol involves charging a sealed tube or reactor with the 1,3-substituted propargyl alcohol, the chosen halogen source, and the acid catalyst in a suitable solvent such as dioxane, dichloroethane, or toluene. The mixture is then heated to the specified temperature range, typically between 40°C and 120°C depending on the reactivity of the substrates. Reaction progress is monitored via thin-layer chromatography (TLC) to ensure complete consumption of the starting alcohol. Upon completion, the reaction is quenched with saturated brine to neutralize the acid and decompose any excess halogenating agent. The product is then extracted into an organic phase, dried, and concentrated. While the crude product often exhibits high purity, final purification via silica gel column chromatography using standard eluent systems like ethyl acetate and petroleum ether is recommended to achieve pharmaceutical-grade specifications.

1. Mix propargyl alcohol derivatives, a halogen source (such as NIS or NBS), and an acid catalyst (like metal triflates or trifluoroacetic acid) in a suitable organic solvent.
2. Heat the reaction mixture to a temperature between 40°C and 120°C and monitor progress via TLC until the starting material is fully consumed.
3. Quench the reaction with saturated brine, extract the organic phase with ethyl acetate, dry over anhydrous sodium sulfate, and purify via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this patented synthesis method translates into tangible strategic benefits that extend beyond mere technical feasibility. The primary advantage lies in the drastic simplification of the supply chain for raw materials. By eliminating the need for pre-activated substrates like propargyl acetates or sulfonates, manufacturers can source cheaper and more abundant propargyl alcohols directly. This reduction in precursor complexity not only lowers the direct material costs but also mitigates the risk of supply disruptions associated with specialized reagents. Furthermore, the removal of expensive gold catalysts from the process equation results in substantial cost savings, as the replacement acids and metal triflates are significantly more affordable and widely available in bulk quantities. This shift allows for a more predictable cost structure, enabling better long-term budget planning for large-scale production campaigns. The one-pot nature of the reaction also reduces the number of unit operations required, which in turn decreases labor hours, utility consumption, and waste disposal costs, contributing to a leaner and more efficient manufacturing footprint.

• Cost Reduction in Manufacturing: The economic impact of switching to this acid-catalyzed protocol is profound, primarily due to the avoidance of precious metal catalysts. Gold-based systems, while effective, impose a heavy financial burden due to the high market price of gold and the necessity for rigorous metal scavenging steps to meet regulatory limits. By utilizing base metal triflates or simple organic acids, the process achieves similar or superior yields without the associated premium. Additionally, the high conversion rates and minimized by-product formation mean that less raw material is wasted, improving the overall atom economy. This efficiency gain allows manufacturers to produce high-purity pharmaceutical intermediates at a fraction of the cost of traditional methods, enhancing profit margins and competitiveness in the global market.
• Enhanced Supply Chain Reliability: Supply chain resilience is bolstered by the use of commodity chemicals that are less susceptible to geopolitical volatility or niche market shortages. Propargyl alcohols and common halogen sources like NIS or NBS are produced by numerous suppliers worldwide, ensuring a stable and continuous flow of materials. The robustness of the reaction conditions, which tolerate a variety of solvents and temperatures, further adds to this reliability by allowing flexibility in sourcing. If a specific solvent becomes unavailable or expensive, the process can often be adapted to use alternatives like toluene or dichloromethane without compromising performance. This adaptability is crucial for maintaining production schedules and meeting tight delivery deadlines for downstream API manufacturers.
• Scalability and Environmental Compliance: Scaling this process from gram to ton scale is facilitated by its operational simplicity and mild conditions. The absence of sensitive catalysts that require inert atmospheres or strict moisture control simplifies the engineering requirements for large reactors. Moreover, the reduction in chemical waste and the elimination of heavy metal contaminants align perfectly with increasingly stringent environmental regulations. Companies adopting this technology can demonstrate a commitment to sustainability, which is becoming a key differentiator in vendor selection processes for multinational corporations. The ability to produce complex intermediates with a smaller environmental footprint not only reduces compliance costs but also enhances the corporate brand image as a responsible manufacturer.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this alpha-halogenated unsaturated aldehyde ketone preparation method. These insights are derived directly from the experimental data and comparative analysis presented in the patent documentation, providing clarity on the practical aspects of the technology. Understanding these details is vital for technical teams evaluating the feasibility of integrating this route into their existing manufacturing portfolios.

Q: What are the primary advantages of this acid-catalyzed method over gold-catalyzed routes?

A: This method eliminates the need for expensive bimetallic gold catalysts, significantly reducing raw material costs and environmental impact while maintaining high yields up to 91%.

Q: Does this process require protection of the hydroxyl group in propargyl alcohols?

A: No, the optimized reaction pathway and halogen source selection effectively inhibit direct halogenation of the hydroxyl group, removing the need for protection-deprotection steps.

Q: What types of substrates are compatible with this tandem rearrangement strategy?

A: The method demonstrates broad substrate scope, accommodating various 1,3-substituted propargyl alcohols including those with aryl, heteroaryl, and alkyl substituents.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable Alpha-Halogenated Unsaturated Aldehyde Ketone Supplier

At NINGBO INNO PHARMCHEM, we recognize the transformative potential of this patented synthesis technology in reshaping the production of critical chemical intermediates. As a leading CDMO partner, we possess extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that the theoretical benefits of this acid-catalyzed tandem reaction are fully realized in a commercial setting. Our state-of-the-art facilities are equipped with rigorous QC labs capable of verifying stringent purity specifications, guaranteeing that every batch of alpha-halogenated unsaturated carbonyls meets the exacting standards required by the pharmaceutical and agrochemical industries. We are committed to leveraging our technical expertise to optimize this process further, tailoring reaction conditions to specific customer needs while maintaining the highest levels of quality and safety.

We invite you to collaborate with us to explore how this innovative method can enhance your supply chain efficiency and reduce your overall manufacturing costs. Our technical procurement team is ready to provide a Customized Cost-Saving Analysis tailored to your specific project requirements. Please contact us to request specific COA data for our catalog items or to discuss route feasibility assessments for your custom synthesis projects. Together, we can drive innovation and efficiency in the production of high-value fine chemical intermediates.
