Advanced Mo/Cu Co-Catalyzed Synthesis of 3-Trifluoromethyl-1,2,4-Triazole Intermediates for Commercial Scale

Advanced Mo/Cu Co-Catalyzed Synthesis of 3-Trifluoromethyl-1,2,4-Triazole Intermediates for Commercial Scale

The pharmaceutical and agrochemical industries continuously demand efficient, scalable routes to fluorinated heterocycles, particularly those containing the 1,2,4-triazole motif found in blockbuster drugs like Sitagliptin. A significant technological breakthrough in this domain is detailed in patent CN113307778A, which discloses a novel preparation method for 3-trifluoromethyl substituted 1,2,4-triazole compounds. This innovation addresses critical bottlenecks in traditional synthesis by employing a dual-catalyst system involving molybdenum hexacarbonyl and cuprous acetate. The process enables the construction of the triazole ring under remarkably mild conditions, typically between 70°C and 90°C, utilizing readily available starting materials such as trifluoroethylimidoyl chloride and functionalized isonitriles. For R&D directors and procurement specialists, this represents a paradigm shift towards safer, more cost-effective manufacturing of high-value intermediates.

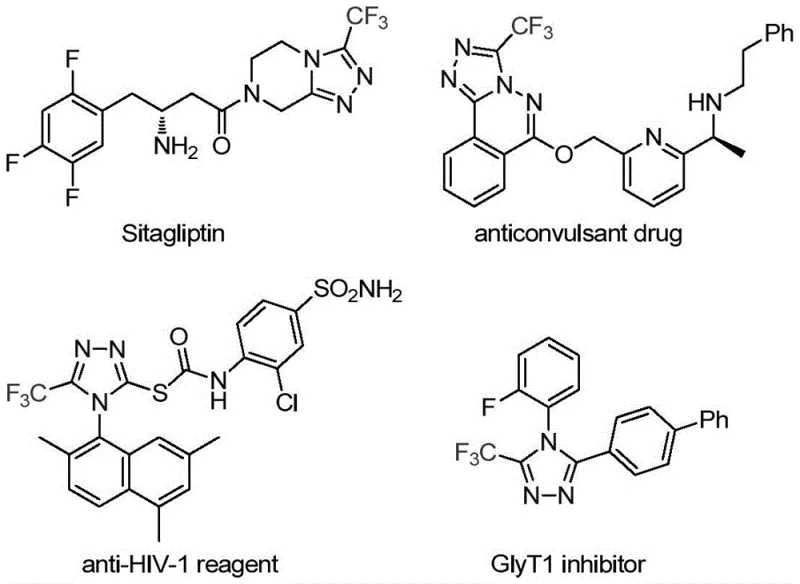

The strategic importance of this chemistry cannot be overstated, as the introduction of a trifluoromethyl group significantly enhances the metabolic stability, lipophilicity, and bioavailability of the parent molecule. As illustrated in the structural diversity of known pharmaceuticals, the ability to access these scaffolds reliably is a key competitive advantage. The patented method not only simplifies the synthetic route but also expands the applicability of these compounds by tolerating a wide range of functional groups, thereby serving as a robust platform for the development of next-generation active pharmaceutical ingredients (APIs) and agrochemical agents.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of trifluoromethyl-substituted 1,2,4-triazoles has relied on methodologies that pose significant challenges for large-scale commercial production. Traditional routes often involve the cyclization of trifluoroacetyl hydrazine with amidine compounds or the hydrazinolysis of trifluoromethyl-substituted 1,2,4-oxazolinones, processes that frequently require harsh reaction conditions and generate substantial amounts of hazardous waste. Another common approach utilizes copper-catalyzed multi-component reactions involving diazonium salts and trifluorodiazoethane; however, the handling of diazonium salts and diazo compounds introduces severe safety risks due to their potential explosivity and thermal instability. These legacy methods often suffer from poor atom economy, limited substrate scope, and difficult purification protocols, leading to increased production costs and extended lead times for reliable pharmaceutical intermediate supplier networks.

The Novel Approach

In stark contrast, the methodology disclosed in CN113307778A offers a streamlined, safe, and highly efficient alternative. By leveraging a cooperative catalytic system of molybdenum hexacarbonyl and cuprous acetate, the reaction proceeds smoothly in common organic solvents like THF at moderate temperatures of 70-90°C. This approach eliminates the need for dangerous diazo reagents, replacing them with stable functionalized isonitriles (Ph3P=N-NC) and trifluoroethylimidoyl chlorides. The reaction mechanism likely involves the activation of the isonitrile by the molybdenum species, followed by a copper-promoted [3+2] cycloaddition to form the five-membered triazole ring. This novel pathway not only improves operational safety but also delivers high reaction efficiencies, with isolated yields reaching up to 99% for certain substrates, as demonstrated in the experimental data. This represents a substantial advancement in cost reduction in API manufacturing by simplifying the process flow and reducing safety overheads.

Mechanistic Insights into Mo/Cu Co-Catalyzed Cycloaddition

The success of this synthetic strategy lies in the synergistic interaction between the molybdenum and copper catalysts. Mechanistically, molybdenum hexacarbonyl acts as a metal activator that coordinates with the functionalized isonitrile, increasing its electrophilicity and facilitating the subsequent nucleophilic attack. Simultaneously, the cuprous acetate promotes the cycloaddition step, guiding the formation of the 1,2,4-triazole core with high regioselectivity. Following the ring closure, the system undergoes a hydrolysis-like step where triphenylphosphine oxide is eliminated, driven by trace water in the system or added molecular sieves, to yield the final 3-trifluoromethyl-substituted product. This intricate dance of coordination chemistry ensures that the reaction proceeds with minimal side reactions, a critical factor for maintaining a clean impurity profile in high-purity OLED material or pharmaceutical intermediate synthesis.

From an impurity control perspective, the mild thermal conditions (70-90°C) are pivotal. High-temperature processes often lead to the decomposition of sensitive fluorinated intermediates or the formation of polymeric tars that are difficult to remove. By keeping the temperature moderate, this method preserves the integrity of the trifluoromethyl group and prevents the degradation of the imidoyl chloride starting material. Furthermore, the use of triethylamine as a base scavenges the HCl generated during the reaction without introducing metallic residues that could complicate downstream processing. The result is a crude reaction mixture that is amenable to standard purification techniques like column chromatography or recrystallization, ensuring that the final product meets the stringent purity specifications required for commercial scale-up of complex polymer additives or drug substances.

How to Synthesize 3-Trifluoromethyl-1,2,4-Triazole Efficiently

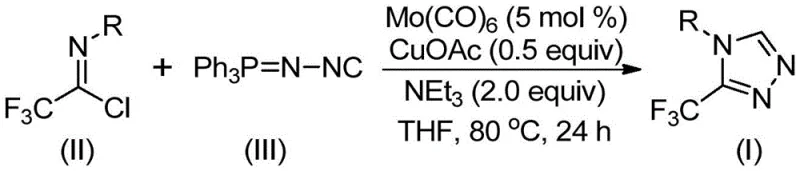

The practical implementation of this chemistry is straightforward and designed for reproducibility in both laboratory and pilot plant settings. The protocol involves charging a reactor with the catalyst system—specifically 5 mol % molybdenum hexacarbonyl and 0.5 equivalents of cuprous acetate—along with 2.0 equivalents of triethylamine and molecular sieves to manage moisture. To this mixture, the key building blocks, trifluoroethylimidoyl chloride and the functionalized isonitrile, are added in a molar ratio of approximately 1:1.5 to drive the reaction to completion. The detailed standardized synthesis steps see the guide below, which outlines the precise addition order and workup procedures to maximize yield and safety.

1. Combine molybdenum hexacarbonyl (5 mol %), cuprous acetate (0.5 equiv), triethylamine (2.0 equiv), and molecular sieves in an organic solvent such as THF.
2. Add trifluoroethylimidoyl chloride and functionalized isonitrile (Ph3P=N-NC) to the reaction mixture under inert atmosphere.
3. Heat the reaction mixture to 70-90°C for 18-30 hours, then filter and purify via column chromatography to isolate the target triazole.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this patented technology offers tangible benefits that extend beyond mere chemical yield. The shift away from hazardous diazonium chemistry significantly reduces the regulatory burden and insurance costs associated with manufacturing, while the use of commodity chemicals like cuprous acetate and triethylamine ensures a stable and predictable supply chain. The robustness of the reaction conditions means that the process is less susceptible to minor fluctuations in temperature or mixing, enhancing the reliability of batch-to-batch production and reducing the risk of costly campaign failures.

• Cost Reduction in Manufacturing: The elimination of expensive and specialized reagents, combined with the use of low-loading catalysts (5 mol %), drastically lowers the raw material cost per kilogram of product. Furthermore, the simplified workup procedure, which avoids complex extraction or distillation steps often required to remove hazardous byproducts, leads to substantial cost savings in utility consumption and labor. The high conversion rates observed across a broad range of substrates mean that less starting material is wasted, directly improving the overall process mass intensity (PMI) and contributing to a leaner, more profitable manufacturing operation.
• Enhanced Supply Chain Reliability: The starting materials for this synthesis, particularly the trifluoroethylimidoyl chlorides and functionalized isonitriles, are derived from widely available commodity chemicals, reducing dependency on single-source suppliers for exotic reagents. This accessibility ensures that production schedules can be maintained even during periods of global supply chain disruption. Additionally, the stability of the reagents allows for longer shelf-life and easier storage, minimizing the risk of raw material degradation and ensuring consistent quality input for the synthesis of high-purity pharmaceutical intermediates.
• Scalability and Environmental Compliance: The reaction has been demonstrated to be scalable from gram-level experiments to larger batches without loss of efficiency, indicating strong potential for multi-ton production. From an environmental standpoint, the avoidance of heavy metal waste streams associated with stoichiometric oxidants and the reduction of hazardous waste generation align with modern green chemistry principles. This facilitates easier permitting and compliance with increasingly strict environmental regulations, positioning the manufacturer as a responsible partner in the global supply chain for sustainable chemical production.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this Mo/Cu co-catalyzed triazole synthesis. These insights are derived directly from the experimental data and technical disclosures within the patent documentation, providing a clear understanding of the method's capabilities and limitations for potential licensees and manufacturing partners.

Q: What are the advantages of the Mo/Cu co-catalytic system over traditional diazonium salt methods?

A: The Mo/Cu co-catalytic system described in patent CN113307778A operates under significantly milder conditions (70-90°C) compared to the hazardous and often cryogenic conditions required for diazonium salt chemistry. Furthermore, it utilizes stable functionalized isonitriles rather than unstable diazo compounds, enhancing operational safety and scalability for industrial production.

Q: What is the substrate scope for the R-group in this triazole synthesis?

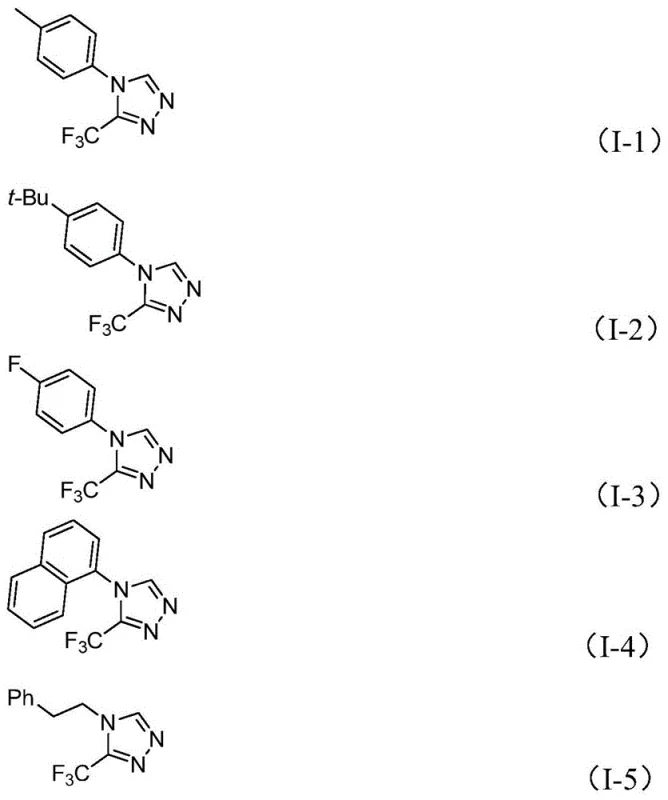

A: The method demonstrates excellent tolerance for various substituents on the aryl ring, including electron-donating groups like methyl and methoxy, as well as electron-withdrawing groups such as fluoro, chloro, and nitro. Alkyl and phenethyl groups are also compatible, allowing for the synthesis of diverse libraries of 3-trifluoromethyl-1,2,4-triazole derivatives.

Q: How does this method impact the purity profile of the final API intermediate?

A: By avoiding harsh hydrazinolysis or high-energy cyclization steps, this method minimizes the formation of complex polymeric byproducts. The use of specific catalytic loads (5 mol % Mo(CO)6) and mild temperatures ensures a cleaner reaction profile, facilitating easier downstream purification and resulting in higher purity specifications suitable for pharmaceutical applications.
