Advanced Iodine-Catalyzed Synthesis of Imidazo[1,2-a]pyridine Derivatives for Commercial Scale-Up

Advanced Iodine-Catalyzed Synthesis of Imidazo[1,2-a]pyridine Derivatives for Commercial Scale-Up

The pharmaceutical and fine chemical industries are constantly seeking robust, scalable, and environmentally benign methodologies for constructing complex heterocyclic scaffolds that serve as critical building blocks for next-generation therapeutics. Patent CN108690018B introduces a groundbreaking preparation method for imidazo[1,2-a]pyridine derivatives, specifically focusing on the efficient synthesis of substituted 3-phenoxyimidazo[1,2-a]pyridines. This technology addresses the longstanding challenges associated with traditional heterocyclic synthesis by employing elemental iodine as a cost-effective and non-toxic catalyst, thereby eliminating the need for precious transition metals. The significance of this innovation extends beyond mere academic interest, as these derivatives are pivotal precursors for a wide array of bioactive molecules exhibiting antifungal, anti-inflammatory, antitumor, and antiviral properties. Furthermore, the utility of these compounds in organic optoelectronic materials and biological probes underscores their versatility, making this synthetic route a valuable asset for diverse chemical sectors ranging from drug discovery to advanced material science.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the imidazo[1,2-a]pyridine core has relied heavily on transition metal-catalyzed cross-coupling reactions or multi-step condensation strategies that often suffer from significant operational drawbacks. Conventional protocols frequently necessitate the use of expensive palladium or copper catalysts, which not only inflate the raw material costs but also introduce severe challenges regarding the removal of toxic metal residues from the final active pharmaceutical ingredients. These metal contaminants pose substantial regulatory hurdles, requiring additional purification steps such as scavenging or recrystallization, which inevitably reduce overall process efficiency and increase waste generation. Moreover, many traditional methods require harsh reaction conditions, including elevated temperatures and strong bases, which can compromise the integrity of sensitive functional groups on the substrate, leading to lower selectivity and the formation of difficult-to-separate impurities. The reliance on complex ligand systems further complicates the supply chain, as these specialized reagents may have limited availability and long lead times, creating bottlenecks for large-scale manufacturing operations.

The Novel Approach

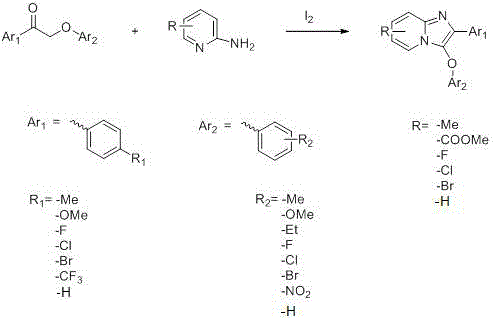

In stark contrast to these legacy techniques, the methodology disclosed in patent CN108690018B leverages a simple yet highly effective iodine-catalyzed cyclization strategy that streamlines the entire production workflow. By utilizing readily available 2-phenoxyacetophenones and 2-aminopyridines as starting materials, this novel approach facilitates a direct and atom-economical pathway to the target heterocycles under mild thermal conditions. The substitution of precious metals with elemental iodine represents a paradigm shift in process chemistry, drastically reducing the environmental footprint and simplifying the downstream processing requirements. This method demonstrates exceptional substrate tolerance, accommodating a wide variety of electron-donating and electron-withdrawing groups without compromising reaction efficiency, which is crucial for generating diverse libraries for medicinal chemistry campaigns. Additionally, the protocol extends its applicability to the synthesis of fused heterocyclic systems like benzo[d]imidazo[2,1-b]thiazoles, showcasing its versatility in constructing complex molecular architectures.

Mechanistic Insights into Iodine-Catalyzed Cyclization

The mechanistic elegance of this transformation lies in the ability of molecular iodine to act as a mild Lewis acid and an oxidant, facilitating the activation of the carbonyl group and promoting the subsequent nucleophilic attack by the amine nitrogen. Upon mixing the 2-phenoxyacetophenone derivative with the 2-aminopyridine in a suitable solvent such as 1,2-dichloroethane or chloroform, the iodine catalyst coordinates with the carbonyl oxygen, increasing the electrophilicity of the adjacent carbon center. This activation lowers the energy barrier for the initial condensation step, allowing the formation of an imine intermediate under relatively mild thermal conditions ranging from 100°C to 110°C. Following the imine formation, an intramolecular cyclization occurs, driven by the nucleophilicity of the pyridine nitrogen attacking the activated alpha-carbon, ultimately leading to the closure of the imidazole ring. The final aromatization step, potentially assisted by the oxidative nature of iodine or aerial oxygen, ensures the formation of the stable, fully conjugated imidazo[1,2-a]pyridine system with high regioselectivity.

From an impurity control perspective, this mechanism offers distinct advantages by minimizing side reactions that are commonly observed in metal-catalyzed variants, such as homocoupling or dehalogenation. The absence of transition metals eliminates the risk of metal-induced decomposition pathways, resulting in a cleaner reaction profile that simplifies the purification process significantly. The workup procedure described involves a straightforward aqueous wash with saturated sodium thiosulfate to quench excess iodine, followed by standard brine washes, which effectively removes inorganic salts and polar byproducts. This simplicity in workup translates directly to higher recovery rates of the desired product, as evidenced by the reported isolated yields consistently exceeding 97% across various examples. The robustness of this catalytic cycle ensures that even with diverse substituents on the aromatic rings, the reaction proceeds with high fidelity, producing high-purity intermediates suitable for direct use in subsequent synthetic steps without extensive chromatographic purification.

How to Synthesize 3-Phenoxyimidazo[1,2-a]pyridine Efficiently

To implement this high-efficiency synthesis in a laboratory or pilot plant setting, operators must adhere to specific procedural guidelines that ensure optimal conversion and safety. The process begins with the careful charging of dry reactors under an inert atmosphere to prevent moisture interference, followed by the precise addition of stoichiometric amounts of the ketone and amine substrates along with the iodine catalyst. Detailed standardized operating procedures for this synthesis are provided below to ensure reproducibility and safety compliance.

1. Charge a dry reactor with 2-phenoxyacetophenone, 2-aminopyridine, elemental iodine catalyst, and a halogenated or alkane solvent under inert gas protection.
2. Heat the reaction mixture to a temperature range of 100°C to 110°C and maintain stirring until the conversion is complete.
3. Quench the reaction and wash the organic layer with saturated sodium thiosulfate, water, and brine, followed by column chromatography purification.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this iodine-catalyzed technology presents a compelling value proposition centered around cost optimization and supply reliability. The elimination of expensive transition metal catalysts and specialized ligands results in a drastic reduction in raw material expenditures, allowing for more competitive pricing structures for the final intermediates. Furthermore, the simplified workup procedure, which avoids complex metal scavenging steps, significantly reduces the consumption of auxiliary chemicals and solvents, contributing to lower overall manufacturing costs and a reduced environmental burden. The high yields reported in the patent imply superior material efficiency, meaning less starting material is wasted, which is a critical factor in managing the cost of goods sold for high-volume production runs. These factors combined create a leaner, more agile manufacturing process that is less susceptible to supply chain disruptions associated with scarce catalytic metals.

• Cost Reduction in Manufacturing: The replacement of precious metal catalysts with inexpensive elemental iodine fundamentally alters the cost structure of the synthesis, removing the volatility associated with palladium or rhodium markets. This switch not only lowers the direct cost of reagents but also reduces the capital expenditure required for specialized equipment needed to handle toxic heavy metals. The streamlined purification process further contributes to cost savings by reducing labor hours and solvent usage during the isolation phase. Consequently, manufacturers can achieve substantial economic benefits while maintaining high product quality standards.
• Enhanced Supply Chain Reliability: Utilizing commodity chemicals like iodine and common solvents such as dichloroethane or hexane ensures a stable and resilient supply chain that is not dependent on single-source suppliers of exotic catalysts. The robustness of the reaction conditions allows for flexible scheduling and batch sizing, enabling producers to respond quickly to fluctuating market demands without lengthy lead times for reagent procurement. This reliability is paramount for pharmaceutical clients who require consistent quality and timely delivery to meet their own production schedules and regulatory filing deadlines.
• Scalability and Environmental Compliance: The mild reaction conditions and absence of heavy metals make this process inherently safer and easier to scale from kilogram to multi-ton quantities without significant engineering hurdles. The reduced generation of hazardous metal-containing waste simplifies compliance with increasingly stringent environmental regulations, lowering the costs associated with waste disposal and treatment. This green chemistry approach aligns with corporate sustainability goals, enhancing the brand reputation of manufacturers who adopt this technology as responsible stewards of the environment.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented synthesis method, providing clarity for potential partners and licensees. These answers are derived directly from the experimental data and technical specifications outlined in the patent documentation to ensure accuracy and relevance.

Q: What catalyst is used in this novel synthesis method?

A: The process utilizes elemental iodine (I2) as a metal-free catalyst, replacing expensive and toxic transition metals typically required for such heterocyclic constructions.

Q: What are the typical yields for these derivatives?

A: The patent reports exceptionally high yields, consistently exceeding 97% across various substituted substrates, indicating robust reaction efficiency.

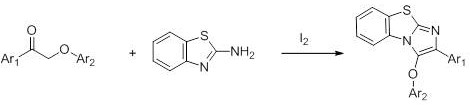

Q: Can this method be applied to benzothiazole derivatives?

A: Yes, the methodology is versatile and successfully extends to the synthesis of benzo[d]imidazo[2,1-b]thiazole derivatives using 2-aminobenzothiazole substrates.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 3-Phenoxyimidazo[1,2-a]pyridine Supplier

At NINGBO INNO PHARMCHEM, we recognize the transformative potential of this iodine-catalyzed technology in advancing the production of high-value pharmaceutical intermediates and fine chemicals. As a leading CDMO partner, we possess extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your transition from bench-scale discovery to full-scale manufacturing is seamless and efficient. Our state-of-the-art facilities are equipped with rigorous QC labs capable of meeting stringent purity specifications, guaranteeing that every batch of 3-phenoxyimidazo[1,2-a]pyridine derivatives meets the highest industry standards for potency and impurity profiles. We are committed to leveraging our technical expertise to optimize this process further, delivering cost-effective solutions that accelerate your drug development timelines.

We invite you to collaborate with us to explore how this innovative synthetic route can enhance your supply chain resilience and reduce your overall manufacturing costs. Please contact our technical procurement team today to request a Customized Cost-Saving Analysis tailored to your specific volume requirements. We are ready to provide specific COA data and comprehensive route feasibility assessments to demonstrate how our capabilities align with your strategic sourcing objectives.
