Advanced Lithiation Strategy for High-Purity 1-Formylcarbazole Production
Introduction to Next-Generation Carbazole Functionalization
The rapid expansion of the organic light-emitting diode (OLED) industry has placed immense pressure on the supply chain for high-performance hole-transport materials, specifically carbazole derivatives. Patent CN111848491B introduces a transformative synthetic methodology for producing 1-formylcarbazole, a critical building block for advanced optoelectronic polymers and small molecules. Unlike traditional routes that suffer from regioselectivity issues and excessive waste, this novel approach utilizes a strategic N-protection sequence followed by directed ortho-lithiation. By leveraging the stability of the 2-(trimethylsilyl)ethoxymethyl (SEM) group, the process achieves total yields exceeding 80% with purity levels surpassing 99%. This technical breakthrough addresses the longstanding bottlenecks in carbazole functionalization, offering a robust pathway for manufacturers seeking reliable OLED intermediate suppliers who can deliver consistent quality at scale.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of 1-formylcarbazole has been plagued by inefficient multi-step sequences that hinder commercial viability. One prevalent method involves Suzuki coupling of nitro compounds followed by cyclization, which notoriously produces a mixture of 1-formyl and 3-formyl isomers. Separating these regioisomers requires energy-intensive chromatography, drastically reducing overall throughput and increasing solvent waste. Another common route employs the oxidative dehydrogenation of cyclohexanone and phenylhydrazine derivatives. This pathway is not only lengthy but also relies on expensive oxidants that generate hazardous by-products, complicating purification and raising environmental compliance costs. Furthermore, the harsh conditions often degrade the sensitive carbazole core, leading to tar formation and inconsistent batch-to-batch quality that is unacceptable for high-end electronic applications.
The Novel Approach
The methodology disclosed in the patent represents a paradigm shift by streamlining the synthesis into two highly efficient steps centered around lithiation chemistry. Instead of struggling with post-reaction separation, this route installs the formyl group directly onto the carbazole skeleton with precise regiocontrol. The key innovation lies in the temporary protection of the carbazole nitrogen atom using SEM chloride, which prevents unwanted side reactions at the N-position during the subsequent metalation step. This allows for the clean generation of the organolithium intermediate at the 1-position using n-butyllithium. Following formylation with DMF, a single acidic workup simultaneously quenches the reaction and removes the protecting group. This telescoped strategy eliminates the need for intermediate isolation and column chromatography, significantly shortening the production cycle and enhancing the economic feasibility of large-scale manufacturing.
Mechanistic Insights into SEM-Directed Ortho-Lithiation
The success of this synthesis hinges on the unique electronic and steric properties of the SEM protecting group compared to alternatives like methoxymethyl (MOM) or trimethylsilyl (TMS). During the lithiation step at cryogenic temperatures (-78°C to -10°C), the SEM group provides sufficient stability to withstand the strong basicity of n-butyllithium without undergoing decomposition or migration. Comparative data within the patent reveals that substituting SEM with MOM results in a precipitous drop in yield to approximately 40%, while TMS protection leads to near-total failure with yields below 10%. This suggests that the SEM group effectively modulates the electron density of the carbazole ring, facilitating the selective deprotonation or halogen-lithium exchange at the C1 position while shielding the nitrogen lone pair. The resulting lithiated species is then trapped by N,N-dimethylformamide (DMF), forming the aldehyde precursor with high fidelity.
Impurity control is inherently built into this mechanism through the simplicity of the workup procedure. Because the SEM group is acid-labile, the addition of dilute hydrochloric acid serves a dual purpose: it protonates the alkoxide intermediate to form the aldehyde and cleaves the silyl ether bond to regenerate the free N-H carbazole. This one-pot deprotection minimizes the exposure of the product to potentially degrading conditions and reduces the number of unit operations. The final crude product is sufficiently pure to be upgraded to >99% purity via simple recrystallization from ethanol, bypassing the need for silica gel chromatography entirely. This mechanistic elegance ensures that trace metal contaminants and organic by-products are kept to a minimum, a critical requirement for materials destined for OLED display layers where impurities can act as quenching sites.
How to Synthesize 1-Formylcarbazole Efficiently

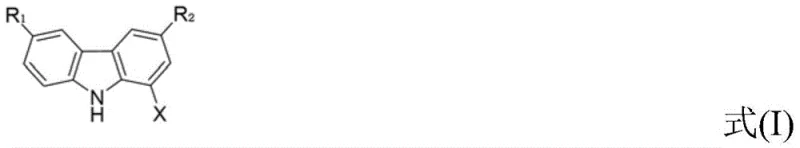

Implementing this synthesis requires strict adherence to anhydrous conditions and temperature control to maximize the efficiency of the organolithium step. The process begins with the dissolution of the halocarbazole starting material in a polar aprotic solvent such as DMF or THF, followed by treatment with a strong base like sodium hydride to generate the carbazole anion. Subsequent addition of SEM chloride installs the protecting group, yielding the stable N-SEM intermediate. For the second stage, the intermediate is dissolved in THF and cooled to -78°C before the slow addition of n-butyllithium. After the lithiation is complete, DMF is introduced to install the formyl group. The detailed standardized synthesis steps, including specific molar ratios, stirring times, and quenching protocols, are outlined in the guide below.
- Dissolve halocarbazole in anhydrous solvent, treat with strong base (NaH), and protect the nitrogen with SEMCl to form the N-SEM intermediate.
- React the protected intermediate with n-butyllithium at low temperature (-78°C) to generate the lithiated species, then quench with DMF.
- Quench the reaction with dilute acid to simultaneously remove the SEM protecting group and isolate the final 1-formylcarbazole product via recrystallization.
Commercial Advantages for Procurement and Supply Chain Teams
From a procurement perspective, this patented route offers substantial advantages by replacing expensive transition metal catalysts and oxidants with commodity chemicals. The elimination of palladium catalysts, which are required in Suzuki coupling routes, removes a significant cost driver and mitigates the risk of heavy metal contamination in the final API or electronic material. Additionally, the high atom economy of the lithiation step means that less raw material is wasted as by-product, directly improving the cost-per-kilogram of the active ingredient. The ability to purify the final product through recrystallization rather than chromatography further reduces the consumption of silica gel and organic solvents, leading to lower waste disposal fees and a smaller environmental footprint. These factors combine to create a more resilient and cost-effective supply chain for high-value carbazole derivatives.
- Cost Reduction in Manufacturing: The process significantly lowers production costs by utilizing inexpensive reagents such as n-butyllithium and DMF instead of precious metal catalysts. The high yield of over 80% ensures that raw material input is maximized, reducing the effective cost of goods sold. Furthermore, the simplification of the purification process eliminates the labor and material costs associated with column chromatography, allowing for a leaner manufacturing operation that can compete effectively on price in the global market for electronic chemicals.
- Enhanced Supply Chain Reliability: By relying on widely available bulk chemicals rather than specialized custom reagents, manufacturers can secure a more stable supply of inputs. The robustness of the SEM protection strategy reduces the risk of batch failures due to sensitivity issues, ensuring consistent delivery schedules. The shortened reaction sequence also decreases the overall cycle time, enabling faster turnaround from order to shipment. This agility is crucial for meeting the dynamic demands of the OLED and pharmaceutical sectors, where time-to-market is a key competitive differentiator.
- Scalability and Environmental Compliance: The mild reaction conditions and absence of toxic oxidants make this process highly scalable from pilot plant to full commercial production. The reduced solvent usage and elimination of silica waste align with increasingly stringent environmental regulations, minimizing the regulatory burden on production facilities. The ability to recycle solvents like THF and DMF further enhances the sustainability profile of the operation. This scalability ensures that suppliers can ramp up production volumes to meet surging demand for next-generation display materials without compromising on quality or safety standards.
Frequently Asked Questions (FAQ)
The following questions address common technical and commercial inquiries regarding the implementation of this synthesis route. They are derived from the specific experimental data and comparative examples provided in the patent documentation to ensure accuracy and relevance for potential partners. Understanding these details is essential for evaluating the feasibility of adopting this technology for your specific product portfolio.
Q: Why is the SEM protecting group preferred over MOM or TMS for this synthesis?
A: According to patent data, SEM protection yields over 80% total yield, whereas MOM protection drops to ~40% and TMS protection fails to produce the target efficiently due to instability during the harsh lithiation conditions.
Q: What is the purity level achievable with this new lithiation method?
A: The process consistently achieves a purity greater than 99%, often exceeding 99.9% after simple recrystallization, eliminating the need for complex column chromatography.
Q: Can this method be scaled for industrial OLED material production?
A: Yes, the method uses common reagents like n-BuLi and DMF under mild conditions (-78°C to RT), and the simplified workup makes it highly suitable for commercial scale-up from kilograms to metric tons.
