Scalable Photocatalytic Synthesis of High-Purity Diaza[7]Helicene Derivatives for Advanced Optoelectronics

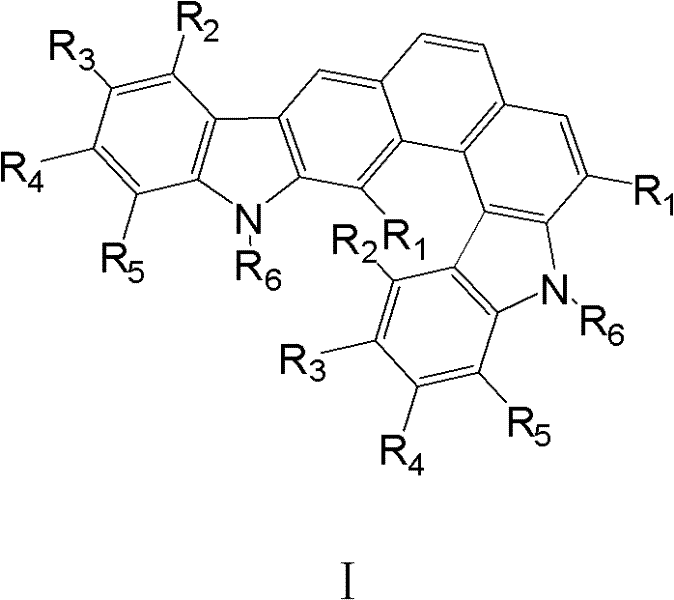

The chemical industry is witnessing a significant shift towards advanced optoelectronic materials, driven by the demand for higher efficiency in organic light-emitting diodes (OLEDs) and chiral liquid crystals. Patent CN102603748A introduces a groundbreaking methodology for the synthesis of carbazole-based highly condensed ring diaza[7]helicene compounds, addressing critical limitations in current material science. This technology leverages a photocatalytic ring-closing reaction to transform accessible carbazole derivatives into complex helical architectures with exceptional purity and yield. The strategic incorporation of nitrogen atoms within the helicene framework not only enhances electronic properties but also provides versatile active sites for further functionalization, making these compounds ideal candidates for next-generation display technologies and asymmetric catalysis applications.

Furthermore, the patent highlights the successful preparation of inclusion compound crystals through recrystallization in various solvents, demonstrating the material's adaptability and stability. For R&D directors seeking reliable OLED material suppliers, this synthetic route offers a robust pathway to access high-performance chiral molecules that were previously difficult to manufacture at scale. The ability to tune the physical and chemical properties by modifying substituents on the carbazole unit allows for precise customization of the material's bandgap and solubility profile, ensuring compatibility with diverse device architectures and processing conditions required in modern electronic manufacturing.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional synthesis of helicene derivatives often suffers from severe drawbacks that hinder their commercial viability, particularly regarding solubility and reaction efficiency. Conventional methods typically involve multi-step sequences with harsh conditions, leading to low overall yields and the formation of complex impurity profiles that are difficult to separate. As the conjugated system in helicenes expands to achieve desired electronic properties, the molecules tend to become increasingly rigid, resulting in strong intermolecular interactions that drastically reduce solubility in common organic solvents. This poor solubility creates significant bottlenecks in purification processes, such as column chromatography and recrystallization, ultimately increasing production costs and extending lead times for high-purity electronic chemicals. Additionally, many existing routes lack sufficient active sites for introducing functional groups, limiting the ability to fine-tune the material's performance for specific applications in asymmetric catalysis or biomedical fields.

The Novel Approach

In stark contrast, the novel approach detailed in the patent utilizes a photocatalytic ring-closing reaction that dramatically simplifies the synthetic workflow while enhancing product quality. By starting with cheap carbazole derivatives that possess multiple active spots, the method achieves high yields in a remarkably short timeframe, effectively bypassing the solubility issues plaguing traditional helicenes. The use of iodine as a promoter in conjunction with ultraviolet irradiation facilitates a clean oxidative cyclization that constructs the helical backbone with high fidelity. This strategy not only avoids the use of expensive reagents and transition metal catalysts but also ensures that the final diaza[7]helicene compounds maintain excellent solubility across a wide range of polar and non-polar solvents. For procurement managers focused on cost reduction in electronic chemical manufacturing, this translates to a more streamlined process with fewer purification steps and lower raw material expenses, facilitating easier popularization and application in industrial settings.

Mechanistic Insights into Photocatalytic Oxidative Cyclization

The core of this innovative synthesis lies in the iodine-mediated photocatalytic oxidative cyclization mechanism, which efficiently converts trans-1,2-bis(3-carbazole)ethylene derivatives into the target diaza[7]helicene structure. Upon irradiation with a high-pressure mercury lamp, the stilbene-like precursor undergoes electrocyclic ring closure to form a dihydro-intermediate. In the presence of iodine, this intermediate is rapidly oxidized to restore aromaticity, completing the formation of the new carbon-carbon bond that locks the helical conformation. The reaction is conducted in benzene or similar organic solvents, where the concentration of solutes is carefully controlled between 0.001 and 0.1 mol/L to optimize photon absorption and minimize side reactions. This mechanistic pathway is highly advantageous because it proceeds under mild conditions without the need for extreme temperatures or pressures, preserving the integrity of sensitive functional groups attached to the carbazole rings.

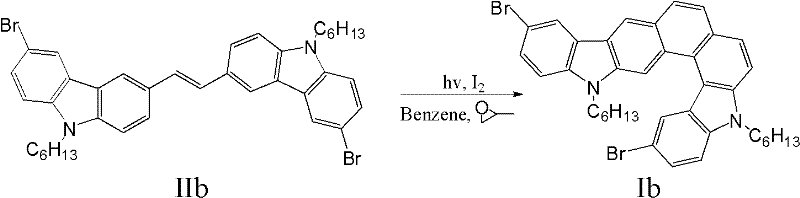

A critical component of this mechanism is the role of propylene oxide, which acts as an acid scavenger to neutralize the hydrogen iodide generated during the oxidation step. By trapping the HI byproduct, propylene oxide prevents acid-catalyzed degradation of the product or the starting material, thereby ensuring high conversion rates and minimizing impurity formation. The versatility of this mechanism is further demonstrated by its tolerance to various substituents, as evidenced by the successful synthesis of bromo-, phenyl-, and pyridyl-substituted derivatives with consistently high yields ranging from 78% to 80%. This robustness indicates that the electronic nature of the substituents has minimal impact on the cyclization efficiency, allowing chemists to explore a broad chemical space for optimizing the optoelectronic properties of the final helicene materials without compromising synthetic feasibility.

How to Synthesize 2,12-Dihexyl-2,12-Diaza[7]Helicene Efficiently

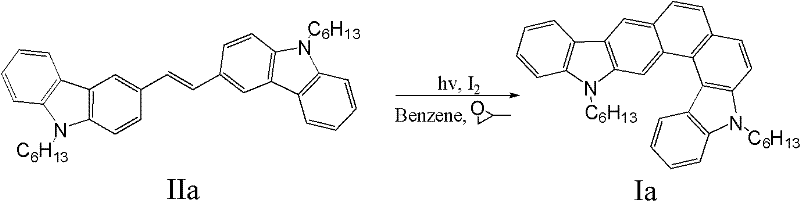

The synthesis of 2,12-dihexyl-2,12-diaza[7]helicene (Ia) serves as a prime example of the operational simplicity and efficiency of this patented technology. The process begins with the rigorous purification of the organic solvent, typically benzene, via distillation under an inert atmosphere to remove any moisture or oxygen that could interfere with the radical mechanisms involved in photocyclization. The precursor, trans-1,2-bis(9-hexyl-3-carbazole)ethylene, is dissolved along with a stoichiometric amount of iodine, and the solution is degassed to ensure optimal reaction conditions. Following the addition of propylene oxide, the mixture is subjected to UV irradiation for a brief period, typically around 10 minutes, after which the crude product is isolated through vacuum evaporation. Detailed standardized synthesis steps are provided in the guide below to ensure reproducibility and safety during scale-up operations.

1. Purify organic solvent (benzene) via distillation and store under inert atmosphere.
2. Dissolve trans-1,2-bis(3-carbazole)ethylene derivative and stoichiometric iodine in the solvent.
3. Add propylene oxide as an acid scavenger and irradiate with UV light (250-500W) for 5-15 minutes.
4. Work up by vacuum evaporation, washing with sodium thiosulfate, and purifying via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For supply chain heads and procurement professionals, the adoption of this photocatalytic synthesis route presents substantial opportunities for optimizing the sourcing of specialized electronic intermediates. The elimination of expensive transition metal catalysts and the use of readily available carbazole derivatives significantly lower the raw material costs associated with producing high-value helicene compounds. Furthermore, the short reaction time and high yield contribute to increased throughput in manufacturing facilities, allowing suppliers to respond more quickly to market demands and reducing the inventory holding costs for buyers. The simplified workup procedure, which involves basic washing and standard chromatography rather than complex metal scavenging steps, further reduces the operational burden and waste disposal costs, aligning with modern green chemistry principles and environmental compliance standards.

• Cost Reduction in Manufacturing: The process avoids the use of costly noble metal catalysts and expensive reagents, relying instead on inexpensive iodine and common organic solvents. This fundamental shift in reagent selection leads to a drastic simplification of the bill of materials, directly translating to lower production costs per kilogram of the final API intermediate. Additionally, the high yield achieved in a single step minimizes material loss and reduces the need for extensive recycling of unreacted starting materials, ensuring that the overall cost structure remains competitive even at smaller production scales.
• Enhanced Supply Chain Reliability: By utilizing cheap carbazole derivatives with multiple active sites as starting materials, the supply chain becomes less vulnerable to fluctuations in the availability of exotic precursors. The robustness of the reaction conditions means that production can be easily scaled from laboratory benchtop to commercial tonnage without significant re-engineering of the process equipment. This scalability ensures a continuous and stable supply of high-purity OLED materials, mitigating the risk of production delays that often plague complex multi-step syntheses dependent on scarce reagents or specialized catalytic systems.
• Scalability and Environmental Compliance: The reaction operates under mild conditions with short irradiation times, making it energy-efficient and easier to manage in large-scale photoreactors. The use of propylene oxide as a scavenger generates manageable byproducts, and the absence of heavy metals simplifies the wastewater treatment process, facilitating compliance with stringent environmental regulations. This eco-friendly profile not only reduces the cost of waste disposal but also enhances the sustainability credentials of the supply chain, which is increasingly important for downstream customers in the electronics and pharmaceutical sectors.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the synthesis and application of these carbazole-based helicene compounds. The answers are derived directly from the experimental data and technical specifications outlined in the patent documentation, providing clarity on the feasibility and advantages of this manufacturing route. Understanding these details is crucial for stakeholders evaluating the integration of these materials into their existing product lines or research pipelines.

Q: How does this method improve solubility compared to traditional helicenes?

A: By utilizing a carbazole backbone with multiple active sites, the resulting diaza[7]helicene compounds exhibit significantly improved solubility in common organic solvents compared to rigid, conventional helicene structures.

Q: What is the typical reaction time for this photocyclization process?

A: The photocatalytic ring-closing reaction is exceptionally fast, typically requiring only 5 to 15 minutes of irradiation with a high-pressure mercury lamp to reach completion.

Q: Are expensive transition metal catalysts required for this synthesis?

A: No, the process utilizes inexpensive iodine as a promoter and avoids the use of costly transition metal catalysts, thereby simplifying purification and reducing overall production costs.
