Advancing Pharmaceutical Intermediates: Efficient Pd-Catalyzed Synthesis of 3,4-Dihydrooxy-2(7H)-Ketones

Introduction to Novel Seven-Membered Lactone Synthesis

The development of efficient synthetic routes for complex heterocyclic scaffolds remains a cornerstone of modern medicinal chemistry, particularly for constructing cores found in potent bioactive molecules. Patent CN108440483B introduces a groundbreaking methodology for the preparation of 3,4-dihydrooxy-2(7H)-ketones, a class of seven-membered lactone compounds with significant potential in antitumor drug development. This innovation leverages a palladium-catalyzed [5+2] cycloaddition strategy, utilizing vinyl ethylene carbonate and oxazolone derivatives as key building blocks. Unlike traditional approaches that often require extreme temperatures or hazardous reagents, this protocol operates under remarkably mild conditions, typically at room temperature, thereby preserving sensitive functional groups and minimizing side reactions. For research and development teams focused on expanding their library of pharmacologically active intermediates, this technology offers a robust platform for accessing structurally diverse lactone frameworks with high atom economy and operational simplicity.

The strategic importance of this synthesis lies in its ability to construct the challenging seven-membered ring system directly from readily available precursors. The core structure of 3,4-dihydrooxy-2(7H)-ketones is prevalent in various natural products and pharmaceutical agents, such as brassinolide and camptothecin analogs, which are renowned for their biological efficacy. By establishing a reliable pathway to these motifs, the patent addresses a critical gap in the supply chain for high-value pharmaceutical intermediates. The method not only streamlines the synthetic sequence but also enhances the overall sustainability of the manufacturing process by reducing solvent usage and energy requirements. As the industry shifts towards greener chemistry practices, adopting such catalytic transformations becomes essential for maintaining competitiveness and meeting regulatory standards for environmental compliance in large-scale production facilities.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of seven-membered lactone rings has posed significant challenges due to entropic factors and the tendency for competing polymerization or smaller ring formation. Conventional synthetic strategies often rely on multi-step sequences involving protecting group manipulations, harsh acidic or basic conditions, and high-temperature cyclizations that can degrade sensitive substrates. These traditional methods frequently suffer from poor regioselectivity and low overall yields, necessitating extensive purification efforts that increase both cost and waste generation. Furthermore, the use of stoichiometric amounts of toxic reagents in older protocols raises serious safety concerns for operators and complicates waste disposal procedures. For procurement managers, these inefficiencies translate into higher raw material costs and longer lead times, as the complexity of the synthesis limits the number of qualified suppliers capable of delivering consistent quality. The inability to easily scale these processes often results in supply bottlenecks that can delay critical drug development programs and impact time-to-market for new therapeutic candidates.

The Novel Approach

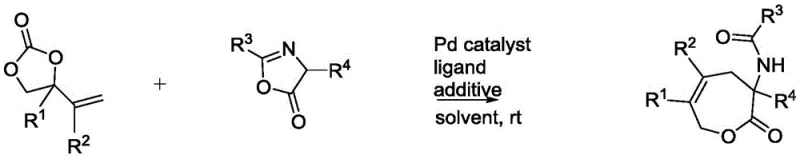

In stark contrast, the methodology disclosed in CN108440483B represents a paradigm shift by employing a transition metal-catalyzed decarboxylative coupling mechanism. This approach utilizes vinyl ethylene carbonate, which acts as a five-carbon synthon upon decarboxylation, reacting with the oxazolone component to form the seven-membered ring in a single catalytic cycle. The reaction proceeds smoothly at room temperature in common polar solvents like tetrahydrofuran, eliminating the need for energy-intensive heating or cooling systems. The use of a palladium catalyst system, specifically combinations like Pd2(dba)3 with triphenylphosphine ligands, ensures high turnover numbers and excellent functional group tolerance. This allows for the incorporation of diverse substituents, including halogens and alkoxy groups, without compromising the integrity of the final product. The streamlined nature of this process significantly reduces the number of unit operations required, leading to a drastic simplification of the workflow and a substantial reduction in manufacturing overheads.

Mechanistic Insights into Pd-Catalyzed Decarboxylative [5+2] Cycloaddition

Understanding the underlying mechanistic pathway is crucial for optimizing reaction parameters and troubleshooting potential issues during scale-up. The reaction initiates with the oxidative addition of the zero-valent palladium catalyst to the vinyl ethylene carbonate, followed by a rapid decarboxylation step that generates a reactive zwitterionic allylpalladium intermediate. This transient species serves as a five-atom synthon, possessing both nucleophilic and electrophilic character that facilitates the subsequent cycloaddition with the oxazolone dipole. The presence of additives such as trimethylchlorosilane (TMSCl) plays a pivotal role in stabilizing intermediates and promoting the turnover of the catalytic cycle, likely by sequestering oxygenated byproducts or activating the electrophilic centers. The coordination of the phosphine ligand to the palladium center modulates the electronic properties of the metal, fine-tuning its reactivity to favor the desired [5+2] pathway over competing [3+2] processes. This precise control over the reaction trajectory is what enables the high selectivity observed across a broad range of substrates, ensuring that the seven-membered lactone is formed exclusively without significant contamination from smaller ring byproducts.

From an impurity control perspective, the mildness of the reaction conditions inherently limits the formation of degradation products that typically arise from thermal stress. The high chemoselectivity of the palladium catalyst ensures that sensitive functional groups on the aryl rings, such as bromo or chloro substituents, remain intact throughout the transformation. This is particularly advantageous for downstream derivatization, as these halogen handles can be utilized for further cross-coupling reactions to build more complex molecular architectures. The simplicity of the workup procedure, which involves standard column chromatography using petroleum ether and ethyl acetate mixtures, further contributes to the purity profile of the isolated material. By minimizing the formation of tarry byproducts and polymeric residues, the process yields a crude product that is amenable to straightforward purification, resulting in final materials that meet stringent purity specifications required for pharmaceutical applications. This level of control over the impurity profile is a key differentiator for suppliers aiming to provide high-quality intermediates to regulated markets.

How to Synthesize 3,4-Dihydrooxy-2(7H)-Ketone Efficiently

The practical implementation of this synthesis is designed to be accessible for both laboratory-scale discovery and pilot-scale production. The protocol dictates a molar ratio of 1:1 between the vinyl ethylene carbonate and the oxazolone compound, ensuring optimal stoichiometry for maximum conversion. The catalyst loading is kept minimal, typically ranging from 1% to 5% relative to the substrate, which helps in managing the cost of precious metals while maintaining high catalytic efficiency. The reaction is monitored via thin-layer chromatography (TLC) to determine the endpoint, usually achieved within 3 to 6 hours, allowing for rapid iteration and optimization. Following the reaction, the mixture is subjected to a simple aqueous workup and purification via silica gel chromatography, yielding the target 3,4-dihydrooxy-2(7H)-ketone as a white solid with high purity. Detailed standardized operating procedures for specific derivatives can be found in the technical documentation below.

1. Combine vinyl ethylene carbonate and oxazolone compounds in a reaction vessel with a polar organic solvent such as tetrahydrofuran.
2. Add a palladium catalyst system comprising a metal source like Pd2(dba)3, a phosphorus ligand such as PPh3, and an acid-base additive like TMSCl.
3. Stir the mixture at room temperature for 3 to 6 hours, monitor by TLC, and purify the crude product via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement professionals and supply chain strategists, the adoption of this patented technology offers tangible benefits that extend beyond mere chemical novelty. The shift towards a catalytic process operating at ambient temperature directly correlates with a significant reduction in energy consumption, as there is no requirement for prolonged heating or cryogenic cooling. This energy efficiency translates into lower utility costs per kilogram of product, enhancing the overall cost-competitiveness of the manufacturing operation. Furthermore, the use of widely available and inexpensive solvents like tetrahydrofuran simplifies logistics and reduces the risk of supply disruptions associated with specialized or hazardous reagents. The robustness of the reaction across a wide substrate scope means that a single production line can be adapted to manufacture a variety of analogues with minimal changeover time, increasing asset utilization and flexibility in responding to market demands. These factors collectively contribute to a more resilient and agile supply chain capable of supporting fast-paced drug development timelines.

• Cost Reduction in Manufacturing: The elimination of expensive stoichiometric reagents and the reduction in catalyst loading significantly lower the direct material costs associated with production. Additionally, the simplified post-treatment process reduces the volume of solvents and consumables required for purification, leading to substantial savings in waste disposal and processing time. By avoiding complex multi-step sequences, the overall process mass intensity is improved, which is a key metric for sustainable and cost-effective manufacturing. These efficiencies allow for a more competitive pricing structure without compromising on the quality or purity of the final intermediate, providing a clear economic advantage over legacy synthetic routes.
• Enhanced Supply Chain Reliability: The reliance on commercially available starting materials such as vinyl ethylene carbonates and substituted oxazolones ensures a stable and secure supply of raw materials. These precursors are produced by multiple vendors globally, mitigating the risk of single-source dependency and price volatility. The short reaction time of 3 to 6 hours enables faster batch turnover, allowing manufacturers to respond quickly to urgent orders and reduce inventory holding costs. This agility is crucial for maintaining continuity of supply in the face of fluctuating demand patterns, ensuring that downstream customers receive their materials on schedule to keep their own production lines running smoothly.
• Scalability and Environmental Compliance: The mild reaction conditions and absence of hazardous byproducts make this process inherently safer and easier to scale from gram to ton quantities. The reduced generation of chemical waste aligns with increasingly strict environmental regulations, minimizing the burden on effluent treatment facilities and lowering compliance costs. The use of a palladium catalyst, while requiring recovery strategies, is manageable with established metal scavenging technologies, ensuring that residual metal levels in the final product are well below regulatory limits. This commitment to green chemistry principles not only protects the environment but also enhances the corporate reputation of the manufacturer as a responsible partner in the pharmaceutical value chain.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology. They are derived from the specific experimental data and beneficial effects outlined in the patent documentation, providing clarity on the practical aspects of the method. Understanding these details helps stakeholders make informed decisions about integrating this route into their existing manufacturing portfolios. The answers reflect the proven capabilities of the process as demonstrated in the provided examples, ensuring accuracy and reliability for planning purposes.

Q: What are the key advantages of this Pd-catalyzed method over traditional lactone synthesis?

A: This method utilizes mild room temperature conditions and avoids harsh reagents, significantly simplifying post-treatment and reducing energy consumption compared to thermal cyclization methods.

Q: Is this synthesis scalable for commercial production of pharmaceutical intermediates?

A: Yes, the protocol uses commercially available starting materials and standard purification techniques like column chromatography, making it highly suitable for scaling from gram to kilogram levels.

Q: What is the substrate scope for the oxazolone component in this reaction?

A: The reaction tolerates a wide range of substituents on the oxazolone, including electron-withdrawing groups like halogens and electron-donating groups like methyl or methoxy, ensuring versatility for drug discovery.
