Advanced Copper-Catalyzed Synthesis of Benzofuro[2,3-b]quinoline Derivatives for Commercial Scale-up

Advanced Copper-Catalyzed Synthesis of Benzofuro[2,3-b]quinoline Derivatives for Commercial Scale-up

The development of efficient synthetic routes for nitrogen-containing heterocyclic compounds remains a cornerstone of modern pharmaceutical research, particularly for scaffolds exhibiting potent biological activities. Patent CN110256451B introduces a groundbreaking methodology for the synthesis of benzofuro[2,3-b]quinoline derivatives, a class of compounds known for their ability to intercalate into double-helical DNA and inhibit cancer cell growth. This innovation addresses critical bottlenecks in the production of these valuable pharmaceutical intermediates, offering a pathway that is not only chemically robust but also economically viable for large-scale operations. By leveraging a copper-catalyzed intramolecular cyclization strategy, the disclosed method overcomes the limitations of prior art, providing a reliable solution for generating high-purity heterocyclic cores essential for drug discovery pipelines.

Furthermore, the versatility of this synthetic approach allows for the introduction of diverse functional groups, enabling medicinal chemists to explore a wide chemical space for structure-activity relationship (SAR) studies. The significance of this technology extends beyond mere academic interest; it represents a tangible advancement in cost reduction in pharmaceutical intermediate manufacturing by replacing precious metal catalysts with abundant copper species. For industry stakeholders, this translates to a more sustainable supply chain and reduced dependency on volatile precious metal markets, ensuring consistent availability of these critical building blocks for the development of next-generation therapeutics targeting diseases ranging from malaria to neurodegenerative disorders.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Prior to this invention, the synthesis of benzofuro[2,3-b]quinoline derivatives was fraught with significant challenges that hindered their widespread adoption in industrial settings. Existing literature, such as the work by the Masahiro Miura group, relied heavily on palladium catalysis systems, specifically utilizing Pd(TFA)2 in conjunction with stoichiometric amounts of silver acetate (AgOAc) as a co-catalyst. This reliance on dual precious metal systems inherently drives up the cost of goods sold (COGS), making the final intermediates prohibitively expensive for early-stage drug development let alone commercial production. Moreover, these conventional methods often necessitate harsh reaction conditions, typically requiring temperatures as high as 150°C and extended reaction times, which can lead to thermal degradation of sensitive substrates and the formation of complex impurity profiles.

In addition to the economic and thermal burdens, the atom economy and overall efficiency of these traditional routes are suboptimal. The requirement for two equivalents of silver acetate generates substantial metallic waste, complicating downstream processing and environmental compliance. Yields reported in these legacy methods hover around 44%, indicating that more than half of the starting material is lost to side reactions or decomposition. Such low efficiency creates a bottleneck in the supply chain, necessitating larger reactor volumes and more extensive purification efforts to isolate the desired product, thereby increasing the carbon footprint and operational expenditure associated with producing these valuable pharmaceutical intermediates.

The Novel Approach

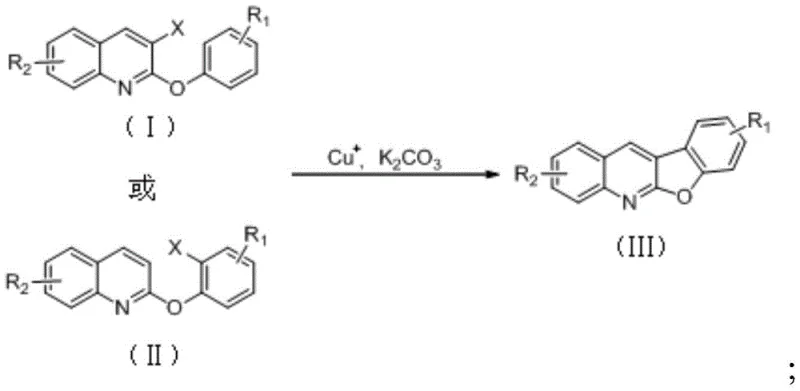

The methodology disclosed in CN110256451B represents a paradigm shift by employing a mono-valent copper (Cu+) catalytic system that effectively constructs the critical C-C bond under much milder conditions. By utilizing inexpensive copper salts such as CuI, CuBr, or CuCl alongside potassium carbonate (K2CO3) as a base, the process eliminates the need for costly palladium and silver reagents entirely. This substitution not only drastically reduces the raw material costs but also simplifies the reaction setup, allowing the cyclization to proceed efficiently at a moderate temperature of 100°C. The result is a streamlined process that delivers superior yields, often exceeding 90% for various substrates, demonstrating a marked improvement over the 44% ceiling of previous techniques.

Moreover, the scope of this novel approach is exceptionally broad, accommodating a wide array of substituents on both the quinoline and phenoxy rings, including electron-donating groups like methyl and methoxy, as well as electron-withdrawing groups such as nitro and halogens. This functional group tolerance is crucial for commercial scale-up of complex heterocyclic compounds, as it allows for the late-stage diversification of the scaffold without needing to redesign the entire synthetic route. The simplicity of the workup procedure, which often involves basic filtration and standard column chromatography, further enhances the practicality of this method, making it an ideal candidate for reducing lead time for high-purity pharmaceutical intermediates in a fast-paced R&D environment.

Mechanistic Insights into Cu+-Catalyzed Intramolecular Cyclization

The core of this synthetic breakthrough lies in the copper-mediated activation of the C-H bond adjacent to the ether linkage, facilitating an intramolecular cyclization that fuses the benzofuran ring onto the quinoline core. While the exact mechanistic cycle may involve complex organometallic intermediates, the overarching process is driven by the ability of the Cu+ species to coordinate with the halogenated precursor (Formula I or II), promoting oxidative addition or single-electron transfer processes that activate the aromatic ring. The presence of K2CO3 serves a dual purpose: it acts as a base to neutralize the hydrogen halide byproduct generated during the C-C bond formation, and it helps maintain the catalytic activity of the copper species by preventing the formation of inactive aggregates. This synergistic interaction ensures that the reaction proceeds smoothly to form the rigid, planar benzofuro[2,3-b]quinoline skeleton with high regioselectivity.

From an impurity control perspective, the mildness of the reaction conditions plays a pivotal role in ensuring product quality. High-temperature processes often promote non-selective radical pathways or polymerization of the starting materials, leading to difficult-to-remove tars and byproducts. In contrast, the 100°C condition employed here minimizes thermal stress on the molecules, thereby suppressing the formation of degradation products and isomeric impurities. The high yields observed across multiple examples (ranging from 76% to 96%) suggest that the catalytic cycle is highly efficient and that competing side reactions are effectively minimized. This level of purity is essential for high-purity benzofuro[2,3-b]quinoline derivatives intended for biological testing, where even trace impurities can confound assay results or introduce toxicity concerns.

How to Synthesize Benzofuro[2,3-b]quinoline Efficiently

The practical implementation of this synthesis is designed to be accessible to process chemists aiming for rapid kilogram-scale production. The protocol involves dissolving the appropriate 2-phenoxyquinoline precursor in a common organic solvent such as toluene, dioxane, or DMF, followed by the addition of the copper catalyst and base. The mixture is then heated to reflux (approximately 100°C) for a period of 8 to 10 hours, after which the reaction is cooled and filtered to remove inorganic salts. The crude product is typically purified via silica gel chromatography using standard eluent systems like petroleum ether and ethyl acetate.

1. Dissolve the 2-phenoxyquinoline precursor (Formula I or II) in an organic solvent such as toluene or dioxane.
2. Add a copper(I) catalyst (e.g., CuI, CuBr) and potassium carbonate (K2CO3) as the acid scavenger to the reaction mixture.
3. Heat the reaction mixture to 100°C for 8-10 hours to facilitate intramolecular C-C bond formation, then purify via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the transition to this copper-catalyzed methodology offers immediate and tangible benefits that extend beyond the laboratory bench. The primary advantage lies in the drastic reduction of raw material costs associated with the catalyst system. By replacing palladium and silver with copper, the direct material cost for the catalytic component is reduced by orders of magnitude, which has a compounding effect on the overall cost of goods when scaled to metric ton quantities. Furthermore, the elimination of silver salts removes a significant waste disposal burden, as silver recovery is both technically challenging and expensive, thereby simplifying the environmental compliance profile of the manufacturing process.

• Cost Reduction in Manufacturing: The substitution of precious metals with abundant copper salts fundamentally alters the cost structure of the synthesis. Since copper catalysts are significantly cheaper than palladium or silver complexes, the direct input costs are lowered substantially. Additionally, the high yields achieved (often above 90%) mean that less starting material is wasted, improving the overall mass balance and reducing the cost per kilogram of the final API intermediate. The simplified purification process also reduces solvent consumption and labor hours required for chromatography, contributing to further operational savings.
• Enhanced Supply Chain Reliability: Reliance on precious metals like palladium exposes the supply chain to geopolitical risks and market volatility, as seen in historical price spikes. Copper, being a base metal with a robust global supply chain, offers much greater stability and availability. The raw materials for this synthesis, including the phenoxyquinoline precursors and common solvents like toluene, are commodity chemicals that are readily available from multiple suppliers worldwide. This diversity of supply sources mitigates the risk of shortages and ensures continuous production capabilities, which is critical for meeting the demanding timelines of pharmaceutical clients.
• Scalability and Environmental Compliance: The reaction conditions are inherently safer and easier to manage on a large scale. Operating at 100°C is well within the standard capabilities of most glass-lined or stainless steel reactors, avoiding the need for specialized high-pressure or high-temperature equipment. The use of K2CO3 as a base generates benign salt byproducts that are easily removed by aqueous washes, minimizing the generation of hazardous waste streams. This alignment with green chemistry principles not only reduces disposal costs but also facilitates regulatory approval by demonstrating a commitment to sustainable manufacturing practices.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthetic route. These answers are derived directly from the experimental data and technical specifications outlined in the patent documentation, providing clarity on the feasibility and advantages of the method for potential partners and licensees.

Q: What are the advantages of this copper-catalyzed method over previous palladium-based methods?

A: This method utilizes inexpensive copper catalysts instead of costly palladium and silver salts, operates at milder temperatures (100°C vs 150°C), and achieves significantly higher yields (up to 96% vs 44%), making it far more suitable for industrial production.

Q: What types of substituents are tolerated in this synthesis?

A: The reaction demonstrates excellent functional group tolerance, accommodating various substituents such as alkyl, alkoxy, acyl, halogen (Cl, Br), and nitro groups on both the quinoline and phenoxy rings without compromising yield.

Q: Is this process scalable for commercial manufacturing?

A: Yes, the process uses cheap and readily available catalysts, simple solvents like toluene, and straightforward workup procedures (filtration and chromatography), which are key indicators of a process designed for successful commercial scale-up.
