Advanced Ruthenium Catalysis for Scalable Aryl Ketone Manufacturing and Commercial Supply

The pharmaceutical and fine chemical industries are constantly seeking robust, scalable, and economically viable synthetic routes for key intermediates. A significant breakthrough in this domain is documented in Chinese Patent CN102153434B, which discloses a novel method for preparing aryl ketones utilizing a ruthenium-catalyzed coupling of aldehydes and arylboronic acids. This technology represents a paradigm shift from traditional methodologies that often rely on stoichiometric reagents or prohibitively expensive precious metal catalysts. By leveraging commercially available ruthenium compounds, this process offers a compelling solution for the commercial scale-up of complex pharmaceutical intermediates, addressing critical pain points related to cost, toxicity, and operational simplicity. The innovation lies in the specific combination of a ruthenium catalyst, organic phosphine ligands, and a phosphate base in a biphasic solvent system, enabling high yields under relatively mild thermal conditions.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of aryl ketones has been dominated by the Friedel-Crafts acylation reaction, a classic yet fundamentally flawed methodology for modern green chemistry standards. This traditional approach suffers from severe drawbacks, including the requirement for large quantities of Lewis acid catalysts, harsh reaction conditions that degrade sensitive functional groups, and difficult post-treatment procedures due to the formation of complex waste streams. Furthermore, the regioselectivity is often poor, limiting its utility for synthesizing specific isomers required in drug development. More recent transition metal-catalyzed methods employing rhodium, palladium, or iridium complexes have attempted to mitigate some of these issues but introduce new challenges. These noble metals are not only exorbitantly expensive, driving up the cost reduction in fine chemical manufacturing efforts, but they also pose significant toxicity concerns, necessitating rigorous and costly purification steps to meet stringent residual metal specifications for high-purity pharmaceutical intermediates.

The Novel Approach

In stark contrast, the methodology outlined in patent CN102153434B employs a ruthenium-based catalytic system that effectively circumvents the limitations of both Friedel-Crafts and noble metal catalysis. The process utilizes aldehydes and arylboronic acids as readily available starting materials, reacting them in the presence of a ruthenium catalyst such as dichloro(p-cymene)ruthenium(II) dimer or triruthenium dodecacarbonyl. The reaction proceeds smoothly at temperatures between 95°C and 100°C in a toluene and water solvent mixture, facilitated by potassium phosphate as a base and additives like pinacolone or acetone. This approach not only improves atom economy but also significantly simplifies the workup procedure. As illustrated in the specific reaction example below, the transformation is efficient and robust, yielding products like 3b with high purity after simple chromatographic purification.

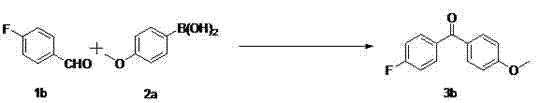

This specific embodiment demonstrates the practical viability of the method, where compound 1b reacts with 2a to form the target ketone 3b in 85% yield. The ability to tolerate various functional groups on both the aldehyde and the boronic acid components underscores the versatility of this catalytic system, making it an ideal candidate for reducing lead time for high-purity pharmaceutical intermediates in a production environment.

Mechanistic Insights into Ruthenium-Catalyzed Carbonylative Coupling

The mechanistic pathway of this ruthenium-catalyzed transformation involves a sophisticated interplay between the metal center, the ligand environment, and the substrates. Initially, the ruthenium precursor is activated by the organic phosphine ligand to form the active catalytic species. The arylboronic acid, activated by the phosphate base, undergoes transmetallation with the ruthenium complex, transferring the aryl group to the metal center. Subsequently, the aldehyde substrate coordinates to the ruthenium, followed by an insertion step that forms the new carbon-carbon bond characteristic of the aryl ketone structure. The presence of water in the solvent system plays a crucial role in facilitating the hydrolysis of intermediate species and regenerating the active catalyst. This mechanism avoids the formation of stable off-cycle species that often plague other transition metal systems, ensuring sustained catalytic turnover throughout the reaction duration of 10 to 24 hours.

From an impurity control perspective, the mild reaction conditions are paramount. Unlike high-temperature processes that can induce decomposition or polymerization of sensitive aldehydes, operating at 95-100°C minimizes thermal degradation pathways. Furthermore, the use of a heterogeneous workup strategy involving direct adsorption onto silica gel allows for the efficient removal of polar byproducts and residual catalyst species. This results in a crude product profile that is significantly cleaner than those obtained from traditional methods, thereby reducing the burden on downstream purification units. The high functional group tolerance observed across various examples, including those with electron-withdrawing nitro groups or electron-donating methoxy groups, indicates that the electronic nature of the substrates does not severely inhibit the catalytic cycle, providing a reliable platform for synthesizing diverse chemical libraries.

How to Synthesize Aryl Ketones Efficiently

The synthesis protocol described in the patent provides a standardized framework for producing aryl ketones with high efficiency and reproducibility. The process is designed to be operationally simple, requiring standard laboratory equipment and commonly available reagents. By adhering to the specified molar ratios—typically a 1:2 ratio of aldehyde to arylboronic acid—and maintaining the inert atmosphere, operators can consistently achieve yields ranging from moderate to excellent depending on the specific substrate combination. The detailed procedural steps involve precise charging of the catalyst, ligand, base, and additives, followed by controlled heating and a streamlined isolation procedure. For a comprehensive understanding of the exact operational parameters and safety considerations, please refer to the standardized synthesis guide provided below.

1. Charge the reaction vessel with a ruthenium catalyst (e.g., [Ru(CO)3Cl2]2), organic phosphine ligand, aldehyde substrate, arylboronic acid, potassium phosphate base, and additive (pinacolone or acetone) in a toluene/water solvent system.
2. Heat the reaction mixture under an inert atmosphere (argon) at a temperature range of 95°C to 100°C for a duration of 10 to 24 hours to ensure complete conversion.
3. Upon completion, adsorb the solvent directly onto silica gel, remove volatiles under vacuum, and purify the crude product via column chromatography or recrystallization to obtain the high-purity aryl ketone.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this ruthenium-catalyzed technology offers tangible strategic benefits that extend beyond mere technical feasibility. The shift from expensive rhodium or palladium catalysts to more abundant and affordable ruthenium complexes directly impacts the bill of materials, resulting in significant cost savings without compromising product quality. Additionally, the reliance on commodity chemicals like aldehydes and arylboronic acids ensures a stable and resilient supply chain, mitigating risks associated with the sourcing of exotic or specialized reagents. The simplified workup procedure further enhances operational efficiency by reducing solvent consumption and waste disposal costs, aligning with modern sustainability goals.

• Cost Reduction in Manufacturing: The substitution of high-cost noble metals with ruthenium represents a major economic advantage. Rhodium and palladium prices are subject to extreme volatility and are generally orders of magnitude higher than ruthenium. By eliminating the need for these expensive metals, the overall production cost is drastically lowered. Furthermore, the reduced toxicity of ruthenium simplifies the regulatory compliance landscape, potentially lowering the costs associated with environmental health and safety monitoring and heavy metal clearance testing, which are often bottlenecks in API manufacturing.
• Enhanced Supply Chain Reliability: The raw materials required for this process, specifically various substituted benzaldehydes and phenylboronic acids, are widely produced commodity chemicals with established global supply chains. This availability ensures that production schedules are not disrupted by raw material shortages. The robustness of the reaction conditions also means that the process is less sensitive to minor variations in reagent quality, providing a buffer against supply chain fluctuations and ensuring consistent output for reliable pharmaceutical intermediate supplier operations.
• Scalability and Environmental Compliance: The reaction conditions are inherently scalable, utilizing standard heating and stirring equipment without the need for specialized high-pressure or cryogenic setups. The use of toluene and water as solvents is compatible with existing industrial infrastructure. Moreover, the simplified post-reaction processing, which avoids complex extractions and reduces solvent usage, significantly lowers the environmental footprint. This alignment with green chemistry principles facilitates easier permitting and compliance with increasingly stringent environmental regulations, securing long-term operational continuity.

Frequently Asked Questions (FAQ)

The following questions address common inquiries regarding the technical implementation and commercial viability of this ruthenium-catalyzed synthesis method. These answers are derived directly from the experimental data and technical specifications outlined in the patent documentation, providing clarity on substrate scope, catalyst loading, and process optimization. Understanding these details is crucial for R&D teams evaluating the technology for potential integration into their existing manufacturing workflows.

Q: What are the primary cost advantages of this ruthenium catalyzed method compared to rhodium or palladium systems?

A: The patented method utilizes ruthenium catalysts which are significantly less expensive and less toxic than traditional rhodium or palladium complexes. This substitution drastically reduces raw material costs and eliminates the need for expensive heavy metal removal processes, leading to substantial overall cost reduction in manufacturing.

Q: Does this synthesis protocol support a broad range of substrate functional groups?

A: Yes, the catalytic system demonstrates excellent functional group compatibility. It effectively processes various aromatic and aliphatic aldehydes as well as arylboronic acids containing substituents like halogens, methoxy groups, and nitro groups, making it highly versatile for diverse pharmaceutical intermediate synthesis.

Q: How does the reaction condition impact scalability and environmental compliance?

A:

Partnering with NINGBO INNO PHARMCHEM: Your Reliable Aryl Ketone Supplier

The technological advancements presented in patent CN102153434B highlight the immense potential of ruthenium catalysis in modern organic synthesis. At NINGBO INNO PHARMCHEM, we possess the technical expertise and infrastructure to leverage such innovative pathways for our clients. Our team has extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that laboratory successes are seamlessly translated into industrial reality. We maintain stringent purity specifications and operate rigorous QC labs to guarantee that every batch of aryl ketone intermediate meets the highest quality standards required by the global pharmaceutical industry.

We invite you to collaborate with us to optimize your supply chain and reduce manufacturing costs. Our technical procurement team is ready to provide a Customized Cost-Saving Analysis tailored to your specific project needs. Please contact us to request specific COA data and route feasibility assessments, and let us demonstrate how our advanced catalytic capabilities can drive value for your organization.
