Advanced Diarylacetylene Synthesis: High-Efficiency Sonogashira Coupling for Commercial Scale-Up

Advanced Diarylacetylene Synthesis: High-Efficiency Sonogashira Coupling for Commercial Scale-Up

The landscape of organic synthesis for complex aromatic systems is constantly evolving, driven by the need for higher purity, lower costs, and more sustainable processes in the production of pharmaceutical intermediates and advanced materials. A pivotal advancement in this field is detailed in patent CN106916047B, which discloses a robust synthetic method for diarylacetylene derivatives. This technology leverages a novel protecting group strategy, utilizing diethoxyphosphono groups to overcome the longstanding limitations of traditional alkyne protection methods. By integrating this approach, manufacturers can achieve superior control over reaction pathways, ensuring that the final products meet the stringent quality standards required for high-value applications such as active pharmaceutical ingredients (APIs) and organic electronic materials. The core innovation lies in the strategic use of polarity to facilitate purification, a critical factor often overlooked in early-stage process development but vital for commercial viability.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditionally, the synthesis of unsymmetrical diarylacetylenes has relied heavily on terminal alkyne protecting groups such as trimethylsilyl (TMS) or triisopropylsilyl (TIPS). While these silyl groups offer reasonable stability during coupling reactions, they present significant downstream processing challenges. The primary drawback is their low polarity, which results in Sonogashira coupling products having very similar polarity profiles to the starting materials and side products. This similarity makes separation via standard silica gel chromatography extremely difficult and inefficient, often requiring large volumes of solvents and excessive amounts of stationary phase. Furthermore, alternative protecting groups like diphenylphosphono (Ph2P(O)), while polar, suffer from high costs and the use of toxic, air-unstable reagents like diphenylphosphonyl chloride during their introduction. These factors collectively inflate the cost of goods sold (COGS) and complicate the supply chain for critical chemical intermediates.

The Novel Approach

The methodology outlined in the patent introduces diethoxyphosphono ((EtO)2P(O)) as a superior protecting group that effectively bridges the gap between stability and processability. Unlike silyl groups, the diethoxyphosphono moiety imparts significant polarity to the alkyne intermediate, dramatically altering its chromatographic behavior. This polarity difference allows for the facile separation of the mono-coupled intermediate from unreacted starting materials and homocoupling by-products using standard purification techniques. Moreover, the precursor reagent, diethyl chlorophosphate, is significantly more stable, less toxic, and more cost-effective than its diphenyl counterpart. The process maintains excellent stability during the initial Sonogashira coupling and allows for mild, efficient deprotection using potassium tert-butoxide (t-BuOK) under basic conditions, streamlining the entire synthetic sequence into a highly efficient workflow.

Mechanistic Insights into Diethoxyphosphono-Mediated Sonogashira Coupling

The mechanistic elegance of this synthesis lies in the dual functionality of the diethoxyphosphono group, acting first as a stabilizer and then as a leaving group. In the first stage, the reaction proceeds via a classic palladium-copper catalytic cycle where the iodoarene undergoes oxidative addition to the Pd(0) species. The diethoxyphosphonoacetylene, activated by the amine base, forms a copper-acetylide complex which then transmetallates with the palladium complex. The presence of the phosphonate group does not hinder this cycle; rather, its electron-withdrawing nature can subtly enhance the acidity of the terminal proton, facilitating the formation of the reactive acetylide species. Crucially, the group remains intact throughout this harsh catalytic environment, preventing premature deprotection or decomposition that could lead to homocoupling impurities, a common issue in alkyne chemistry.

In the second stage, the mechanism shifts to a base-mediated deprotection-coupling cascade. The addition of t-BuOK serves a dual purpose: it acts as a strong base to deprotonate the remaining terminal hydrogen (if any) or, more critically in this specific patent embodiment, it facilitates the cleavage of the P-C bond or induces an elimination pathway that regenerates the terminal acetylide in situ. Specifically, the patent describes the formation of an alkynyl potassium salt intermediate upon treatment with t-BuOK, accompanied by the formation of a stable phosphate by-product. This regenerated acetylide immediately enters a second Sonogashira cycle with the added bromoarene. This "one-pot" style progression minimizes handling losses and exposure of sensitive intermediates to air, thereby maximizing overall yield and purity while reducing the operational complexity typically associated with multi-step syntheses.

How to Synthesize Diarylacetylene Efficiently

Implementing this synthesis requires precise control over stoichiometry and reaction conditions to maximize the benefits of the protecting group strategy. The process begins with the preparation of the key building block, diethoxyphosphonoacetylene, which serves as the universal donor for the alkyne unit. Following this, the sequential coupling reactions must be managed carefully, particularly the transition between the first coupling and the deprotection step. The use of inert atmospheres and anhydrous conditions is paramount to prevent catalyst deactivation and side reactions. For R&D teams looking to adopt this technology, understanding the specific molar ratios and temperature profiles is essential for reproducibility. The detailed standardized synthesis steps for producing high-purity diarylacetylene intermediates are provided in the guide below.

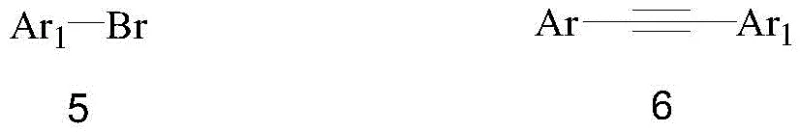

1. Prepare diethoxyphosphonoacetylene by reacting trimethylsilylacetylene with diethyl chlorophosphate and methylmagnesium bromide, followed by desilylation with TBAF.
2. Perform the first Sonogashira coupling between iodoarene and diethoxyphosphonoacetylene using Pd(PPh3)4 and CuI catalysts to form the protected intermediate.
3. Execute the second coupling by treating the intermediate with t-BuOK to remove the protecting group in situ, followed by reaction with bromoarene to yield diarylacetylene.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this synthetic route offers tangible benefits that extend beyond mere chemical yield. The primary advantage is the drastic simplification of the purification process. Because the intermediate possesses high polarity due to the phosphonate group, it can be separated from non-polar impurities with minimal effort. This translates directly into reduced consumption of silica gel and organic solvents during the workup phase, leading to substantial cost savings in raw materials and waste disposal. Furthermore, the avoidance of toxic and unstable reagents like diphenylphosphonyl chloride reduces the regulatory burden and safety risks associated with storage and handling, ensuring a more resilient and compliant supply chain operation.

• Cost Reduction in Manufacturing: The economic impact of this process is driven by the replacement of expensive and hazardous protecting group reagents with cost-effective alternatives like diethyl chlorophosphate. Additionally, the high efficiency of the purification step means that less time and fewer resources are spent on chromatography, which is often the most expensive unit operation in fine chemical manufacturing. By eliminating the need for complex distillation or recrystallization steps that are often required for non-polar silyl-protected intermediates, the overall production cost per kilogram is significantly lowered, enhancing the margin potential for the final API or material.
• Enhanced Supply Chain Reliability: Supply continuity is bolstered by the use of widely available and stable starting materials. Diethyl chlorophosphate and standard aryl halides are commodity chemicals with robust global supply chains, unlike specialized silyl reagents which can face availability fluctuations. The stability of the intermediates also allows for potential storage or transport between process steps if a telescoped process is not feasible, providing flexibility in production scheduling. This reliability ensures that downstream customers receive their orders on time, mitigating the risk of production delays caused by raw material shortages or complex synthesis bottlenecks.
• Scalability and Environmental Compliance: From an environmental perspective, the process aligns well with green chemistry principles by reducing solvent usage and waste generation. The ability to perform the deprotection and second coupling in a streamlined manner reduces the number of isolation steps, which in turn lowers the total volume of waste solvent generated. This makes the process easier to scale from pilot plant to commercial tonnage without encountering the exponential increase in waste treatment costs often seen in traditional methods. The reduced toxicity profile of the reagents also simplifies the permitting process for new manufacturing lines, accelerating time-to-market for new products.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this diarylacetylene synthesis technology. These answers are derived directly from the experimental data and technical specifications provided in the patent documentation, ensuring accuracy and relevance for process engineers and project managers. Understanding these details is crucial for evaluating the feasibility of integrating this method into existing production workflows or for designing new campaigns for high-value intermediates.

Q: What are the advantages of using diethoxyphosphono over trimethylsilyl protecting groups?

A: The diethoxyphosphono group introduces significant polarity to the alkyne intermediate, drastically improving separation efficiency via silica gel chromatography compared to non-polar trimethylsilyl groups, while maintaining stability during coupling reactions.

Q: Is this synthesis method scalable for industrial production?

A: Yes, the method utilizes standard Sonogashira coupling conditions with commercially available catalysts and reagents like t-BuOK, avoiding toxic or unstable reagents like diphenylphosphonyl chloride, making it highly suitable for commercial scale-up.

Q: What yields can be expected from this patented process?

A: The patent reports high yields, with the preparation of the diethoxyphosphonoacetylene precursor achieving up to 96% yield, and subsequent coupling steps consistently delivering yields between 80% and 90% for various substituted diarylacetylenes.
