Advanced One-Step Synthesis of Sulfonium Salts for High-Performance Semiconductor Photoresists

The semiconductor industry continuously demands higher precision and efficiency in lithography processes, driving the need for advanced photoacid generators (PAGs). Patent CN1209349C introduces a groundbreaking methodology for the preparation of sulfonium salts, which serve as critical components in chemically amplified photoresists. Unlike conventional multi-step syntheses that rely on unstable organometallic reagents, this invention utilizes a direct, one-step reaction between sulfoxide compounds and aromatic substances in the presence of perfluoroalkanesulfonic anhydride. This technical leap not only simplifies the molecular construction of these essential electronic chemicals but also significantly enhances the overall yield and purity profile, addressing long-standing bottlenecks in the supply of high-performance semiconductor materials.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of sulfonium salts has been heavily reliant on Grignard reagents, a pathway that introduces substantial operational complexity and risk. The traditional two-step process requires the preparation of organomagnesium intermediates, which are extremely sensitive to moisture and oxygen, necessitating rigorous anhydrous conditions and specialized equipment. Furthermore, the stoichiometry of Grignard reactions often leads to side products and incomplete conversions, resulting in documented yields as low as 52% for certain triphenyl sulfonium derivatives. This inefficiency translates to higher waste generation, increased solvent consumption for purification, and a fragmented supply chain that struggles to meet the volume demands of the rapidly expanding semiconductor sector.

The Novel Approach

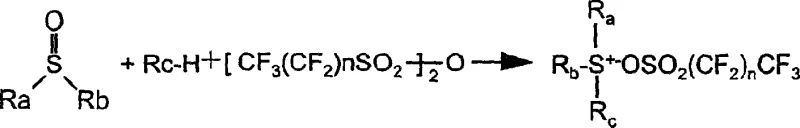

The innovation disclosed in the patent data circumvents these historical constraints by employing perfluoroalkanesulfonic anhydride as a potent activating agent in a single-step condensation reaction. This method allows for the direct coupling of sulfoxides with a wide variety of aromatic compounds, including those with sensitive functional groups like esters and ethers, which might otherwise be incompatible with Grignard reagents. By eliminating the organometallic step, the process achieves remarkable efficiency, with experimental data showing yields soaring to 96% for comparable structures. This drastic improvement in reaction efficiency not only maximizes raw material utilization but also streamlines the downstream processing, making it a superior choice for the cost reduction in electronic chemical manufacturing.

Mechanistic Insights into Anhydride-Mediated Sulfonium Salt Formation

The core of this technological advancement lies in the electrophilic activation of the sulfoxide sulfur atom by the perfluoroalkanesulfonic anhydride. In this mechanism, the anhydride acts as a powerful dehydrating and activating agent, generating a highly reactive sulfonium intermediate in situ. This intermediate then undergoes a rapid electrophilic aromatic substitution with the added aromatic substrate. The reaction conditions, typically ranging from -80°C to 100°C, allow for fine-tuning of the regioselectivity. For instance, lower temperatures favor the formation of para-substituted products, minimizing ortho-isomers and thereby simplifying the purification process. This level of control is crucial for producing high-purity OLED material and semiconductor precursors where isomeric impurities can detrimentally affect photo-performance.

Furthermore, the tolerance of this mechanism towards diverse functional groups expands the chemical space available for material scientists. The patent data indicates that substituents such as halogens, alkoxy groups, and even bulky tert-butyl groups are well-tolerated without significant loss in yield. This robustness implies that the impurity profile of the final product is cleaner, as fewer side reactions occur compared to the harsh conditions of organometallic chemistry. For R&D directors, this means a more predictable synthesis route that reduces the time spent on troubleshooting impurity spikes, ensuring a consistent supply of high-purity photoacid generators for critical lithography layers.

How to Synthesize Sulfonium Salt Efficiently

The synthesis protocol outlined in the patent provides a clear roadmap for transitioning from laboratory scale to commercial production. The process begins with the dissolution of the sulfoxide and aromatic reactants in a halogenated solvent, followed by the controlled addition of the anhydride activator. The reaction is exothermic and requires careful temperature management to maintain selectivity. Following the reaction, a straightforward aqueous workup removes byproduct acids, and the product is isolated via crystallization or precipitation. This operational simplicity is a key factor in reducing lead time for high-purity sulfonium salts, as it removes the need for specialized inert atmosphere reactors required by older methods.

1. Dissolve the selected sulfoxide compound and aromatic substance in a suitable halogenated solvent such as methylene dichloride.
2. Add perfluoroalkanesulfonic anhydride (e.g., trifluoromethanesulfonic anhydride) to the mixture at controlled temperatures ranging from -80°C to 100°C.
3. Stir the reaction mixture to completion, followed by aqueous workup and crystallization to isolate the high-yield sulfonium salt product.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the shift from a two-step Grignard process to a one-step anhydride condensation represents a significant opportunity for optimization. The elimination of moisture-sensitive reagents reduces the need for specialized storage and handling infrastructure, thereby lowering overhead costs. Additionally, the higher yields directly correlate to better raw material efficiency, meaning less starting material is required to produce the same amount of final product. This efficiency gain is critical for maintaining margin stability in the volatile electronic chemicals market, where raw material costs can fluctuate widely.

• Cost Reduction in Manufacturing: The removal of the Grignard reagent step eliminates the need for expensive magnesium metal and the associated solvents required for its preparation and quenching. Furthermore, the higher yields reduce the cost per kilogram of the final sulfonium salt by minimizing waste disposal costs and maximizing the throughput of existing reactor volumes. This structural change in the synthesis route allows for substantial cost savings without compromising the quality required for semiconductor applications.
• Enhanced Supply Chain Reliability: The reagents used in this novel method, such as trifluoromethanesulfonic anhydride and various aromatic hydrocarbons, are commodity chemicals with stable global supply chains. Unlike specialized organometallics that may have limited suppliers, these inputs are readily available from multiple sources. This diversification of raw material sources significantly reduces the risk of supply disruptions, ensuring a more reliable sulfonium salt supplier capability for long-term contracts.
• Scalability and Environmental Compliance: The one-step nature of the reaction simplifies the scale-up process, as there are fewer unit operations and intermediate isolations required. This reduction in process complexity lowers the energy consumption per batch and reduces the volume of hazardous waste generated. For facilities operating under strict environmental regulations, this greener synthesis profile facilitates easier permitting and compliance, supporting the commercial scale-up of complex electronic chemicals.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production and application of these sulfonium salts. The answers are derived directly from the experimental data and technical specifications provided in the patent literature, ensuring accuracy for engineering and procurement teams evaluating this technology for adoption.

Q: How does this new method improve upon traditional Grignard-based synthesis?

A: The traditional method requires a two-step process involving moisture-sensitive Grignard reagents, which often results in lower yields (around 52%) and complex purification. The novel one-step anhydride method simplifies the workflow, eliminates the need for strict anhydrous conditions associated with organometallics, and achieves significantly higher yields (up to 96%).

Q: What are the primary applications for these sulfonium salts?

A: These sulfonium salts function primarily as photoacid generators (PAGs) or radical photoinitiators. They are critically used in chemically amplified photoresists for semiconductor manufacturing, where they facilitate the deprotection of organic compounds during the lithography process.

Q: Can this synthesis be scaled for industrial production?

A: Yes, the process is highly suitable for industrial scale-up. By removing the hazardous and difficult-to-handle Grignard reagent step and utilizing a robust one-step condensation, the process safety is enhanced, and the operational complexity is drastically reduced, facilitating easier commercial manufacturing.
