Advanced Electrochemical Synthesis of 3-Cyano Imidazo[1,5-a]quinolines for Commercial Pharmaceutical Manufacturing

The pharmaceutical and agrochemical industries are constantly seeking more efficient and environmentally benign pathways to construct complex heterocyclic scaffolds. Patent CN111910206B introduces a groundbreaking methodology for the synthesis of 3-cyano-substituted imidazo[1,5-a]quinoline compounds, a class of molecules renowned for their significant biological activity and utility as key intermediates in drug discovery. This innovation leverages organic electrosynthesis to achieve a highly selective three-component coupling reaction, marking a significant departure from traditional thermal or metal-catalyzed approaches. By utilizing electricity as a traceless reagent, this method addresses critical pain points in modern chemical manufacturing, specifically regarding waste generation and product purity. The technology enables the direct construction of the imidazoquinoline core from readily available starting materials, offering a streamlined route that aligns perfectly with the principles of green chemistry and sustainable manufacturing practices demanded by today's regulatory environment.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditionally, the functionalization of nitrogen-containing heterocycles like imidazo[1,5-a]quinolines has relied heavily on transition metal catalysis or the use of stoichiometric chemical oxidants. These conventional pathways often suffer from significant drawbacks that impact both the economic viability and the environmental footprint of the synthesis. A major concern for R&D and quality control teams is the inevitable presence of heavy metal residues in the final active pharmaceutical ingredient (API) or intermediate. Removing these traces to meet stringent ICH guidelines requires additional purification steps, such as specialized scavenging resins or repeated recrystallizations, which drastically reduce overall yield and increase processing time. Furthermore, the use of harsh chemical oxidants generates substantial amounts of hazardous waste, complicating disposal and increasing the operational costs associated with environmental compliance. These inefficiencies create bottlenecks in the supply chain, making it difficult to scale production without compromising on purity or sustainability goals.

The Novel Approach

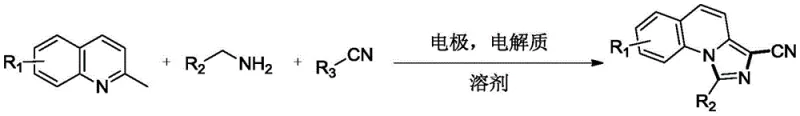

In stark contrast, the electrochemical method disclosed in the patent offers a transformative solution by replacing chemical oxidants with electrons. This approach facilitates the oxidative coupling of unsubstituted or substituted 2-methylquinolines with aliphatic amines and a cyano source in a single pot.
The reaction proceeds in an undivided electrolytic cell, eliminating the need for complex cell setups while maintaining high atom economy. By avoiding transition metals entirely, the resulting product profile is exceptionally clean, significantly reducing the burden on downstream purification processes. This metal-free strategy not only enhances the safety profile of the manufacturing process but also ensures that the final 3-cyano-substituted imidazo[1,5-a]quinoline compounds are free from toxic metal contaminants, a critical factor for their application in sensitive pharmaceutical formulations.

Mechanistic Insights into Electrocatalytic Three-Component Coupling

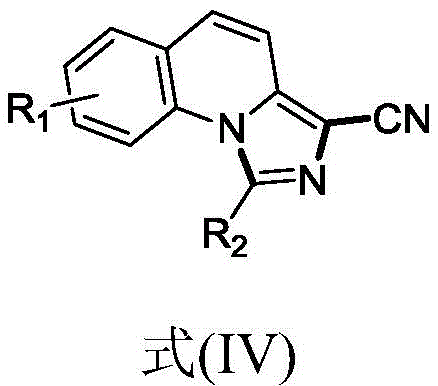

The core of this innovation lies in the precise control of electrochemical potential to drive the formation of new carbon-nitrogen and carbon-carbon bonds simultaneously. The mechanism involves the anodic oxidation of the reactants to generate reactive radical intermediates which then undergo cyclization and cyanation. Specifically, the methyl group on the 2-position of the quinoline ring is activated electrochemically, allowing it to couple with the nitrogen of the aliphatic amine. Subsequent oxidation and nucleophilic attack by the cyano source lead to the formation of the fused imidazole ring with the cyano group at the 3-position.
This cascade reaction is highly efficient because the electrode surface acts as a reusable catalyst, continuously regenerating the active species without being consumed. The use of an undivided cell simplifies the engineering requirements, as there is no need for ion-exchange membranes to separate anodic and cathodic compartments, which often pose resistance and scaling challenges in industrial flow cells.

From an impurity control perspective, this electrochemical route offers superior selectivity compared to thermal methods. The reaction conditions, typically maintained between 0°C and 100°C, are mild enough to prevent the decomposition of sensitive functional groups often present on the quinoline or amine substrates. The patent highlights that various substituents, including halogens, alkyl groups, and trifluoromethyl groups, are well-tolerated on the aromatic rings. This functional group tolerance is crucial for medicinal chemists who need to explore structure-activity relationships (SAR) without worrying about side reactions degrading the scaffold. The high selectivity minimizes the formation of by-products, resulting in a crude reaction mixture that is easier to purify, thereby enhancing the overall process mass intensity (PMI) of the synthesis.

How to Synthesize 3-Cyano-Substituted Imidazo[1,5-a]quinolines Efficiently

Implementing this electrochemical protocol requires careful attention to the selection of electrolytes and electrode materials to ensure optimal conductivity and reaction kinetics. The patent details a robust procedure where the electrolyte, such as tetrabutylammonium tetrafluoroborate or ammonium iodide, is mixed with the substrates in polar aprotic solvents like N,N-dimethylacetamide or acetonitrile. The detailed standardized synthesis steps for replicating this high-efficiency route are outlined in the guide below, providing a clear roadmap for laboratory and pilot-scale execution.

1. Prepare the electrolytic cell by adding electrolyte, 2-methylquinoline derivative, substituted aliphatic amine, cyano source, and solvent into an undivided cell.
2. Install appropriate electrodes (Pt, C, Ni, or Cu) into the cell and initiate the reaction by applying a constant current with stirring at 0-100°C.
3. Upon completion, separate and purify the solution using column chromatography with petroleum ether/ethyl acetate to isolate the target compound.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the shift to this electrochemical methodology represents a strategic opportunity to optimize costs and secure supply continuity. The elimination of expensive transition metal catalysts, such as palladium or rhodium complexes, directly reduces the raw material bill of materials (BOM). Moreover, the simplified workup procedure, which avoids tedious metal removal steps, translates into significant savings in labor, solvent consumption, and processing time. This efficiency gain allows for faster batch turnover, enabling manufacturers to respond more agilely to market demands for these critical pharmaceutical intermediates.

• Cost Reduction in Manufacturing: The economic benefits of this process are driven primarily by the removal of costly catalytic systems and the associated purification infrastructure. Traditional metal-catalyzed routes often require dedicated equipment for metal scavenging to meet regulatory limits, which represents a significant capital and operational expenditure. By utilizing electricity as the oxidant, this method bypasses those costs entirely. Additionally, the high atom economy of the three-component reaction means that a larger proportion of the starting mass ends up in the final product, reducing waste disposal fees and maximizing the yield per kilogram of input material.
• Enhanced Supply Chain Reliability: Supply chain resilience is bolstered by the use of commodity chemicals as starting materials. The 2-methylquinolines and aliphatic amines required for this synthesis are widely available from multiple global suppliers, reducing the risk of single-source dependency. The robustness of the electrochemical cell setup, which can utilize standard electrode materials like carbon or nickel, further ensures that equipment procurement is straightforward and not subject to the long lead times often associated with specialized catalytic reactors. This accessibility makes it easier to establish redundant manufacturing sites to safeguard against disruptions.
• Scalability and Environmental Compliance: Scaling electrochemical processes has historically been challenging, but the use of an undivided cell configuration described in this patent simplifies the engineering scale-up significantly. The process operates under mild conditions and generates minimal hazardous waste, aligning with increasingly strict environmental regulations globally. This "green" profile not only reduces the regulatory burden but also enhances the corporate sustainability metrics of the manufacturing organization, a key consideration for partnerships with major multinational pharmaceutical companies who prioritize green supply chains.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this electrochemical synthesis route. These answers are derived directly from the technical specifications and experimental data provided in the patent documentation, ensuring accuracy for decision-makers evaluating this technology for adoption.

Q: What are the primary advantages of this electrochemical method over traditional metal catalysis?

A: The primary advantage is the elimination of transition metal catalysts and chemical oxidants. This avoids heavy metal residues in the final product, which is critical for pharmaceutical compliance, and simplifies the purification process by removing the need for complex metal scavenging steps.

Q: What types of electrodes are suitable for this synthesis?

A: The patent specifies that conventional commercially available electrode materials are effective, including platinum plates, carbon electrodes, nickel electrodes, and copper electrodes. This flexibility allows for cost optimization during scale-up.

Q: Is this process scalable for industrial production?

A: Yes, the use of an undivided electrolytic cell and common solvents like N,N-dimethylacetamide suggests high scalability. The absence of sensitive metal catalysts further enhances the robustness of the process for large-scale manufacturing.
