Scalable Mechanochemical Dehalogenation for High-Purity Deuterated Aromatic Compounds

The pharmaceutical and fine chemical industries are increasingly recognizing the strategic value of deuterated compounds in optimizing drug pharmacokinetics and metabolic stability. Patent CN115745720A introduces a groundbreaking dehalogenation deuteration preparation method that addresses critical bottlenecks in the synthesis of deuterated aromatic compounds. This technology leverages a mechanochemical approach, utilizing a reaction system composed of a palladium catalyst, a deuterium source reagent, and a reducing agent under mechanical grinding conditions. By eliminating the need for traditional organic solvents and harsh reaction environments, this innovation offers a robust pathway for producing high-purity deuterated intermediates. The method demonstrates exceptional operability and rapid reaction kinetics, achieving high degrees of deuteration while maintaining structural integrity. For R&D directors and procurement specialists, this patent represents a significant shift towards greener, more cost-effective manufacturing processes that align with modern regulatory and sustainability standards.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional methods for introducing deuterium into aromatic systems, such as Hydrogen-Deuterium Exchange (HIE), often struggle with inherent selectivity issues that compromise the quality of the final product. Achieving a high degree of deuteration using HIE typically necessitates the use of large excesses of expensive deuterium sources or multiple rounds of reaction, which drastically inflates material costs and complicates downstream purification. Alternatively, the chemical building block method requires synthesizing the target molecule from commercially available deuterated precursors, a route that is frequently cumbersome and economically prohibitive due to the high cost of starting materials. Furthermore, conventional reductive deuteration methods often rely on expensive deuterated reagents like deuterated formic acid or acetonitrile, or require large amounts of heavy water and additional reducing agents under harsh conditions. These limitations create significant barriers for supply chain heads who need to ensure consistent quality and cost-efficiency in the production of complex deuterated APIs and intermediates.

The Novel Approach

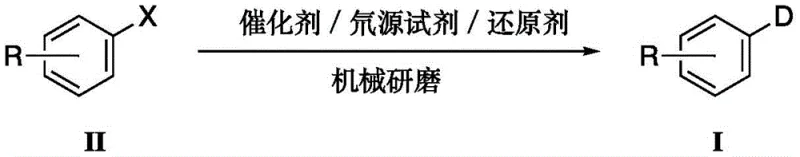

In contrast, the novel mechanochemical approach disclosed in the patent utilizes active deuterium reagents as the deuterium source in conjunction with a suitable palladium catalyst to activate C-X bonds. This method completes the defunctionalized deuteration of aromatic halides and aryl fluorosulfates under ball milling conditions, offering distinct advantages in operability and efficiency. The process is characterized by its solvent-free nature, which not only reduces environmental impact but also simplifies the workup procedure by eliminating the need for solvent recovery and disposal. The reaction proceeds rapidly at room temperature, driven by mechanical force which enhances mass transfer and reagent contact without the need for external heating. This results in a streamlined workflow that significantly reduces energy consumption and operational complexity. For procurement managers, this translates to a more reliable supply of deuterated materials with reduced dependency on volatile organic solvents and expensive specialized reagents.

Mechanistic Insights into Pd-Catalyzed Mechanochemical Deuteration

The core of this technology lies in the palladium-catalyzed activation of carbon-halogen bonds facilitated by mechanical energy. In this system, the palladium catalyst, which may include variants such as palladium acetate or tetrakis(triphenylphosphine)palladium, initiates the oxidative addition into the C-X bond of the aromatic substrate. The mechanical grinding action provided by the ball mill ensures continuous renewal of the reaction surface and intimate mixing of the solid-state reagents, which is crucial for overcoming the diffusion limitations typically associated with solvent-free reactions. The reducing agent, such as magnesium, aluminum, or zinc, then facilitates the reductive elimination step, effectively replacing the halogen atom with a deuterium atom sourced from reagents like heavy water or deuterated alcohols. This mechanism allows for precise site-specific deuteration, avoiding the random labeling often seen in exchange reactions.

Furthermore, the impurity control mechanism in this process is inherently robust due to the mild reaction conditions and the specificity of the catalytic cycle. The use of mechanical force at room temperature minimizes thermal degradation pathways that can lead to complex byproduct formation in traditional heated reactions. The patent data indicates that various substituents on the aromatic ring, including alkyl, alkoxy, nitro, and ester groups, are well-tolerated under these conditions, demonstrating the broad substrate scope of the method. The ability to use inexpensive reducing agents like aluminum, which are typically difficult to utilize efficiently in conventional solution-phase chemistry, further enhances the economic viability of the process. This level of control over the reaction environment ensures that the resulting deuterated compounds meet the stringent purity specifications required for pharmaceutical applications, thereby reducing the burden on quality control laboratories.

How to Synthesize Deuterated Aromatic Compounds Efficiently

The synthesis of these high-value deuterated intermediates follows a streamlined protocol designed for maximum efficiency and minimal waste generation. The process begins with the precise weighing of the aromatic halide substrate, the palladium catalyst, the reducing agent, and the deuterium source, which are then loaded into a dry ball mill jar along with grinding media. The mixture is subjected to mechanical milling at room temperature, with parameters such as frequency and duration optimized to ensure complete conversion while preventing over-milling. Detailed standardized synthesis steps see the guide below.

1. Load aromatic halide, palladium catalyst, reducing agent, and deuterium source into a dry ball mill jar.
2. Operate the ball mill at room temperature with a frequency of 20-60Hz or 1200-2400rpm for 40-100 minutes.
3. Dilute the mixture with ethyl acetate, filter, wash, and purify the crude product via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

The implementation of this mechanochemical deuteration technology offers profound commercial advantages that directly address the pain points of modern chemical supply chains. By eliminating the need for organic solvents, the process drastically reduces the volume of hazardous waste generated, leading to significant cost savings in waste disposal and environmental compliance. The room temperature operation eliminates the energy costs associated with heating and cooling large reaction vessels, contributing to a lower overall carbon footprint and reduced utility expenses. For supply chain heads, the simplicity of the equipment requirements, primarily needing standard ball milling apparatus, enhances the flexibility of manufacturing locations and reduces capital expenditure on specialized reactor infrastructure. These factors combine to create a more resilient and cost-effective supply chain for deuterated materials.

• Cost Reduction in Manufacturing: The elimination of expensive deuterated solvents and the ability to use cost-effective reducing agents like aluminum or magnesium significantly lowers the raw material costs per kilogram of product. The solvent-free nature of the reaction removes the need for complex solvent recovery systems and reduces the loss of valuable deuterium sources to evaporation or waste streams. Additionally, the high yields and deuteration degrees reported in the patent examples indicate minimal material loss during the reaction, further optimizing the cost of goods sold. This qualitative improvement in process efficiency allows for competitive pricing strategies without compromising on the quality of the deuterated intermediates supplied to pharmaceutical partners.
• Enhanced Supply Chain Reliability: The use of commercially available and stable reagents, such as heavy water and common metal powders, ensures that the supply chain is not vulnerable to shortages of specialized or exotic chemicals. The robustness of the mechanochemical method against variations in substrate structure means that a single production line can be adapted to manufacture a wide range of deuterated aromatic compounds, increasing asset utilization. This flexibility allows for quicker response times to changing market demands and reduces the lead time for high-purity deuterated intermediates. The simplified workup procedure also accelerates the production cycle, enabling faster turnover and more reliable delivery schedules for downstream customers.
• Scalability and Environmental Compliance: The transition from laboratory scale to commercial production is facilitated by the inherent safety of the solvent-free process, which minimizes the risk of fire and explosion associated with volatile organic compounds. The reduction in hazardous waste generation simplifies regulatory compliance and reduces the administrative burden associated with environmental reporting. The mechanical nature of the reaction is easily scalable using larger industrial ball mills, ensuring that the process can meet the demands of commercial scale-up of complex deuterated intermediates. This alignment with green chemistry principles not only meets current regulatory standards but also future-proofs the manufacturing process against tightening environmental regulations.

Frequently Asked Questions (FAQ)

The following questions and answers are derived from the technical details and beneficial effects described in the patent documentation to address common commercial and technical inquiries. These insights clarify the operational parameters and strategic benefits of adopting this mechanochemical synthesis route for deuterated compounds. Understanding these aspects is crucial for stakeholders evaluating the feasibility of integrating this technology into their existing manufacturing portfolios.

Q: What are the advantages of mechanochemical deuteration over HIE methods?

A: Unlike Hydrogen-Deuterium Exchange (HIE) which often suffers from poor selectivity and requires excess deuterium sources, this mechanochemical method achieves site-specific deuteration via C-X bond activation with high operability and minimal reagent usage.

Q: Is this process suitable for large-scale commercial production?

A: Yes, the solvent-free nature and room temperature conditions significantly simplify safety protocols and waste management, making it highly scalable for industrial manufacturing of deuterated intermediates.

Q: What types of reducing agents are compatible with this method?

A: The method supports a wide range of reducing agents including magnesium, aluminum, zinc, and formates, allowing flexibility in cost optimization and supply chain sourcing.
