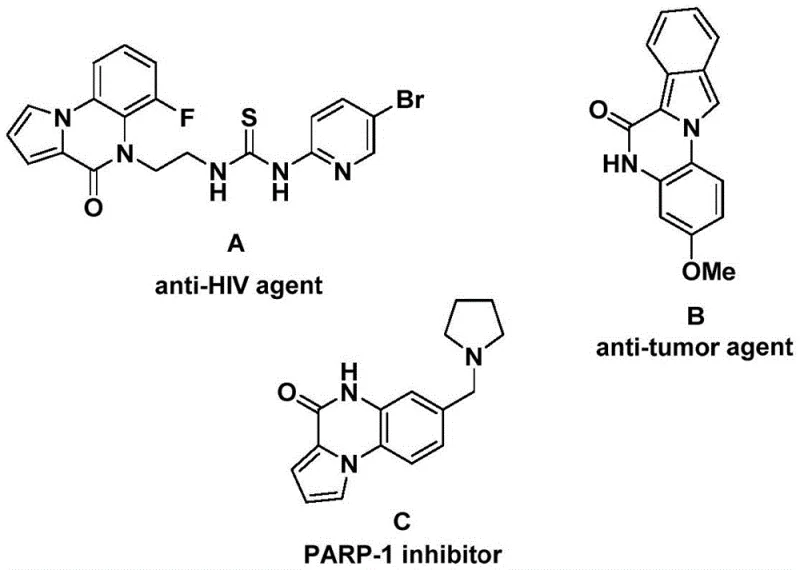

The pharmaceutical industry continuously seeks robust and cost-effective synthetic routes for complex heterocyclic scaffolds that serve as the backbone for potent bioactive molecules. A significant breakthrough in this domain is detailed in Chinese Patent CN112321593B, which discloses a novel preparation method for indolo[1,2-a]quinazolin-6(5H)-one compounds. This specific nitrogen-containing heterocycle is not merely a chemical curiosity; it is a privileged structure found in numerous molecular scaffolds exhibiting critical biological activities. As illustrated in the prior art, this core structure is integral to diverse therapeutic agents, including anti-HIV agents, anti-tumor molecules, and PARP-1 inhibitors, highlighting its immense value in drug discovery pipelines. The patent introduces a streamlined approach that leverages transition metal cobalt catalysis to achieve efficient C-H activated carbonylation, offering a compelling alternative to traditional methods.

The strategic importance of this synthesis lies in its ability to rapidly construct the indolo[1,2-a]quinazoline-6(5H)-one skeleton from readily accessible 2-pyridinecarboxamide derivatives. By utilizing a cobalt-catalyzed system, the process circumvents the reliance on precious metals, thereby addressing both economic and environmental concerns inherent in modern pharmaceutical manufacturing. The method involves reacting a cobalt catalyst, a base, a carbon monoxide substitute, an additive, and the substrate in an organic solvent at elevated temperatures ranging from 130°C to 150°C. This thermal activation facilitates the oxidative carbonylation necessary to close the ring and form the target lactam structure. The simplicity of the operation, combined with the high reaction efficiency and broad substrate compatibility described in the patent, positions this technology as a highly practical solution for generating high-purity pharmaceutical intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of pyrrolo or indolo[1,2-a]quinazolin-6(5H)-ones via carbonylation reactions has been predominantly reliant on transition metal palladium catalysis. While palladium is a powerful tool in organic synthesis, its application in this specific context presents several notable drawbacks for large-scale manufacturing. Firstly, palladium is a precious metal with volatile market pricing, which introduces significant cost uncertainty and financial risk into the supply chain of active pharmaceutical ingredients (APIs). Secondly, the removal of palladium residues from the final product is a stringent regulatory requirement due to toxicity concerns, often necessitating additional purification steps such as scavenging or recrystallization, which can erode overall yield and increase processing time. Furthermore, existing palladium-catalyzed methods often suffer from limited substrate scope or require harsh reaction conditions that are difficult to control on an industrial scale, limiting their utility for diverse drug development programs.

The Novel Approach

The methodology outlined in Patent CN112321593B represents a paradigm shift by replacing palladium with cobalt, an earth-abundant and inexpensive first-row transition metal. This novel approach utilizes a catalytic system comprising cobalt chloride, silver carbonate as an oxidant, and pivalic acid as an additive, all dissolved in a solvent like dioxane. The reaction proceeds through a C-H activation mechanism where the cobalt catalyst coordinates with the 2-pyridinecarboxamide derivative, activating the C-H bond at the 2-position of the indole ring. Subsequently, carbon monoxide, liberated in situ from a phenol 1,3,5-tricarboxylate substitute, inserts into the cobalt-carbon bond. This sequence culminates in reductive elimination and hydrolysis to yield the desired indolo[1,2-a]quinazolin-6(5H)-one compound. This cobalt-catalyzed pathway not only drastically reduces catalyst costs but also simplifies the downstream purification process, making it an attractive option for cost reduction in pharmaceutical intermediate manufacturing.

Mechanistic Insights into Cobalt-Catalyzed C-H Activated Carbonylation

To fully appreciate the technical robustness of this synthesis, one must delve into the mechanistic details that govern the transformation. The reaction initiates with the oxidation of the cobalt(II) catalyst, likely cobalt chloride, by silver carbonate to generate a higher valent cobalt(III) species. This active cobalt(III) intermediate then coordinates with the nitrogen atom of the 2-pyridinecarboxamide derivative, directing the metal center to the proximal C-H bond on the indole ring. This coordination facilitates the activation of the C-H bond at the 2-position, forming a stable cobalt(III) cyclometalated complex. This step is crucial as it defines the regioselectivity of the reaction, ensuring that the carbonylation occurs specifically at the desired position to form the fused ring system without generating unwanted isomers.

Following C-H activation, the mechanism proceeds with the insertion of carbon monoxide into the cobalt-carbon bond. In this specific protocol, the carbon monoxide is not supplied as a hazardous gas but is generated in situ from the decomposition of 1,3,5-tricarboxylic acid phenol ester (TFBen). This solid CO surrogate enhances operational safety and ease of handling, a significant advantage for scale-up. The insertion forms an acyl cobalt(III) intermediate, which subsequently undergoes reductive elimination to forge the new carbon-carbon bond and close the quinazolinone ring. Finally, hydrolysis releases the product and regenerates the catalyst species. This intricate dance of coordination, activation, insertion, and elimination ensures high reaction efficiency and excellent tolerance for various functional groups, including halogens and esters, which might otherwise interfere with more aggressive catalytic systems.

How to Synthesize Indolo[1,2-a]quinazolin-6(5H)-one Efficiently

The execution of this synthesis requires precise control over reaction parameters to maximize yield and purity. The patent provides a generalized protocol where the molar ratios of reagents are carefully optimized. Typically, the 2-pyridinecarboxamide derivative is reacted with a slight excess of the CO source and oxidant to drive the equilibrium towards product formation. The reaction is conducted in a sealed vessel, such as a Schlenk tube, to maintain the integrity of the reaction environment at elevated temperatures. Post-reaction, the workup involves simple filtration to remove insoluble silver salts, followed by standard chromatographic purification. This straightforward procedure minimizes unit operations, aligning perfectly with the principles of green chemistry and process intensification. For detailed standardized synthesis steps, please refer to the guide below.

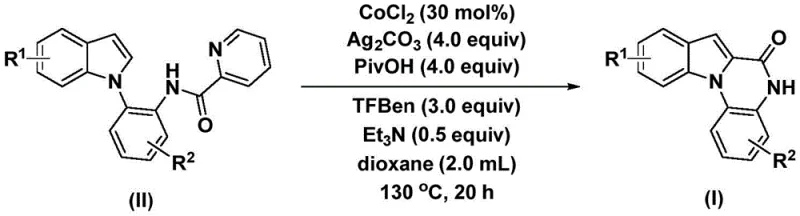

1. Combine cobalt chloride (catalyst), silver carbonate (oxidant), pivalic acid (additive), triethylamine (base), 1,3,5-tricarboxylic acid phenol ester (CO source), and the 2-pyridinecarboxamide derivative substrate in an organic solvent such as dioxane.
2. Heat the reaction mixture to a temperature between 130°C and 150°C and maintain stirring for a duration of 20 to 40 hours to ensure complete conversion.
3. Upon completion, filter the reaction mixture, mix with silica gel, and purify the crude product via column chromatography to isolate the target indolo[1,2-a]quinazolin-6(5H)-one compound.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the transition from palladium-based to cobalt-based catalysis offers tangible strategic benefits beyond mere technical feasibility. The primary advantage lies in the substantial cost savings associated with raw material acquisition. Cobalt chloride is significantly cheaper and more abundant than palladium salts, which directly lowers the bill of materials (BOM) for the intermediate. Furthermore, the use of a solid carbon monoxide surrogate eliminates the need for specialized high-pressure gas handling equipment and the associated safety infrastructure, reducing capital expenditure (CAPEX) for production facilities. This simplification of the process hardware translates to lower operational overheads and a reduced barrier to entry for manufacturing this valuable scaffold.

• Cost Reduction in Manufacturing: The elimination of expensive palladium catalysts and the use of commercially available, low-cost reagents like cobalt chloride and silver carbonate create a leaner cost structure. Additionally, the simplified post-treatment process, which avoids complex heavy metal scavenging steps required for palladium, reduces the consumption of auxiliary materials and labor hours. This cumulative effect leads to a more competitive pricing model for the final pharmaceutical intermediate, allowing for better margin management in the face of fluctuating raw material markets.
• Enhanced Supply Chain Reliability: Reliance on earth-abundant metals like cobalt mitigates the supply risk associated with precious metals, which are often subject to geopolitical instability and mining constraints. The starting materials, including the 2-pyridinecarboxamide derivatives and the CO surrogate, are readily synthesizable or purchasable from multiple global vendors. This diversification of the supply base ensures continuity of supply and reduces the lead time for high-purity pharmaceutical intermediates, safeguarding production schedules against external disruptions.
• Scalability and Environmental Compliance: The reaction conditions described, operating at atmospheric pressure with solid reagents, are inherently safer and easier to scale from gram to kilogram and tonne levels. The process generates less hazardous waste compared to gas-phase carbonylation methods, simplifying effluent treatment and disposal. This alignment with environmental, social, and governance (ESG) goals is increasingly critical for multinational corporations seeking sustainable supply chains, making this cobalt-catalyzed route a future-proof choice for long-term commercial partnerships.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this cobalt-catalyzed synthesis. These insights are derived directly from the experimental data and beneficial effects reported in the patent documentation, providing a clear picture of the technology's capabilities and limitations for potential adopters.

Q: What are the advantages of using cobalt over palladium for this synthesis?

A: The patented method utilizes earth-abundant cobalt chloride instead of expensive transition metal palladium catalysts. This substitution significantly reduces raw material costs and simplifies the removal of heavy metal residues, which is critical for pharmaceutical compliance.

Q: What is the substrate scope for this carbonylation reaction?

A: The process demonstrates excellent functional group tolerance. It accommodates various substituents including alkyl groups (methyl), alkoxy groups (methoxy), halogens (chloro, bromo), and alkoxycarbonyl groups at different positions on the aromatic rings, yielding products with good to excellent efficiency.

Q: Is this method suitable for large-scale industrial production?

A: Yes, the invention explicitly states that the method is simple to operate, uses cheap and readily available starting materials, and has been demonstrated to be expandable to the gram level, providing a strong foundation for industrial large-scale production and application.
