Scalable Synthesis of 5-Trifluoromethyl-1,2,4-Triazoles via Iron Catalysis for Global Pharmaceutical Supply Chains
Scalable Synthesis of 5-Trifluoromethyl-1,2,4-Triazoles via Iron Catalysis for Global Pharmaceutical Supply Chains
The pharmaceutical and agrochemical industries continuously seek robust, scalable methodologies for constructing nitrogen-containing heterocycles, particularly those incorporating fluorine motifs which enhance metabolic stability and bioavailability. Patent CN111978265B, published in July 2022, introduces a groundbreaking preparation method for 5-trifluoromethyl substituted 1,2,4-triazole derivatives that addresses critical inefficiencies in current synthetic routes. This technology leverages a cost-effective ferric chloride (FeCl3) catalytic system to drive the cyclization of readily available hydrazides and trifluoroethylimide chlorides. The significance of this development cannot be overstated, as 1,2,4-triazole scaffolds are pervasive in high-value therapeutics such as Maraviroc, Triazolam, Sitagliptin, and Deferasirox, as illustrated in the structural diversity of known bioactive molecules.
For R&D directors and process chemists, the ability to access these privileged structures through a streamlined, one-pot-like sequence represents a major strategic advantage. The patent details a protocol that eliminates the need for rigorous anhydrous or oxygen-free environments, traditionally a source of operational complexity and expense in fine chemical manufacturing. By utilizing common laboratory reagents and standard heating protocols, this invention lowers the barrier to entry for producing high-purity intermediates. The method's compatibility with a wide array of substituents ensures that medicinal chemists can rapidly iterate on lead compounds without being constrained by synthetic feasibility, thereby accelerating the drug discovery timeline while maintaining stringent quality standards required for regulatory approval.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of trifluoromethyl-substituted 1,2,4-triazoles has been plagued by significant technical hurdles that impede efficient commercial production. Traditional literature methods often rely on multi-step sequences involving unstable intermediates or harsh reaction conditions that are difficult to control on a large scale. For instance, methods involving the condensation of 3,5-ditrifluoromethyl-1,3,4-oxadiazoles with primary amines or the cyclization of trifluoromethyl hydrazides with amidines frequently suffer from low atom economy and poor yields. Furthermore, earlier approaches developed by the same research group, while effective for certain substrates, failed to accommodate alkyl hydrazones, severely limiting the chemical space accessible to researchers. These limitations translate directly into higher costs of goods sold (COGS) and extended lead times, creating bottlenecks for procurement managers tasked with securing reliable supplies of complex intermediates for API manufacturing.
The Novel Approach

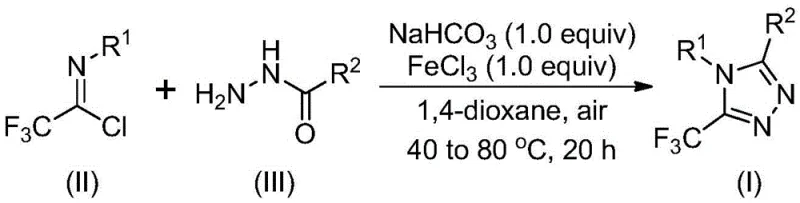

In stark contrast, the novel methodology disclosed in CN111978265B offers a transformative solution by employing a tandem cyclization strategy promoted by inexpensive ferric chloride. This approach utilizes cheap and commercially available acyl hydrazides and trifluoroethylimide chlorides as starting materials, reacting them in a simple organic solvent system. The process is remarkably forgiving, operating effectively under air atmosphere without the need for specialized inert gas lines or glovebox techniques. As depicted in the reaction scheme, the transformation proceeds through a base-promoted intermolecular carbon-nitrogen bond formation followed by a Lewis acid-mediated intramolecular dehydration condensation. This dual-activation mechanism not only broadens the substrate scope to include both aryl and alkyl variants but also significantly enhances reaction efficiency, providing a direct pathway to high-value targets with minimal waste generation.
Mechanistic Insights into FeCl3-Catalyzed Cyclization
From a mechanistic perspective, the success of this transformation lies in the synergistic interaction between the base and the Lewis acid catalyst. The reaction initiates with sodium bicarbonate facilitating the nucleophilic attack of the hydrazide nitrogen on the imidoyl chloride, forming a key trifluoroacetamidine intermediate. This step is crucial as it establishes the carbon-nitrogen framework necessary for ring closure. Subsequently, the addition of ferric chloride acts as a potent Lewis acid promoter, activating the intermediate for intramolecular cyclization. The iron center likely coordinates with the nitrogen atoms, increasing the electrophilicity of the adjacent carbon and facilitating the elimination of water to aromatize the triazole ring. This precise control over the reaction pathway minimizes the formation of side products, ensuring a clean impurity profile that is essential for downstream pharmaceutical applications.
Furthermore, the choice of ferric chloride as the catalyst offers distinct advantages over precious metal alternatives often used in C-H activation or cross-coupling reactions. Iron is abundant, non-toxic, and significantly cheaper than palladium or rhodium, aligning perfectly with green chemistry principles. The mechanism tolerates a wide range of functional groups, including halogens, alkoxy groups, and trifluoromethyl substituents on the aromatic rings, as evidenced by the successful synthesis of derivatives I-1 through I-5. This robustness implies that the electronic nature of the substrates does not drastically inhibit the catalytic cycle, allowing for the consistent production of diverse analogues. For quality control teams, this mechanistic stability translates to reproducible batch-to-batch consistency, a critical factor when scaling from gram-level discovery to multi-ton commercial production.
How to Synthesize 5-Trifluoromethyl-1,2,4-Triazole Derivatives Efficiently
The practical implementation of this synthesis is designed for ease of operation, making it accessible to both academic laboratories and industrial pilot plants. The protocol involves a straightforward two-stage heating process where reagents are first mixed at a moderate temperature to form the intermediate, followed by the addition of the catalyst and elevation to a higher temperature to drive cyclization to completion. Solvent selection is flexible, with 1,4-dioxane identified as the optimal medium for maximizing conversion rates, though other aprotic solvents are also viable. The detailed standardized synthesis steps, including specific molar ratios and workup procedures involving silica gel filtration and column chromatography, are outlined below to ensure reproducibility and high purity outcomes for your specific application needs.
- Mix sodium bicarbonate, trifluoroethylimide chloride, and hydrazide in an organic solvent like 1,4-dioxane.
- Heat the mixture to 30-50°C for 8-16 hours to facilitate initial condensation.
- Add ferric chloride catalyst and raise temperature to 70-90°C for 6-10 hours to complete cyclization, followed by purification.
Commercial Advantages for Procurement and Supply Chain Teams
For procurement managers and supply chain heads, the adoption of this FeCl3-catalyzed route offers compelling economic and logistical benefits that directly impact the bottom line. The reliance on commodity chemicals such as sodium bicarbonate and ferric chloride drastically reduces raw material costs compared to processes requiring exotic ligands or noble metals. Moreover, the elimination of strict anhydrous and anaerobic conditions simplifies the engineering requirements for reactors, allowing for the utilization of standard glass-lined or stainless steel equipment without extensive modification. This operational simplicity reduces capital expenditure (CAPEX) barriers and accelerates the timeline for technology transfer from R&D to manufacturing, ensuring a more agile response to market demands for critical pharmaceutical intermediates.
- Cost Reduction in Manufacturing: The economic viability of this process is driven by the substitution of expensive catalysts with ubiquitous iron salts and the use of inexpensive bases like sodium bicarbonate. By avoiding the need for rigorous drying of solvents or reagents, energy consumption associated with distillation and molecular sieve regeneration is significantly lowered. Additionally, the high yields reported across a broad substrate scope mean less raw material is wasted on failed batches or purification losses. This cumulative effect results in a substantially lower cost per kilogram of the final API intermediate, providing a competitive edge in price-sensitive markets while maintaining healthy profit margins for suppliers.
- Enhanced Supply Chain Reliability: Supply chain resilience is bolstered by the use of globally sourced, commodity-grade starting materials that are not subject to the geopolitical volatility often associated with rare earth metals or specialized reagents. The robustness of the reaction conditions ensures that production is less susceptible to disruptions caused by minor variations in environmental controls or operator error. This reliability allows for more accurate forecasting and inventory planning, reducing the risk of stockouts that can halt downstream API production lines. Consequently, partners can secure a steady flow of high-quality intermediates, safeguarding their own production schedules against upstream uncertainties.
- Scalability and Environmental Compliance: Scaling this process to industrial levels is facilitated by its inherent safety and simplicity, as it avoids hazardous reagents and extreme pressures. The use of iron, a benign metal, simplifies waste treatment protocols and reduces the environmental footprint of the manufacturing process, aiding in compliance with increasingly stringent global environmental regulations. The ability to easily scale from gram to kilogram quantities without re-optimizing reaction parameters ensures a smooth transition to commercial production volumes. This scalability supports the rapid ramp-up required for new drug launches, ensuring that supply can meet sudden spikes in demand without compromising on quality or sustainability goals.
Frequently Asked Questions (FAQ)
The following questions address common technical and commercial inquiries regarding the implementation of this patented synthesis method. These insights are derived directly from the experimental data and beneficial effects described in the patent documentation, providing clarity on how this technology can be integrated into existing workflows. Understanding these nuances is vital for technical teams evaluating the feasibility of adopting this route for their specific portfolio of compounds, ensuring alignment with both scientific objectives and business strategies.
Q: What are the primary advantages of this FeCl3-catalyzed method over traditional triazole synthesis?
A: Unlike traditional methods requiring harsh conditions or expensive reagents, this protocol utilizes cheap, commercially available starting materials and operates under air without strict anhydrous requirements, significantly simplifying operations.
Q: Does this method support a broad range of substrates for diverse drug discovery?
A: Yes, the method demonstrates excellent functional group tolerance, accommodating various substituted aryl groups and alkyl chains, making it highly versatile for generating diverse libraries of bioactive molecules.
Q: Is this process suitable for large-scale industrial production?
A: Absolutely. The use of inexpensive iron catalysts, ambient air atmosphere, and simple workup procedures makes this route highly amenable to commercial scale-up, addressing key supply chain bottlenecks.
