Advanced Palladium-Catalyzed Carbonylation Strategy for Scalable Thioester Manufacturing

Advanced Palladium-Catalyzed Carbonylation Strategy for Scalable Thioester Manufacturing

The landscape of organic synthesis is constantly evolving to meet the rigorous demands of modern pharmaceutical and fine chemical manufacturing, particularly regarding safety, efficiency, and environmental impact. A significant breakthrough in this domain is detailed in patent CN113004181B, which discloses a novel method for preparing thioester compounds through a transition metal-catalyzed carbonylation reaction. This technology represents a paradigm shift from traditional acylation methods by utilizing inexpensive benzyl chloride compounds and sulfonyl chlorides as primary starting materials, effectively bypassing the notorious handling difficulties associated with volatile and malodorous thiols. The core innovation lies in the sophisticated catalytic system employing palladium acetate, a specialized xanthene-based ligand, and tungsten carbonyl, which collectively enable a highly efficient transformation under relatively mild thermal conditions. For R&D directors and process chemists, this methodology offers a robust pathway to access diverse thioester scaffolds with high functional group tolerance, addressing a critical bottleneck in the synthesis of complex bioactive molecules and peptide mimics.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of thioester compounds has relied heavily on the direct acylation of thiols with carboxylic acids or their activated derivatives, such as acid chlorides or anhydrides. While chemically straightforward, this conventional approach suffers from severe practical drawbacks that hinder its application in large-scale industrial settings. The primary concern is the intrinsic nature of thiol reagents, which are characterized by extremely unpleasant, pervasive odors that pose significant occupational health and safety challenges, requiring specialized containment infrastructure and waste treatment protocols. Furthermore, thiols are potent catalyst poisons; their strong coordination to transition metals often deactivates catalytic systems, limiting the scope of reactions that can be performed in their presence. Alternative methods involving the oxidative coupling of aldehydes or substitution of halogenated alkanes often struggle with poor atom economy, harsh reaction conditions, or limited substrate scope, particularly when dealing with sensitive functional groups common in pharmaceutical intermediates. These limitations necessitate a search for safer, more efficient sulfur sources that can maintain high reactivity without compromising operational safety or catalyst longevity.

The Novel Approach

The patented methodology introduces a transformative solution by replacing problematic thiols with stable, odorless sulfonyl chlorides as the sulfur source, coupled with benzyl chlorides in a palladium-catalyzed carbonylation framework. This novel approach leverages the unique reactivity of tungsten hexacarbonyl, which serves a dual purpose as both the carbon monoxide source for the carbonyl insertion and as a stoichiometric reducing agent, thereby eliminating the need for hazardous external CO gas or separate hydride donors. The reaction proceeds efficiently in polar aprotic solvents like acetonitrile at temperatures around 100 °C, demonstrating exceptional compatibility with a wide range of substituents including halogens, alkyl groups, and alkoxy groups on both the benzyl and aryl sulfonyl components. As illustrated in the specific examples provided in the patent, this system successfully generates various thioester derivatives, such as S-phenyl 2-phenylacetate and its substituted analogues, with isolated yields ranging significantly, proving the versatility of the protocol. By avoiding the use of thiols, this method not only improves the working environment but also prevents catalyst deactivation, leading to more consistent and reproducible results across different substrate classes.

Mechanistic Insights into Palladium-Catalyzed Carbonylative Thioesterification

The success of this transformation hinges on a carefully orchestrated catalytic cycle involving palladium and tungsten species. The reaction initiates with the generation of an active palladium(0) species, likely facilitated by the reduction of palladium acetate by tungsten carbonyl in the presence of the bulky bidentate ligand, 4,5-bis(diphenylphosphino)-9,9-dimethylxanthene (Xantphos). This ligand is crucial due to its large bite angle, which promotes the reductive elimination step, a key determinant of catalytic turnover in cross-coupling reactions. The active Pd(0) complex undergoes oxidative addition with the benzyl chloride substrate to form a benzyl-palladium(II) intermediate. Subsequently, carbon monoxide, released in situ from the decomposition or ligand exchange of tungsten carbonyl, inserts into the palladium-carbon bond to generate an acyl-palladium species. The sulfonyl chloride then participates in the cycle, potentially undergoing reduction or activation to provide the sulfur nucleophile that attacks the acyl complex, ultimately releasing the thioester product and regenerating the palladium catalyst. The presence of water and triethylamine plays a supportive role, likely assisting in the activation of the sulfonyl chloride or neutralizing acidic byproducts, ensuring the smooth progression of the catalytic cycle without the accumulation of inhibitory species.

Impurity control in this system is inherently managed by the choice of reagents and the specificity of the palladium catalyst. Unlike thiol-based routes where over-oxidation to disulfides or sulfonic acids is a common side reaction, the use of sulfonyl chlorides directs the sulfur incorporation specifically towards the thioester linkage. The mild reaction conditions (100 °C) minimize thermal degradation of sensitive functional groups, preserving the integrity of substrates containing esters, ethers, or halides. Furthermore, the dual role of tungsten carbonyl ensures that the concentration of free carbon monoxide remains controlled, reducing the risk of side reactions such as homocoupling of the benzyl chloride or formation of symmetric ketones. The post-treatment procedure described, involving simple filtration and silica gel mixing followed by column chromatography, effectively removes metal residues and polar byproducts, yielding high-purity thioester compounds suitable for downstream applications. This mechanistic robustness translates directly to a cleaner crude reaction profile, simplifying purification and enhancing the overall mass balance of the process.

How to Synthesize S-Aryl Thioesters Efficiently

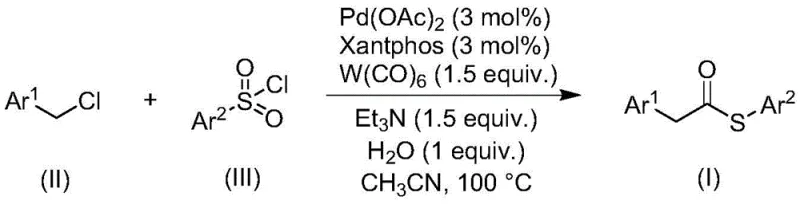

The synthesis of high-value thioester intermediates using this carbonylation protocol is designed for operational simplicity and reproducibility, making it an attractive option for process development teams aiming to scale up production. The procedure involves charging a reaction vessel with precise molar ratios of palladium acetate, Xantphos ligand, tungsten carbonyl, triethylamine, and water, followed by the addition of the benzyl chloride and sulfonyl chloride substrates in an organic solvent such as acetonitrile. The mixture is then heated to 100 °C and stirred for approximately 24 hours to drive the reaction to completion, after which standard workup techniques are employed to isolate the product. This streamlined workflow eliminates the need for high-pressure equipment typically associated with carbonylation reactions using gaseous CO, significantly lowering the barrier to entry for implementation in standard laboratory or pilot plant facilities. For detailed standardized synthetic steps and specific optimization parameters, please refer to the guide below.

1. Combine palladium acetate, Xantphos ligand, tungsten carbonyl, triethylamine, water, benzyl chloride, and sulfonyl chloride in an organic solvent like acetonitrile.
2. Heat the reaction mixture to 100 °C and maintain stirring for approximately 24 hours to ensure complete conversion.
3. Filter the reaction mixture, mix with silica gel, and purify via column chromatography to isolate the high-purity thioester product.

Commercial Advantages for Procurement and Supply Chain Teams

From a procurement and supply chain perspective, this patented technology offers substantial strategic advantages by fundamentally altering the cost structure and risk profile of thioester manufacturing. The replacement of expensive, hazardous, and difficult-to-handle thiol reagents with commodity chemicals like benzyl chlorides and sulfonyl chlorides drastically reduces raw material costs and simplifies logistics. Since these starting materials are widely available in the global chemical market and do not require special storage conditions for odor control, inventory management becomes significantly more efficient and less costly. Moreover, the elimination of external reducing agents and gaseous carbon monoxide cylinders reduces the dependency on specialized gas suppliers and minimizes the safety infrastructure required on-site, leading to lower capital expenditure and operational overheads. The robustness of the reaction conditions also implies higher batch-to-batch consistency, reducing the frequency of failed batches and the associated waste disposal costs, which is a critical factor in maintaining a lean and responsive supply chain.

• Cost Reduction in Manufacturing: The economic viability of this process is enhanced by the multifunctional role of tungsten carbonyl, which acts as both the carbonyl source and the reducing agent, thereby removing the cost and handling complexity of purchasing separate reagents for these functions. Additionally, the use of palladium acetate, while a precious metal catalyst, is employed at low loading levels (3 mol%), and the high turnover efficiency ensures that the catalyst cost per kilogram of product remains competitive. The avoidance of thiols also means that waste streams are less contaminated with sulfur-heavy malodorous compounds, potentially lowering the cost of wastewater treatment and environmental compliance. By streamlining the reagent list and simplifying the reaction setup, manufacturers can achieve significant operational savings that compound over large production volumes.
• Enhanced Supply Chain Reliability: Supply chain resilience is bolstered by the use of stable, non-volatile solid or liquid starting materials that have long shelf lives and are sourced from multiple global suppliers, mitigating the risk of single-source bottlenecks. Unlike thiols, which can degrade or oxidize upon storage leading to variability in reaction outcomes, sulfonyl chlorides and benzyl chlorides are chemically stable, ensuring consistent quality of incoming raw materials. This stability allows for larger batch sizes and longer campaign runs without the fear of reagent degradation, facilitating better production planning and inventory forecasting. The simplified safety profile also means that transportation and storage regulations are less stringent compared to toxic thiols, enabling faster and more flexible logistics arrangements for both domestic and international distribution.
• Scalability and Environmental Compliance: The process is inherently scalable due to its operation at atmospheric pressure (regarding CO gas) and moderate temperatures, avoiding the engineering challenges of high-pressure autoclaves required for traditional carbonylations. The post-treatment involves straightforward filtration and chromatography, which are unit operations easily adapted from gram to tonne scale without fundamental changes in the process physics. From an environmental standpoint, the avoidance of volatile organic sulfur compounds aligns with increasingly strict emissions regulations, reducing the facility's environmental footprint. The high atom economy and selectivity of the reaction minimize the generation of byproduct waste, supporting green chemistry initiatives and helping companies meet their sustainability goals while maintaining high production throughput.

Frequently Asked Questions (FAQ)

To assist technical decision-makers in evaluating the feasibility of this technology for their specific applications, we have compiled answers to common questions regarding the reaction scope, safety, and scalability based on the patent data. These insights address the practical concerns of implementing a new synthetic route in a regulated manufacturing environment, focusing on the tangible benefits observed in the experimental examples. Understanding these details is crucial for assessing the potential integration of this method into existing production lines for pharmaceutical intermediates or fine chemicals.

Q: Why is sulfonyl chloride preferred over thiols in this synthesis?

A: Sulfonyl chlorides are used to avoid the unpleasant odor and catalyst poisoning issues associated with traditional thiol compounds, while also serving as an effective sulfur source in the presence of tungsten carbonyl.

Q: What is the role of tungsten carbonyl in this reaction?

A: Tungsten carbonyl acts as a dual-function reagent, providing the necessary carbon monoxide for carbonylation and serving as a reducing agent to regenerate the active palladium catalyst, eliminating the need for external reducing agents.

Q: Is this process suitable for large-scale production?

A: Yes, the process utilizes cheap and readily available starting materials like benzyl chlorides and operates under relatively mild conditions (100 °C), making it highly amenable to commercial scale-up with simplified post-treatment procedures.
