Advanced Rhodium-Catalyzed Synthesis of 5-Acylbenzo[a]carbazoles for High-Performance OLED Materials

Advanced Rhodium-Catalyzed Synthesis of 5-Acylbenzo[a]carbazoles for High-Performance OLED Materials

The rapid evolution of organic electronics and pharmaceutical sciences demands increasingly sophisticated heterocyclic scaffolds capable of delivering superior performance metrics. In this context, patent CN108484477B introduces a transformative synthetic methodology for constructing 5-acylbenzo[a]carbazole derivatives, a class of nitrogen-containing fused heterocycles pivotal to next-generation organic light-emitting diodes (OLEDs) and bioactive small molecules. This innovation leverages a rhodium(III)-catalyzed tandem reaction between 2-aryl-3-formylindoles and sulfur ylides, effectively bypassing the multi-step limitations of traditional routes. By enabling direct C-H functionalization and annulation under relatively mild thermal conditions, this technology provides a streamlined pathway to access complex carbazole architectures with high atom economy. For procurement and R&D leaders seeking reliable electronic chemical suppliers, this patent represents a significant leap forward in process efficiency and structural diversity.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of benzo[a]carbazole cores has relied upon classical cyclization strategies that often suffer from severe operational drawbacks and economic inefficiencies. Traditional synthetic pathways frequently necessitate the use of harsh acidic or basic conditions, elevated temperatures exceeding 150°C, and stoichiometric amounts of toxic oxidants or coupling reagents. These aggressive environments not only compromise the integrity of sensitive functional groups—such as halogens or electron-withdrawing moieties essential for tuning electronic properties—but also generate substantial quantities of hazardous waste streams. Furthermore, conventional methods typically involve tedious multi-step sequences requiring intermediate isolation and purification, which drastically reduces overall throughput and increases the cost of goods sold (COGS). The low atom economy associated with these legacy processes poses a significant barrier to sustainable manufacturing, particularly when targeting the high-purity standards required for optoelectronic applications where trace impurities can quench luminescence.

The Novel Approach

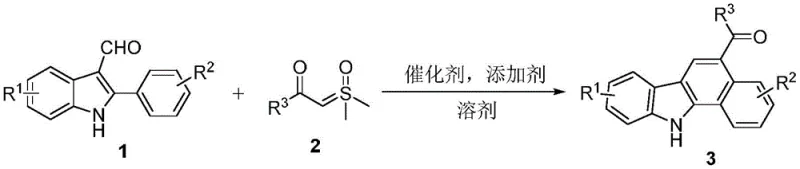

In stark contrast, the methodology disclosed in CN108484477B utilizes a sophisticated transition metal catalysis strategy that merges C-H activation with annulation in a single operational step. By employing a cationic rhodium(III) species generated in situ from [RhCp*Cl2]2 and cesium acetate, the reaction facilitates the direct coupling of readily available 2-aryl-3-formylindoles with sulfur ylides. This tandem process eliminates the need for pre-functionalized substrates, thereby reducing raw material costs and simplifying the supply chain logistics. The reaction proceeds efficiently in tetrahydrofuran (THF) at a moderate temperature of 100°C, demonstrating remarkable tolerance to a broad spectrum of substituents including fluoro, chloro, trifluoromethyl, and methoxy groups. This robustness ensures that manufacturers can produce a diverse library of derivatives without redesigning the core process for each new analog, significantly accelerating the timeline from discovery to commercial production for high-purity OLED material candidates.

Mechanistic Insights into Rh(III)-Catalyzed Tandem Annulation

The efficacy of this synthetic route is underpinned by a well-defined catalytic cycle initiated by the coordination of the rhodium(III) catalyst to the nitrogen atom of the indole substrate. Following coordination, the metal center mediates the activation of the proximal C-H bond on the aryl ring, forming a stable five-membered rhodacycle intermediate. This organometallic species then undergoes migratory insertion with the sulfur ylide reagent, a critical step that constructs the new carbon-carbon bond necessary for ring expansion. Subsequent elimination of the sulfur moiety and reductive elimination or protonolysis restores the aromaticity of the system, yielding the fused benzo[a]carbazole skeleton while regenerating the active catalytic species. This mechanism avoids the formation of high-energy radical intermediates common in free-radical cyclizations, thereby minimizing side reactions such as polymerization or non-selective oxidation that often plague less controlled synthetic methods.

From an impurity control perspective, the mild nature of the rhodium catalysis ensures that sensitive functional groups remain intact throughout the transformation. For instance, the presence of aldehyde groups or halogen atoms does not lead to dehalogenation or over-reduction, which are common failure modes in nickel or palladium-catalyzed cross-couplings under forcing conditions. The use of cesium acetate as a weak base additive further buffers the reaction environment, preventing acid-catalyzed decomposition of the product or starting materials. This high level of chemoselectivity translates directly to a cleaner crude reaction profile, reducing the burden on downstream purification units such as preparative HPLC or recrystallization. Consequently, the final product exhibits superior purity specifications, a critical parameter for clients in the semiconductor and display industries who require materials with minimal defect densities to ensure device longevity and efficiency.

How to Synthesize 5-Acylbenzo[a]carbazole Efficiently

The practical implementation of this chemistry is straightforward and amenable to standard laboratory and pilot plant equipment. The protocol involves dissolving the 2-aryl-3-formylindole precursor in anhydrous tetrahydrofuran, followed by the sequential addition of the sulfur ylide, the rhodium dimer catalyst, and the cesium acetate additive. The reaction mixture is then heated under air atmosphere, eliminating the need for expensive inert gas manifolds or glovebox operations. Upon completion, standard aqueous workup and silica gel chromatography afford the target compounds in high yields. Detailed standardized synthesis steps are provided in the guide below.

1. Dissolve 2-aryl-3-formylindole compound in THF solvent within a reaction vessel.
2. Add sulfur ylide, [RhCp*Cl2]2 catalyst, and CsOAc additive sequentially to the mixture.
3. Heat the reaction mixture to 100°C for 12 hours, then purify via silica gel chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this rhodium-catalyzed methodology offers tangible strategic benefits beyond mere technical novelty. The primary advantage lies in the drastic simplification of the manufacturing workflow, which directly correlates to reduced operational expenditures and enhanced supply chain resilience. By consolidating multiple synthetic transformations into a single pot, the process minimizes the number of unit operations, thereby lowering energy consumption and labor costs associated with material handling and intermediate storage. Furthermore, the reliance on commercially available and inexpensive starting materials, such as substituted indoles and simple ketone-derived sulfur ylides, mitigates the risk of raw material shortages that often disrupt production schedules for exotic heterocycles.

• Cost Reduction in Manufacturing: The elimination of pre-functionalized halide substrates and stoichiometric coupling reagents significantly lowers the direct material costs per kilogram of product. Additionally, the high catalytic efficiency allows for low catalyst loading, reducing the expense associated with precious metal recovery and disposal. The simplified workup procedure, which avoids complex extraction or distillation steps, further decreases utility costs and solvent waste treatment fees, contributing to substantial overall cost savings in electronic chemical manufacturing.
• Enhanced Supply Chain Reliability: The robustness of the reaction conditions ensures consistent batch-to-batch reproducibility, a key factor in maintaining reliable delivery schedules for downstream clients. Since the process tolerates a wide range of substrates, manufacturers can maintain a flexible inventory of intermediates, allowing for rapid switching between different product variants based on market demand without extensive process re-validation. This agility is crucial for responding to the fast-paced innovation cycles characteristic of the OLED and pharmaceutical sectors.
• Scalability and Environmental Compliance: The use of THF as a primary solvent and the absence of highly toxic reagents align with modern green chemistry principles, facilitating easier regulatory approval and environmental compliance. The mild temperature profile reduces the thermal load on reactor systems, enhancing safety and allowing for seamless scale-up from gram to tonne quantities. This scalability ensures that the supply of high-purity OLED materials can meet the growing global demand without compromising on quality or sustainability standards.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology. These insights are derived directly from the experimental data and scope analysis presented in the patent documentation, providing clarity on process capabilities and limitations for potential partners.

Q: What are the optimal reaction conditions for this synthesis?

A: The patent specifies using THF as the solvent at 100°C with [RhCp*Cl2]2 as the catalyst and CsOAc as the additive, achieving yields up to 85%.

Q: Can this method tolerate diverse functional groups?

A: Yes, the method demonstrates wide substrate scope, tolerating halogens (F, Cl), trifluoromethyl groups, and various alkyl or alkoxy substituents on the indole and phenyl rings.

Q: Is this process suitable for industrial scale-up?

A: The process utilizes commercially available reagents, operates under air conditions without strict inert gas requirements, and involves simple workup procedures, making it highly scalable.
