Advanced One-Pot Synthesis of Benzo[c,d]indole Imines for Scalable Pharmaceutical Manufacturing

Advanced One-Pot Synthesis of Benzo[c,d]indole Imines for Scalable Pharmaceutical Manufacturing

The pharmaceutical and fine chemical industries are constantly seeking robust methodologies to construct complex heterocyclic scaffolds efficiently. A significant breakthrough in this domain is documented in Chinese Patent CN114349684B, which discloses a novel synthetic method for polysubstituted benzo[c,d]indole imine derivatives. These compounds are critical intermediates known for their potent biological activities, including anti-tumor and cardiovascular therapeutic properties. The patented technology introduces a streamlined, one-pot strategy that leverages high-efficiency transition metal catalysis to forge these intricate structures directly from readily available 8-halo-1-naphthylamine compounds and isonitrile derivatives. By operating under mild nitrogen atmospheres and utilizing accessible solvents, this innovation addresses long-standing challenges in heterocyclic chemistry, offering a pathway that is not only scientifically elegant but also commercially viable for the production of high-purity pharmaceutical intermediates.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of benzo[c,d]indole imine derivatives has been fraught with significant operational and safety hurdles. Traditional synthetic routes typically rely on benzo[c,d]indol-2-one as the primary starting material, necessitating a multi-step sequence that is both labor-intensive and environmentally burdensome. One common legacy pathway involves the modification of the nitrogen atom followed by a reaction with phosphorus pentasulfide to generate thione derivatives, which are subsequently converted to imines using highly toxic mercuric oxide or mercury acetate catalysts. The reliance on mercury poses severe environmental and health risks, complicating waste disposal and increasing regulatory compliance costs. Another conventional approach utilizes phosphorus oxychloride as a dehydrating agent for condensation reactions, which generates corrosive byproducts and requires stringent handling protocols. Furthermore, the inherent structural rigidity of the benzo[c,d]indol-2-one core limits the diversity of substituents that can be introduced, restricting the chemical space available for drug discovery and optimization efforts.

The Novel Approach

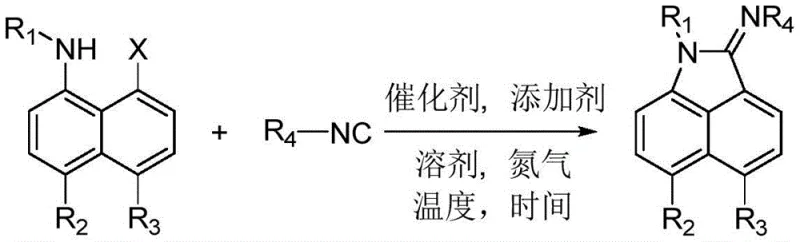

In stark contrast to these archaic methods, the technology described in CN114349684B revolutionizes the synthesis landscape through a direct, palladium-catalyzed cyclization strategy. This innovative route bypasses the need for pre-formed indolone cores, instead assembling the heterocyclic framework directly from 8-halo-1-naphthylamines and isonitriles in a single reaction vessel. The process employs catalytic amounts of efficient transition metals, such as Pd(TFA)2, coupled with mild bases like potassium carbonate, to drive the cyclization forward under relatively温和 conditions ranging from 25°C to 120°C. This one-pot methodology drastically simplifies the operational workflow by eliminating intermediate isolation steps and avoiding the use of stoichiometric toxic heavy metals. The result is a cleaner reaction profile with improved atom economy, making it an ideal candidate for cost reduction in pharmaceutical intermediate manufacturing while simultaneously expanding the scope of accessible chemical diversity.

Mechanistic Insights into Pd-Catalyzed Cyclization

The core of this synthetic advancement lies in the sophisticated interplay between the palladium catalyst and the organic substrates. The reaction mechanism likely initiates with the oxidative addition of the palladium species into the carbon-halogen bond of the 8-halo-1-naphthylamine, generating a reactive organopalladium intermediate. This species then undergoes coordination and insertion with the isonitrile functionality, a step that is critical for establishing the new carbon-carbon bond within the forming ring system. Subsequent intramolecular nucleophilic attack by the amine nitrogen onto the activated isonitrile carbon facilitates the closure of the five-membered imine ring. The presence of additives such as K2CO3 plays a pivotal role in neutralizing the hydrogen halide byproduct and regenerating the active catalytic species, ensuring the cycle continues efficiently. This mechanistic pathway avoids the high-energy barriers associated with thermal dehydration, allowing the reaction to proceed with excellent yields even at moderate temperatures, thereby preserving sensitive functional groups that might otherwise degrade under harsher conditions.

From an impurity control perspective, this catalytic system offers distinct advantages over non-catalytic thermal methods. The specificity of the palladium catalyst minimizes side reactions such as polymerization of the isonitrile or non-selective halogenation, which are common pitfalls in traditional synthesis. The use of aprotic solvents like 1,2-dichloroethane further enhances the solubility of the intermediates and stabilizes the transition states, leading to a cleaner crude product profile. This inherent selectivity reduces the burden on downstream purification processes, such as silica gel chromatography, allowing for higher recovery rates of the target benzo[c,d]indole imine derivative. For R&D teams focused on developing robust manufacturing processes, understanding these mechanistic nuances is essential for optimizing reaction parameters and ensuring consistent batch-to-batch quality in the production of high-purity pharmaceutical intermediates.

How to Synthesize Benzo[c,d]indole Imine Efficiently

Implementing this synthesis requires precise control over reaction stoichiometry and environmental conditions to maximize yield and purity. The patent outlines a generalized protocol where the molar ratio of the 8-halo-1-naphthylamine to the isonitrile derivative is maintained between 1:1.0 and 1:2.0, with the catalyst loading kept low at 0.05 to 0.2 equivalents to ensure economic feasibility. The reaction is conducted under an inert nitrogen atmosphere to prevent oxidation of the sensitive palladium catalyst and the isonitrile reagent. Following the reaction period, which can range from immediate completion to 24 hours depending on the substrate reactivity, the workup involves a straightforward aqueous quench and extraction with ethyl acetate. Detailed standardized synthesis steps see the guide below.

1. Combine 8-halo-1-naphthylamine, isonitrile derivative, Pd catalyst (e.g., Pd(TFA)2), and additive (e.g., K2CO3) in an aprotic solvent like 1,2-dichloroethane.
2. Heat the mixture to 25-120°C under a nitrogen atmosphere and stir for 0-24 hours until the starting material is consumed.
3. Cool to room temperature, extract with ethyl acetate after water addition, and purify the crude product via silica gel chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this patented synthesis route translates into tangible strategic benefits beyond mere chemical curiosity. The shift away from mercury-based catalysis eliminates the need for expensive heavy metal scavenging resins and complex wastewater treatment protocols required to meet stringent environmental regulations. This fundamental change in the process chemistry leads to substantial cost savings by reducing the overall number of unit operations and minimizing the consumption of hazardous reagents. Furthermore, the use of commercially available and inexpensive starting materials, such as substituted naphthylamines and simple isonitriles, ensures a stable and reliable supply chain for the raw materials, mitigating the risk of production delays caused by specialty reagent shortages.

• Cost Reduction in Manufacturing: The elimination of toxic mercury catalysts and stoichiometric dehydrating agents like phosphorus oxychloride significantly lowers the cost of goods sold. By utilizing catalytic amounts of palladium, which can potentially be recovered and recycled, the process reduces the dependency on expensive stoichiometric reagents. The one-pot nature of the reaction consolidates multiple synthetic steps into a single operation, thereby reducing labor costs, energy consumption for heating and cooling cycles, and solvent usage, all of which contribute to a more economically efficient manufacturing process for complex pharmaceutical intermediates.
• Enhanced Supply Chain Reliability: The substrates required for this synthesis, specifically 8-halo-1-naphthylamines and various isonitriles, are widely available from global chemical suppliers, ensuring a robust and diversified supply base. Unlike specialized precursors that may have long lead times or single-source dependencies, these building blocks are commodity chemicals with established production capacities. This availability allows for better inventory planning and reduces the vulnerability of the supply chain to geopolitical disruptions or raw material scarcity, ensuring continuous production flow for critical drug intermediates.
• Scalability and Environmental Compliance: The reaction conditions are mild and operate within a broad temperature window, making the process highly amenable to scale-up from kilogram to multi-ton production without requiring exotic high-pressure or cryogenic equipment. The absence of highly toxic mercury waste simplifies environmental compliance and reduces the liability associated with hazardous waste disposal. This green chemistry profile aligns with modern sustainability goals, facilitating easier regulatory approval and enhancing the corporate social responsibility profile of the manufacturing entity producing these valuable bioactive scaffolds.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology. These answers are derived directly from the experimental data and claims presented in the patent documentation, providing a factual basis for evaluating the feasibility of this route for your specific project needs. Understanding these details is crucial for making informed decisions about process adoption and resource allocation.

Q: What are the key advantages of this Pd-catalyzed method over traditional synthesis?

A: Unlike conventional methods that rely on toxic mercury catalysts or multi-step dehydration processes involving phosphorus oxychloride, this novel approach utilizes a one-pot palladium-catalyzed cyclization. This significantly reduces hazardous waste generation and simplifies the operational workflow.

Q: What is the substrate scope for the 8-halo-1-naphthylamine starting materials?

A: The method demonstrates broad universality, accommodating various substituents on the naphthalene ring. Both 8-iodo and 8-bromo derivatives are effective substrates, and the process tolerates diverse functional groups including nitro, amino, and sulfonyl moieties.

Q: Is this synthesis suitable for large-scale industrial production?

A: Yes, the patent explicitly states suitability for industrialized large-scale production. The use of catalytic amounts of efficient transition metals, simple reaction conditions, and easily obtainable raw materials supports cost-effective scaling from laboratory to commercial manufacturing.
