Advanced Copper-Catalyzed Synthesis of Pyrrolo[1,2-a]quinoxaline Derivatives for Commercial Scale Production

The chemical landscape for synthesizing complex heterocyclic scaffolds has evolved significantly with the introduction of transition metal-catalyzed cross-coupling strategies. Patent CN103342705A introduces a robust methodology for constructing pyrrolo[1,2-a]quinoxaline derivatives, a class of compounds renowned for their high thermal stability and electron affinity, making them critical candidates for fluorescent probe materials and pharmaceutical intermediates. This technology represents a paradigm shift from classical condensation reactions to a modern, copper-catalyzed cascade process that operates under relatively mild thermal conditions. By leveraging a catalytic system comprising copper salts and nitrogen-based ligands, the process achieves exceptional conversion rates while minimizing the formation of hazardous byproducts. For industry stakeholders, this patent data underscores a viable pathway for producing high-value heterocycles with improved efficiency and reduced environmental footprint, addressing the growing demand for sustainable chemical manufacturing practices in the fine chemicals sector.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the pyrrolo[1,2-a]quinoxaline core relied heavily on multi-step synthetic routes that were inherently inefficient and fraught with operational challenges. Traditional protocols often necessitated the initial formation of 1-(2-aminophenyl)pyrrole through the reaction of aryl 1,2-diamines with 2,5-diethoxytetrahydrofuran under heating, followed by a subsequent cyclization step involving refluxing in formic acid for extended periods ranging from 10 to 13 hours. Literature precedents, such as those by Cheeseman, indicate that these legacy methods frequently suffered from dismal reaction yields, often capping at approximately 28 percent, which is economically unsustainable for large-scale production. Furthermore, the requirement for strong acids and prolonged heating not only increased energy consumption but also posed significant safety risks and waste disposal issues. The reliance on such harsh conditions often led to poor selectivity, complicating downstream purification and resulting in lower overall purity of the final active pharmaceutical ingredient intermediates.

The Novel Approach

In stark contrast, the methodology disclosed in the patent utilizes a direct oxidative coupling strategy that streamlines the synthesis into a single pot, drastically reducing both time and resource expenditure. By employing 2-haloarylamines and 2-formylazole compounds as readily available starting materials, the reaction proceeds efficiently in the presence of a copper catalyst and a phosphate base. This novel approach eliminates the need for pre-functionalized diamines and avoids the use of corrosive formic acid, thereby simplifying the workup procedure to standard extraction and recrystallization techniques. The reaction conditions are notably milder, typically operating between 100 and 110 degrees Celsius, which preserves sensitive functional groups that might otherwise degrade under traditional reflux conditions. This technological advancement not only boosts the reaction yield to impressive levels, potentially reaching 90 percent, but also enhances the structural diversity accessible to medicinal chemists by tolerating a broad spectrum of substituents on the aromatic rings.

Mechanistic Insights into Copper-Catalyzed Cyclization

The core of this synthetic breakthrough lies in the intricate interplay between the copper catalyst and the bidentate ligand, which facilitates the activation of the carbon-halogen bond in the 2-haloarylamine substrate. Mechanistically, the reaction is believed to proceed through a catalytic cycle involving oxidative addition of the aryl halide to the copper center, followed by coordination of the azole nitrogen and subsequent intramolecular C-N bond formation. The presence of the alkaline medium, such as potassium phosphate, plays a dual role by neutralizing the hydrogen halide byproduct and activating the nucleophilic nitrogen species for attack. The choice of ligand, specifically 2,2-bipyridine, is critical as it stabilizes the copper species in the active oxidation state, preventing catalyst deactivation and ensuring high turnover numbers. This mechanistic efficiency allows the reaction to proceed with high atom economy, minimizing the generation of stoichiometric metal waste that is characteristic of older coupling methodologies.

From an impurity control perspective, the high selectivity of this catalytic system is paramount for meeting the stringent purity specifications required in pharmaceutical manufacturing. The mild reaction temperature helps suppress side reactions such as homocoupling of the aryl halide or decomposition of the aldehyde functionality, which are common pitfalls in high-temperature syntheses. Furthermore, the use of polar aprotic solvents like dimethylformamide ensures excellent solubility of all reaction components, promoting homogeneous kinetics and consistent product quality across batches. The ability to tolerate diverse functional groups, including electron-withdrawing nitro and cyano groups as well as electron-donating methoxy groups, demonstrates the robustness of the catalytic cycle against electronic perturbations. This broad substrate scope implies that the process can be adapted for various analogues without requiring extensive re-optimization, providing a stable platform for process development teams aiming to scale up complex heterocyclic libraries.

How to Synthesize Pyrrolo[1,2-a]quinoxaline Efficiently

Implementing this synthesis in a laboratory or pilot plant setting requires strict adherence to the optimized parameters regarding stoichiometry and atmospheric control to ensure reproducibility and safety. The protocol dictates dissolving the 2-haloarylamine and 2-formylazole reactants in a suitable organic solvent, typically dimethylformamide, with a molar ratio favoring the amine slightly to drive the equilibrium forward. The addition of the copper salt, preferably copper iodide, and the ligand must be conducted under an inert atmosphere, such as nitrogen or argon, to prevent oxidation of the catalyst and moisture sensitivity issues. Following the addition of the base, the mixture is heated to the specified range of 100 to 110 degrees Celsius and maintained with vigorous stirring for a duration of 15 to 20 hours to ensure complete conversion. Detailed standardized synthesis steps see the guide below.

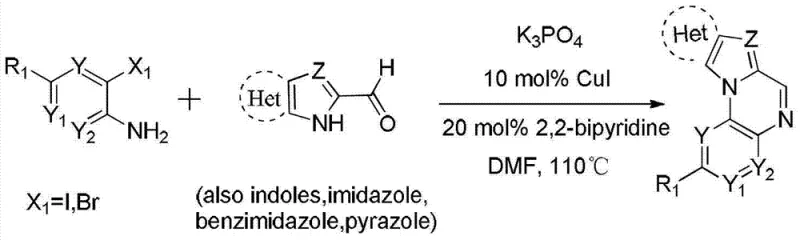

1. Dissolve 2-haloarylamine and 2-formylazole compound in an organic solvent like DMF with a molar ratio of 1-2: 1.
2. Add transition metal salt (CuI), ligand (2,2-bipyridine), and alkaline medium (K3PO4) under inert gas protection.
3. Stir the mixture at 100-110°C for 15-20 hours, then cool, extract, dry, and purify via recrystallization.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this copper-catalyzed technology offers tangible benefits that extend beyond mere chemical yield, impacting the overall cost structure and reliability of the supply chain. The transition from multi-step, low-yield processes to a streamlined one-pot reaction significantly reduces the consumption of raw materials and solvents, leading to substantial cost savings in manufacturing operations. By eliminating the need for expensive and toxic reagents associated with traditional methods, the process lowers the barrier for entry for suppliers and reduces the regulatory burden related to hazardous waste management. This efficiency gain translates directly into a more competitive pricing model for the final intermediates, allowing downstream pharmaceutical companies to optimize their bill of materials without compromising on quality standards.

• Cost Reduction in Manufacturing: The economic viability of this process is largely driven by the use of inexpensive and commercially available catalysts and ligands, such as copper iodide and 2,2-bipyridine, which are far more cost-effective than precious metal alternatives like palladium. The elimination of complex protection and deprotection steps further reduces the number of unit operations required, lowering labor costs and utility consumption associated with heating and cooling cycles. Additionally, the high reaction yield minimizes the loss of valuable starting materials, ensuring that the maximum amount of input is converted into sellable product, thereby improving the overall material throughput and return on investment for production facilities.
• Enhanced Supply Chain Reliability: The reliance on commodity chemicals for the catalytic system ensures that the supply chain is less vulnerable to disruptions caused by the scarcity of specialized reagents. Since the starting materials, such as substituted anilines and formylazoles, are widely produced by multiple vendors globally, sourcing risks are mitigated, and lead times can be significantly shortened. The robustness of the reaction conditions also means that production can be maintained consistently across different manufacturing sites without the need for highly specialized equipment, fostering a resilient supply network capable of meeting fluctuating market demands for pharmaceutical intermediates.
• Scalability and Environmental Compliance: Scaling this process from gram to kilogram quantities is facilitated by the mild thermal requirements and the absence of highly exothermic steps that pose safety risks in large reactors. The simplified workup procedure, involving standard extraction and distillation, reduces the volume of organic waste generated per kilogram of product, aligning with increasingly strict environmental regulations and sustainability goals. This green chemistry profile not only reduces disposal costs but also enhances the corporate social responsibility standing of the manufacturing entity, making it a preferred partner for environmentally conscious global pharmaceutical clients seeking compliant supply chains.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation and benefits of this synthesis technology, derived directly from the patent specifications and experimental data. Understanding these details is crucial for technical teams evaluating the feasibility of integrating this route into their existing production pipelines or for procurement specialists assessing supplier capabilities. The answers provided reflect the specific advantages documented in the intellectual property, ensuring accuracy and relevance for decision-makers.

Q: What are the key advantages of this copper-catalyzed method over traditional synthesis?

A: This method eliminates the need for multi-step procedures and harsh refluxing conditions associated with traditional formic acid cyclization, achieving yields up to 90% compared to historical yields of 28%.

Q: Is this process scalable for industrial manufacturing of pharmaceutical intermediates?

A: Yes, the use of inexpensive ligands like 2,2-bipyridine and common bases like potassium phosphate, combined with moderate temperatures of 110°C, makes the process highly suitable for large-scale commercial production.

Q: What is the substrate scope for the 2-haloarylamine component?

A: The reaction tolerates a wide range of substituents including electron-withdrawing groups like nitro, cyano, and trifluoromethyl, as well as electron-donating groups, allowing for diverse derivative synthesis.
