Revolutionizing Topramezone Production: A Safe, Cost-Effective Copper-Catalyzed Strategy

The global demand for high-efficiency herbicides continues to drive innovation in agrochemical manufacturing, specifically for HPPD inhibitors like Topramezone. Patent CN114163428B introduces a groundbreaking preparation method that fundamentally alters the economic and safety landscape of Topramezone production. Historically, the synthesis of this critical active ingredient has been plagued by the reliance on hazardous high-pressure carbon monoxide atmospheres and costly noble metal catalysts. This new technical disclosure presents a robust, one-pot copper-catalyzed carbonylation strategy that operates under atmospheric pressure, utilizing inexpensive cyanide sources as the carbon monoxide equivalent. By shifting from palladium-based systems to earth-abundant copper catalysts, this invention not only mitigates severe production safety risks but also offers a pathway to substantially lower manufacturing overheads. For industry stakeholders, this represents a pivotal shift towards more sustainable and economically viable agrochemical intermediate supply chains.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional synthetic routes for Topramezone, often modeled after the original BASF processes, suffer from inherent structural inefficiencies that burden both procurement and operations teams. These legacy methods typically necessitate the use of expensive transition metal palladium catalysts coupled with phosphine ligands for the critical carbonyl insertion step. Furthermore, these reactions must be conducted under high-pressure carbon monoxide conditions, often exceeding 20 atmospheres, which mandates the use of specialized, high-load autoclaves and rigorous safety protocols. The reliance on such harsh conditions creates a bottleneck for scale-up, as the equipment costs are prohibitive and the risk of toxic gas leakage is a constant concern. Additionally, alternative routes involving Grignard reagents or strong corrosive chlorination agents introduce further complexity, generating significant hazardous waste and requiring energy-intensive purification steps to remove metal residues and byproducts.

The Novel Approach

In stark contrast, the methodology described in CN114163428B leverages a clever copper-catalyzed system that bypasses the need for gaseous carbon monoxide entirely. By employing solid cyanide sources such as sodium cyanide or cuprous cyanide in conjunction with copper salts, the reaction achieves the necessary carbonylation under standard atmospheric pressure. This transformation simplifies the reactor requirements dramatically, allowing for the use of standard glass-lined or stainless steel vessels rather than specialized high-pressure equipment. The process is designed as a one-pot reaction where Compound A reacts directly with 1-methyl-5-hydroxypyrazole, streamlining the workflow and minimizing intermediate isolation steps. This operational simplicity translates directly into reduced labor costs and shorter batch cycles, making it an highly attractive option for large-scale industrial adoption.

Mechanistic Insights into Copper-Catalyzed Cyanide Carbonylation

The core of this technological advancement lies in the unique activation of the carbon-nitrogen triple bond of the cyanide ion by the copper catalyst. In this mechanistic cycle, the copper salt, coordinated by bidentate ligands such as 1,10-phenanthroline or amino acids like L-proline, facilitates the insertion of the cyanide carbon into the aryl-halide bond of Compound A. This effectively mimics the behavior of carbon monoxide without the associated handling hazards. The ligand plays a crucial role in stabilizing the copper center and enhancing its nucleophilicity, ensuring high turnover numbers even at moderate temperatures ranging from 100°C to 160°C. The presence of the cyanide quencher in the post-treatment phase is equally critical, as it safely neutralizes any unreacted cyanide species, ensuring the final product meets stringent safety standards for agrochemical applications without requiring complex heavy metal scavenging procedures.

From an impurity control perspective, this mechanism offers superior selectivity compared to free-radical or high-energy thermal pathways. The coordination environment created by the copper-ligand complex directs the reaction specifically towards the desired ketone formation, minimizing side reactions such as homocoupling or dehalogenation which are common in palladium-catalyzed systems. The patent data indicates that by optimizing the molar ratio of the copper salt to the ligand, manufacturers can achieve conversion rates where the starting material peak area is reduced to less than 1% in HPLC analysis. This high level of conversion reduces the burden on downstream purification, allowing for the isolation of Topramezone with purity levels exceeding 97% through simple crystallization techniques, thereby preserving the integrity of the sensitive isoxazole and pyrazole rings.

How to Synthesize Topramezone Efficiently

The synthesis protocol outlined in the patent provides a clear roadmap for transitioning from laboratory discovery to pilot plant production. The process begins with the dissolution of the halogenated isoxazole precursor and the pyrazole coupling partner in a polar aprotic solvent, followed by the controlled addition of the cyanide source to manage exotherms. The subsequent introduction of the copper catalyst system initiates the carbonylation cascade, which proceeds smoothly over a period of 10 to 48 hours depending on the specific halogen substituent used. Detailed standardized operating procedures regarding temperature ramping, quenching protocols, and pH adjustments during workup are essential for reproducibility. For a comprehensive breakdown of the exact reagent quantities, stirring speeds, and filtration parameters required to replicate these results, please refer to the step-by-step guide below.

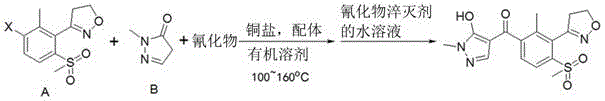

1. Dissolve Compound A (halogenated isoxazole derivative) and 1-methyl-5-hydroxypyrazole in an organic solvent such as DMF or NMP, then add a cyanide source like sodium cyanide in portions.
2. Introduce the copper catalyst (e.g., cuprous bromide) and ligand (e.g., 1,10-phenanthroline) to the mixture and heat to 100-160°C under nitrogen protection for 10-48 hours.
3. Quench the reaction with a cyanide quencher solution, adjust pH to precipitate the crude product, and purify via methanol recrystallization to obtain high-purity Topramezone.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the adoption of this copper-catalyzed process offers immediate and tangible strategic benefits that extend beyond simple unit cost calculations. The elimination of high-pressure carbon monoxide removes a major regulatory and safety hurdle, significantly lowering the insurance and compliance costs associated with manufacturing facilities. Furthermore, the substitution of noble palladium catalysts with abundant copper salts decouples production costs from the volatile precious metals market, providing greater financial predictability for long-term contracts. The simplified workup procedure, which avoids complex chromatographic separations or hazardous reagent quenches, reduces the consumption of solvents and utilities, contributing to a leaner and more environmentally compliant manufacturing footprint.

• Cost Reduction in Manufacturing: The most significant economic driver of this technology is the complete removal of expensive palladium catalysts and the associated ligand systems that often account for a disproportionate share of raw material costs in traditional syntheses. By utilizing low-loading copper salts and inexpensive organic ligands, the direct material cost per kilogram of active ingredient is drastically reduced. Additionally, the ability to run the reaction at atmospheric pressure eliminates the need for capital-intensive high-pressure reactors, allowing existing infrastructure to be repurposed for Topramezone production without significant retrofitting investments.
• Enhanced Supply Chain Reliability: The raw materials required for this process, including various copper salts, cyanide sources, and common organic solvents like DMF or toluene, are commodity chemicals with robust global supply chains. This contrasts sharply with specialized organometallic catalysts that may have limited suppliers and long lead times. The stability of the starting materials and the tolerance of the reaction conditions mean that production schedules are less likely to be disrupted by raw material shortages or quality variances, ensuring a consistent flow of high-purity agrochemical intermediates to downstream formulators.
• Scalability and Environmental Compliance: The one-pot nature of the reaction inherently reduces the generation of waste streams associated with intermediate isolations and multiple solvent swaps. The post-treatment involves a straightforward acid-base extraction and crystallization, which generates manageable aqueous and organic waste fractions that are easier to treat than the heavy-metal-contaminated waste from palladium processes. This alignment with green chemistry principles facilitates easier permitting for capacity expansion and supports corporate sustainability goals by minimizing the overall environmental impact of the manufacturing lifecycle.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this novel synthesis route. These insights are derived directly from the experimental data and claims within the patent documentation, providing a factual basis for evaluating the technology's fit within your existing production portfolio. Understanding these nuances is critical for R&D teams assessing feasibility and for commercial teams negotiating supply agreements based on this improved methodology.

Q: How does this new process improve safety compared to traditional Topramezone synthesis?

A: Traditional methods often require high-pressure carbon monoxide gas and expensive palladium catalysts, posing significant explosion and toxicity risks. This patented method utilizes solid cyanide sources and copper catalysts at atmospheric pressure, drastically reducing operational hazards and equipment requirements.

Q: What are the primary cost drivers eliminated in this copper-catalyzed route?

A: The process eliminates the need for noble metal palladium catalysts and specialized high-pressure reactors required for carbonylation. Additionally, the use of inexpensive copper salts and readily available ligands significantly lowers the raw material cost per kilogram compared to prior art involving Grignard reagents or complex rearrangement steps.

Q: Is the purity of Topramezone obtained via this method suitable for commercial agrochemical use?

A: Yes, the examples in the patent demonstrate that the crude product can be easily purified to over 97% purity through simple methanol pulping and crystallization. The one-pot nature of the reaction also minimizes the formation of difficult-to-remove byproducts common in multi-step synthetic routes.
