Advanced Cobalt Nanocrystal Catalysis for Scalable Benzoxazole C2 Amination in Pharmaceutical Manufacturing

Advanced Cobalt Nanocrystal Catalysis for Scalable Benzoxazole C2 Amination in Pharmaceutical Manufacturing

The development of efficient synthetic routes for heterocyclic compounds remains a cornerstone of modern pharmaceutical research, particularly for scaffolds exhibiting potent biological activity against neurodegenerative disorders. Patent CN102766108A introduces a groundbreaking methodology for the preparation of benzoxazole C2 position ammoniated derivatives, utilizing a cobalt nanocrystal catalytic system that operates under remarkably mild conditions. This innovation addresses critical bottlenecks in the synthesis of key pharmaceutical intermediates by replacing harsh reaction environments with a room-temperature, air-atmosphere protocol. For R&D directors and procurement specialists seeking reliable pharmaceutical intermediate suppliers, this technology represents a significant leap forward in process efficiency and cost management. The ability to construct C-N bonds on the benzoxazole core without expensive ligands or noble metals opens new avenues for the scalable production of therapeutic candidates targeting Alzheimer's disease and schizophrenia.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of C-N bonds in heterocyclic systems has relied heavily on transition metal-catalyzed cross-coupling reactions, such as the Ullmann and Goldberg reactions, which typically utilize copper, palladium, or rhodium catalysts. While effective, these conventional methods often necessitate rigorous reaction conditions, including elevated temperatures and the use of sophisticated, costly phosphine ligands to stabilize the metal center. Furthermore, the reliance on noble metals introduces significant supply chain vulnerabilities and cost volatility, while the removal of trace metal residues from the final active pharmaceutical ingredient (API) requires additional, expensive purification steps. These factors collectively hinder the economic viability of large-scale manufacturing for benzoxazole derivatives, creating a pressing need for more sustainable and accessible catalytic alternatives in the fine chemical industry.

The Novel Approach

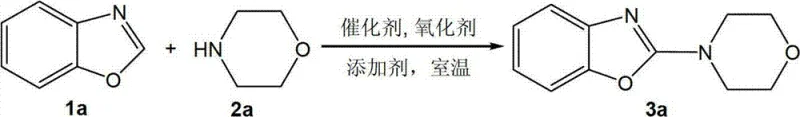

In stark contrast to traditional methodologies, the novel approach detailed in the patent employs earth-abundant cobalt nanocrystals as a heterogeneous catalyst, coupled with tert-butyl hydroperoxide (TBHP) as a green oxidant and acetic acid as a promoter. This system facilitates the direct C2 amination of benzoxazoles at room temperature and normal pressure under an air atmosphere, effectively eliminating the energy-intensive heating steps associated with prior art. As illustrated in the reaction scheme below, the transformation of benzoxazole and morpholine into the corresponding C2-aminated product proceeds with high efficiency, demonstrating the robustness of the cobalt nanocrystal catalyst. This shift not only drastically simplifies the operational requirements but also enhances the safety profile of the manufacturing process by avoiding high-pressure reactors and inert gas lines.

Mechanistic Insights into Cobalt Nanocrystal-Catalyzed C-H Activation

The efficacy of this synthetic route lies in the unique properties of the cobalt nanocrystals, which possess a grain size ranging from 5 nanometers to 20 nanometers, providing a high surface-area-to-volume ratio that maximizes catalytic active sites. The proposed mechanism likely involves the activation of the C-H bond at the C2 position of the benzoxazole ring by the cobalt species, followed by oxidative coupling with the amine nucleophile mediated by the TBHP oxidant. The presence of acetic acid plays a crucial role in facilitating proton transfer and stabilizing intermediate species, ensuring smooth progression of the catalytic cycle without the need for external ligands. This ligand-free nature is particularly advantageous for industrial applications, as it removes the complexity and cost associated with ligand synthesis and recovery, thereby streamlining the overall process flow for high-purity pharmaceutical intermediate production.

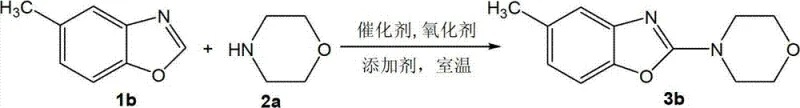

Furthermore, the mild reaction conditions contribute significantly to impurity control, a critical parameter for R&D directors focused on regulatory compliance and product quality. By operating at room temperature, the formation of thermal degradation byproducts and polymerization side reactions is minimized, leading to cleaner reaction profiles and higher crude purity. The substrate scope is impressively broad, accommodating various substituents on the benzoxazole ring, including electron-donating groups like methyl and methoxy, as well as electron-withdrawing groups such as chloro and phenyl. For instance, the synthesis of 5-methylbenzoxazole derivatives proceeds with exceptional yields, highlighting the versatility of this catalytic system for generating diverse chemical libraries essential for drug discovery campaigns.

How to Synthesize Benzoxazole C2 Aminated Derivatives Efficiently

To implement this advanced synthesis in a laboratory or pilot plant setting, operators must adhere to precise stoichiometric ratios and mixing protocols to ensure optimal catalyst performance and reproducibility. The process begins with the dissolution of the benzoxazole substrate and the chosen amine in acetonitrile, followed by the sequential addition of the cobalt nanocrystal catalyst, TBHP oxidant, and acetic acid additive. Maintaining the reaction under stirring at ambient temperature allows the catalytic cycle to proceed efficiently over a period of 4 to 24 hours, depending on the specific electronic nature of the substrates involved. Detailed standardized synthesis steps see the guide below.

1. Dissolve benzoxazole substrate and amine in acetonitrile with cobalt nanocrystal catalyst, tert-butyl hydroperoxide oxidant, and acetic acid additive.
2. Stir the reaction mixture at room temperature and normal pressure under an air atmosphere for 4 to 24 hours.
3. Separate the final benzoxazole C2 amination product from the reaction mixture using silica gel column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, the adoption of this cobalt-catalyzed methodology offers profound benefits for procurement managers and supply chain heads aiming to optimize cost structures and ensure material availability. The substitution of expensive noble metal catalysts with inexpensive cobalt nanocrystals directly translates to substantial cost savings in raw material procurement, while the elimination of ligands further reduces the bill of materials. Additionally, the ability to run reactions under air atmosphere and at room temperature significantly lowers energy consumption and infrastructure requirements, allowing for flexible manufacturing in standard facilities without the need for specialized high-pressure or inert gas equipment. These factors collectively enhance the economic feasibility of producing complex pharmaceutical intermediates on a commercial scale.

• Cost Reduction in Manufacturing: The transition from precious metal catalysts like palladium or rhodium to earth-abundant cobalt represents a strategic move towards cost-efficient manufacturing. By removing the dependency on volatile noble metal markets and eliminating the need for expensive ligand systems, manufacturers can achieve a leaner cost structure. Furthermore, the simplified workup procedure, which avoids complex metal scavenging steps typically required for Pd-catalyzed reactions, reduces downstream processing costs and solvent usage, contributing to overall operational efficiency.
• Enhanced Supply Chain Reliability: Utilizing cobalt, a widely available base metal, mitigates supply chain risks associated with the geopolitical instability often affecting noble metal sourcing. The reagents required for this process, such as tert-butyl hydroperoxide and acetic acid, are commodity chemicals with robust global supply networks, ensuring consistent availability and stable pricing. This reliability is crucial for maintaining continuous production schedules and meeting the stringent delivery timelines demanded by multinational pharmaceutical clients.
• Scalability and Environmental Compliance: The mild reaction conditions inherently support safer and more scalable operations, as the absence of high temperatures and pressures reduces the risk of thermal runaway incidents. From an environmental standpoint, the use of acetonitrile as a solvent and the generation of minimal heavy metal waste align with green chemistry principles, facilitating easier regulatory approval and waste disposal. This sustainability profile is increasingly important for companies aiming to reduce their carbon footprint and comply with evolving environmental regulations in the chemical sector.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this cobalt-catalyzed amination technology. These insights are derived directly from the experimental data and beneficial effects described in the patent documentation, providing clarity on process capabilities and limitations. Understanding these details is essential for technical teams evaluating the feasibility of integrating this route into their existing manufacturing portfolios.

Q: What are the advantages of using cobalt nanocrystals over traditional copper or palladium catalysts?

A: Cobalt nanocrystals offer a significantly more cost-effective alternative to expensive noble metals like palladium or rhodium. Furthermore, this method operates at room temperature without the need for complex ligands, simplifying the purification process and reducing overall production costs.

Q: Can this synthesis method tolerate various functional groups on the benzoxazole ring?

A: Yes, the protocol demonstrates excellent functional group tolerance. It successfully accommodates substrates with electron-donating groups like methyl and methoxy, as well as electron-withdrawing groups such as chloro and acetyl, yielding high-purity products across a broad substrate scope.

Q: Is this process suitable for large-scale commercial production?

A: Absolutely. The reaction proceeds under normal pressure and air atmosphere at room temperature, eliminating the need for specialized high-pressure equipment or inert gas protection. These mild conditions make the process highly scalable and safe for industrial manufacturing environments.
