Scalable Visible Light Mediated Synthesis of Beta-Ketosulfones for Pharmaceutical Applications
Scalable Visible Light Mediated Synthesis of Beta-Ketosulfones for Pharmaceutical Applications

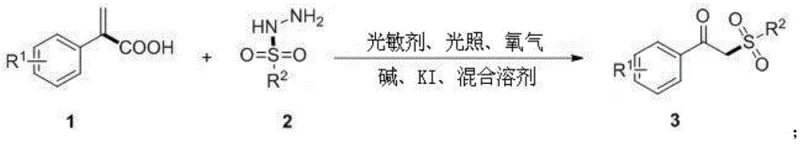

The rapid evolution of green chemistry methodologies has necessitated a shift away from traditional heavy metal catalysis towards more sustainable, visible-light-mediated processes. Patent CN110981676A introduces a groundbreaking approach for the preparation of $eta$-ketosulfone compounds through a visible light-mediated atoxic acid decarboxylation ketonization reaction. This technology leverages environmentally benign atopic acid and stable, odorless sulfonyl hydrazine as primary reactants, utilizing fluorescein as an organic photosensitizer in the presence of oxygen. For R&D directors and procurement specialists in the fine chemical sector, this represents a significant paradigm shift, offering a route that avoids toxic metal residues while maintaining high conversion rates and operational simplicity under mild conditions.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of $eta$-ketosulfone scaffolds, which are critical motifs in numerous bioactive molecules and agrochemical agents, has relied heavily on transition metal catalysis or harsh oxidative conditions. Conventional routes often employ expensive catalysts such as silver nitrate or iridium complexes, which not only inflate the raw material costs but also introduce significant challenges in downstream processing due to strict regulatory limits on heavy metal residues in pharmaceutical intermediates. Furthermore, many existing protocols require inert atmosphere protection, the use of hazardous radical initiators like tert-butyl hydroperoxide, or high-energy ultraviolet irradiation, all of which complicate the safety profile and increase the energy consumption of the manufacturing process. These factors collectively create bottlenecks in cost reduction in pharmaceutical intermediate manufacturing, particularly when scaling to multi-kilogram quantities where safety and waste management become paramount concerns.
The Novel Approach
In stark contrast, the methodology disclosed in CN110981676A utilizes a metal-free photocatalytic system driven by visible light, specifically employing commercially available organic dyes like fluorescein. This approach replaces dangerous oxidants with molecular oxygen, which serves as both a clean oxidant and an oxygen source, thereby generating water as the primary byproduct rather than toxic waste streams. The reaction proceeds efficiently in a mixed solvent system of acetonitrile and water, demonstrating remarkable tolerance to moisture which eliminates the need for rigorous drying of reagents or solvents. By operating at room temperature under standard fluorescent lighting, this method drastically simplifies the equipment requirements, allowing for the commercial scale-up of complex organic intermediates without the need for specialized high-pressure or cryogenic reactors.
Mechanistic Insights into Visible Light Mediated Decarboxylative Ketonization
The mechanistic pathway of this transformation involves a sophisticated interplay of single electron transfer (SET) and radical propagation steps initiated by the excitation of the fluorescein photocatalyst. Upon irradiation with visible light, the photosensitizer reaches an excited state capable of oxidizing the sulfonyl hydrazide substrate via SET, generating a highly reactive radical cation intermediate. This species subsequently undergoes deprotonation and oxidation by molecular oxygen to release nitrogen gas and form a key benzenesulfonyl radical. This radical adds selectively to the double bond of the atropic acid derivative, which has been activated in situ by the inorganic base, forming a new carbon-sulfur bond and a transient alkyl radical species. The subsequent interaction with oxygen and iodide anions facilitates the formation of an intermediate that undergoes decarboxylation to yield the final $eta$-ketosulfone product, regenerating the catalytic cycle.
Understanding the impurity profile is critical for ensuring high-purity beta-ketosulfone production, and this mechanism offers inherent advantages in selectivity. The use of potassium iodide as a catalytic additive plays a dual role in facilitating the radical chain process and suppressing side reactions that might arise from direct oxidation of the substrate. The mild nature of the visible light excitation prevents the degradation of sensitive functional groups that often occurs under high-energy UV conditions, thereby minimizing the formation of complex by-product mixtures. Additionally, the reliance on oxygen as the terminal oxidant ensures that the carbonyl oxygen in the product is derived cleanly from the gas phase rather than solvent participation, leading to a well-defined isotopic signature and consistent product quality across different batches.
How to Synthesize Beta-Ketosulfone Efficiently
The operational protocol for this synthesis is designed for maximum ease of use, requiring only standard laboratory glassware and a simple light source. The process begins with the sequential addition of atropic acid, sulfonyl hydrazide, fluorescein, an inorganic base such as sodium bicarbonate, and potassium iodide into a reaction vessel containing a mixture of acetonitrile and water. The detailed standardized synthesis steps are outlined below to ensure reproducibility and optimal yield for your specific substrate combination.
- Dissolve atropic acid, sulfonyl hydrazide, fluorescein photocatalyst, inorganic base, and potassium iodide in a MeCN/H2O mixed solvent.
- Seal the reaction vessel, connect to an oxygen balloon, and irradiate with a 23W compact fluorescent lamp at room temperature.
- Upon completion, remove solvent, extract with ethyl acetate, wash, dry, and purify via column chromatography.
Commercial Advantages for Procurement and Supply Chain Teams
For procurement managers and supply chain heads, the adoption of this visible-light mediated technology translates directly into tangible operational efficiencies and risk mitigation. The elimination of precious metal catalysts removes a major cost driver and supply chain vulnerability, as the prices of metals like iridium and palladium are subject to extreme volatility and geopolitical constraints. Furthermore, the use of abundant, commodity-grade starting materials such as atropic acid and sulfonyl hydrazides ensures a stable and reliable supply chain, reducing the lead time for high-purity pharmaceutical intermediates and preventing production delays caused by specialty reagent shortages.
- Cost Reduction in Manufacturing: The replacement of expensive transition metal catalysts with inexpensive organic dyes like fluorescein results in substantial cost savings on raw materials. Additionally, the simplified workup procedure, which avoids complex heavy metal scavenging steps, reduces the consumption of auxiliary chemicals and lowers waste disposal costs. The ability to run the reaction in aqueous mixtures further decreases solvent costs compared to strictly anhydrous protocols, contributing to a leaner overall manufacturing budget.
- Enhanced Supply Chain Reliability: By utilizing readily available starting materials that are produced on a large industrial scale, manufacturers can secure long-term supply contracts with greater confidence. The robustness of the reaction conditions means that production is less susceptible to minor fluctuations in environmental controls or reagent quality, ensuring consistent output and on-time delivery to downstream customers who rely on just-in-time inventory models.
- Scalability and Environmental Compliance: The use of oxygen from the air or balloons as the oxidant aligns perfectly with green chemistry principles, significantly reducing the environmental footprint of the process. This eco-friendly profile simplifies regulatory compliance and permitting for new production lines, while the mild reaction conditions allow for safe scaling from gram to ton quantities without the need for specialized high-pressure equipment, facilitating rapid technology transfer from lab to plant.
Frequently Asked Questions (FAQ)
The following questions address common technical inquiries regarding the implementation of this photocatalytic method, focusing on practical aspects of reaction setup and substrate compatibility. These insights are derived directly from the experimental data and optimization studies presented in the patent documentation to assist technical teams in evaluating feasibility.
Q: What are the advantages of this visible light method over traditional metal catalysis?
A: This method eliminates the need for expensive and toxic transition metal catalysts like silver or iridium, using cheap organic dyes instead, which significantly reduces heavy metal residue concerns and purification costs.
Q: Is the reaction sensitive to moisture or air?
A: The reaction system utilizes water as a co-solvent and oxygen as the terminal oxidant, making it highly robust and insensitive to moisture, which simplifies operational requirements compared to inert atmosphere methods.
Q: What is the substrate scope for this beta-ketosulfone synthesis?

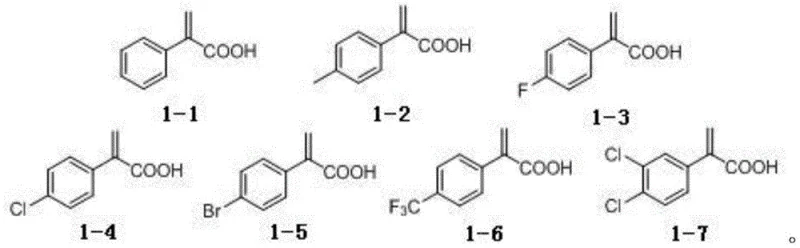

A: The protocol tolerates a wide range of substituents including electron-rich and electron-deficient groups on both the atropic acid and sulfonyl hydrazide, allowing for the synthesis of diverse functionalized intermediates.
