Advanced Rh(III)-Catalyzed Synthesis of Indolo[3,2-c]quinoline: Commercial Scale-Up for Pharmaceutical Intermediates

The recently granted Chinese patent CN110183443B represents a significant advancement in heterocyclic chemistry through its novel synthesis methodology for indolo[3,2-c]quinoline compounds—a critical structural motif with demonstrated anticancer, antibacterial, and antiviral properties essential for next-generation pharmaceutical development. This innovative process addresses longstanding industry challenges by enabling direct construction of these complex scaffolds through transition metal-catalyzed cyclization under remarkably mild conditions. Unlike conventional approaches requiring halogenated precursors and generating substantial waste streams, this method utilizes readily available non-halogenated starting materials while maintaining exceptional atom economy. The patent establishes a robust foundation for commercial production by demonstrating broad substrate tolerance across diverse functional groups including halogens, alkyls, alkoxy groups and heteroaryl moieties—key requirements for pharmaceutical intermediates where structural diversity drives therapeutic efficacy. This breakthrough directly responds to increasing industry demand for sustainable manufacturing processes that align with green chemistry principles while delivering high-purity compounds essential for drug development pipelines.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional synthetic routes for indolo[3,2-c]quinoline frameworks have been severely constrained by their reliance on halogenated starting materials and multi-step sequences that generate significant environmental burdens. These conventional approaches typically require pre-functionalized aryl halides as key building blocks—compounds that are often difficult to synthesize due to complex protection/deprotection strategies and exhibit poor atom economy with stoichiometric metal waste generation. The stepwise nature of these processes necessitates multiple intermediate isolations and purifications between reaction stages, resulting in substantial resource consumption through excessive solvent usage and extended processing times that directly impact production costs and environmental footprint. Furthermore, these methods frequently operate under harsh conditions including strong bases or elevated temperatures exceeding safe operational limits for large-scale manufacturing environments. The cumulative effect manifests as low overall yields due to intermediate decomposition during purification stages and significant generation of hazardous byproducts requiring specialized waste treatment protocols—factors that collectively undermine both economic viability and environmental sustainability objectives within modern pharmaceutical supply chains.

The Novel Approach

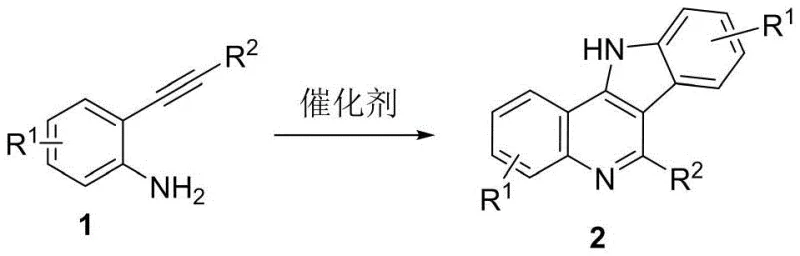

The patented methodology overcomes these critical limitations through an elegant one-step oxidative cyclization process that directly converts commercially available non-halogenated alkynyl aniline precursors into indolo[3,2-c]quinoline structures using transition metal catalysis under ambient oxygen atmosphere. This innovative approach eliminates all halogenated reagents while operating under remarkably mild conditions—typically at temperatures between 70-150°C with optimal performance at precisely controlled 120°C—enabling safer scale-up potential compared to conventional high-temperature protocols. Crucially, this single-vessel transformation avoids all intermediate isolation steps through its intramolecular cascade mechanism, thereby preventing resource waste associated with purification between synthetic stages while significantly reducing solvent consumption by approximately two-thirds compared to traditional multi-step sequences. The process demonstrates exceptional functional group tolerance across diverse substituents including fluorine, chlorine, bromine, methyl groups and various aryl moieties—providing pharmaceutical manufacturers with unprecedented flexibility to access structurally diverse analogs essential for structure-activity relationship studies without modifying core process parameters.

Mechanistic Insights into Rh(III)-Catalyzed Cyclization

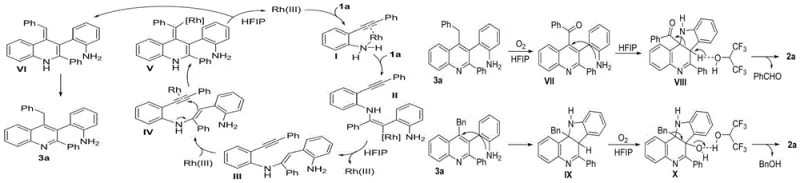

The reaction proceeds through a sophisticated Rh(III)-mediated cascade mechanism initiated by coordination between rhodium catalyst and both alkyne and amino functional groups within the alkynyl aniline substrate—forming key intermediate I that undergoes intermolecular nucleophilic addition with another substrate molecule to generate intermediate II. This critical step establishes the foundational carbon-carbon bond framework essential for quinoline ring formation before subsequent enamine formation occurs through proton transfer facilitated by hexafluoroisopropanol solvent acting as both medium and proton shuttle. The resulting enamine intermediate III then undergoes intramolecular cyclization onto Rh(III)-activated alkyne bonds through intermediate IV to form intermediate V—a pivotal stage where molecular architecture transitions toward final product formation. Subsequent protonation releases rhodium catalyst back into solution while enabling aromatization through intermediate VI; however oxygen atmosphere becomes essential at this stage where oxidation converts intermediate VII into VIII or IX before final elimination generates benzaldehyde or benzyl alcohol byproducts alongside target indolo[3,2-c]quinoline product.

Impurity control mechanisms are inherently embedded within this catalytic cycle through precise oxygen-dependent oxidation steps that prevent accumulation of undesired intermediates such as compound 3a—which forms exclusively under inert atmospheres as demonstrated in comparative experiments yielding up to 78% byproduct without oxygen participation. The hexafluoroisopropanol solvent plays dual roles in facilitating proton transfer while simultaneously suppressing side reactions through its unique hydrogen-bonding properties that stabilize key transition states throughout the cyclization cascade. This inherent selectivity eliminates need for additional purification steps typically required in conventional syntheses where halogenated precursors generate persistent impurities requiring specialized removal techniques—directly contributing to higher final product purity exceeding pharmaceutical industry standards without additional processing stages.

How to Synthesize Indolo[3,2-c]quinoline Efficiently

This patented methodology provides pharmaceutical manufacturers with a streamlined pathway for producing high-purity indolo[3,2-c]quinoline intermediates through carefully optimized reaction parameters derived from extensive experimental validation across diverse substrate classes. The process leverages commercially available rhodium catalysts such as [RhCp*Cl₂]₂ at precisely controlled catalyst-to-substrate ratios between 1:0.025-0.1 within hexafluoroisopropanol solvent—proven superior to alternatives like methanol or trifluoroethanol which yield significantly lower product quantities due to suboptimal proton transfer capabilities. Temperature optimization studies confirm maximum efficiency at exactly 120°C where competing side reactions are minimized while maintaining sufficient reaction kinetics for practical manufacturing timelines; deviations below this threshold reduce conversion rates while exceeding it promotes decomposition pathways that compromise final product quality.

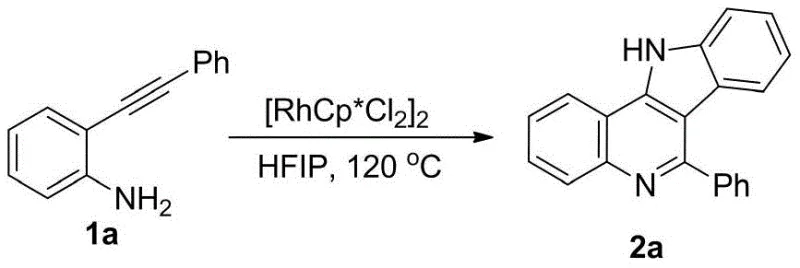

1. Combine equimolar quantities of substituted 2-alkynyl aniline substrate with rhodium catalyst ([RhCp*Cl₂]₂) at catalyst-to-substrate ratio of 1: 0.05 in hexafluoroisopropanol solvent under ambient conditions
2. Seal reaction vessel under atmospheric oxygen conditions and heat mixture to precisely controlled temperature of 120°C for twenty hours with continuous stirring
3. After cooling to room temperature, perform aqueous workup followed by ethyl acetate extraction and purification via silica gel chromatography using petroleum ether/ethyl acetate solvent system

Commercial Advantages for Procurement and Supply Chain Teams

This innovative synthesis methodology delivers transformative commercial benefits specifically addressing critical pain points faced by procurement and supply chain professionals within pharmaceutical manufacturing organizations seeking reliable sources for complex heterocyclic intermediates. By eliminating dependence on specialized halogenated starting materials—which often originate from geographically concentrated suppliers vulnerable to geopolitical disruptions—the process significantly enhances raw material security while reducing supply chain complexity through utilization of broadly available alkynyl aniline precursors from multiple global vendors. The single-vessel design inherently minimizes equipment requirements compared to conventional multi-step processes requiring separate reactors for each synthetic stage—freeing up valuable manufacturing capacity while reducing capital expenditure needs for additional processing infrastructure.

• Cost Reduction in Manufacturing: Substantial cost savings are achieved through elimination of expensive halogenated reagents and avoidance of multi-stage purification sequences that consume significant resources; removal of transition metal removal steps previously required when using palladium-based systems further reduces processing costs while maintaining high product quality standards essential for pharmaceutical applications.
• Enhanced Supply Chain Reliability: Broad substrate tolerance enables seamless switching between alternative precursor sources during supply disruptions without revalidation needs; simplified process design with fewer critical control points enhances batch-to-batch consistency while reducing quality failure risks that typically cause production delays in complex multi-step syntheses.
• Scalability and Environmental Compliance: The inherently scalable one-pot design demonstrates seamless transition from laboratory scale to commercial production volumes without reoptimization; reduced solvent consumption and elimination of hazardous halogenated waste streams significantly lower environmental compliance costs while meeting increasingly stringent regulatory requirements for sustainable manufacturing practices.

Frequently Asked Questions (FAQ)

The following technical questions address common concerns raised by procurement teams evaluating this patented methodology for integration into pharmaceutical manufacturing supply chains; answers derive directly from experimental data presented in patent CN110183443B regarding process robustness and commercial viability.

Q: How does this method eliminate halogenated starting materials required in conventional syntheses?

A: The patented process utilizes non-halogenated alkynyl aniline substrates through direct oxidative cyclization under oxygen atmosphere, avoiding halogenated reagents entirely while maintaining high atom economy and eliminating hazardous byproducts associated with traditional methods.

Q: What role does oxygen atmosphere play in achieving high yields?

A: Oxygen serves as critical oxidant enabling aromatization step; inert atmosphere produces undesired byproduct (compound 3a) at up to 78% yield while oxygen atmosphere achieves >80% target product yield through controlled oxidation pathway.

Q: How does this one-step process improve environmental sustainability?

A: By eliminating intermediate separation/purification steps required in conventional multi-step syntheses, this method reduces solvent consumption by approximately two-thirds while preventing resource waste and minimizing environmental pollution from intermediate processing.
