Advanced Resin-Based Separation Technology for High-Purity Emtricitabine Manufacturing

Advanced Resin-Based Separation Technology for High-Purity Emtricitabine Manufacturing

The pharmaceutical industry continuously seeks robust methodologies to enhance the purity and yield of critical antiviral agents, particularly nucleoside reverse transcriptase inhibitors like emtricitabine. A pivotal advancement in this domain is documented in patent CN101671333B, which introduces a sophisticated separation technique utilizing salicylic acid functionalized polystyrene resin. This innovation addresses the longstanding challenges associated with isolating emtricitabine from complex reaction mixtures, offering a pathway that is both chemically elegant and commercially viable for large-scale operations. By shifting from traditional liquid-phase complexation to a solid-phase extraction model, this technology promises to redefine the standard for producing high-purity emtricitabine, ensuring that supply chains remain resilient against the stringent quality demands of modern antiretroviral therapy regimens.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

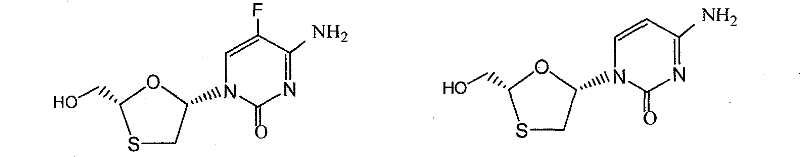

Historically, the purification of emtricitabine has relied heavily on repeated recrystallization or column chromatography, techniques that are notoriously inefficient for industrial mass production due to high solvent consumption and low throughput. An alternative approach involved complexing emtricitabine with free salicylic acid (often referred to as Whitfield's ointment in specific contexts) to form a crystalline salt, which could then be separated from the reaction medium. However, this legacy method suffers from a critical flaw: the difficulty in completely removing residual salicylic acid from the final product, leading to potential impurity profiles that fail to meet rigorous pharmacopeial standards. Furthermore, the structural similarity between emtricitabine and its analogue lamivudine complicates the separation landscape, often requiring excessive processing to achieve the necessary differentiation.

The Novel Approach

The breakthrough presented in the patent data lies in the immobilization of the complexing agent onto a solid support, effectively creating a "smart" resin that selectively binds emtricitabine while excluding impurities. Instead of using free salicylic acid, the process employs salicylic acid chloromethylate to functionalize polystyrene resin via a Friedel-Crafts alkylation reaction catalyzed by aluminum trichloride. This creates a heterogeneous system where the emtricitabine in the synthetic mixture complexes with the salicylic acid moieties anchored on the resin beads. The resulting resin-drug complex is easily isolated through simple filtration, bypassing the tedious and solvent-heavy steps of chromatography. Subsequently, the pure emtricitabine is released from the resin matrix using triethylamine, yielding a product with superior purity and significantly reduced risk of salicylic acid contamination.

Mechanistic Insights into Functionalized Resin Complexation

The core of this technological leap is the precise chemical engineering of the polystyrene backbone to act as a selective host for the emtricitabine guest molecule. The functionalization process involves a classic electrophilic aromatic substitution where the chloromethyl group of the salicylate derivative attacks the aromatic rings of the polystyrene resin in the presence of a Lewis acid catalyst. This covalent attachment ensures that the salicylic acid functionality is permanently fixed, preventing it from leaching into the product stream during the complexation phase. When the crude reaction mixture containing emtricitabine is introduced, likely involving hydrogen bonding or ionic interactions between the pyrimidone base of the drug and the carboxylic acid group on the resin, a stable intermediate is formed. This solid-liquid interaction is thermodynamically favorable under reflux conditions, driving the equilibrium towards the bound state and effectively pulling the product out of the solution phase.

Impurity control is inherently built into this mechanism due to the steric and electronic constraints imposed by the solid support. Unlike free salicylic acid which can non-specifically precipitate various components, the resin-bound acid offers a specific microenvironment that favors the formation of the emtricitabine complex. The release step is equally mechanistic; the addition of triethylamine, a strong organic base, disrupts the acid-base interaction holding the drug to the resin. By neutralizing the acidic sites on the resin, triethylamine frees the emtricitabine into the solution phase, from which it can be recovered by evaporation. This reversible binding cycle is crucial, as it allows the resin to be regenerated using dilute hydrochloric acid, restoring its protonated state for subsequent batches without significant loss of capacity, thereby ensuring consistent performance over multiple cycles.

How to Synthesize Emtricitabine Efficiently

The implementation of this separation strategy requires careful attention to the preparation of the functionalized resin and the optimization of the complexation conditions to maximize recovery yields. The process begins with the swelling of polystyrene resin in methylene dichloride, followed by the controlled addition of chloromethyl salicylate and aluminum chloride to effect the grafting reaction. Once the resin is prepared and dried, it is introduced to the concentrated emtricitabine reaction filtrate in a mixture of methanol and methylene chloride. The detailed standardized synthesis steps, including specific molar ratios, temperature gradients, and agitation speeds required to replicate this high-efficiency separation, are outlined in the technical guide below.

1. Prepare the functionalized resin by reacting polystyrene resin with chloromethyl salicylate under aluminum chloride catalysis.
2. Mix the functionalized resin with the crude emtricitabine reaction mixture in methanol and methylene chloride, then reflux to allow complexation.
3. Filter the resin, wash, and then treat with triethylamine in a solvent mixture to release and recover pure emtricitabine.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain directors, the transition to this resin-based separation technology represents a significant opportunity to optimize operational expenditures and mitigate supply risks. The primary economic driver is the reusability of the separation medium; because the functionalized resin can be regenerated and reused multiple times through a simple acid wash protocol, the recurring cost of separation materials is drastically reduced compared to single-use chromatography columns or consumable recrystallization solvents. This shift from a consumable-heavy process to a capital-efficient cyclic process directly lowers the cost of goods sold (COGS), making the final API more competitive in the global market without compromising on the stringent quality requirements demanded by regulatory bodies.

• Cost Reduction in Manufacturing: The elimination of free salicylic acid removes the need for extensive downstream purification steps designed to strip away residual acids, which traditionally consume large volumes of solvents and energy. By integrating the separation and purification into a single filtration event, manufacturers can significantly reduce utility costs and solvent procurement expenses. Furthermore, the ability to regenerate the resin means that the initial investment in the functionalized polymer is amortized over many production batches, leading to substantial long-term savings that enhance the overall profit margin of the emtricitabine production line.
• Enhanced Supply Chain Reliability: Relying on complex chromatographic separations often introduces bottlenecks due to column packing variability and limited throughput, which can jeopardize delivery timelines. This filtration-based method is inherently more robust and scalable, allowing for larger batch sizes to be processed in standard reactor vessels without the need for specialized chromatography skids. This simplification of the equipment footprint reduces maintenance downtime and ensures a more consistent and predictable production schedule, enabling suppliers to meet tight delivery windows for critical antiviral medications with greater confidence and reliability.
• Scalability and Environmental Compliance: From an environmental perspective, the reduction in solvent usage and the avoidance of hazardous waste associated with disposable chromatography media align perfectly with modern green chemistry initiatives. The process generates less liquid waste and avoids the contamination issues linked to residual salicylic acid disposal, simplifying wastewater treatment protocols. This environmental efficiency not only reduces compliance costs but also future-proofs the manufacturing process against increasingly stringent environmental regulations, ensuring uninterrupted operations and safeguarding the company's reputation as a sustainable manufacturer.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented separation technology, providing clarity on its operational feasibility and quality impact. These insights are derived directly from the experimental data and claims within the patent documentation, offering a transparent view of the method's capabilities for potential adopters and partners looking to integrate this advanced purification strategy into their existing workflows.

Q: How does the functionalized resin method improve emtricitabine purity compared to traditional salicylic acid complexation?

A: Traditional methods use free salicylic acid which often leaves difficult-to-remove residues in the final product. By covalently bonding the salicylic acid moiety to a polystyrene backbone, the new method prevents salicylic acid contamination, significantly enhancing the purity profile of the isolated emtricitabine.

Q: Is the separation resin reusable for multiple batches?

A: Yes, the patent explicitly details a regeneration process where the exhausted resin is treated with 1mol/L hydrochloric acid. This restores the resin's complexation capability, allowing it to be reused multiple times, which drastically reduces material costs over the long term.

Q: What are the scalability advantages of this filtration-based separation?

A: Unlike column chromatography which is difficult to scale and solvent-intensive, this method relies on simple filtration and washing steps. This makes it highly suitable for industrial mass production, reducing processing time and equipment complexity while maintaining consistent quality.
