Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Quinazolinones for Scalable Pharmaceutical Production
The pharmaceutical industry continuously seeks robust methodologies to construct nitrogen-containing heterocycles, particularly those functionalized with trifluoromethyl groups which impart superior metabolic stability and lipophilicity to drug candidates. Patent CN113045503B introduces a groundbreaking preparation method for 2-trifluoromethyl substituted quinazolinone compounds, utilizing a transition metal palladium-catalyzed carbonylation cascade. This technology represents a significant leap forward for reliable pharmaceutical intermediate suppliers aiming to streamline the production of complex heterocyclic scaffolds found in numerous bioactive molecules. The process leverages cheap and readily available starting materials, specifically trifluoroethylimidoyl chloride and various amines, to achieve high reaction efficiency under relatively mild conditions. By replacing hazardous gaseous carbon monoxide with a solid surrogate, this invention not only enhances laboratory safety but also simplifies the engineering controls required for commercial scale-up of complex pharmaceutical intermediates. The versatility of this approach allows for the introduction of diverse functional groups, making it an invaluable tool for medicinal chemists optimizing lead compounds.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of 2-trifluoromethyl-substituted quinazolinones has been plagued by significant synthetic hurdles that hinder efficient large-scale manufacturing. Conventional literature methods often rely on the cyclization of anthranilamides with ethyl trifluoroacetate or trifluoroacetic anhydride, reagents that can be expensive and require strict anhydrous conditions to prevent hydrolysis. Other approaches involve the use of unstable trifluoroacetamides or isatoic anhydrides, which limit the substrate scope due to their sensitivity and potential for side reactions. Furthermore, methods promoted by coupling reagents like T3P often suffer from low atom economy and generate substantial amounts of phosphorus-containing waste, complicating downstream purification and increasing the environmental footprint. These traditional pathways frequently exhibit narrow substrate tolerance, failing to accommodate sensitive functional groups that are increasingly common in modern drug design, thereby restricting their utility in the rapid iteration of drug discovery campaigns.
The Novel Approach
In stark contrast, the methodology disclosed in CN113045503B offers a streamlined, one-pot solution that circumvents the drawbacks of prior art through a cleverly designed palladium-catalyzed cascade. By employing trifluoroethylimidoyl chloride as a stable electrophile and utilizing TFBen as a solid carbon monoxide source, the reaction proceeds efficiently in 1,4-dioxane at 110°C. This novel route eliminates the need for handling toxic CO gas directly, a major safety advantage for cost reduction in API manufacturing where specialized high-pressure equipment is often a capital bottleneck. The reaction demonstrates exceptional functional group tolerance, successfully accommodating alkyl, aryl, and halogen substituents without compromising yield. This broad compatibility ensures that medicinal chemists can access a wide library of analogues for structure-activity relationship (SAR) studies without needing to redesign the synthetic route for each new derivative, thus accelerating the timeline from bench to bedside.
Mechanistic Insights into Pd-Catalyzed Carbonylation Cascade
The mechanistic pathway of this transformation is a sophisticated sequence of organometallic steps that ensures high fidelity and yield. The reaction likely initiates with a base-promoted intermolecular carbon-nitrogen bond coupling between the amine and the imidoyl chloride to form a trifluoroacetamidine derivative in situ. Subsequently, the palladium catalyst, generated from palladium trifluoroacetate and triphenylphosphine, undergoes oxidative addition into the carbon-iodine bond of the aromatic ring. This critical step forms a divalent palladium intermediate which is poised for carbonyl insertion. Under the thermal conditions of the reaction, TFBen decomposes to release carbon monoxide, which then inserts into the carbon-palladium bond to generate an acyl palladium species. This acyl intermediate then undergoes intramolecular nucleophilic attack by the nitrogen atom, facilitated by the base, to form a seven-membered palladacycle. The cycle concludes with a reductive elimination step that releases the final 2-trifluoromethyl substituted quinazolinone product and regenerates the active palladium(0) catalyst for the next turnover.
Understanding this mechanism is crucial for reducing lead time for high-purity pharmaceutical intermediates because it highlights the importance of ligand selection and base strength in driving the equilibrium towards the desired product. The use of triphenylphosphine as a ligand stabilizes the palladium center, preventing the formation of inactive palladium black which is a common cause of catalyst deactivation in carbonylation reactions. Furthermore, the choice of sodium carbonate as the base provides the necessary alkalinity to promote the initial coupling and the final cyclization without being so strong as to degrade the sensitive imidoyl chloride starting material. This delicate balance of reactivity ensures that impurities arising from hydrolysis or homocoupling are minimized, resulting in a cleaner crude reaction profile that simplifies the purification burden on the manufacturing team.
How to Synthesize 2-Trifluoromethyl Quinazolinones Efficiently

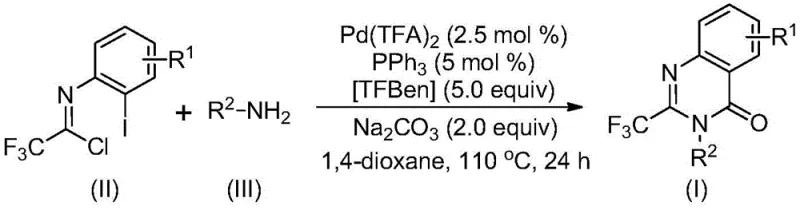

Implementing this synthesis requires precise control over reaction parameters to maximize the efficiency of the carbonylation cascade. The protocol dictates the combination of palladium trifluoroacetate, triphenylphosphine, TFBen, sodium carbonate, trifluoroethylimidoyl chloride, and the chosen amine in an organic solvent. While various aprotic solvents can support the reaction, 1,4-dioxane has been identified as the optimal medium, providing the best solubility for all reagents and facilitating the highest conversion rates. The detailed standardized synthesis steps, including specific molar ratios and workup procedures, are outlined below to ensure reproducibility and safety during scale-up operations.
- Combine palladium trifluoroacetate, triphenylphosphine, TFBen, sodium carbonate, trifluoroethylimidoyl chloride, and amine in an organic solvent such as 1,4-dioxane.
- Heat the reaction mixture to 110°C and maintain stirring for 16 to 30 hours to ensure complete conversion via the carbonylation cascade.
- Upon completion, filter the mixture, mix with silica gel, and purify via column chromatography to isolate the target 2-trifluoromethyl substituted quinazolinone.
Commercial Advantages for Procurement and Supply Chain Teams
From a procurement and supply chain perspective, this patented technology offers transformative benefits that directly impact the bottom line and operational resilience. The shift from hazardous gaseous reagents to stable solid surrogates drastically simplifies the logistics of raw material storage and handling, reducing the regulatory burden associated with toxic gas management. Moreover, the use of commercially available and inexpensive amines and imidoyl chlorides ensures a stable supply chain that is less susceptible to market volatility compared to specialized cyclization reagents. The robustness of the reaction conditions allows for flexible scheduling and reduces the risk of batch failures, which is a critical factor in maintaining continuous supply for downstream API production.
- Cost Reduction in Manufacturing: The elimination of expensive coupling reagents and the use of a catalytic amount of palladium significantly lower the direct material costs per kilogram of product. Additionally, the simplified workup procedure involving filtration and standard column chromatography reduces solvent consumption and labor hours associated with complex extractions or crystallizations. By avoiding the need for high-pressure autoclaves required for traditional CO gas reactions, the method also lowers capital expenditure (CAPEX) for reactor infrastructure, making it accessible for both pilot and commercial plants.
- Enhanced Supply Chain Reliability: The starting materials, including trifluoroethylimidoyl chloride and various substituted amines, are widely available from global chemical suppliers, mitigating the risk of single-source dependency. The reaction's tolerance to moisture and air (relative to other organometallic processes) reduces the stringency of inert atmosphere requirements, further streamlining the manufacturing process. This reliability ensures that production timelines can be met consistently, preventing delays in the delivery of critical intermediates to API manufacturers.
- Scalability and Environmental Compliance: The method has been proven effective at the gram scale with high yields, indicating a clear path to kilogram and tonne-scale production without significant re-optimization. The generation of waste is minimized through the use of a solid CO source and efficient catalysis, aligning with green chemistry principles and reducing the costs associated with waste disposal and environmental compliance. This sustainability profile is increasingly important for meeting the rigorous environmental standards of international pharmaceutical clients.
Frequently Asked Questions (FAQ)
The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology. These answers are derived directly from the experimental data and beneficial effects described in the patent documentation, providing clarity on the practical aspects of adopting this method for industrial applications.
Q: What are the key advantages of this Pd-catalyzed method over traditional cyclization routes?
A: Unlike traditional methods requiring harsh conditions or unstable reagents like trifluoroacetic anhydride, this protocol utilizes stable trifluoroethylimidoyl chloride and a solid CO surrogate (TFBen), significantly improving operational safety and substrate compatibility.
Q: Can this synthesis be scaled for industrial production of drug molecules?

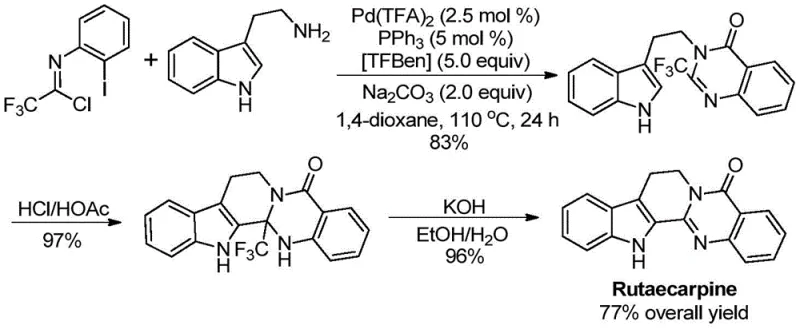

A: Yes, the patent explicitly demonstrates scalability to gram-level synthesis with high yields (up to 98% in model substrates) and has been successfully applied to the total synthesis of the bioactive alkaloid Rutaecarpine with a 77% overall yield.
Q: What is the role of TFBen in this reaction mechanism?
A: TFBen (1,3,5-tricarboxylic acid phenol ester) acts as a safe and effective carbon monoxide surrogate, releasing CO in situ under heating conditions to facilitate the palladium-catalyzed carbonylation step without the need for high-pressure gas cylinders.
