Advanced Pd-Catalyzed Synthesis of 3-Arylquinolin-2(1H)-ones for Commercial Scale-up of Complex Pharmaceutical Intermediates

Advanced Pd-Catalyzed Synthesis of 3-Arylquinolin-2(1H)-ones for Commercial Scale-up of Complex Pharmaceutical Intermediates

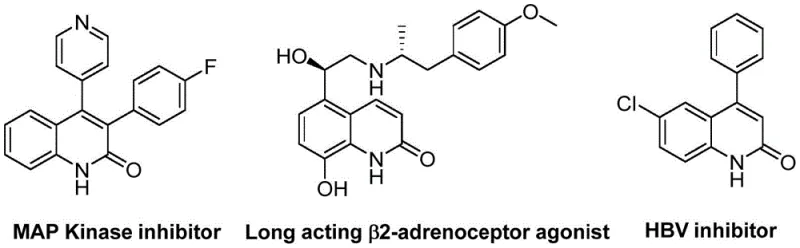

The strategic development of efficient synthetic routes for heterocyclic scaffolds is paramount in modern medicinal chemistry, particularly for cores found in high-value therapeutic agents. Patent CN113045489B introduces a groundbreaking methodology for the preparation of 3-arylquinolin-2(1H)-one derivatives, a privileged scaffold ubiquitous in drug discovery. These structures are critical precursors for a diverse array of bioactive molecules, including potent MAP Kinase inhibitors, long-acting β2-adrenoceptor agonists, and HBV inhibitors, as illustrated in the structural diversity of known bioactive compounds. The innovation lies in a novel palladium-catalyzed aminocarbonylation strategy that utilizes benzisoxazole not merely as a reactant, but as a dual-purpose reagent serving simultaneously as the nitrogen source and the formyl source. This approach represents a significant paradigm shift from classical cyclization methods, offering a streamlined pathway that enhances atom economy while drastically reducing the reliance on hazardous reagents typically associated with quinolinone synthesis.

This technological breakthrough addresses the growing demand for reliable pharmaceutical intermediate suppliers who can deliver complex heterocycles with high purity and consistent quality. By leveraging a catalytic system based on palladium acetate and chiral phosphine ligands, the process achieves remarkable efficiency under relatively mild thermal conditions. For R&D directors and process chemists, the ability to access these scaffolds through a robust, transition-metal catalyzed route opens new avenues for library synthesis and lead optimization. Furthermore, the method demonstrates exceptional functional group tolerance, accommodating electron-withdrawing and electron-donating substituents alike, which is essential for the rapid exploration of structure-activity relationships (SAR) in drug development programs targeting oncology and infectious diseases.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the quinolin-2(1H)-one core has relied heavily on classical condensation reactions such as the Vilsmeier-Haack, Knorr, and Friedlander syntheses. While these methods are well-established in academic literature, they present substantial drawbacks when evaluated through the lens of modern green chemistry and industrial scalability. The Vilsmeier-Haack reaction, for instance, typically necessitates the use of phosphorus oxychloride (POCl3) and dimethylformamide (DMF), generating large volumes of corrosive acidic waste and posing significant safety hazards during handling and disposal. Similarly, the Knorr and Friedlander condensations often require harsh acidic or basic conditions and high temperatures, which can lead to the degradation of sensitive functional groups on the substrate. These limitations restrict the chemical space that can be explored, forcing medicinal chemists to avoid certain substituents that might be unstable under such rigorous conditions, thereby limiting the potential for discovering novel bioactive candidates.

The Novel Approach

In stark contrast, the novel approach detailed in the patent utilizes a sophisticated palladium-catalyzed aminocarbonylation protocol that circumvents the pitfalls of traditional chemistry. By employing benzisoxazole and benzyl chloride compounds as the primary building blocks, the reaction proceeds through a mechanistic pathway that is both elegant and efficient. The use of molybdenum hexacarbonyl as a solid carbon monoxide surrogate allows for the safe introduction of the carbonyl moiety without the need for handling toxic CO gas directly. This method operates at a moderate temperature of 100°C in ethylene glycol dimethyl ether (DME), providing a much friendlier reaction profile. The result is a versatile synthetic platform capable of producing a wide variety of 3-arylquinolin-2(1H)-one derivatives with high yields, often exceeding 90%, thereby establishing a new standard for cost reduction in API manufacturing where yield and purity are critical economic drivers.

Mechanistic Insights into Pd-Catalyzed Aminocarbonylation

The success of this transformation hinges on the intricate interplay between the palladium catalyst, the chiral ligand, and the unique reactivity of the benzisoxazole ring. The catalytic cycle likely initiates with the oxidative addition of the benzyl chloride to the active Pd(0) species, generated in situ from palladium acetate and the (S)-BINAP ligand. This step forms a benzyl-palladium(II) complex, which is then subjected to carbonyl insertion facilitated by the carbon monoxide released from the thermal decomposition of molybdenum hexacarbonyl. The resulting acyl-palladium species is highly electrophilic and poised for nucleophilic attack. Uniquely, the benzisoxazole acts as an internal nucleophile; the ring strain and the weak N-O bond facilitate a ring-opening event that delivers the necessary nitrogen and carbon atoms to close the quinolinone ring. This cascade sequence effectively merges C-N and C-C bond formation into a single operational step, showcasing the power of transition metal catalysis in simplifying complex molecular architectures.

From an impurity control perspective, this mechanism offers distinct advantages over non-catalytic routes. The specificity of the palladium cycle minimizes side reactions such as polymerization or uncontrolled poly-substitution, which are common in acid-catalyzed condensations. The use of a chiral ligand, although the product is achiral in the final quinolinone form, ensures a well-defined coordination sphere around the metal center, promoting the desired regioselectivity and preventing the formation of isomeric byproducts. Furthermore, the reaction conditions are sufficiently mild to preserve sensitive functional groups like nitriles, halides, and ethers, which might otherwise decompose. This high level of chemoselectivity translates directly to a cleaner crude reaction profile, simplifying downstream purification and ensuring that the final high-purity pharmaceutical intermediates meet stringent regulatory specifications for residual metals and organic impurities.

How to Synthesize 3-Arylquinolin-2(1H)-one Efficiently

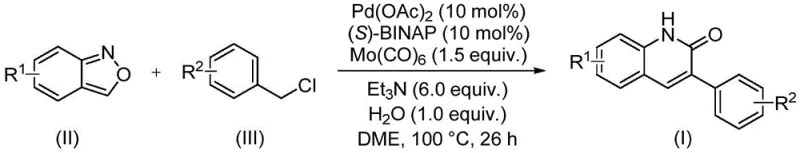

The practical execution of this synthesis is designed for reproducibility and ease of operation, making it an ideal candidate for technology transfer from laboratory to pilot plant. The procedure involves charging a sealed reaction vessel with the requisite amounts of palladium acetate, (S)-BINAP, molybdenum hexacarbonyl, triethylamine, water, benzisoxazole, and the specific benzyl chloride derivative. The mixture is suspended in DME solvent and heated to 100°C for approximately 26 hours. This standardized protocol has been validated across a broad substrate scope, demonstrating consistent performance regardless of the electronic nature of the substituents on the aromatic rings. For detailed operational parameters and specific stoichiometric ratios optimized for different substrates, please refer to the comprehensive guide below which outlines the precise steps for maximizing yield and purity.

1. Charge a sealed tube with palladium acetate, (S)-BINAP ligand, molybdenum hexacarbonyl, triethylamine, water, benzisoxazole, and the specific benzyl chloride substrate in DME solvent.
2. Heat the reaction mixture to 100°C and maintain stirring for approximately 26 hours to ensure complete conversion of the starting materials.
3. Upon completion, filter the mixture, mix with silica gel, and purify via column chromatography to isolate the target 3-arylquinolin-2(1H)-one derivative.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this synthetic route offers compelling economic and logistical benefits that extend beyond simple yield metrics. The primary advantage lies in the accessibility and cost-effectiveness of the starting materials. Benzisoxazoles and substituted benzyl chlorides are commodity chemicals available in bulk quantities from multiple global suppliers, mitigating the risk of single-source dependency. This abundance ensures a stable supply chain for high-purity pharmaceutical intermediates, reducing the likelihood of production delays caused by raw material shortages. Moreover, the elimination of hazardous reagents like POCl3 simplifies the regulatory compliance landscape, lowering the costs associated with waste treatment and environmental safety protocols, which are increasingly significant factors in the total cost of ownership for chemical manufacturing.

• Cost Reduction in Manufacturing: The economic viability of this process is driven by the high atom economy and the dual functionality of the benzisoxazole reagent. By serving as both the nitrogen and carbon source, the need for additional formylating agents is completely eliminated, reducing the overall material cost per kilogram of product. Additionally, the high conversion rates observed (often reaching yields above 90%) mean that less raw material is wasted, and the burden on purification processes is significantly lowered. The use of a heterogeneous workup involving filtration and standard silica gel chromatography further streamlines the isolation process, avoiding the need for expensive crystallization solvents or complex distillation setups, leading to substantial cost savings in the overall production budget.
• Enhanced Supply Chain Reliability: The robustness of the reaction conditions contributes directly to supply chain resilience. The tolerance for a wide range of functional groups means that the same core process can be applied to synthesize a diverse library of derivatives without requiring extensive re-optimization for each new analog. This flexibility allows manufacturers to respond rapidly to changing market demands or clinical trial requirements. Furthermore, the use of stable, solid reagents like molybdenum hexacarbonyl and palladium acetate simplifies logistics and storage compared to gaseous or highly moisture-sensitive alternatives. This stability ensures that production schedules can be maintained with high predictability, reducing lead time for high-purity intermediates and enabling just-in-time manufacturing strategies.
• Scalability and Environmental Compliance: Scaling this process from gram to multi-ton quantities is facilitated by the absence of exothermic hazards associated with strong acids or bases. The reaction operates at a moderate temperature of 100°C, which is easily achievable with standard heating jackets in large-scale reactors, removing the need for specialized cryogenic or high-pressure equipment. From an environmental standpoint, the reduction in toxic waste generation aligns with global sustainability goals and stricter environmental regulations. The simplified post-processing reduces the volume of solvent waste, and the avoidance of heavy metal contaminants in the final product (due to efficient catalyst usage and workup) ensures compliance with strict limits on residual metals in active pharmaceutical ingredients, facilitating smoother regulatory filings.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented technology. These insights are derived directly from the experimental data and beneficial effects reported in the patent documentation, providing a clear understanding of the process capabilities and limitations. Understanding these details is crucial for stakeholders evaluating the feasibility of integrating this route into their existing manufacturing portfolios or R&D pipelines.

Q: What are the primary advantages of using benzisoxazole in this synthesis?

A: Benzisoxazole serves a dual function as both the nitrogen source and the formyl (carbonyl) source, eliminating the need for separate, often toxic, formylating agents and simplifying the reaction stoichiometry significantly.

Q: How does this method compare to traditional Vilsmeier-Haack reactions?

A: Unlike traditional methods that require harsh reagents like phosphorus oxychloride (POCl3) and generate substantial acidic waste, this Pd-catalyzed route operates under milder conditions with better functional group tolerance and reduced environmental impact.

Q: Is this process suitable for large-scale manufacturing?

A: Yes, the process utilizes commercially available and inexpensive starting materials like benzyl chlorides and benzisoxazoles, and the workup involves standard filtration and chromatography, making it highly amenable to commercial scale-up.
