Advanced Palladium-Catalyzed Synthesis of 1,2,4-Triazole-3-one Compounds for Commercial Scale-up

Advanced Palladium-Catalyzed Synthesis of 1,2,4-Triazole-3-one Compounds for Commercial Scale-up

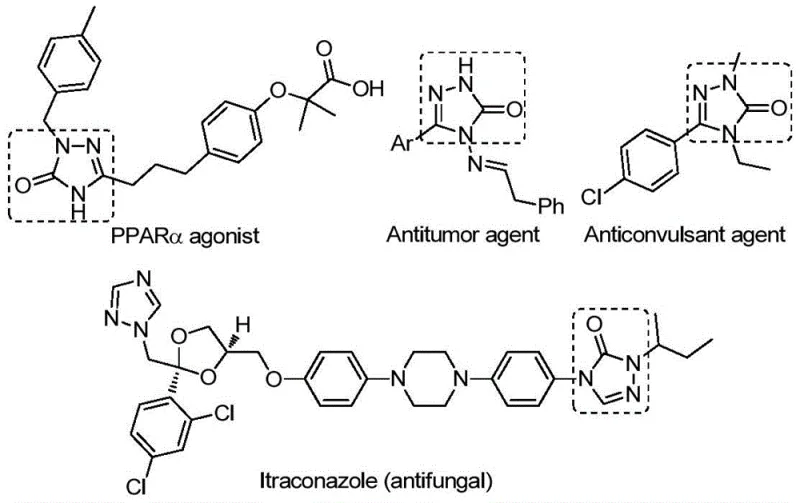

The pharmaceutical industry continuously seeks robust synthetic routes for nitrogen-containing heterocycles due to their prevalence in bioactive molecules. Patent CN112538054B discloses a significant breakthrough in the preparation of 1,2,4-triazole-3-one compounds, a privileged scaffold found in numerous therapeutic agents ranging from antifungals to antitumor drugs. This technology leverages a transition metal palladium-catalyzed carbonylation tandem cyclization reaction, utilizing cheap and readily available chlorohydrazones and sodium azide as starting materials. Unlike conventional methods that often require harsh conditions or toxic gases, this novel approach operates under relatively mild thermal conditions using a solid CO surrogate. For R&D directors and procurement managers seeking a reliable pharmaceutical intermediate supplier, this methodology represents a paradigm shift towards safer, more efficient, and scalable manufacturing processes that can be adapted for complex API synthesis.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of 1,2,4-triazol-3-one cores has been plagued by significant operational challenges that hinder large-scale production. Traditional literature reports typically rely on methods such as the cyclization of benzoyl hydrazide with urea under strong basic conditions, or the tandem reaction of hydrazides with isocyanates. These legacy pathways frequently demand extreme reaction parameters, including high temperatures and the use of corrosive reagents like potassium hydroxide. Furthermore, many established protocols necessitate the pre-activation of substrates, adding extra synthetic steps that accumulate waste and reduce overall atom economy. The narrow substrate scope of these older methods often fails to accommodate sensitive functional groups, leading to decomposition or side reactions that compromise purity. For supply chain heads, these inefficiencies translate into higher production costs, longer lead times, and increased difficulty in sourcing high-purity intermediates consistently.

The Novel Approach

In stark contrast, the method described in CN112538054B introduces a streamlined catalytic cycle that bypasses the need for gaseous carbon monoxide and harsh activators. By employing a palladium catalyst system combined with TFBen (a solid CO source) and sodium azide, the reaction achieves a tandem carbonylation and cyclization in a single pot. This innovation drastically simplifies the operational workflow, eliminating the need for specialized high-pressure equipment required for handling CO gas. The process demonstrates exceptional compatibility with a wide array of functional groups, allowing for the synthesis of diverse derivatives substituted with alkyl, aryl, and heteroaryl moieties. This flexibility is crucial for medicinal chemists aiming to explore structure-activity relationships without being constrained by synthetic limitations. The ability to operate at 100°C in common solvents like 1,4-dioxane makes this technology highly attractive for cost reduction in pharmaceutical intermediate manufacturing.

Mechanistic Insights into Pd-Catalyzed Carbonylation Cyclization

The core of this technological advancement lies in the elegant mechanistic pathway facilitated by the palladium catalyst. The reaction initiates with the oxidative addition of the palladium species into the carbon-chlorine bond of the chlorohydrazone substrate, forming a reactive divalent palladium intermediate. Simultaneously, TFBen decomposes under thermal conditions to release carbon monoxide in situ, which then inserts into the carbon-palladium bond to generate an acyl-palladium species. This acyl intermediate subsequently reacts with sodium azide to form an acyl azide, which undergoes a Curtius rearrangement to yield an isocyanate intermediate. Finally, an intramolecular nucleophilic addition occurs, closing the ring to form the stable 1,2,4-triazole-3-one structure. Understanding this cycle is vital for process optimization, as it highlights the critical role of the ligand and the CO surrogate in driving the reaction forward efficiently.

Impurity control is another critical aspect where this mechanism offers distinct advantages over traditional routes. The specificity of the palladium insertion and the subsequent rearrangement steps minimizes the formation of by-products commonly associated with non-catalytic thermal cyclizations. The use of sodium azide, while requiring careful handling, provides a clean nitrogen source that integrates smoothly into the catalytic cycle without generating excessive salt waste compared to other nitration methods. The reaction conditions are tuned to ensure complete conversion within 16 to 30 hours, balancing reaction kinetics with energy consumption. For quality assurance teams, this predictable mechanistic behavior ensures a consistent impurity profile, facilitating easier purification via standard column chromatography or crystallization techniques. The robustness of this catalytic system against various substituents further guarantees that the final product meets stringent purity specifications required for downstream pharmaceutical applications.

How to Synthesize 1,2,4-Triazole-3-one Efficiently

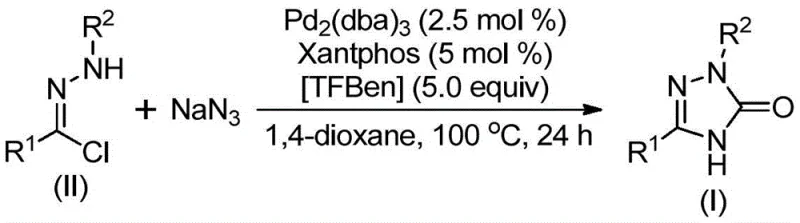

Implementing this synthesis route requires precise attention to reagent ratios and thermal management to maximize yield and safety. The protocol utilizes a specific molar ratio of chlorohydrazone to sodium azide to palladium catalyst, typically optimized around 1:2.5:0.025 to ensure full conversion while minimizing catalyst loading. The choice of solvent is also paramount, with aprotic solvents like 1,4-dioxane proving superior in dissolving reactants and promoting the catalytic cycle compared to polar aprotic solvents like DMF which may inhibit the reaction. Detailed standard operating procedures regarding the addition sequence and workup filtration are essential for reproducibility. For a comprehensive guide on executing this synthesis with exact parameters, please refer to the standardized steps below.

1. Combine palladium catalyst (Pd2(dba)3), ligand (Xantphos), TFBen, chlorohydrazone substrate, and sodium azide in an organic solvent like 1,4-dioxane.
2. Heat the reaction mixture to 100°C and maintain stirring for 16 to 30 hours to allow the carbonylation and cyclization to proceed.
3. Upon completion, filter the mixture, mix with silica gel, and purify via column chromatography to isolate the target 1,2,4-triazole-3-one compound.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, this patented methodology addresses several critical pain points inherent in the supply chain of nitrogen heterocycles. The shift from gaseous reagents to solid surrogates fundamentally alters the risk profile of the manufacturing process, allowing for implementation in facilities that may not be equipped for high-pressure gas handling. This accessibility broadens the potential supplier base and enhances supply continuity. Moreover, the use of inexpensive and commercially available starting materials like chlorohydrazones and sodium azide significantly lowers the raw material cost basis. The high reaction efficiency and broad substrate tolerance mean that fewer batches are rejected due to poor conversion, directly impacting the bottom line through improved yield reliability. These factors combine to create a manufacturing process that is not only chemically elegant but also economically superior for large-scale production.

• Cost Reduction in Manufacturing: The elimination of high-pressure carbon monoxide gas removes the need for expensive autoclaves and specialized safety infrastructure, leading to substantial capital expenditure savings. Additionally, the use of a solid CO source like TFBen simplifies logistics and storage, reducing overhead costs associated with hazardous gas management. The high catalytic efficiency allows for lower metal loading, which decreases the cost of precious metal recovery and waste treatment. Overall, the streamlined one-pot nature of the reaction reduces labor hours and utility consumption, driving down the total cost of goods sold for these valuable intermediates.
• Enhanced Supply Chain Reliability: Sourcing chlorohydrazones and sodium azide is straightforward as they are commodity chemicals available from multiple global vendors, mitigating the risk of single-source dependency. The robustness of the reaction conditions ensures that production schedules are less likely to be disrupted by sensitive parameter fluctuations. This stability is crucial for maintaining just-in-time delivery models for pharmaceutical clients who require consistent quality and timing. By adopting this method, manufacturers can offer more reliable lead times and buffer against market volatility affecting specialized reagents.
• Scalability and Environmental Compliance: The process is designed with scalability in mind, having been demonstrated to work effectively from milligram to gram scales with potential for tonnage production. The reduced generation of hazardous waste and the avoidance of toxic gas emissions align with increasingly strict environmental regulations. This green chemistry profile facilitates easier permitting and compliance auditing, ensuring long-term operational viability. The simplicity of the post-treatment process, involving filtration and chromatography, allows for straightforward adaptation to continuous flow chemistry or larger batch reactors.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this palladium-catalyzed synthesis. These insights are derived directly from the experimental data and beneficial effects outlined in the patent documentation. They serve to clarify the operational feasibility and strategic value of adopting this technology for your specific project needs. Understanding these nuances helps stakeholders make informed decisions about process adoption and resource allocation.

Q: What are the safety advantages of using TFBen over carbon monoxide gas?

A: TFBen (1,3,5-tricarboxylic acid phenol ester) acts as a solid carbon monoxide substitute, releasing CO in situ under heating. This eliminates the need for handling hazardous high-pressure CO gas cylinders, significantly improving operational safety and reducing infrastructure costs for scale-up.

Q: Does this method support diverse substrate scopes for drug discovery?

A: Yes, the protocol demonstrates excellent functional group tolerance. It successfully accommodates various R1 and R2 groups including aryl, heteroaryl (furyl, naphthyl), and alkyl substituents, allowing for the rapid generation of diverse libraries for SAR studies.

Q: How does the yield compare to traditional cyclization methods?

A: Traditional methods often suffer from harsh conditions and low yields due to pre-activation requirements. This Pd-catalyzed approach achieves high conversion rates (up to 96% in optimized examples) under milder conditions, reducing waste and improving overall process efficiency.
