Advanced Cobalt-Catalyzed Synthesis of Indolo[1,2-a]quinazolin-6(5H)-ones for Pharmaceutical Applications

Advanced Cobalt-Catalyzed Synthesis of Indolo[1,2-a]quinazolin-6(5H)-ones for Pharmaceutical Applications

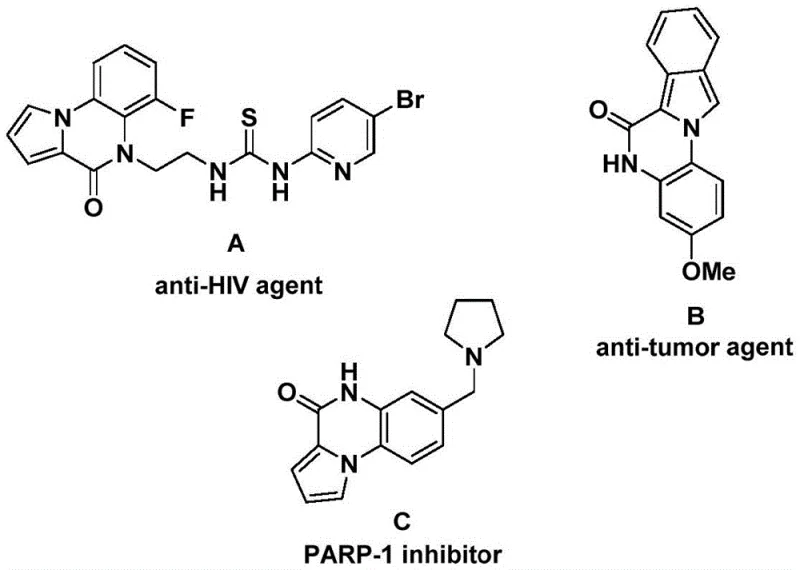

The pharmaceutical industry continuously seeks robust and scalable synthetic routes for nitrogen-containing heterocycles due to their prevalence in bioactive molecules. Patent CN112321593B, published in March 2022, introduces a groundbreaking preparation method for indolo[1,2-a]quinazolin-6(5H)-one compounds, a privileged scaffold found in numerous therapeutic agents. This technology addresses critical bottlenecks in traditional synthesis by employing a transition metal cobalt-catalyzed C-H activated carbonylation strategy. The significance of this chemical architecture cannot be overstated, as it serves as the core structure for potent anti-HIV agents, anti-tumor molecules, and PARP-1 inhibitors, as illustrated in the biological context below.

For R&D directors and process chemists, the ability to access these complex fused ring systems efficiently is paramount. The disclosed method utilizes readily available 2-picolinamide derivatives as starting materials, undergoing an intramolecular cyclization to form the target heterocycle. By shifting away from noble metal catalysis, this process not only aligns with green chemistry principles but also offers a reliable pharmaceutical intermediate supplier pathway that mitigates the supply chain risks associated with precious metal dependency. The following analysis dissects the technical merits and commercial viability of this cobalt-mediated transformation.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of the pyrrolo or indolo[1,2-a]quinazolin-6(5H)-one skeleton has relied heavily on transition metal palladium catalysis for carbonylation reactions. While effective, these conventional palladium-based protocols suffer from inherent economic and operational drawbacks that hinder large-scale manufacturing. The primary concern is the exorbitant cost of palladium catalysts, which can fluctuate wildly based on global market dynamics, directly impacting the cost of goods sold (COGS) for active pharmaceutical ingredients. Furthermore, palladium residues in the final product are strictly regulated due to toxicity concerns, necessitating additional, costly purification steps such as scavenging or recrystallization to meet stringent purity specifications. Additionally, many traditional methods require the use of gaseous carbon monoxide, a highly toxic and flammable gas that demands specialized high-pressure equipment and rigorous safety protocols, complicating the commercial scale-up of complex pharmaceutical intermediates.

The Novel Approach

The methodology outlined in CN112321593B represents a paradigm shift by replacing palladium with cobalt chloride, an earth-abundant and inexpensive base metal catalyst. This novel approach utilizes phenyl 1,3,5-tricarboxylate (TFBen) as a solid carbon monoxide surrogate, effectively bypassing the hazards associated with handling CO gas. The reaction operates under relatively mild conditions compared to harsh carbonylation processes, utilizing dioxane as a solvent and silver carbonate as an oxidant to facilitate the catalytic cycle. This transition to a cobalt-catalyzed system dramatically simplifies the operational workflow, eliminating the need for high-pressure gas manifolds and reducing the burden of heavy metal removal. Consequently, this method provides a streamlined, cost-reduction in pharmaceutical intermediates manufacturing route that maintains high reaction efficiency and broad substrate tolerance, making it highly attractive for industrial adoption.

Mechanistic Insights into Cobalt-Catalyzed C-H Activation Carbonylation

Understanding the mechanistic underpinnings of this transformation is crucial for process optimization and impurity control. The reaction initiates with the oxidation of the cobalt(II) catalyst by silver carbonate, generating a reactive cobalt(III) species in situ. This high-valent cobalt intermediate then coordinates with the nitrogen atom of the 2-picolinamide derivative, directing the activation of the proximal C-H bond at the 2-position of the indole ring. This C-H activation step is the turnover-limiting phase where the cobalt center inserts into the carbon-hydrogen bond, forming a stable five-membered cobaltacycle. Subsequently, carbon monoxide, which is liberated thermally from the phenyl 1,3,5-tricarboxylate additive, inserts into the cobalt-carbon bond of the metallacycle. This insertion generates an acyl-cobalt(III) intermediate, setting the stage for the final ring closure.

The final stage of the catalytic cycle involves reductive elimination and hydrolysis, which releases the desired indolo[1,2-a]quinazolin-6(5H)-one product and regenerates the active cobalt species. From an impurity control perspective, the use of TFBen as a controlled CO source is particularly advantageous. Unlike gaseous CO, which can lead to uncontrolled polymerization or over-carbonylation side reactions if not carefully managed, the solid surrogate releases CO gradually, maintaining a low steady-state concentration that favors the desired intramolecular cyclization. This controlled release mechanism minimizes the formation of bis-carbonylated byproducts or oligomeric impurities, thereby simplifying downstream purification. The robustness of this mechanism allows for the accommodation of various functional groups, including halogens, alkyls, and esters, without significant degradation of the catalyst or the substrate, ensuring high-purity pharmaceutical intermediate output.

How to Synthesize Indolo[1,2-a]quinazolin-6(5H)-one Efficiently

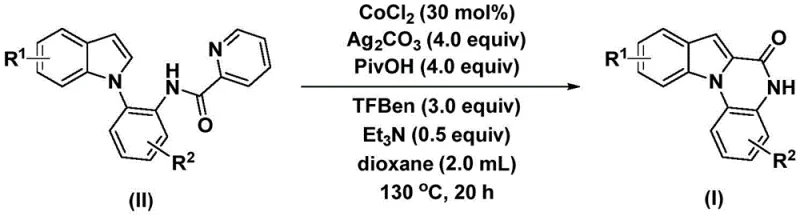

The synthesis protocol described in the patent is designed for reproducibility and ease of execution in a standard laboratory or pilot plant setting. The procedure involves charging a Schlenk tube with the cobalt catalyst, oxidant, additives, and substrate in a specific molar ratio, followed by heating in an oil bath. The detailed standardized synthesis steps, including precise reagent quantities and workup procedures, are provided in the structured guide below to assist process chemists in replicating these results.

1. Combine cobalt chloride (30 mol%), silver carbonate (4.0 equiv), pivalic acid (4.0 equiv), triethylamine (0.5 equiv), phenyl 1,3,5-tricarboxylate (3.0 equiv), and the 2-picolinamide derivative substrate in dioxane solvent within a Schlenk tube.
2. Heat the reaction mixture to a temperature between 130°C and 150°C and maintain stirring for a duration of 20 to 40 hours to ensure complete conversion.
3. Upon completion, filter the mixture, mix the residue with silica gel, and purify the crude product via column chromatography to isolate the target indolo[1,2-a]quinazolin-6(5H)-one compound.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the transition to this cobalt-catalyzed methodology offers tangible strategic benefits beyond mere technical feasibility. The shift from precious metals to base metals fundamentally alters the cost structure of the synthesis, removing exposure to the volatile pricing of palladium and rhodium. Furthermore, the use of solid reagents instead of hazardous gases simplifies logistics and storage requirements, reducing the regulatory burden and insurance costs associated with chemical manufacturing. This process enhancement translates directly into a more resilient supply chain capable of sustaining continuous production without the interruptions often caused by catalyst shortages or safety incidents.

• Cost Reduction in Manufacturing: The substitution of expensive palladium catalysts with cobalt chloride results in a drastic reduction in raw material costs. Cobalt is significantly more abundant and cheaper than noble metals, and the catalyst loading of 30 mol% is economically viable given the low base cost. Additionally, the elimination of specialized high-pressure equipment for CO gas handling reduces capital expenditure (CAPEX) for reactor setups. The simplified post-treatment process, which avoids complex heavy metal scavenging steps, further lowers operational expenditure (OPEX) by reducing solvent usage and processing time, leading to substantial cost savings in the overall manufacturing budget.
• Enhanced Supply Chain Reliability: The reliance on commercially available and stable reagents such as cobalt chloride, silver carbonate, and triethylamine ensures a secure supply chain. Unlike specialized ligands or sensitive organometallic complexes that may have long lead times or single-source suppliers, these commodity chemicals are widely produced and easily sourced from multiple vendors globally. This diversification of supply sources mitigates the risk of production stoppages due to raw material shortages. Moreover, the stability of the solid CO surrogate (TFBen) allows for safer transportation and storage compared to compressed gas cylinders, enhancing the overall reliability and safety profile of the chemical supply chain.
• Scalability and Environmental Compliance: The process demonstrates excellent scalability, having been validated from milligram to gram scales with consistent yields, indicating a clear path to kilogram and ton-scale production. The use of dioxane as a solvent, while requiring recovery, is a well-established industrial solvent with established recycling protocols. By avoiding the use of toxic carbon monoxide gas, the process significantly reduces the environmental footprint and safety risks associated with emissions. This alignment with green chemistry principles facilitates easier regulatory approval and environmental compliance, making it a sustainable choice for long-term commercial production of complex pharmaceutical intermediates.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this cobalt-catalyzed synthesis. These answers are derived directly from the experimental data and technical disclosures within the patent documentation to provide clarity on process parameters and capabilities.

Q: What is the primary advantage of using cobalt over palladium for this synthesis?

A: The primary advantage is significant cost reduction and improved sustainability. Cobalt is an earth-abundant base metal, whereas palladium is a precious metal with high volatility in pricing. Additionally, the cobalt system described in CN112321593B demonstrates excellent substrate compatibility without requiring expensive ligands often needed for Pd-catalysis.

Q: What serves as the carbon monoxide source in this reaction?

A: The reaction utilizes phenyl 1,3,5-tricarboxylate (TFBen) as a solid carbon monoxide substitute. This eliminates the need for handling hazardous gaseous carbon monoxide directly, thereby enhancing operational safety and simplifying the equipment requirements for scale-up.

Q: What is the typical reaction temperature and time required?

A: According to the patent data, the reaction is conducted at elevated temperatures ranging from 130°C to 150°C. The reaction time typically spans between 20 to 40 hours, depending on the specific substituents on the substrate, ensuring high conversion rates for diverse derivatives.
