Scalable Synthesis of Antitumor Ursolic Acid Piperazine Derivatives for Commercial API Production

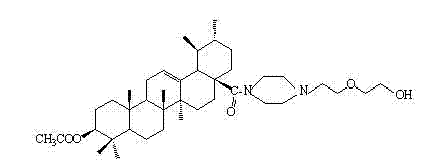

The pharmaceutical industry is constantly seeking novel scaffolds that enhance the therapeutic index of natural products, and Patent CN101891794B presents a significant advancement in this domain by disclosing a series of ursolic acid piperazine derivatives with potent antitumor activity. Ursolic acid, a pentacyclic triterpenoid widely found in nature, has long been recognized for its broad biological effects, including anti-inflammatory and anticancer properties, yet its clinical application has often been hindered by solubility issues and moderate potency. This patent introduces a strategic structural modification at the C-3 and C-28 positions, specifically synthesizing N-[3β-acetoxy-arbutane-12-en-28-acyl]-(1-hydroxyethylethoxy)piperazine, designated as Compound I. By integrating a piperazine moiety through an amide linkage and protecting the hydroxyl group via acetylation, the inventors have created a molecule that demonstrates significantly improved proliferation inhibition against various cancer cell lines while reducing cytotoxicity towards normal cells. For R&D directors and procurement specialists evaluating reliable pharmaceutical intermediate suppliers, understanding the robustness of this synthetic pathway is crucial for securing a stable supply chain for next-generation anticancer agents.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional approaches to utilizing ursolic acid in drug development have largely relied on direct extraction from plant sources or simple esterification, which often fail to address the compound's inherent pharmacokinetic limitations. Direct extraction yields mixtures that require extensive purification, leading to high production costs and batch-to-batch variability that complicates regulatory approval processes. Furthermore, simple modifications often do not sufficiently enhance water solubility or cellular uptake, resulting in suboptimal bioavailability in vivo. Many existing derivatives suffer from complex synthesis routes requiring harsh conditions, expensive catalysts, or difficult-to-remove impurities, which creates significant bottlenecks for cost reduction in API manufacturing. The lack of specific functionalization at the C-28 carboxylic acid position in many prior art methods limits the ability to introduce nitrogen-containing heterocycles that are known to improve interaction with biological targets, thereby restricting the therapeutic potential of the final drug candidate.

The Novel Approach

The methodology outlined in the patent offers a streamlined and chemically elegant solution by employing a sequential acetylation and amidation strategy that maximizes yield and purity. The process begins with the selective protection of the C-3 hydroxyl group using acetic anhydride, followed by activation of the C-28 carboxylic acid with oxalyl chloride to form a reactive acid chloride intermediate. This intermediate is then coupled with specialized piperazine derivatives under mild conditions to form the final amide bond. This approach allows for precise control over the stereochemistry and substitution pattern, ensuring the production of high-purity ursolic acid derivatives suitable for clinical investigation. The use of common organic solvents and reagents like pyridine and dichloromethane ensures that the process is easily transferable from laboratory scale to industrial production, addressing the critical need for commercial scale-up of complex pharmaceutical intermediates.

Mechanistic Insights into Acylation and Amidation Cascade

The core of this synthesis lies in the efficient transformation of the triterpenoid skeleton through a well-defined mechanistic pathway that minimizes side reactions. In the first step, the nucleophilic attack of the C-3 hydroxyl group on the carbonyl carbon of acetic anhydride is catalyzed by DMAP (4-dimethylaminopyridine), which acts as a potent acyl transfer agent to accelerate the formation of the 3-O-acetyl ursolic acid intermediate. This protection step is critical as it prevents unwanted side reactions at the hydroxyl position during the subsequent activation of the carboxylic acid. The reaction proceeds at room temperature over 16-18 hours, indicating a thermodynamically favorable process that does not require energy-intensive heating, thus aligning with green chemistry principles often demanded by modern supply chain heads.

Following isolation, the 3-O-acetyl ursolic acid is converted into its corresponding acid chloride using oxalyl chloride, a reagent chosen for its ability to generate gaseous byproducts (CO and CO2) that drive the reaction to completion and simplify workup. The resulting acid chloride is highly electrophilic and reacts readily with the nucleophilic nitrogen of the piperazine ring in the presence of a base like triethylamine. This amidation step forms the stable amide linkage at the C-28 position, which is essential for the observed biological activity. The mechanism ensures that the bulky triterpenoid framework remains intact while introducing the polar piperazine side chain, effectively balancing lipophilicity and hydrophilicity to enhance membrane permeability and target engagement without compromising the structural integrity of the ursane backbone.

How to Synthesize N-[3β-acetoxy-arbutane-12-en-28-acyl]-(1-hydroxyethylethoxy)piperazine Efficiently

The synthesis protocol described in the patent provides a reproducible framework for producing Compound I with consistent quality, serving as a benchmark for process optimization. The procedure involves dissolving the starting material in pyridine, adding acetic anhydride dropwise, and stirring at ambient temperature, followed by a straightforward acidic workup to isolate the acetylated intermediate. Subsequent reaction with oxalyl chloride and the piperazine derivative in dichloromethane allows for the final coupling to occur under controlled pH conditions, ensuring maximum conversion. Detailed standardized synthesis steps are provided below to guide process engineers in replicating this high-value transformation.

1. Acetylation of Ursolic Acid: React ursolic acid with acetic anhydride in pyridine using DMAP catalyst at room temperature to form 3-O-acetyl ursolic acid.
2. Activation and Amidation: Convert the acetylated intermediate to an acid chloride using oxalyl chloride, then react with 1-hydroxyethylethoxypiperazine in dichloromethane.
3. Purification: Isolate the final product via filtration, washing, and recrystallization from absolute ethanol to ensure high purity standards.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, this synthetic route offers distinct advantages that directly impact the bottom line and supply chain resilience for pharmaceutical manufacturers. The reliance on readily available starting materials like ursolic acid, which can be sourced from abundant natural resources, mitigates the risk of raw material shortages that often plague the production of fully synthetic small molecules. Furthermore, the avoidance of precious metal catalysts or exotic reagents means that the cost of goods sold (COGS) can be significantly optimized, making the final API more competitive in the global market. The purification methods described, such as column chromatography and recrystallization from ethanol, are standard unit operations that do not require specialized equipment, facilitating easier technology transfer between different manufacturing sites.

• Cost Reduction in Manufacturing: The process eliminates the need for expensive transition metal catalysts and high-pressure hydrogenation steps, which are common cost drivers in traditional medicinal chemistry. By utilizing stoichiometric reagents like oxalyl chloride and acetic anhydride that are produced at massive industrial scales, the procurement team can leverage existing supply chains to secure favorable pricing. Additionally, the high yield of the acetylation step (reported around 86%) ensures minimal waste of the valuable triterpenoid starting material, further driving down the effective cost per kilogram of the final active pharmaceutical ingredient.
• Enhanced Supply Chain Reliability: The synthetic pathway is robust and tolerant to minor variations in reaction conditions, which reduces the likelihood of batch failures and ensures a consistent supply of the intermediate. Since the reagents used are commodity chemicals with multiple global suppliers, the risk of single-source dependency is minimized, providing procurement managers with greater flexibility in vendor selection. The stability of the intermediates allows for potential stockpiling or semi-continuous processing, which can smooth out production schedules and reduce lead times for high-purity pharmaceutical intermediates required for clinical trials.
• Scalability and Environmental Compliance: The reactions are conducted at room temperature and atmospheric pressure, removing the safety hazards associated with high-energy processes and simplifying the engineering controls required for scale-up. The use of dichloromethane and pyridine, while requiring proper handling, allows for efficient solvent recovery systems that align with environmental regulations and sustainability goals. The final purification via recrystallization avoids the generation of large volumes of silica waste associated with extensive chromatography, offering a more environmentally friendly route that appeals to increasingly eco-conscious stakeholders in the fine chemical industry.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the production and application of these ursolic acid derivatives, based on the detailed experimental data provided in the patent documentation. Understanding these aspects is vital for partners looking to integrate this technology into their existing pipelines.

Q: What are the key advantages of this ursolic acid derivative over natural ursolic acid?

A: The synthesized piperazine derivatives exhibit superior inhibitory effects on tumor cell proliferation (HepG2, BGC823, SH-SY5Y, Hela) while demonstrating lower toxicity to normal human embryonic lung fibroblast (HELF) cells compared to the parent compound.

Q: Is the synthesis process suitable for large-scale manufacturing?

A: Yes, the process utilizes mild reaction conditions (room temperature), common solvents (dichloromethane, pyridine), and standard purification techniques like column chromatography and recrystallization, making it highly adaptable for commercial scale-up.

Q: What is the chemical stability of the intermediate 3-O-acetyl ursolic acid?

A: The intermediate is stable enough to be isolated as a white powder with a melting point of 286-288°C, allowing for quality control checks before proceeding to the subsequent amidation step.
