Scalable Synthesis of 3-Arylquinolin-2(1H)one Derivatives via Novel Palladium Catalysis

Scalable Synthesis of 3-Arylquinolin-2(1H)one Derivatives via Novel Palladium Catalysis

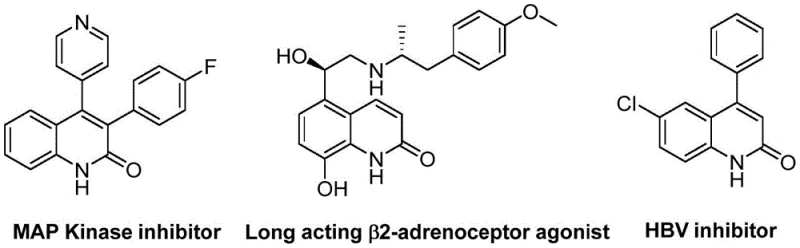

The pharmaceutical and fine chemical industries are constantly seeking robust, scalable methodologies for constructing privileged heterocyclic scaffolds, particularly quinolin-2(1H)one derivatives, which serve as critical cores in numerous bioactive molecules. As highlighted in patent CN113045489B, a groundbreaking preparation method has been developed that leverages palladium-catalyzed aminocarbonylation to synthesize 3-arylquinolin-2(1H)one derivatives with exceptional efficiency. This technology represents a paradigm shift from classical approaches by utilizing benzisoxazole as a unique dual-purpose reagent, acting simultaneously as the nitrogen source and the formyl donor. The significance of this scaffold cannot be overstated, as evidenced by its presence in potent MAP Kinase inhibitors, long-acting β2-adrenoceptor agonists, and HBV inhibitors, demonstrating its versatility across therapeutic areas.

For R&D directors and process chemists, the ability to access these complex structures through a streamlined, one-pot transformation offers a compelling value proposition. The reaction operates under mild thermal conditions, typically around 100°C, and utilizes readily available benzyl chloride compounds, thereby reducing the reliance on expensive or hazardous precursors. This innovation not only simplifies the synthetic route but also enhances the safety profile of the manufacturing process, addressing key concerns regarding operational hazards in large-scale chemical production. By integrating this methodology into existing pipelines, manufacturers can achieve significant improvements in step economy and overall process mass intensity.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of quinolin-2(1H)one derivatives has relied heavily on classical named reactions such as the Vilsmeier-Haack, Knorr, and Friedlander condensations. While these methods are well-established in academic literature, they often suffer from significant drawbacks when translated to industrial settings. Traditional routes frequently require harsh reaction conditions, including strong acids or bases and elevated temperatures, which can lead to poor functional group tolerance and the formation of complex impurity profiles that are difficult to separate. Furthermore, many conventional strategies involve multi-step sequences to install the necessary carbonyl and nitrogen functionalities, resulting in lower overall yields and increased waste generation. The use of toxic carbon monoxide gas in traditional carbonylation reactions also poses severe safety and infrastructure challenges, necessitating specialized high-pressure equipment and rigorous safety protocols that drive up capital expenditure.

The Novel Approach

In stark contrast, the novel approach detailed in the patent data utilizes a sophisticated palladium-catalyzed system that elegantly circumvents these historical bottlenecks. By employing benzisoxazole as an internal source of both nitrogen and carbon monoxide (via decomposition), the reaction eliminates the need for external CO gas cylinders, drastically simplifying the reactor setup and enhancing operational safety. The use of benzyl chlorides as coupling partners is particularly advantageous from a procurement standpoint, as these are commodity chemicals available in vast structural diversity at low cost. This method allows for the direct construction of the quinolinone core in a single operational step with high atom economy. The compatibility with a wide range of substituents, including halogens, alkoxy groups, and nitriles, ensures that medicinal chemists can rapidly generate diverse libraries of analogs for structure-activity relationship (SAR) studies without needing to redesign the synthetic route for each new target.

Mechanistic Insights into Pd-Catalyzed Aminocarbonylation

The core of this technological breakthrough lies in the intricate catalytic cycle driven by the palladium/(S)-BINAP system. The reaction initiates with the oxidative addition of the benzyl chloride to the active Pd(0) species, forming a benzyl-palladium(II) intermediate. Concurrently, the benzisoxazole undergoes activation, likely facilitated by the transition metal center, leading to the release of the necessary carbonyl fragment and the nitrogen nucleophile. The presence of Molybdenum Hexacarbonyl (Mo(CO)6) serves as a solid, safe surrogate for carbon monoxide gas, ensuring a steady supply of CO ligands to the palladium center to facilitate the carbonylation step. This careful orchestration of ligands and metal centers ensures that the migratory insertion and subsequent reductive elimination steps proceed with high regioselectivity, favoring the formation of the desired 3-aryl substituted quinolinone over potential side products.

From an impurity control perspective, the mechanism offers inherent advantages. The use of a chiral ligand like (S)-BINAP, although primarily for stereochemical control in other contexts, here contributes to a well-defined coordination sphere around the palladium, minimizing non-specific background reactions that often lead to polymeric tars or regio-isomers. The reaction conditions, specifically the use of triethylamine as a base and DME as a solvent, are optimized to solubilize the intermediates while maintaining the stability of the catalytic species. This results in a clean reaction profile where the primary impurities are easily removed via standard silica gel chromatography or crystallization. For quality control teams, this means a more predictable impurity spectrum, facilitating faster method validation and regulatory filing for drug substances derived from this intermediate.

How to Synthesize 3-Arylquinolin-2(1H)one Efficiently

Implementing this synthesis requires precise attention to reagent stoichiometry and thermal management to maximize yield and purity. The protocol dictates a specific molar ratio of catalyst to substrate to ensure turnover without excessive metal loading, balancing cost and efficiency. The reaction is typically conducted in a sealed vessel to retain volatile components and maintain the necessary pressure for the carbonylation equilibrium. Following the reaction period, the workup involves a straightforward filtration to remove insoluble metal residues, followed by purification. For detailed operational parameters and specific stoichiometric ratios tailored to your specific substrate, please refer to the standardized guide below.

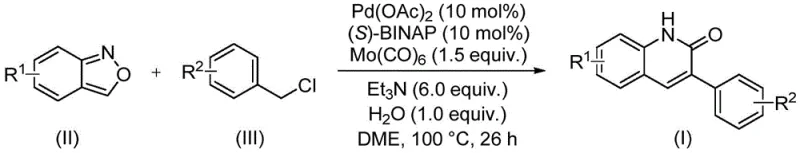

1. Combine palladium acetate, (S)-BINAP, molybdenum hexacarbonyl, triethylamine, water, benzisoxazole, and benzyl chloride in DME solvent within a sealed tube.
2. Heat the reaction mixture to 100°C and maintain stirring for approximately 26 hours to ensure complete conversion.
3. Upon completion, filter the mixture, mix with silica gel, and purify via column chromatography to isolate the target 3-arylquinolin-2(1H)one derivative.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this synthetic route translates directly into tangible economic and logistical benefits. The primary driver of cost reduction is the substitution of expensive, specialized reagents with commodity chemicals. Benzyl chlorides are produced on a massive global scale for various industries, ensuring a stable supply chain and competitive pricing that is less susceptible to market volatility compared to custom-synthesized heterocyclic building blocks. Furthermore, the elimination of gaseous carbon monoxide removes the need for costly safety infrastructure, such as gas detection systems and high-pressure autoclaves, thereby lowering the barrier to entry for contract manufacturing organizations (CMOs) and reducing the overall capital intensity of the production line.

• Cost Reduction in Manufacturing: The economic model of this process is highly favorable due to the use of earth-abundant starting materials and the avoidance of cryogenic or high-pressure conditions. By utilizing benzisoxazole as a dual-source reagent, the process effectively combines two synthetic steps into one, which significantly reduces solvent consumption, energy usage, and labor hours associated with intermediate isolation. This consolidation of steps leads to a drastic simplification of the manufacturing workflow, allowing for substantial cost savings in utility and waste disposal without compromising the quality of the final API intermediate.
• Enhanced Supply Chain Reliability: Supply chain resilience is bolstered by the widespread availability of the key raw materials. Benzisoxazoles and substituted benzyl chlorides are stocked by numerous global chemical suppliers, mitigating the risk of single-source dependency. The robustness of the reaction conditions, which tolerate a broad range of functional groups, means that supply disruptions for specific substituted variants can often be managed by switching to alternative commercially available analogs without needing to re-optimize the entire process. This flexibility ensures continuous production capability even in fluctuating market environments.
• Scalability and Environmental Compliance: From an environmental and scaling perspective, this method aligns well with green chemistry principles. The reaction generates minimal hazardous waste compared to traditional methods that might utilize stoichiometric amounts of toxic reagents. The use of Mo(CO)6 as a solid CO source is inherently safer and easier to handle than pressurized gas cylinders, simplifying regulatory compliance regarding hazardous materials storage. The process is designed to be scalable from gram to multi-ton quantities, with the potential for continuous flow adaptation, offering a future-proof pathway for increasing production capacity to meet growing market demand.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this palladium-catalyzed technology. These insights are derived directly from the experimental data and scope defined in the patent documentation, providing clarity on the practical application of this method for industrial synthesis. Understanding these nuances is critical for project managers evaluating the feasibility of integrating this route into their current manufacturing portfolios.

Q: What are the advantages of using benzisoxazole over traditional nitrogen sources?

A: Benzisoxazole serves a dual function as both the nitrogen source and the formyl (carbonyl) source, eliminating the need for toxic carbon monoxide gas and simplifying the reaction setup compared to traditional Vilsmeier-Haack or Knorr reactions.

Q: Is this method suitable for large-scale commercial production?

A: Yes, the process utilizes commercially available starting materials like benzyl chlorides and operates under relatively mild conditions (100°C), making it highly amenable to scale-up from laboratory to multi-ton production without requiring specialized high-pressure equipment.

Q: What is the functional group tolerance of this synthesis?

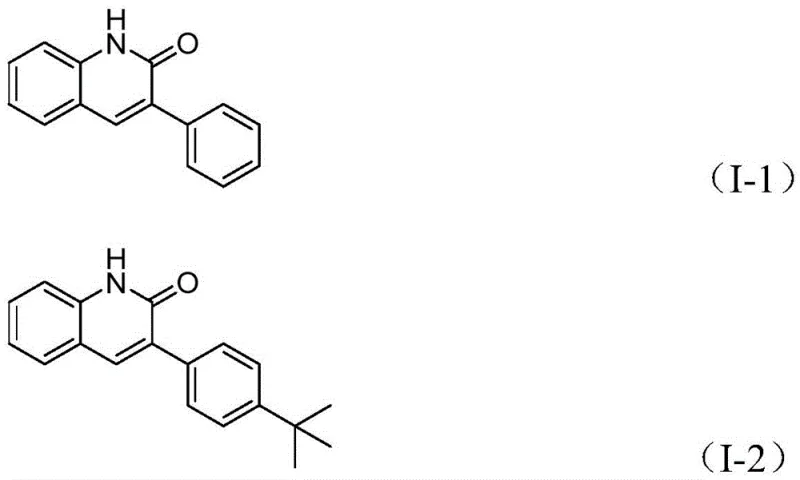

A: The method demonstrates excellent functional group tolerance, successfully accommodating electron-donating groups like methoxy and tert-butyl, as well as electron-withdrawing groups such as cyano, trifluoromethyl, and halogens, allowing for diverse derivative synthesis.
