Advanced Pd-Catalyzed Multicomponent Synthesis of Carbonyl-Bridged Biheterocyclic Compounds for Commercial Scale-Up
Advanced Pd-Catalyzed Multicomponent Synthesis of Carbonyl-Bridged Biheterocyclic Compounds for Commercial Scale-Up
The pharmaceutical and fine chemical industries are constantly seeking robust methodologies to construct complex heterocyclic scaffolds efficiently. Patent CN115353511A introduces a groundbreaking preparation method for carbonyl-bridged biheterocyclic compounds, specifically targeting the fusion of indolinone and imidazole motifs which are prevalent in bioactive molecules. This technology leverages a transition metal palladium-catalyzed carbonylation cascade reaction, utilizing cheap and readily available starting materials such as trifluoroethylimidoyl chloride, propargylamine, and acrylamide derivatives. Unlike traditional methods that often require harsh conditions or toxic gases, this novel approach operates under mild conditions at 30°C, significantly enhancing operational safety and environmental compliance. The ability to synthesize diversified substituted double heterocyclic compounds containing both trifluoromethyl and carbonyl groups through simple substrate design represents a major leap forward for medicinal chemists aiming to optimize lead compounds. Furthermore, the process has been validated for expansion to gram-scale reactions, providing a tangible pathway for industrial application and reliable supply chain integration for high-purity pharmaceutical intermediates.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of biheterocyclic compounds has relied on three primary strategies, each carrying significant drawbacks for large-scale manufacturing. The first method involves the direct coupling of two pre-formed heterocycle substrates, which often suffers from low convergence and requires multiple synthetic steps to prepare the coupling partners. The second strategy utilizes substrates with dual nucleophiles reacting with activated methyl-substituted heterocycles via oxidative cyclization; however, this typically necessitates stoichiometric amounts of oxidants, generating substantial chemical waste and complicating purification protocols. The third conventional route employs transition metal-catalyzed tandem cyclization, which, while efficient, faces immense challenges when applied specifically to carbonyl-bridged systems due to the difficulty of controlling regioselectivity and incorporating the carbonyl functionality without using hazardous carbon monoxide gas cylinders. These limitations result in higher production costs, increased safety risks, and longer lead times for high-purity pharmaceutical intermediates, creating a bottleneck for the commercial scale-up of complex drug candidates.
The Novel Approach
The methodology disclosed in CN115353511A fundamentally reshapes the synthetic landscape by employing a palladium-catalyzed multicomponent reaction that constructs the biheterocyclic core in a single pot. By utilizing a formic acid and acetic anhydride mixture as a safe carbon monoxide surrogate, the process eliminates the need for handling toxic CO gas, thereby drastically simplifying reactor requirements and safety protocols. The reaction proceeds efficiently at a mild temperature of 30°C in tetrahydrofuran (THF), demonstrating exceptional functional group tolerance across a wide array of substrates including those with electron-donating and electron-withdrawing groups. This one-pot strategy not only improves atom economy but also reduces the number of isolation steps, directly contributing to cost reduction in pharmaceutical intermediate manufacturing. The versatility of this approach allows for the rapid generation of diverse libraries of carbonyl-bridged biheterocycles, enabling faster structure-activity relationship (SAR) studies and accelerating the drug discovery timeline for potential therapeutic agents.
Mechanistic Insights into Pd-Catalyzed Carbonylation Cascade
The mechanistic pathway of this transformation is a sophisticated sequence of organometallic steps that ensures high efficiency and selectivity. The reaction is initiated by the oxidative addition of a zero-valent palladium species into the carbon-iodine bond of the acrylamide substrate, generating a reactive organopalladium intermediate. This is immediately followed by an intramolecular Heck reaction, which forms a divalent alkyl palladium species and establishes the initial cyclic framework. Subsequently, the carbon monoxide released in situ from the decomposition of the formic acid/acetic anhydride mixture inserts into the palladium-carbon bond, yielding a crucial acyl palladium intermediate. Concurrently, the base-promoted reaction between trifluoroethylimidoyl chloride and propargylamine generates a trifluoroacetamidine compound, which undergoes isomerization to become the active nucleophile. The final cyclization step is driven by the activation of this trifluoroacetamidine by the acyl palladium intermediate, leading to the formation of the imidazole ring and the release of the final carbonyl-bridged biheterocyclic product along with the regeneration of the palladium catalyst.
Understanding the impurity profile is critical for R&D directors focusing on purity specifications. The use of trifurylphosphine (TFP) as a ligand plays a pivotal role in stabilizing the palladium center and preventing the formation of palladium black, which can lead to catalyst deactivation and heterogeneous byproducts. The mild reaction temperature of 30°C minimizes thermal degradation of sensitive functional groups, such as the trifluoromethyl moiety, ensuring a clean impurity spectrum. Furthermore, the stoichiometric control of reagents, specifically using a slight excess of propargylamine and acrylamide relative to the imidoyl chloride, drives the equilibrium towards the desired product and suppresses side reactions like homocoupling. The post-treatment process involving filtration and silica gel column chromatography effectively removes residual palladium species and inorganic salts, guaranteeing that the final API intermediate meets stringent quality standards required for downstream pharmaceutical applications.
How to Synthesize Carbonyl-Bridged Biheterocyclic Compounds Efficiently

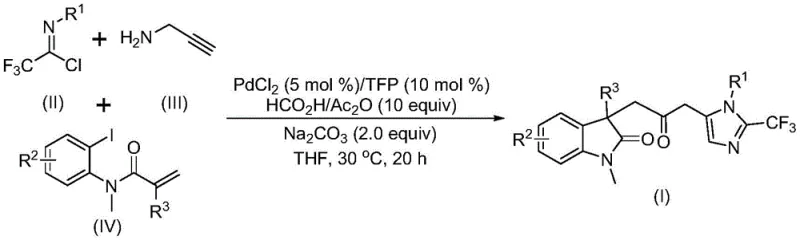

To implement this synthesis in a laboratory or pilot plant setting, precise adherence to the optimized reaction parameters is essential for maximizing yield and reproducibility. The protocol involves charging a reaction vessel with palladium chloride (5 mol%), TFP ligand (10 mol%), sodium carbonate (2.0 equiv), and the CO surrogate mixture, followed by the addition of the three key organic components in THF solvent. The detailed standardized synthesis steps, including specific workup procedures and purification techniques to ensure high purity, are outlined in the guide below.
- Combine palladium chloride (5 mol%), TFP ligand (10 mol%), sodium carbonate (2.0 equiv), and a formic acid/acetic anhydride mixture (CO source) in THF solvent.
- Add trifluoroethylimidoyl chloride, propargylamine, and the specific acrylamide substrate to the reaction mixture under inert atmosphere.
- Stir the reaction at 30°C for 12 to 20 hours, then filter, concentrate, and purify via column chromatography to isolate the target biheterocycle.
Commercial Advantages for Procurement and Supply Chain Teams
For procurement managers and supply chain heads, the adoption of this patented technology offers substantial strategic benefits beyond mere chemical novelty. The reliance on commercially available and inexpensive starting materials, such as propargylamine and acrylamide derivatives, significantly lowers the raw material cost baseline compared to complex pre-functionalized heterocycles. The elimination of toxic carbon monoxide gas cylinders reduces regulatory burdens and infrastructure costs associated with hazardous gas handling, leading to significant cost savings in facility operations. Moreover, the high substrate compatibility means that a single manufacturing platform can produce a wide variety of derivatives, enhancing supply chain flexibility and reducing the need for specialized equipment for different product lines.
- Cost Reduction in Manufacturing: The process utilizes a catalytic amount of palladium chloride, which is relatively inexpensive compared to other noble metal catalysts, and the ligand system is efficient, minimizing catalyst loading costs. By avoiding stoichiometric oxidants and toxic gas surrogates, the waste treatment costs are drastically simplified, as there is no need for specialized scrubbing systems for CO or heavy metal oxidant residues. The one-pot nature of the reaction reduces solvent consumption and energy usage associated with multiple heating and cooling cycles, further driving down the overall cost of goods sold (COGS) for these high-value intermediates.
- Enhanced Supply Chain Reliability: The starting materials identified in the patent, including trifluoroethylimidoyl chloride and various substituted acrylamides, are derived from bulk chemical feedstocks that are widely available in the global market. This abundance ensures a stable supply chain with minimal risk of raw material shortages or price volatility. The robustness of the reaction conditions, operating at ambient pressure and low temperature, allows for production in standard glass-lined or stainless steel reactors without requiring exotic high-pressure equipment, thereby increasing the number of qualified contract manufacturing organizations (CMOs) capable of producing these compounds.
- Scalability and Environmental Compliance: The patent explicitly demonstrates the scalability of the method to gram-level reactions, indicating a clear path towards kilogram and ton-scale production without fundamental changes to the chemistry. The use of formic acid as a CO source generates benign byproducts like water and acetic acid, aligning with green chemistry principles and simplifying environmental compliance reporting. This eco-friendly profile is increasingly important for multinational corporations aiming to reduce their carbon footprint and meet strict sustainability goals in their supply chains.
Frequently Asked Questions (FAQ)
The following questions address common technical and commercial inquiries regarding the implementation of this synthesis technology. These answers are derived directly from the experimental data and beneficial effects described in the patent documentation, providing clarity on reaction scope and operational feasibility.
Q: What are the key advantages of this Pd-catalyzed method over traditional coupling?
A: This method avoids toxic carbon monoxide gas by using a formic acid/acetic anhydride surrogate, operates at mild temperatures (30°C), and achieves high atom economy through a one-pot multicomponent cascade.
Q: What is the substrate scope for the trifluoroethylimidoyl chloride component?
A: The reaction tolerates a wide range of substituents on the aryl ring, including methyl, tert-butyl, methoxy, chloro, bromo, trifluoromethyl, and nitro groups, allowing for diverse library synthesis.
Q: Is this process suitable for large-scale industrial production?
A: Yes, the patent explicitly demonstrates scalability to gram-level reactions with simple post-treatment procedures, making it viable for commercial manufacturing of complex pharmaceutical intermediates.
