Scalable Production of 3-Trifluoromethyl-1,2,4-Triazoles via Molybdenum-Copper Co-Catalysis

Scalable Production of 3-Trifluoromethyl-1,2,4-Triazoles via Molybdenum-Copper Co-Catalysis

The pharmaceutical and fine chemical industries are constantly seeking more efficient pathways to construct nitrogen-containing heterocycles, particularly those bearing trifluoromethyl groups which significantly enhance metabolic stability and lipophilicity. A groundbreaking preparation method disclosed in patent CN113307778A introduces a novel catalytic system for synthesizing 3-trifluoromethyl substituted 1,2,4-triazole compounds. This technology leverages a synergistic co-catalytic effect between molybdenum hexacarbonyl and cuprous acetate to drive a cycloaddition reaction between trifluoroethylimidoyl chloride and functionalized isonitriles. The significance of this development cannot be overstated for manufacturers of active pharmaceutical ingredients (APIs), as the 1,2,4-triazole scaffold is a privileged structure found in numerous blockbuster drugs.

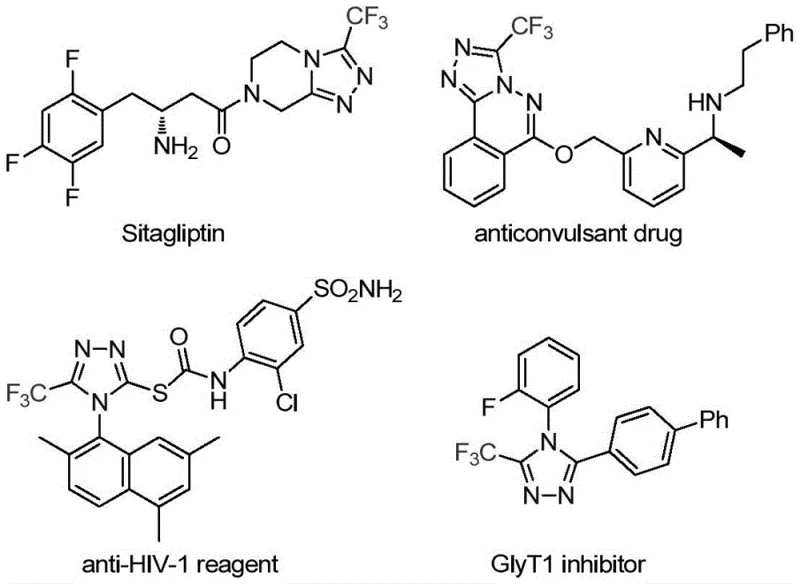

As illustrated in the structural diversity of modern medicines, the incorporation of the triazole ring is ubiquitous in high-value therapeutics ranging from antidiabetics like Sitagliptin to antiretrovirals. The ability to introduce a trifluoromethyl group at the 3-position of this ring opens new avenues for medicinal chemists to optimize drug candidates. This patent provides a reliable pharmaceutical intermediate supplier with a robust toolkit to access these valuable building blocks without the logistical nightmares associated with traditional synthetic routes. By shifting the paradigm towards transition metal co-catalysis, the process achieves high reaction efficiency under relatively mild thermal conditions, typically between 70°C and 90°C.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of trifluoromethyl-substituted 1,2,4-triazoles has been plagued by significant operational hazards and synthetic inefficiencies. Traditional literature methods often rely on the cyclization of trifluoroacetyl hydrazine with amidine compounds or the hydrazinolysis of trifluoromethyl-substituted 1,2,4-oxazolinones. These pathways frequently require harsh reaction conditions, multiple synthetic steps, and the handling of unstable intermediates that pose safety risks in a commercial plant environment. Furthermore, alternative copper-catalyzed multi-component reactions utilizing diazonium salts and trifluorodiazoethane introduce severe safety concerns due to the explosive nature of diazo compounds, making them unsuitable for cost reduction in API manufacturing on a multi-ton scale.

The Novel Approach

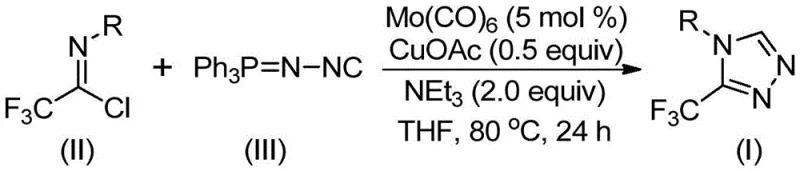

In stark contrast, the methodology described in CN113307778A utilizes a direct cycloaddition strategy that bypasses these dangerous intermediates entirely. By employing trifluoroethylimidoyl chloride and functionalized isonitrile (NIITP) as the primary building blocks, the reaction proceeds through a streamlined mechanism that minimizes waste generation. The use of inexpensive and commercially available catalysts, specifically molybdenum hexacarbonyl and cuprous acetate, ensures that the process remains economically viable even when scaling up to industrial volumes. This approach not only simplifies the operational workflow but also expands the applicability of the synthesis to a wide range of substrates, allowing for the rapid generation of diverse chemical libraries for drug discovery programs.

Mechanistic Insights into Mo/Cu Co-Catalyzed Cycloaddition

The success of this transformation lies in the intricate interplay between the molybdenum and copper species within the reaction medium. Mechanistically, the molybdenum hexacarbonyl acts as a crucial activator for the functionalized isonitrile, forming a transient metal-isocyanide complex that enhances the nucleophilicity of the carbon center. Simultaneously, the cuprous acetate facilitates the activation of the trifluoroethylimidoyl chloride, promoting a [3+2] cycloaddition event that constructs the five-membered triazole ring. This dual-activation strategy lowers the energy barrier for ring closure, allowing the reaction to proceed efficiently at moderate temperatures without the need for exotic ligands or extreme pressure conditions.

Following the initial cycloaddition, the intermediate undergoes a spontaneous elimination of triphenylphosphine oxide, driven by the thermodynamic stability of the resulting aromatic triazole system. This step is critical for impurity control, as the phosphine oxide byproduct is easily removed during standard aqueous workup or silica gel filtration. The presence of triethylamine serves to neutralize the hydrochloric acid generated during the process, maintaining a basic environment that prevents the decomposition of sensitive intermediates. For R&D directors focused on purity profiles, this mechanism offers a distinct advantage by avoiding the formation of complex polymeric side products often seen in radical-based trifluoromethylation reactions.

How to Synthesize 3-Trifluoromethyl-1,2,4-Triazole Efficiently

Implementing this synthesis in a laboratory or pilot plant setting requires careful attention to reagent stoichiometry and solvent selection to maximize yield. The patent outlines a generalized procedure where the molar ratio of trifluoroethylimidoyl chloride to functionalized isonitrile is optimized to ensure complete conversion of the limiting reagent. Typically, a slight excess of the isonitrile is employed to drive the equilibrium forward, while the catalyst loading is kept low to minimize metal contamination in the final product. The detailed standardized synthesis steps see the guide below for precise operational parameters regarding temperature ramps and workup procedures.

1. Combine molybdenum hexacarbonyl (5 mol %), cuprous acetate (0.5 equiv), triethylamine (2.0 equiv), and molecular sieves in an organic solvent such as THF.
2. Add trifluoroethylimidoyl chloride and functionalized isonitrile (NIITP) to the reaction mixture under inert atmosphere.
3. Heat the reaction mixture to 70-90°C for 18-30 hours, then filter and purify via column chromatography to isolate the target triazole.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the transition to this novel catalytic system represents a strategic opportunity to de-risk the supply of critical heterocyclic intermediates. The reliance on commodity chemicals such as cuprous acetate and triethylamine, rather than scarce precious metals like palladium or rhodium, insulates the production cost from volatile market fluctuations in the precious metals sector. Furthermore, the operational simplicity of the reaction, which does not require specialized high-pressure equipment or cryogenic cooling, allows for execution in standard glass-lined reactors found in most multipurpose chemical facilities. This compatibility with existing infrastructure drastically reduces the capital expenditure required for technology transfer and scale-up.

• Cost Reduction in Manufacturing: The elimination of expensive noble metal catalysts and hazardous diazonium precursors leads to substantial cost savings in raw material procurement. Additionally, the simplified post-treatment process, which involves basic filtration and chromatography, reduces the consumption of solvents and silica gel compared to multi-step traditional syntheses. The high atom economy of the cycloaddition reaction ensures that a greater proportion of the starting mass is converted into the desired product, minimizing waste disposal costs and improving the overall green chemistry profile of the manufacturing process.
• Enhanced Supply Chain Reliability: Since all key starting materials, including the trifluoroethylimidoyl chloride and functionalized isonitriles, are derived from readily available bulk chemicals, the risk of supply disruption is significantly mitigated. The robustness of the reaction conditions, tolerating a wide range of temperatures and slight variations in reagent quality, ensures consistent batch-to-batch reproducibility. This reliability is paramount for maintaining continuous production schedules and meeting the stringent delivery timelines demanded by downstream pharmaceutical clients who depend on just-in-time inventory models.
• Scalability and Environmental Compliance: The process is inherently scalable, having been demonstrated effectively at the gram level with clear pathways for expansion to kilogram and ton scales. The absence of toxic heavy metals and explosive intermediates simplifies the environmental permitting process and reduces the burden on wastewater treatment facilities. By adopting this cleaner synthesis route, manufacturers can align their operations with increasingly strict global environmental regulations, thereby avoiding potential fines and enhancing their corporate sustainability credentials in the eyes of stakeholders.

Frequently Asked Questions (FAQ)

The following questions address common technical inquiries regarding the implementation and scope of this patented technology. These answers are derived directly from the experimental data and embodiments provided in the source documentation, offering clarity on substrate compatibility and reaction optimization. Understanding these nuances is essential for process chemists aiming to adapt this methodology for specific target molecules.

Q: What are the optimal reaction conditions for this triazole synthesis?

A: The patent specifies reacting at 70-90°C for 18-30 hours in THF solvent, utilizing a catalytic system of Mo(CO)6 and CuOAc with triethylamine as the base.

Q: Can this method tolerate diverse functional groups on the substrate?

A: Yes, the method demonstrates broad substrate tolerance, successfully synthesizing derivatives with methyl, methoxy, fluoro, chloro, and nitro substituents on the aromatic ring.

Q: Is this process suitable for large-scale manufacturing?

A: The process is designed for scalability, utilizing cheap and readily available starting materials and avoiding hazardous diazonium intermediates common in traditional routes.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 3-Trifluoromethyl-1,2,4-Triazole Supplier

At NINGBO INNO PHARMCHEM, we recognize the pivotal role that advanced heterocyclic intermediates play in the development of next-generation therapeutics. Our team possesses extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your project transitions smoothly from benchtop discovery to full-scale manufacturing. We adhere to stringent purity specifications and utilize rigorous QC labs to guarantee that every batch of 3-trifluoromethyl-1,2,4-triazole meets the highest industry standards for residual solvents and heavy metal content.

We invite you to collaborate with us to leverage this cutting-edge synthesis technology for your specific pipeline needs. Please contact our technical procurement team to request a Customized Cost-Saving Analysis tailored to your volume requirements. We are prepared to provide specific COA data and comprehensive route feasibility assessments to demonstrate how our optimized processes can accelerate your time-to-market while reducing overall production costs.
