Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Quinazolinones for Commercial Drug Manufacturing
Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Quinazolinones for Commercial Drug Manufacturing
The pharmaceutical industry continuously seeks robust synthetic methodologies to access nitrogen-containing heterocycles, particularly quinazolinones, which serve as privileged scaffolds in medicinal chemistry. A significant breakthrough in this domain is detailed in Chinese Patent CN113045503B, which discloses a novel preparation method for 2-trifluoromethyl substituted quinazolinone compounds. This technology addresses critical challenges in introducing trifluoromethyl groups into heterocyclic systems, a modification known to drastically enhance metabolic stability, lipophilicity, and bioavailability of drug candidates. By leveraging a transition metal palladium-catalyzed carbonylation cascade, this invention provides a streamlined route that bypasses the limitations of traditional cyclization reactions. For R&D directors and process chemists, this represents a pivotal shift towards more efficient, scalable, and economically viable manufacturing processes for high-value pharmaceutical intermediates.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of 2-trifluoromethyl-substituted quinazolinones has been fraught with significant technical and economic hurdles that impede large-scale production. Conventional literature methods often rely on the cyclization of anthranilamides with ethyl trifluoroacetate, trifluoroacetic anhydride, or trifluoroacetic acid under varying conditions. Alternatively, routes involving isatoic anhydride or T3P-promoted cascade reactions are frequently employed. However, these established protocols suffer from severe drawbacks, including harsh reaction conditions that demand specialized equipment, the necessity for expensive or pre-activated substrates that inflate raw material costs, and generally low yields that compromise overall process efficiency. Furthermore, the narrow substrate scope of these traditional methods limits their utility in generating diverse libraries of analogs required for modern drug discovery programs, often failing to tolerate sensitive functional groups essential for biological activity.
The Novel Approach

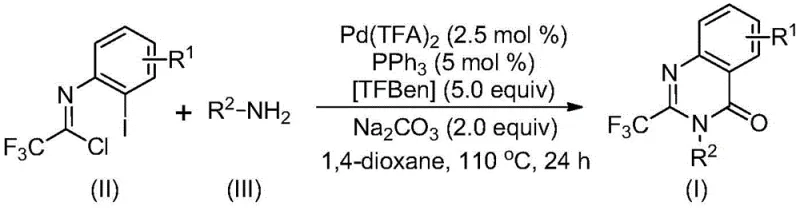

In stark contrast to these legacy techniques, the patented methodology introduces a highly efficient palladium-catalyzed carbonylation strategy utilizing cheap and readily available starting materials. The core innovation lies in the use of trifluoroethylimidoyl chloride and various amines as primary building blocks, coupled with TFBen (1,3,5-tricarboxylic acid phenol ester) serving as a safe, solid carbon monoxide substitute. This approach operates under relatively mild thermal conditions at 110°C in common organic solvents like 1,4-dioxane. The reaction exhibits exceptional substrate compatibility, allowing for the incorporation of diverse substituents such as halogens, alkyl groups, and trifluoromethyl moieties without compromising yield. This versatility not only simplifies the synthetic design for complex molecules but also opens new avenues for the rapid construction of fluorinated heterocyclic libraries essential for developing next-generation therapeutics.
Mechanistic Insights into Pd-Catalyzed Carbonylation Cascade
Understanding the mechanistic underpinnings of this transformation is crucial for process optimization and impurity control. The reaction likely initiates with a base-promoted intermolecular carbon-nitrogen bond coupling between the amine and the imidoyl chloride, generating a trifluoroacetamidine derivative in situ. Subsequently, the palladium catalyst, specifically palladium trifluoroacetate coordinated with triphenylphosphine, undergoes oxidative addition into the carbon-iodine bond of the aromatic ring. This step forms a key divalent palladium intermediate. Crucially, the TFBen additive decomposes under heating to release carbon monoxide, which then inserts into the carbon-palladium bond to create an acyl palladium species. This insertion step is the defining feature that constructs the carbonyl functionality of the quinazolinone ring.
Following CO insertion, the presence of a base, such as sodium carbonate, facilitates the formation of a palladium-nitrogen bond, leading to a seven-membered ring palladium intermediate. The catalytic cycle concludes with a reductive elimination step that releases the final 2-trifluoromethyl-substituted quinazolinone product and regenerates the active palladium catalyst. This well-defined mechanism ensures high selectivity and minimizes the formation of side products often associated with uncontrolled radical pathways. For quality assurance teams, this predictable pathway means a cleaner impurity profile, reducing the burden on downstream purification processes and ensuring consistent batch-to-batch quality for regulatory submissions.
How to Synthesize 2-Trifluoromethyl Quinazolinone Efficiently
The practical implementation of this synthesis is designed for ease of operation, making it accessible for both laboratory-scale discovery and pilot-plant production. The protocol involves charging a reaction vessel with the palladium catalyst system, the solid CO source, the base, and the specific amine and imidoyl chloride substrates in an aprotic solvent. The mixture is then heated to facilitate the cascade reaction. Detailed standardized operating procedures regarding stoichiometry, temperature ramping, and specific workup techniques are critical for maximizing yield and purity. The following guide outlines the fundamental steps derived from the patent examples to assist technical teams in replicating this high-efficiency process.
- Combine palladium trifluoroacetate, triphenylphosphine, TFBen, sodium carbonate, trifluoroethylimidoyl chloride, and amine in an organic solvent such as 1,4-dioxane.
- Heat the reaction mixture to 110°C and stir for 16 to 30 hours to allow the carbonylation cascade to proceed.
- Upon completion, filter the mixture, mix with silica gel, and purify via column chromatography to isolate the target compound.
Commercial Advantages for Procurement and Supply Chain Teams
From a procurement and supply chain perspective, this patented technology offers substantial strategic advantages over conventional manufacturing routes. The shift away from hazardous gaseous carbon monoxide to a solid surrogate like TFBen drastically simplifies facility requirements, removing the need for high-pressure gas handling infrastructure and enhancing overall plant safety. This reduction in operational complexity translates directly into lower capital expenditure and reduced insurance liabilities. Furthermore, the reliance on commercially available amines and simple imidoyl chlorides ensures a stable and diversified supply chain, mitigating risks associated with single-source dependencies for exotic reagents.
- Cost Reduction in Manufacturing: The economic benefits of this process are driven by the utilization of inexpensive, commodity-grade starting materials rather than costly activated precursors. By eliminating the need for expensive coupling reagents like T3P or specialized anhydrides, the direct material cost per kilogram of product is significantly lowered. Additionally, the high reaction efficiency and broad substrate tolerance reduce the frequency of failed batches and the need for extensive reprocessing, leading to substantial overall cost savings in the manufacturing of complex pharmaceutical intermediates.
- Enhanced Supply Chain Reliability: The robustness of the reaction conditions contributes to improved supply continuity. Because the method tolerates a wide range of functional groups and uses stable reagents, it is less susceptible to disruptions caused by the variability of raw material quality. The ability to source amines and solvents from multiple global suppliers further strengthens supply chain resilience. This reliability is paramount for maintaining consistent production schedules and meeting the rigorous delivery timelines demanded by international pharmaceutical clients.
- Scalability and Environmental Compliance: The process is inherently scalable, having been demonstrated effectively at the gram level with clear pathways for expansion to multi-kilogram and ton-scale production. The use of standard organic solvents like 1,4-dioxane, which can be recovered and recycled, aligns with modern green chemistry principles. Moreover, the avoidance of toxic gas streams simplifies waste treatment protocols, ensuring easier compliance with stringent environmental regulations and reducing the ecological footprint of the manufacturing operation.
Frequently Asked Questions (FAQ)
To address common technical inquiries regarding the implementation and scope of this synthesis technology, we have compiled answers based on the specific data and examples provided in the patent documentation. These insights are intended to clarify the operational parameters and potential applications for partners evaluating this methodology for their own production needs. Understanding these nuances is essential for effective technology transfer and process integration.
Q: What are the advantages of using TFBen over carbon monoxide gas in this synthesis?
A: TFBen (1,3,5-tricarboxylic acid phenol ester) acts as a solid carbon monoxide substitute, eliminating the need for high-pressure CO gas equipment and significantly improving operational safety and scalability in standard laboratory or plant settings.
Q: What is the substrate compatibility of this palladium-catalyzed method?
A: The method demonstrates excellent functional group tolerance, successfully accommodating various substituents on the aryl ring including halogens (F, Cl, Br), alkyl groups (methyl, tert-butyl), and electron-withdrawing groups like trifluoromethyl, making it highly versatile for diverse pharmaceutical intermediates.
Q: Can this method be applied to the synthesis of complex natural products?

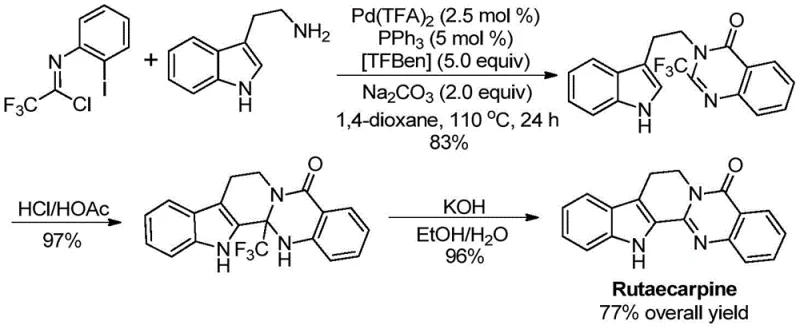

A: Yes, the patent explicitly demonstrates the successful application of this methodology in the efficient total synthesis of the bioactive alkaloid Rutaecarpine, achieving a high overall yield through a streamlined three-step sequence.
