Advanced Synthesis of Antitumor Spiro-Indazole-Pyrazoline Derivatives for Commercial API Manufacturing

Advanced Synthesis of Antitumor Spiro-Indazole-Pyrazoline Derivatives for Commercial API Manufacturing

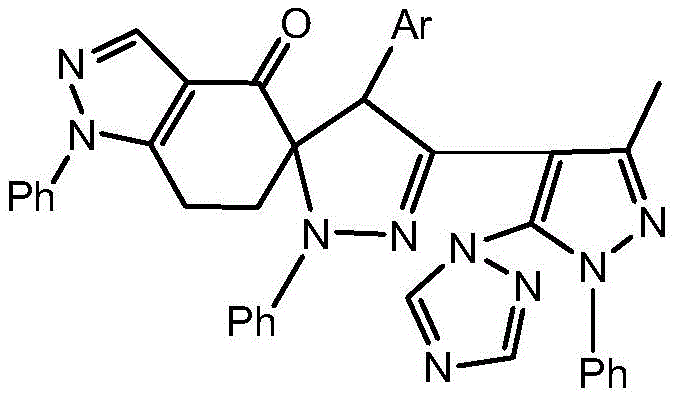

The pharmaceutical industry is constantly seeking robust synthetic routes for complex heterocyclic scaffolds that demonstrate potent biological activity. Patent CN110724148B introduces a sophisticated methodology for the preparation of p-chlorophenyl substituted spiro[indazole-pyrazoline] derivatives containing a pyrazole structure. This technology represents a significant advancement in the field of medicinal chemistry, specifically targeting the synthesis of novel antitumor agents. The core innovation lies in the strategic assembly of a multi-heterocyclic system comprising indazole, pyrazoline, and triazole moieties, which are known to interact effectively with biological enzymes and receptors. By leveraging a 1,3-dipolar cycloaddition reaction, the process achieves high structural complexity with commendable efficiency. For R&D directors and procurement specialists, understanding the nuances of this synthesis is critical for evaluating its potential as a reliable pharmaceutical intermediate supplier solution. The integration of a triazole ring enhances the molecule's electron density and hydrogen bonding capability, while the spiro-architecture imposes rigid conformational constraints that often improve binding affinity and metabolic stability.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditional approaches to synthesizing spiro-heterocyclic compounds often suffer from significant drawbacks that hinder their commercial viability and scalability. Conventional methods frequently rely on harsh reaction conditions, such as extreme temperatures or the use of toxic heavy metal catalysts, which complicate downstream purification and increase environmental compliance costs. Furthermore, achieving high regioselectivity in the formation of spiro-junctions is notoriously difficult using older cyclization techniques, often resulting in complex mixtures of isomers that are challenging to separate. This lack of selectivity not only reduces the overall yield of the desired active pharmaceutical ingredient (API) intermediate but also introduces impurities that can be detrimental to patient safety. Additionally, many legacy processes involve multi-step sequences with low atom economy, generating substantial chemical waste and driving up the cost of goods sold (COGS). For supply chain managers, these inefficiencies translate into longer lead times and higher vulnerability to raw material price fluctuations, making the consistent supply of high-purity intermediates a persistent challenge.

The Novel Approach

The methodology outlined in patent CN110724148B overcomes these historical barriers through a streamlined, five-step synthetic strategy that prioritizes selectivity and operational simplicity. The novel approach utilizes a 1,3-dipolar cycloaddition between a nitrile oxide dipole, generated in situ from a chlorinated hydrazone, and an exocyclic double bond on an indazole ketone. This reaction is highly advantageous because it proceeds under relatively mild conditions, avoiding the need for cryogenic temperatures lower than -12°C or expensive transition metal catalysts. The process demonstrates excellent control over the stereochemistry of the spiro-center, ensuring the production of the biologically active isomer with minimal byproduct formation. By employing readily available starting materials such as 4-chlorobenzaldehyde and substituted pyrazoles, the route ensures a stable supply chain foundation. The final step, which constructs the spiro core, achieves yields of approximately 73% under optimized conditions, a figure that indicates strong potential for industrial scale-up. This efficiency directly addresses the needs of procurement teams looking for cost reduction in API manufacturing by minimizing waste and maximizing throughput.

Mechanistic Insights into 1,3-Dipolar Cycloaddition and Spiro-Formation

The heart of this synthetic innovation is the generation and trapping of a reactive nitrile oxide species, which serves as the 1,3-dipole in the cycloaddition reaction. The mechanism begins with the chlorination of the pyrazole formaldehyde hydrazone using tert-butyl hypochlorite. This step is critical and requires precise temperature control, ideally maintained at -12°C, to facilitate the dehydrohalogenation that generates the nitrile oxide without decomposing the sensitive intermediate. Once formed, the nitrile oxide possesses a high degree of electrophilicity at the carbon atom and nucleophilicity at the oxygen atom, making it primed for cycloaddition. The dipolarophile, 5-(4-chlorobenzylidene)-1-phenyl-6,7-dihydro-1H-indazol-4(5H)-one, presents an electron-deficient exocyclic double bond due to the conjugation with the carbonyl group and the electron-withdrawing nature of the indazole system. This electronic complementarity drives the [3+2] cycloaddition, resulting in the formation of the isoxazoline ring fused in a spiro-configuration to the indazole core. The presence of the triazole substituent on the pyrazole ring further modulates the electronic properties of the dipole, potentially enhancing the reaction rate and selectivity through secondary orbital interactions.

From an impurity control perspective, the mechanism offers inherent advantages that simplify purification protocols. The concerted nature of the 1,3-dipolar cycloaddition minimizes the formation of radical byproducts that are common in stepwise ionic cyclizations. Furthermore, the steric bulk of the phenyl and p-chlorophenyl groups directs the approach of the dipole, favoring the formation of a single diastereomer. This high degree of stereocontrol is paramount for pharmaceutical applications, where different stereoisomers can exhibit vastly different pharmacokinetic profiles. The use of pyridine as a base in the final step helps to scavenge the hydrochloric acid byproduct generated during the elimination of the chloro-hydrazone, preventing acid-catalyzed degradation of the sensitive spiro-product. For quality assurance teams, this mechanistic clarity translates to a cleaner reaction profile, reducing the burden on analytical laboratories to identify and quantify trace impurities. The result is a process capable of delivering high-purity OLED material or pharmaceutical intermediates that meet stringent regulatory specifications.

How to Synthesize Spiro-Indazole-Pyrazoline Efficiently

The synthesis of this complex spiro-derivative is achieved through a logical sequence of transformations that build molecular complexity incrementally. The process begins with the functionalization of a pyrazole core, followed by the construction of the indazole dipolarophile, and culminates in the convergent cycloaddition step. Each stage has been optimized in the patent data to balance reaction rate with product stability, ensuring that intermediates can be isolated and characterized if necessary. The detailed standardized synthesis steps see the guide below, which outlines the specific molar ratios and solvent systems required to replicate the high yields reported in the literature. Adhering to these parameters is essential for maintaining the integrity of the nitrile oxide intermediate and ensuring the success of the final ring-closing reaction.

1. Synthesize 1-phenyl-3-methyl-5-(1,2,4-triazolyl)-4-pyrazolecarboxaldehyde via nucleophilic substitution in DMSO.
2. Convert the aldehyde to its phenylhydrazone derivative through reflux in ethanol with acid catalysis.
3. Perform controlled chlorination using tert-butyl hypochlorite at -12°C to generate the nitrile oxide precursor.
4. Prepare the dipolarophile 5-(4-chlorobenzylidene)-1-phenyl-6,7-dihydro-1H-indazol-4(5H)-one via base-catalyzed condensation.
5. Execute the final 1,3-dipolar cycloaddition between the chlorinated hydrazone and the indazole ketone to form the spiro scaffold.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this synthetic route offers tangible benefits that extend beyond mere chemical elegance. The process is designed with scalability in mind, utilizing reagents and solvents that are commercially available in bulk quantities, thereby mitigating the risk of supply disruptions. The avoidance of precious metal catalysts eliminates the need for expensive metal scavenging steps and reduces the risk of heavy metal contamination in the final product, which is a critical compliance requirement for API manufacturers. Furthermore, the moderate reaction temperatures and ambient pressure conditions reduce the energy consumption of the manufacturing process, contributing to a lower carbon footprint and aligning with modern sustainability goals. These factors collectively contribute to a more resilient and cost-effective supply chain for high-value heterocyclic intermediates.

• Cost Reduction in Manufacturing: The elimination of expensive transition metal catalysts and the use of commodity chemicals like 4-chlorobenzaldehyde significantly lower the raw material costs associated with production. The high yield of the final cycloaddition step minimizes the loss of valuable intermediates, directly improving the overall mass balance and reducing the cost per kilogram of the final API intermediate. Additionally, the simplified workup procedures, which rely on standard filtration and crystallization rather than complex chromatographic separations, reduce labor and solvent costs. This economic efficiency makes the process highly attractive for large-scale commercial production where margin compression is a constant concern.
• Enhanced Supply Chain Reliability: The reliance on stable, shelf-stable reagents such as tert-butyl hypochlorite and substituted hydrazines ensures that the manufacturing process is not vulnerable to the volatility of specialized reagent markets. The robustness of the reaction conditions allows for flexibility in manufacturing scheduling, as the process does not require specialized cryogenic equipment beyond standard industrial chillers. This operational flexibility enables suppliers to respond more rapidly to fluctuating demand from pharmaceutical clients, reducing lead times for high-purity pharmaceutical intermediates. The ability to source starting materials from multiple global vendors further de-risks the supply chain, ensuring continuity of supply even in the face of regional logistical challenges.
• Scalability and Environmental Compliance: The process generates minimal hazardous waste, primarily consisting of aqueous salt solutions and organic solvents that can be readily recovered and recycled. The absence of heavy metals simplifies the wastewater treatment process, lowering the environmental compliance costs for the manufacturing facility. The high atom economy of the cycloaddition reaction means that a greater proportion of the reactant mass is incorporated into the final product, aligning with green chemistry principles. This environmental stewardship is increasingly important for pharmaceutical companies aiming to meet corporate sustainability targets and regulatory expectations regarding waste disposal and emissions.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the synthesis and application of these spiro-indazole-pyrazoline derivatives. The answers are derived directly from the experimental data and technical specifications provided in the patent documentation, ensuring accuracy and relevance for industry professionals. Understanding these details is crucial for assessing the feasibility of integrating this technology into existing drug discovery pipelines or manufacturing workflows.

Q: What is the critical temperature control parameter for the chlorination step?

A: The chlorination of the pyrazole formaldehyde hydrazone using tert-butyl hypochlorite must be strictly maintained below -5°C, optimally at -12°C, to prevent decomposition and ensure high yield of the reactive intermediate.

Q: Why is the 1,3-dipolar cycloaddition method preferred for this scaffold?

A: This method offers superior regioselectivity and stereoselectivity compared to traditional cyclization methods, allowing for the precise construction of the complex spiro[indazole-pyrazoline] core which is essential for potent antitumor activity.

Q: What are the primary biological targets for these derivatives?

A: These derivatives exhibit significant inhibitory activity against multiple tumor cell lines, including HepG2 (liver cancer), A549 (lung adenocarcinoma), and SKOV3 (ovarian cancer), making them valuable leads for oncology drug development.
