Advanced Synthesis of N-N Axis Chiral Pyrrole Derivatives for Pharmaceutical Applications

The pharmaceutical industry is constantly seeking robust methodologies to access complex chiral scaffolds that serve as critical building blocks for next-generation therapeutics. A groundbreaking approach detailed in patent CN114524701B introduces a highly efficient synthesis route for N-N axis chiral pyrrole derivatives, a class of compounds previously limited by scarce synthetic strategies. This innovation leverages asymmetric organocatalysis to construct these intricate molecular architectures with exceptional stereocontrol. The significance of this technology lies not only in its chemical elegance but also in its practical application; biological assays confirm that these derivatives exhibit potent cytotoxic activity against QGP-1 pancreatic tumor cells, marking them as high-value candidates for oncology drug discovery. By utilizing a chiral phosphoric acid catalyst, the process achieves remarkable enantioselectivity while operating under mild, ambient conditions, offering a reliable pharmaceutical intermediate supplier pathway for companies aiming to diversify their anticancer pipeline.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of N-N axis chiral heterocycles has been a formidable challenge in organic synthesis, often restricted to dynamic kinetic resolution or desymmetrization reactions which suffer from inherent theoretical yield limits of 50%. Traditional methods frequently rely on harsh reaction conditions, expensive transition metal catalysts, or multi-step sequences that degrade overall process efficiency. Furthermore, existing literature lacked a generalized strategy for the in-situ ring formation of these specific N-N axis systems, limiting the structural diversity available for biological screening. The reliance on precious metals also introduces significant downstream purification burdens, as removing trace metal residues to meet stringent pharmaceutical standards adds considerable cost and time to the manufacturing timeline. These limitations have historically stifled the exploration of N-N axis chiral pyrroles in medicinal chemistry, leaving a gap in the availability of high-purity OLED material precursors and bioactive scaffolds.

The Novel Approach

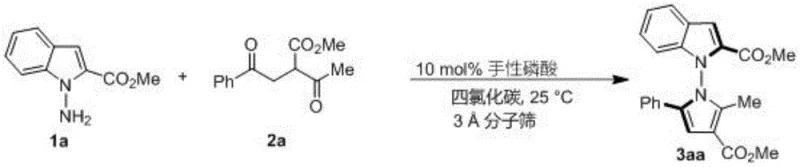

The methodology disclosed in the patent represents a paradigm shift by employing a direct condensation strategy between indoleamines or pyrrole amines and 1,4-diketone derivatives. This novel approach utilizes a chiral phosphoric acid catalyst to facilitate an asymmetric cyclization that constructs the pyrrole ring and establishes the chiral axis simultaneously in a single operational step. As illustrated in the reaction scheme below, the process operates at a mild 25°C in carbon tetrachloride, eliminating the need for energy-intensive heating or cryogenic cooling. This streamlined protocol not only simplifies the workflow but also dramatically improves atom economy and reduces waste generation. The versatility of this method allows for the accommodation of a wide range of substituents on both the amine and diketone components, enabling the rapid generation of diverse libraries for structure-activity relationship studies without compromising stereochemical integrity.

Mechanistic Insights into Chiral Phosphoric Acid Catalyzed Cyclization

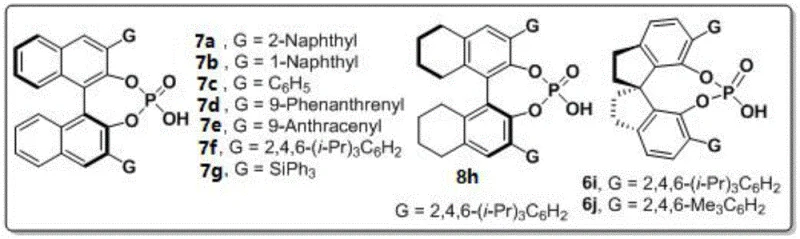

The success of this synthesis hinges on the precise design of the chiral phosphoric acid catalyst, specifically the spiro-binaphthyl derived catalyst 6j, which acts as a powerful Brønsted acid. The mechanism involves the dual activation of the substrates through a network of hydrogen bonds; the catalyst activates the carbonyl group of the 1,4-diketone while simultaneously coordinating with the amine nucleophile. This organized transition state rigidifies the conformational freedom of the reacting species, effectively shielding one face of the molecule and directing the attack to occur with high facial selectivity. The steric bulk provided by the 2,4,6-trimethylphenyl groups on the catalyst backbone plays a crucial role in discriminating between the pro-chiral faces, ensuring that the resulting N-N axis possesses the desired helical chirality. This level of control is essential for producing high-purity pharmaceutical intermediates where even minor impurities can compromise safety profiles.

Furthermore, the reaction environment is meticulously optimized to suppress side reactions and racemization. The use of 3A molecular sieves serves a dual purpose: acting as a dehydrating agent to drive the equilibrium towards product formation by removing water generated during condensation, and providing a solid support that may assist in organizing the reactants. The choice of carbon tetrachloride as a solvent provides a non-polar medium that enhances the strength of the hydrogen-bonding interactions between the catalyst and substrates, which is critical for maintaining high enantiomeric excess (ee) values often exceeding 90%. Impurity control is inherently built into this mechanism, as the high stereoselectivity minimizes the formation of diastereomers and enantiomeric impurities, thereby simplifying the downstream purification process and ensuring a cleaner final product profile suitable for sensitive biological applications.

How to Synthesize N-N Axis Chiral Pyrrole Derivatives Efficiently

To implement this cutting-edge synthesis in a laboratory or pilot plant setting, operators must adhere to specific stoichiometric ratios and handling procedures to maximize yield and optical purity. The process begins with the careful weighing of the indoleamine or pyrrole amine substrate and the 1,4-diketone derivative, typically in a molar ratio of 1:1.2 to ensure complete consumption of the limiting amine reagent. The reaction is conducted in the presence of activated 3A molecular sieves to maintain anhydrous conditions, which is vital for the efficacy of the acid catalyst. While the general procedure is robust, slight adjustments in catalyst loading or reaction time may be required depending on the electronic nature of the substituents on the aromatic rings. For a comprehensive understanding of the standardized operating procedures and safety protocols required for this transformation, please refer to the detailed guide below.

1. Prepare the reaction mixture by combining indoleamine or pyrrole amine with 1,4-diketone derivatives in carbon tetrachloride solvent.
2. Add 3A molecular sieves as an additive and introduce 10 mol% of chiral phosphoric acid catalyst (preferably spiro-type 6j).
3. Stir the reaction at 25°C until completion monitored by TLC, then filter, concentrate, and purify via silica gel column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

From a strategic sourcing perspective, this catalytic method offers profound advantages that directly address the pain points of modern chemical procurement and supply chain management. The elimination of transition metals such as palladium or rhodium removes a major cost driver and regulatory hurdle, as heavy metal clearance testing is no longer a bottleneck in the quality control workflow. This shift to organocatalysis significantly lowers the cost of goods sold (COGS) by replacing expensive metal salts with more affordable organic acids that can often be recovered and recycled. Additionally, the mild reaction conditions reduce energy consumption associated with heating and cooling, contributing to a smaller carbon footprint and aligning with corporate sustainability goals. The simplicity of the workup procedure, involving basic filtration and concentration, minimizes solvent usage and waste disposal costs, further enhancing the economic viability of large-scale production.

• Cost Reduction in Manufacturing: The transition to a metal-free catalytic system drastically simplifies the purification train, removing the need for specialized scavengers or complex extraction protocols required to meet residual metal specifications. This streamlining of the downstream process leads to substantial cost savings in both materials and labor hours. Moreover, the high yields and selectivity mean less raw material is wasted on off-spec product, optimizing the overall material balance and improving the return on investment for every batch produced. The use of commodity chemicals like carbon tetrachloride and molecular sieves ensures that input costs remain stable and predictable, shielding the supply chain from the volatility often seen in the precious metals market.
• Enhanced Supply Chain Reliability: The starting materials for this synthesis, including various substituted indoleamines and 1,4-diketones, are commercially available or easily accessible from multiple global vendors, reducing the risk of single-source dependency. The robustness of the reaction conditions means that the process is less susceptible to variations in utility quality or minor fluctuations in environmental parameters, ensuring consistent batch-to-batch reproducibility. This reliability is critical for maintaining continuous manufacturing schedules and meeting tight delivery deadlines for downstream API synthesis. By adopting a method that tolerates a wide range of functional groups, manufacturers can secure a flexible supply base capable of adapting to changing formulation requirements without necessitating a complete process redevelopment.
• Scalability and Environmental Compliance: The inherent safety of operating at room temperature eliminates the risks associated with exothermic runaways or high-pressure vessels, facilitating a smoother scale-up from kilogram to tonne quantities. The reduced generation of hazardous waste, particularly heavy metal sludge, simplifies compliance with increasingly stringent environmental regulations and lowers the burden on wastewater treatment facilities. This green chemistry profile not only mitigates regulatory risk but also enhances the brand reputation of the manufacturer as a responsible partner in the pharmaceutical value chain. The process is designed for commercial scale-up of complex pharmaceutical intermediates, ensuring that supply can grow in tandem with clinical demand.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation and benefits of this chiral synthesis technology. These insights are derived directly from the experimental data and beneficial effects reported in the patent documentation, providing a factual basis for decision-making. Understanding these details helps stakeholders evaluate the feasibility of integrating this method into their existing manufacturing portfolios. Whether you are concerned about catalyst recovery, substrate scope, or biological potency, the answers below provide a clear overview of the technology's capabilities and limitations in an industrial context.

Q: What is the primary advantage of this chiral phosphoric acid catalyzed method?

A: The primary advantage is the ability to achieve extremely high enantioselectivity (up to 96% ee) under mild room temperature conditions without the need for expensive transition metal catalysts, significantly reducing production costs and environmental impact.

Q: Can this synthesis method be scaled for industrial production?

A: Yes, the method utilizes conventional reaction conditions, simple operation, and readily available raw materials, making it highly suitable for large-scale industrial manufacturing of complex pharmaceutical intermediates.

Q: What biological activity do these N-N axis chiral pyrrole derivatives exhibit?

A: Biological testing indicates that these derivatives possess strong cytotoxic activity and high sensitivity against QGP-1 pancreatic tumor cells, suggesting significant potential for development into novel anticancer therapeutics.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable N-N Axis Chiral Pyrrole Derivative Supplier

At NINGBO INNO PHARMCHEM, we recognize the transformative potential of this chiral phosphoric acid catalyzed synthesis for the development of novel anticancer agents. As a leading CDMO partner, we possess extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that your transition from benchtop discovery to market supply is seamless and efficient. Our state-of-the-art facilities are equipped with rigorous QC labs capable of verifying stringent purity specifications, including precise enantiomeric excess measurements via chiral HPLC, guaranteeing that every batch meets the highest international standards. We are committed to delivering high-purity pharmaceutical intermediates that empower your R&D teams to accelerate drug discovery timelines with confidence.

We invite you to collaborate with us to leverage this advanced synthetic route for your specific project needs. Our technical team is ready to provide a Customized Cost-Saving Analysis tailored to your volume requirements, demonstrating how this metal-free approach can optimize your budget. Please contact our technical procurement team today to request specific COA data for our catalog compounds or to discuss route feasibility assessments for your proprietary targets. Let us be your partner in turning complex chemical challenges into commercial successes.
