Advanced Organocatalytic Synthesis of Chiral Spiro Indolones for Pharmaceutical Applications

Advanced Organocatalytic Synthesis of Chiral Spiro Indolones for Pharmaceutical Applications

The development of efficient synthetic routes for chiral spiro indolone compounds represents a critical advancement in the field of fine chemical engineering and pharmaceutical intermediate manufacturing. As detailed in patent CN113980028A, a novel preparation method has been established that utilizes indolone derivatives containing active hydrogen functional groups as substrates. This groundbreaking approach employs cinchona alkaloid-derived quaternary ammonium iodide salts as chiral catalysts and peroxides as oxidants to facilitate an intramolecular carbonyl α-asymmetric oxidative coupling reaction. The significance of this technology lies in its ability to construct complex chiral frameworks under exceptionally mild conditions, offering a robust alternative to traditional methods that often require harsh reagents or expensive transition metals. For R&D directors and process chemists, this patent provides a viable pathway to access high-value scaffolds found in numerous bioactive natural products and drug molecules.

Chiral spiro indolone compounds are ubiquitous in natural products and possess a wide range of pharmacological activities, including anticancer, anti-HIV, and anti-malarial properties. Consequently, the demand for reliable methods to construct these intricate molecular architectures is immense within the global supply chain for active pharmaceutical ingredients. The invention described in CN113980028A addresses the long-standing challenge of achieving high stereoselectivity without compromising operational simplicity. By leveraging the unique properties of chiral iodide salt catalysis combined with peroxide oxidation, this method achieves high yields and excellent enantioselectivity. This technological breakthrough positions the process as a highly attractive option for the commercial scale-up of complex pharmaceutical intermediates, ensuring that manufacturers can meet the rigorous purity specifications required by regulatory bodies while maintaining economic viability.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the construction of chiral spiro indolone skeletons has relied heavily on strategies such as Lewis acid-catalyzed 1,3-dipolar cycloadditions or nucleophilic phosphine-catalyzed cyclizations. While these methods have contributed significantly to the field, they are fraught with inherent limitations that hinder their widespread industrial adoption. Lewis acid catalysts are often highly sensitive to moisture and air, necessitating stringent anhydrous conditions that increase operational costs and complexity. Furthermore, many traditional protocols require stoichiometric amounts of reagents or generate significant quantities of toxic metal waste, posing severe challenges for environmental compliance and waste management. The need for low temperatures or specialized equipment further restricts the scalability of these processes, making them less suitable for the cost reduction in API manufacturing that procurement managers desperately seek. Additionally, achieving high levels of stereocontrol often requires expensive chiral ligands, driving up the raw material costs significantly.

The Novel Approach

In stark contrast, the novel approach outlined in the patent utilizes a chiral catalytic system based on cinchona alkaloid-derived quaternary ammonium iodide salts. This organocatalytic strategy eliminates the need for transition metals entirely, thereby removing the risk of heavy metal contamination in the final product—a critical factor for high-purity pharmaceutical intermediate production. The reaction proceeds efficiently at room temperature (20°C) in common organic solvents like n-propyl acetate, drastically reducing energy consumption compared to cryogenic or high-temperature alternatives. The use of cumene hydroperoxide as a terminal oxidant is not only cost-effective but also generates benign byproducts. Crucially, the inclusion of molecular sieves as an additive enhances the reaction efficiency by sequestering water, a byproduct that would otherwise inhibit the reaction equilibrium. This combination of mild conditions, inexpensive catalysts, and simple additives creates a highly robust process that is ideally suited for a reliable pharmaceutical intermediate supplier aiming to optimize their production lines.

Mechanistic Insights into Cinchona Alkaloid-Catalyzed Oxidative Coupling

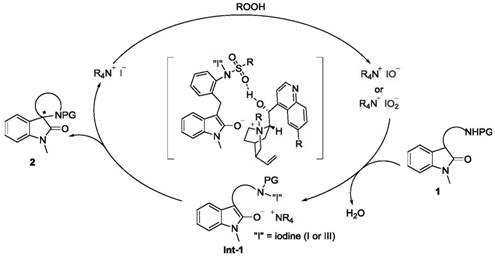

Understanding the mechanistic underpinnings of this transformation is essential for process optimization and troubleshooting. The reaction initiates with the oxidation of the quinine-derived quaternary ammonium iodide salt catalyst by the peroxide oxidant. This step generates reactive hypoiodite or hypervalent iodine species in situ, which serve as the actual active oxidizing agents. These species interact with the indolone substrate to form an N-I intermediate. Subsequently, an intramolecular SN2 reaction occurs, leading to the formation of the chiral spirocyclic product. The stereochemical outcome is dictated by the rigid chiral environment provided by the cinchona alkaloid backbone. Specifically, tight ion pairing between the bulky quaternary ammonium unit and the indolone enol anion, potentially reinforced by hydrogen bonding interactions between the catalyst's secondary alcohol and the substrate's sulfonyl group, ensures high facial selectivity during the bond-forming event.

Furthermore, the role of water management in this catalytic cycle cannot be overstated. As the reaction progresses, water molecules are produced as a byproduct of the oxidation process. Accumulation of water can slow down the reaction rate and eventually lead to an equilibrium that limits conversion. The strategic addition of 5Å molecular sieves acts as a thermodynamic sink for water, continuously removing it from the liquid phase. This not only drives the reaction forward according to Le Chatelier's principle but also prevents the hydrolysis of sensitive intermediates. The molecular sieves settle as solid particles, ensuring they do not interfere with the homogeneity of the liquid phase reaction system while effectively improving the overall yield. This mechanistic insight highlights the sophistication of the process design, where simple physical additives play a crucial chemical role in enhancing efficiency and selectivity.

How to Synthesize Chiral Spiro Indolone Efficiently

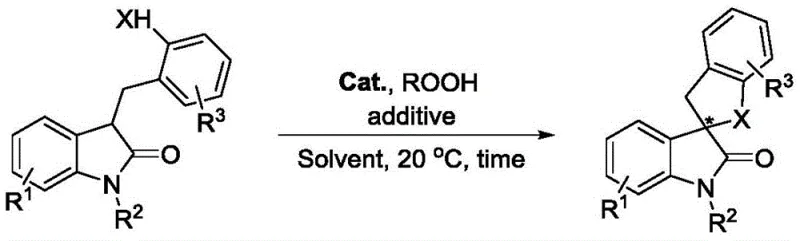

The practical implementation of this synthesis involves a straightforward protocol that balances reagent stoichiometry with operational ease. Typically, the substrate is dissolved in n-propyl acetate at a concentration of 0.01 M, to which the catalyst (3 mol%) and activated molecular sieves are added. The oxidant, preferably cumene hydroperoxide, is introduced in a 3-fold molar excess to ensure complete conversion. The mixture is stirred at 20°C for approximately 12 hours. Upon completion, the reaction is quenched with aqueous sodium thiosulfate to reduce residual peroxides and iodine species. The product is then extracted into ethyl acetate, dried over anhydrous sodium sulfate, and purified via standard column chromatography. This streamlined workflow minimizes unit operations and solvent usage, aligning with green chemistry principles.

1. Prepare the reaction mixture by combining the indolone substrate, cinchona alkaloid-derived quaternary ammonium iodide catalyst (3 mol%), and 5Å molecular sieves in n-propyl acetate.
2. Add cumene hydroperoxide (3 equivalents) as the oxidant to the stirred mixture at 20°C under inert atmosphere conditions.
3. Stir the reaction for 12 hours, then quench with sodium thiosulfate, extract with ethyl acetate, and purify via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this technology offers tangible benefits that extend beyond mere chemical novelty. The shift from metal-based catalysis to organocatalysis fundamentally alters the cost structure and risk profile of the manufacturing process. By eliminating expensive and potentially toxic transition metals, the process reduces the burden on quality control laboratories, which no longer need to perform rigorous heavy metal testing or implement complex scavenging steps. This simplification translates directly into faster batch release times and reduced analytical costs. Moreover, the use of commercially available starting materials and solvents ensures a stable supply chain, mitigating the risks associated with sourcing specialized reagents. The mild reaction conditions also imply lower energy costs for heating or cooling, contributing to a smaller carbon footprint and improved sustainability metrics.

• Cost Reduction in Manufacturing: The elimination of precious metal catalysts and the use of inexpensive oxidants like cumene hydroperoxide significantly lower the raw material costs. Additionally, the simplified workup procedure reduces solvent consumption and labor hours required for purification. The high yields reported in the patent examples mean less raw material is wasted, further enhancing the overall economic efficiency of the process. This holistic reduction in operational expenses allows for more competitive pricing in the global market for fine chemicals.
• Enhanced Supply Chain Reliability: Since all key reagents, including the cinchona alkaloid derivatives and molecular sieves, are industrial commodities with wide sources, the risk of supply disruption is minimized. The robustness of the reaction against minor variations in conditions ensures consistent batch-to-batch quality, which is vital for maintaining long-term contracts with pharmaceutical clients. The ability to source materials locally or from multiple vendors enhances the resilience of the supply chain against geopolitical or logistical shocks.
• Scalability and Environmental Compliance: The process is designed with scalability in mind, as evidenced by the patent's emphasis on easy reaction scale-up. The absence of hazardous reagents and the generation of minimal waste simplify the handling of effluents, making it easier to comply with increasingly stringent environmental regulations. The use of safer solvents and the avoidance of heavy metals reduce the classification of waste streams, lowering disposal costs and facilitating smoother regulatory approvals for new manufacturing facilities.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this asymmetric oxidative coupling technology. These insights are derived directly from the experimental data and technical disclosures within the patent documentation, providing clarity on the practical aspects of the synthesis.

Q: What is the primary advantage of this oxidative coupling method over traditional Lewis acid catalysis?

A: This method operates under mild conditions (20°C) using organocatalysts, avoiding the moisture sensitivity and heavy metal contamination risks associated with traditional Lewis acid systems, thereby simplifying downstream purification.

Q: How does the addition of molecular sieves impact the reaction efficiency?

A: Molecular sieves act as a water scavenger, absorbing the water byproduct generated during the oxidation. This shifts the equilibrium towards product formation, significantly improving both reaction yield and rate.

Q: Is this synthesis method scalable for industrial production of API intermediates?

A: Yes, the patent explicitly highlights the ease of reaction scale-up due to the use of commercially available starting materials, mild temperatures, and simple workup procedures involving standard extraction and chromatography.
