Advanced Palladium-Catalyzed Synthesis of Carbonyl-Bridged Biheterocyclic Compounds for Commercial Scale
Introduction to Next-Generation Biheterocyclic Synthesis

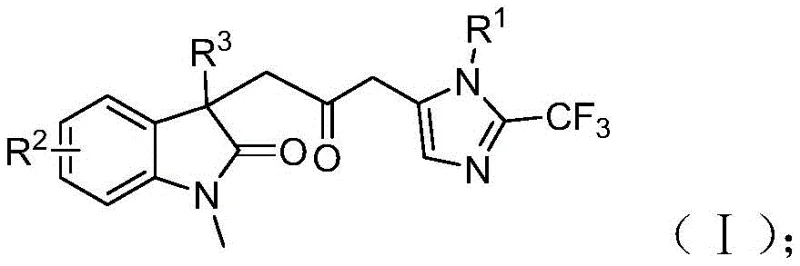

The landscape of pharmaceutical intermediate manufacturing is constantly evolving, driven by the need for safer, more efficient, and cost-effective synthetic routes. A significant breakthrough in this domain is detailed in patent CN115353511A, which discloses a novel multi-component method for synthesizing carbonyl-bridged biheterocyclic compounds. These complex molecular scaffolds, particularly those combining indolinone and imidazole motifs, are highly valued in medicinal chemistry for their broad-spectrum biological activities and presence in various drug candidates. The introduction of a trifluoromethyl group further enhances the metabolic stability and lipophilicity of these molecules, making them prime targets for modern drug discovery programs. This technology represents a paradigm shift from traditional, hazardous carbonylation techniques to a streamlined, one-pot cascade reaction that operates under remarkably mild conditions.

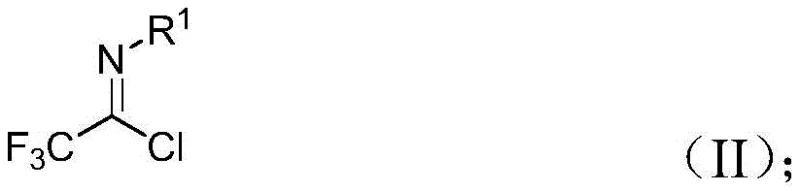

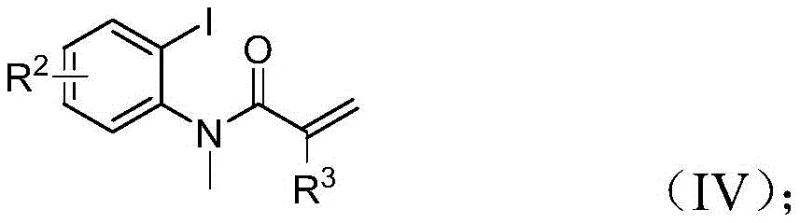

For R&D directors and process chemists, the ability to construct multiple chemical bonds simultaneously in a single operation is a major advantage. The method described eliminates the need for pre-functionalized intermediates and avoids the use of toxic carbon monoxide gas, addressing two critical pain points in process development: safety and step economy. By leveraging a palladium-catalyzed cascade involving trifluoroethylimidoyl chloride, propargylamine, and acrylamide derivatives, this approach offers a robust platform for generating diverse libraries of biologically active compounds. As a leading manufacturer, we recognize the immense potential of this chemistry to accelerate the timeline from lead optimization to clinical supply, providing a reliable pathway for producing high-purity pharmaceutical intermediates.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of carbonyl-bridged biheterocyclic compounds has been fraught with significant challenges that hinder efficient commercial production. Traditional strategies often rely on the direct coupling of two separate heterocyclic substrates, which typically suffers from low atom economy and requires harsh reaction conditions that can degrade sensitive functional groups. Another common approach involves the oxidative cyclization of substrates containing dual nucleophiles, a process that frequently necessitates stoichiometric amounts of expensive oxidants and generates substantial chemical waste. Furthermore, classical carbonylation reactions, while effective for introducing carbonyl linkages, traditionally depend on the use of high-pressure carbon monoxide gas. This requirement imposes severe safety constraints, necessitating specialized high-pressure reactors and rigorous safety protocols that increase capital expenditure and operational complexity for manufacturing facilities.
The Novel Approach
In stark contrast, the methodology outlined in CN115353511A offers a transformative solution by utilizing a transition metal palladium-catalyzed carbonylation cascade reaction. This innovative route employs cheap and readily available starting materials, specifically trifluoroethylimidoyl chloride, propargylamine, and acrylamide derivatives, to construct the complex biheterocyclic core in a single pot. A key feature of this process is the generation of carbon monoxide in situ from a mixture of formic acid and acetic anhydride, thereby completely eliminating the need for handling toxic CO gas cylinders. The reaction proceeds efficiently at a mild temperature of 30°C, demonstrating exceptional functional group tolerance and substrate compatibility.

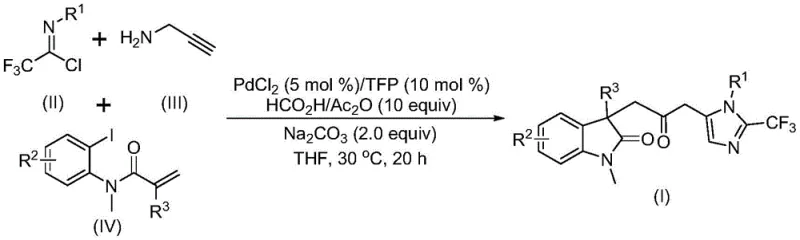

As illustrated in the reaction scheme above, this multi-component strategy allows for the simultaneous formation of multiple chemical bonds, drastically reducing the number of isolation and purification steps required. The versatility of this method is evident in its ability to accommodate various substituents on the aromatic rings, enabling the rapid synthesis of diversified analogues for structure-activity relationship (SAR) studies. This not only accelerates the drug discovery process but also provides a scalable and economically viable route for the commercial manufacturing of these valuable intermediates.
Mechanistic Insights into Pd-Catalyzed Carbonylation Cascade
Understanding the mechanistic underpinnings of this transformation is crucial for optimizing reaction parameters and ensuring consistent product quality. The reaction is believed to initiate with the oxidative addition of a zero-valent palladium species into the carbon-iodine bond of the acrylamide substrate. This is followed by an intramolecular Heck reaction, which generates a divalent alkyl-palladium intermediate. Subsequently, this intermediate undergoes a carbonylation step facilitated by the carbon monoxide released from the formic acid and acetic anhydride mixture, forming a reactive acyl-palladium species. Concurrently, a base-promoted intermolecular reaction between trifluoroethylimidoyl chloride and propargylamine occurs, leading to the formation of a trifluoroacetamidine compound which then undergoes isomerization.
The final stage of the catalytic cycle involves the activation of the trifluoroacetamidine compound by the acyl-palladium intermediate, triggering an intramolecular cyclization that yields the target carbonyl-bridged biheterocyclic compound. This intricate dance of organometallic steps highlights the precision of the catalytic system, where the choice of ligand (such as trifurylphosphine) and base (sodium carbonate) plays a pivotal role in stabilizing the palladium species and promoting the desired pathway over side reactions. For quality control teams, understanding these mechanistic details aids in identifying potential impurities and establishing robust control strategies to ensure the high purity required for pharmaceutical applications.
How to Synthesize Carbonyl-Bridged Biheterocyclic Compounds Efficiently
Implementing this synthesis in a laboratory or pilot plant setting requires careful attention to reagent quality and reaction monitoring. The protocol utilizes a standard Schlenk tube setup under inert atmosphere to protect the palladium catalyst from oxidation. The reaction mixture typically comprises palladium chloride, trifurylphosphine, sodium carbonate, and the CO source in an aprotic solvent like tetrahydrofuran (THF). Upon adding the three organic substrates, the mixture is stirred at 30°C for a duration of 12 to 20 hours. Post-reaction workup is straightforward, involving filtration to remove inorganic salts, followed by silica gel treatment and column chromatography purification. The detailed standardized synthesis steps are provided in the guide below.
- Mix palladium chloride catalyst, TFP ligand, sodium carbonate base, and the formic acid/acetic anhydride CO source in an organic solvent like THF.
- Add the three key substrates: trifluoroethylimidoyl chloride, propargylamine, and the acrylamide derivative to the reaction mixture.
- Stir the reaction at 30°C for 12 to 20 hours, then filter and purify the crude product via column chromatography to isolate the target biheterocycle.
Commercial Advantages for Procurement and Supply Chain Teams
From a procurement and supply chain perspective, this novel synthetic route offers compelling advantages that directly impact the bottom line and operational resilience. The shift away from hazardous high-pressure gases and expensive specialized equipment translates into significant capital expenditure savings and reduced regulatory burden. Moreover, the use of commercially available, low-cost starting materials ensures a stable supply chain that is less susceptible to market volatility compared to custom-synthesized precursors. The simplicity of the post-treatment process also reduces solvent consumption and waste generation, aligning with green chemistry principles and lowering disposal costs.
- Cost Reduction in Manufacturing: The elimination of toxic carbon monoxide gas removes the need for expensive high-pressure reactors and associated safety infrastructure, drastically simplifying the manufacturing setup. Additionally, the use of inexpensive catalysts like palladium chloride and readily available ligands minimizes raw material costs. The one-pot nature of the reaction reduces labor hours and utility consumption associated with multiple isolation steps, leading to substantial overall cost savings in the production of these complex intermediates.
- Enhanced Supply Chain Reliability: The starting materials, including propargylamine and acrylamide derivatives, are commodity chemicals available from multiple global suppliers, mitigating the risk of single-source dependency. The robustness of the reaction conditions, which tolerate a wide range of functional groups, ensures consistent yields even with slight variations in raw material quality. This reliability is critical for maintaining continuous production schedules and meeting tight delivery deadlines for downstream pharmaceutical clients.
- Scalability and Environmental Compliance: The patent data indicates successful expansion to gram-scale reactions, demonstrating the feasibility of scaling this process to kilogram and ton levels for commercial supply. The mild reaction temperature of 30°C reduces energy consumption for heating and cooling, contributing to a lower carbon footprint. Furthermore, the avoidance of stoichiometric oxidants and toxic gases simplifies waste treatment protocols, facilitating easier compliance with increasingly stringent environmental regulations.
Frequently Asked Questions (FAQ)
The following questions address common technical and commercial inquiries regarding this synthesis method. These answers are derived directly from the experimental data and beneficial effects described in the patent documentation, providing clarity on the practical implementation and advantages of this technology for potential partners and stakeholders.
Q: What are the safety advantages of this new carbonylation method compared to traditional methods?
A: Unlike traditional carbonylation which requires high-pressure carbon monoxide gas cylinders, this method generates CO in situ from a formic acid and acetic anhydride mixture, significantly reducing operational hazards and infrastructure costs.
Q: What is the substrate scope for the R1 and R3 groups in this synthesis?
A: The method demonstrates excellent functional group tolerance, accommodating various substituents such as methyl, methoxy, halogens (Cl, Br, F), trifluoromethyl, and nitro groups on the aromatic rings without compromising yield.
Q: Is this process suitable for large-scale industrial production?
A: Yes, the patent explicitly mentions successful expansion to gram-scale reactions with simple post-treatment procedures, indicating strong potential for commercial scale-up in pharmaceutical manufacturing.
