Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Imidazole Intermediates for Commercial Scale-Up
Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Imidazole Intermediates for Commercial Scale-Up
The pharmaceutical and agrochemical industries continuously demand robust synthetic routes for fluorinated heterocycles, particularly those incorporating the trifluoromethyl group due to its profound impact on metabolic stability and lipophilicity. Patent CN111423381A introduces a groundbreaking preparation method for 2-trifluoromethyl substituted imidazole compounds, addressing critical limitations in existing literature. This technology leverages a transition metal palladium-catalyzed carbonylation cascade reaction, utilizing cheap and readily available starting materials such as trifluoroethylimidoyl chloride, propargylamine, and diaryliodonium salts. Unlike conventional approaches that often struggle with harsh conditions or unstable reagents, this innovation operates under mild conditions at 30°C, achieving high reaction efficiency and exceptional substrate compatibility. For R&D directors and procurement managers seeking a reliable pharmaceutical intermediate supplier, this methodology represents a significant leap forward in process safety and cost-effectiveness, enabling the streamlined production of complex molecular scaffolds found in bioactive molecules.
The Limitations of Conventional Methods vs. The Novel Approach
The Limitations of Conventional Methods
Historically, the synthesis of nitrogen-containing heterocycles bearing trifluoromethyl functional groups has relied heavily on synthons like trifluorodiazoethane. While effective in certain contexts, these reagents pose severe safety hazards due to their explosive nature and thermal instability, creating substantial bottlenecks in commercial scale-up of complex polymer additives or API intermediates. Furthermore, alternative methods involving trifluoroethylimide acid halides have not been widely explored or optimized, leaving a gap in practical, scalable chemistry. Traditional routes often require stringent temperature controls, expensive specialized equipment to handle hazardous gases, and generate significant waste streams, thereby inflating the cost reduction in electronic chemical manufacturing or pharma production. The reliance on such dangerous precursors limits the ability of supply chain heads to ensure continuous, safe production, often leading to extended lead times and regulatory hurdles during process validation.
The Novel Approach

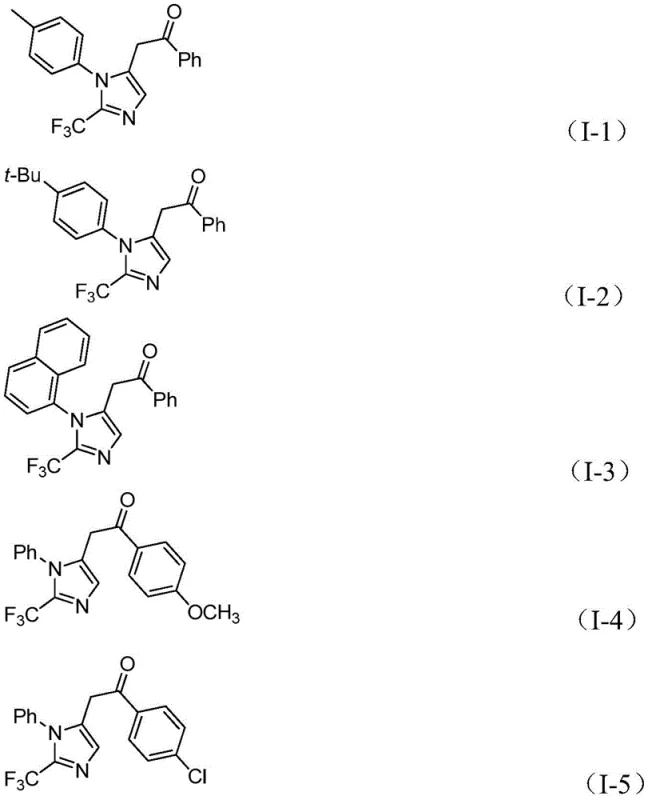

The patented methodology circumvents these issues by employing a sophisticated palladium-catalyzed carbonylation series reaction that transforms stable, commercially accessible precursors into high-value imidazole derivatives. By utilizing trifluoroethylimidoyl chloride and diaryliodonium salts, the process eliminates the need for hazardous diazo compounds entirely. The reaction proceeds efficiently in common organic solvents like tetrahydrofuran (THF) at a mild 30°C, demonstrating remarkable tolerance for various functional groups including halogens, alkyls, and nitro groups. This versatility allows for the design and synthesis of diversified substituted imidazole compounds with trifluoromethyl groups at the 1 and 5 positions, broadening the utility of this method for custom synthesis projects. The operational simplicity, combined with the use of inexpensive catalysts like palladium chloride and triphenylphosphine, drastically simplifies the supply chain and reduces raw material costs, making it an ideal candidate for industrial application.
Mechanistically, this transformation is a marvel of modern organometallic chemistry, involving a multi-step cascade that ensures high selectivity and purity. The reaction likely initiates with a base-promoted intermolecular carbon-nitrogen bond formation to generate a trifluoroacetamidine intermediate. This is followed by isomerization and palladium-catalyzed alkyne aminopalladation, yielding an alkenyl palladium species which subsequently isomerizes to an alkyl palladium intermediate. Crucially, the in situ generation of carbon monoxide from the formic acid and acetic anhydride mixture facilitates a carbonylation step, forming an acyl palladium intermediate. The cycle concludes with oxidative addition of the diaryliodonium salt to form a tetravalent palladium species, followed by reductive elimination to release the final 2-trifluoromethyl substituted imidazole product. This intricate pathway not only ensures the correct regioselectivity but also minimizes side reactions, resulting in a clean impurity profile that is highly desirable for high-purity OLED material or pharmaceutical applications.
Understanding the mechanistic nuances is vital for controlling impurities, particularly when scaling up for commercial production. The use of sodium bicarbonate as a mild base helps neutralize acidic byproducts without promoting decomposition of sensitive intermediates. Furthermore, the choice of ligand (triphenylphosphine) and catalyst loading (5 mol% PdCl2) is optimized to balance reaction rate with cost, preventing the accumulation of palladium black or inactive species that could complicate downstream purification. The patent data indicates that post-processing is straightforward, involving simple filtration and silica gel chromatography, which avoids the need for complex crystallization steps often required in older methodologies. This level of control over the reaction environment ensures that the final product meets stringent purity specifications, a key requirement for any reliable agrochemical intermediate supplier aiming to serve regulated markets.
How to Synthesize 2-Trifluoromethyl Imidazole Efficiently

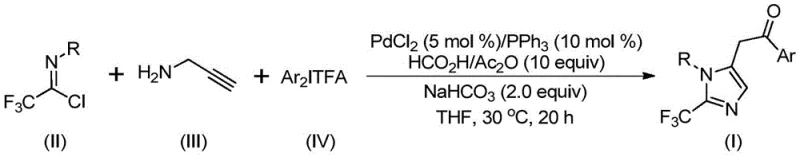

To implement this synthesis effectively, operators must adhere to precise stoichiometric ratios and reaction conditions as outlined in the patent embodiments. The process begins with the careful weighing of palladium chloride, triphenylphosphine, and sodium bicarbonate, followed by the addition of the carbonyl source mixture (formic acid/acetic anhydride). The key substrates, trifluoroethylimidoyl chloride, propargylamine, and the specific diaryliodonium salt, are then introduced into the organic solvent, typically THF, under an inert atmosphere to prevent catalyst oxidation. The reaction mixture is stirred at a controlled temperature of 30°C for a duration of 16 to 24 hours, ensuring complete conversion as monitored by TLC or HPLC. Detailed standardized synthesis steps for specific derivatives are provided in the guide below to assist technical teams in replicating these results.
- Mix palladium chloride, triphenylphosphine, sodium bicarbonate, acetic anhydride, formic acid mixture, trifluoroethylimidoyl chloride, propargylamine, and diaryliodonium salt in an organic solvent like THF.
- Stir the reaction mixture at 30°C for 16 to 24 hours to ensure complete conversion.
- Filter the reaction mixture, mix with silica gel, and purify via column chromatography to obtain the final 2-trifluoromethyl substituted imidazole compound.
Commercial Advantages for Procurement and Supply Chain Teams
From a commercial perspective, this patented process offers transformative benefits for procurement managers and supply chain heads focused on cost reduction in API manufacturing. By shifting away from hazardous and expensive diazo reagents to stable, commodity-grade chemicals, the raw material costs are significantly reduced. The use of palladium chloride, while a precious metal, is employed at low catalytic loadings (5 mol%), and the ligand triphenylphosphine is inexpensive and widely available, ensuring that the overall catalyst cost remains manageable even at large scales. Moreover, the mild reaction temperature of 30°C eliminates the need for energy-intensive heating or cryogenic cooling systems, further driving down operational expenditures and enhancing the environmental footprint of the manufacturing process.
- Cost Reduction in Manufacturing: The elimination of specialized safety infrastructure required for handling explosive diazo compounds translates directly into lower capital expenditure and insurance costs. Additionally, the high atom economy of the carbonylation cascade minimizes waste generation, reducing disposal fees and aligning with green chemistry principles. The ability to use simple workup procedures like filtration and standard chromatography avoids the need for complex distillation or recrystallization setups, streamlining the production line and lowering labor costs associated with purification.
- Enhanced Supply Chain Reliability: All starting materials, including the aromatic amines used to prepare the imidoyl chlorides and the aryl boronic acids for the iodonium salts, are commercially available from multiple global suppliers. This diversification of the supply base mitigates the risk of single-source dependency and ensures consistent availability of raw materials. The robustness of the reaction conditions means that production schedules are less likely to be disrupted by equipment failures or safety incidents, guaranteeing on-time delivery for downstream customers.
- Scalability and Environmental Compliance: The patent explicitly mentions the potential for expansion to gram-level and beyond, indicating that the chemistry is robust enough for metric ton scale-up. The use of THF as a solvent, while requiring recovery systems, is well-established in the industry, and the absence of heavy metal contaminants in the final product (due to efficient catalytic turnover) simplifies regulatory compliance. This scalability ensures that the process can meet growing market demand for fluorinated heterocycles without compromising on quality or safety standards.
Frequently Asked Questions (FAQ)
The following questions address common technical and commercial inquiries regarding this synthesis method, derived directly from the patent specifications and experimental data. These insights are intended to clarify the feasibility and advantages of adopting this technology for your specific production needs. Understanding these details is crucial for making informed decisions about process integration and supplier selection.
Q: What are the key safety advantages of this new synthesis method compared to traditional routes?
A: Traditional methods often rely on hazardous trifluorodiazoethane. This patented process utilizes stable trifluoroethylimidoyl chlorides and diaryliodonium salts, significantly reducing explosion risks and handling hazards associated with diazo compounds.
Q: What yields can be expected for diverse substrates using this palladium-catalyzed protocol?
A: The patent demonstrates excellent substrate compatibility with isolated yields ranging from 65% to 97% across various electron-donating and electron-withdrawing groups on both the amine and iodonium salt components.
Q: Is this process suitable for large-scale industrial manufacturing?
A: Yes, the method operates at mild temperatures (30°C) using commercially available catalysts and solvents. The patent explicitly states the process can be expanded to gram-level synthesis, indicating strong potential for metric ton scale-up.
