Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Imidazole Derivatives for Commercial Scale-Up

Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Imidazole Derivatives for Commercial Scale-Up

The pharmaceutical and fine chemical industries are constantly seeking robust methodologies to access fluorinated heterocycles, which are critical motifs in modern drug design due to their enhanced metabolic stability and lipophilicity. A significant breakthrough in this domain is detailed in Chinese Patent CN111423381B, which discloses a highly efficient preparation method for 2-trifluoromethyl substituted imidazole compounds. This novel approach leverages a transition metal palladium-catalyzed carbonylation series reaction, utilizing cheap and easily obtainable starting materials such as trifluoroethylimidoyl chloride, propargylamine, and diaryl iodonium salts. Unlike conventional methods that often suffer from harsh reaction conditions or limited substrate tolerance, this invention operates under remarkably mild conditions, typically at 30°C for 18 to 20 hours. The technical significance of this patent lies not only in its high reaction efficiency and yield but also in its exceptional functional group compatibility, allowing for the synthesis of diversified imidazole derivatives that serve as valuable intermediates for bioactive molecules and functional materials.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of nitrogen-containing heterocycles bearing trifluoromethyl functional groups has presented substantial challenges for process chemists and procurement teams alike. Traditional literature methods often rely on the direct reaction of synthons containing trifluoromethyl groups with suitable substrates, frequently employing reagents like trifluorodiazoethane. While effective in specific contexts, these reagents are often hazardous, expensive, and difficult to handle on a large commercial scale due to their explosive nature and instability. Furthermore, many existing protocols require elevated temperatures, strong bases, or exotic catalysts that complicate the purification process and increase the generation of hazardous waste. The limited substrate scope of these older methods often restricts the ability to introduce diverse functional groups at the 1 and 5 positions of the imidazole ring, thereby limiting the chemical space available for medicinal chemistry optimization. These factors collectively contribute to higher manufacturing costs and longer lead times for critical pharmaceutical intermediates.

The Novel Approach

The methodology described in patent CN111423381B represents a paradigm shift by utilizing a multicomponent coupling strategy that is both atom-economical and operationally simple. By employing trifluoroethylimidoyl chloride, propargylamine, and diaryl iodonium salts as the primary building blocks, the process avoids the need for dangerous diazo compounds entirely. The reaction is catalyzed by a cost-effective palladium system (PdCl2/PPh3) and utilizes formic acid and acetic anhydride as a safe, in situ source of carbon monoxide for the carbonylation step. This innovative route allows for the construction of the imidazole core and the introduction of the trifluoromethyl group in a single pot. As illustrated in the general reaction scheme below, the process tolerates a wide range of substituents on the aryl rings, enabling the rapid generation of structural diversity.

The mild reaction temperature of 30°C significantly reduces energy consumption compared to traditional high-temperature reflux methods, aligning with green chemistry principles. Moreover, the use of tetrahydrofuran (THF) as a preferred solvent ensures good solubility of all reactants, facilitating high conversion rates. The post-treatment is equally streamlined, involving simple filtration followed by standard column chromatography, which minimizes downstream processing costs and accelerates the time-to-market for new drug candidates.

Mechanistic Insights into Pd-Catalyzed Carbonylation Cyclization

Understanding the mechanistic pathway of this transformation is crucial for R&D directors aiming to optimize the process for specific analogs. The reaction initiates with the formation of an intermolecular carbon-nitrogen bond promoted by the alkali additive (sodium bicarbonate), yielding a trifluoroacetamidine intermediate. This species subsequently undergoes isomerization to set the stage for the palladium cycle. The palladium catalyst then coordinates with the alkyne moiety of the propargylamine derivative, undergoing palladation to form a key alkenyl palladium intermediate. Through a subsequent isomerization step, this evolves into a more stable alkyl palladium species. The critical carbonylation event occurs when carbon monoxide, released from the decomposition of the formic acid/acetic anhydride mixture, inserts into the palladium-carbon bond to generate an acyl palladium intermediate.

The final stages of the catalytic cycle involve the oxidative addition of the diaryl iodonium salt to the palladium center, forming a high-valent tetravalent palladium intermediate. This step is pivotal as it introduces the aryl group at the 5-position of the imidazole ring. Finally, reductive elimination releases the desired 2-trifluoromethyl-substituted imidazole product and regenerates the active palladium catalyst. This intricate cascade is highly sensitive to the electronic nature of the substrates, yet the patent data demonstrates remarkable robustness. For instance, the system accommodates electron-donating groups like methoxy and tert-butyl, as well as electron-withdrawing groups like nitro and halogens, without significant loss in yield. This broad tolerance suggests that the rate-determining steps are well-balanced, preventing the accumulation of side products and ensuring a clean impurity profile, which is essential for regulatory compliance in API manufacturing.

How to Synthesize 2-Trifluoromethyl Imidazole Efficiently

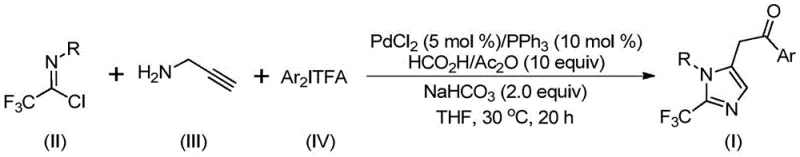

To implement this synthesis in a laboratory or pilot plant setting, precise control over stoichiometry and reaction parameters is essential. The patent outlines a standardized protocol where the molar ratio of palladium chloride to triphenylphosphine to sodium bicarbonate is maintained at approximately 0.05:0.1:2. The reactants—trifluoroethylimidoyl chloride, propargylamine, and diaryl iodonium salt—are combined in an aprotic organic solvent, with tetrahydrofuran being the optimal choice for maximizing conversion. The reaction mixture is stirred at a controlled temperature of 30°C for a duration of 16 to 24 hours. Following the reaction, the crude product is isolated via filtration and purified using silica gel column chromatography. For detailed operational parameters and specific stoichiometric ratios tailored to different substrates, please refer to the standardized synthesis guide below.

1. Mix palladium chloride, triphenylphosphine, sodium bicarbonate, acetic anhydride, formic acid, trifluoroethylimidoyl chloride, propargylamine, and diaryl iodonium salt in an organic solvent like THF.
2. Stir the reaction mixture at a mild temperature of 30°C for 16 to 24 hours to allow the carbonylation cascade to proceed.
3. Filter the reaction mixture, mix with silica gel, and purify via column chromatography to isolate the final 2-trifluoromethyl substituted imidazole product.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this synthetic route offers compelling strategic advantages beyond mere technical feasibility. The primary driver for cost optimization lies in the accessibility and pricing of the raw materials. Trifluoroethylimidoyl chloride can be rapidly synthesized from inexpensive aromatic amines, while propargylamine and diaryl iodonium salts are commercially available commodities. This reliance on bulk chemicals rather than specialized, low-volume reagents significantly de-risks the supply chain against market volatility. Furthermore, the elimination of hazardous diazo reagents reduces the need for specialized containment infrastructure and expensive safety protocols, leading to substantial overhead savings in facility operations.

• Cost Reduction in Manufacturing: The economic viability of this process is underscored by the use of a simple palladium chloride catalyst system rather than expensive, proprietary ligands often required in cross-coupling reactions. The mild reaction temperature of 30°C drastically lowers energy utility costs compared to processes requiring heating or cryogenic cooling. Additionally, the high reaction efficiency and yields reported (often exceeding 90% for optimized substrates) minimize raw material waste and reduce the burden on purification units. By simplifying the workup to a filtration and chromatography sequence, the process reduces solvent consumption and labor hours, directly translating to a lower cost of goods sold (COGS) for the final intermediate.
• Enhanced Supply Chain Reliability: Supply continuity is a critical metric for pharmaceutical manufacturing, and this method excels by utilizing widely available starting materials. The substrates, such as substituted anilines and aryl boronic acids (precursors to the iodonium salts), are produced on a multi-ton scale globally, ensuring that procurement teams can source them from multiple vendors to prevent bottlenecks. The robustness of the reaction conditions means that minor variations in raw material quality are less likely to cause batch failures, enhancing overall production reliability. This stability allows for more accurate forecasting and inventory management, reducing the need for excessive safety stock.
• Scalability and Environmental Compliance: From an environmental and scalability perspective, the process is designed for expansion. The patent explicitly notes the potential for industrial large-scale production, supported by the use of common solvents like THF which are easily recovered and recycled. The avoidance of toxic heavy metals (other than the catalytic amount of palladium which can be scavenged) and explosive reagents simplifies waste treatment and disposal, ensuring compliance with increasingly stringent environmental regulations. The ability to scale from gram-level discovery to multi-kilogram production without changing the fundamental chemistry accelerates the timeline from preclinical development to commercial launch.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this patented technology. These insights are derived directly from the experimental data and beneficial effects described in the patent documentation, providing a clear picture of the method's capabilities and limitations for potential partners.

Q: What are the key advantages of this Pd-catalyzed method over traditional trifluoromethylation?

A: This method utilizes cheap and readily available starting materials like trifluoroethylimidoyl chloride and operates under extremely mild conditions (30°C), avoiding the harsh reagents and safety hazards associated with traditional trifluorodiazoethane routes.

Q: What is the substrate scope for the aryl groups in this synthesis?

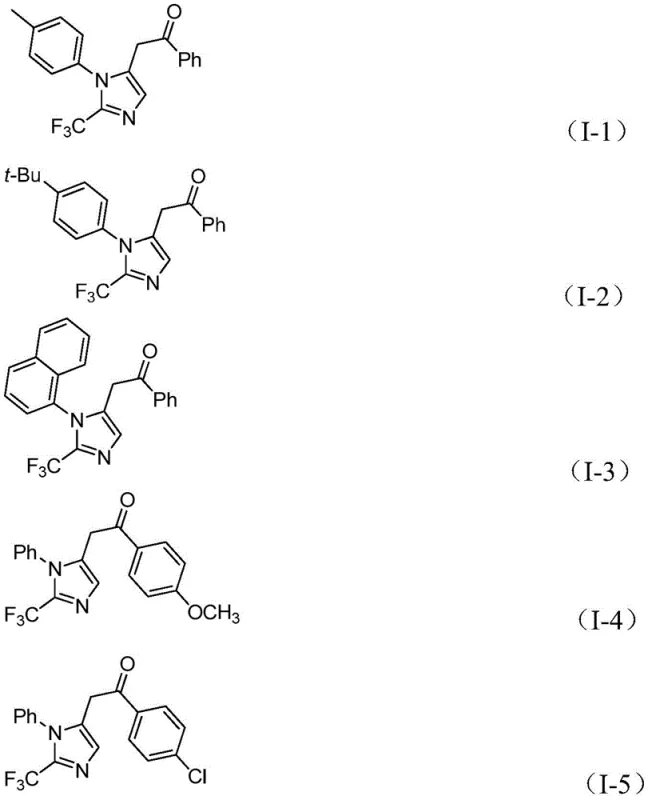

A: The process demonstrates excellent compatibility with various substituted aryl groups, including those with methyl, tert-butyl, chlorine, bromine, trifluoromethyl, or nitro substituents at ortho, meta, or para positions.

Q: Is this process suitable for large-scale industrial production?

A: Yes, the patent explicitly states the method is scalable to gram levels and potentially industrial scales due to simple operation, inexpensive catalysts (PdCl2/PPh3), and straightforward post-treatment procedures.
