Advanced Palladium-Catalyzed Synthesis of 2-Trifluoromethyl Imidazoles for Commercial Scale-Up

Introduction to Next-Generation Imidazole Synthesis

The pharmaceutical industry continuously seeks robust methodologies for constructing nitrogen-containing heterocycles, particularly those incorporating fluorine motifs which are pivotal for enhancing metabolic stability and bioavailability in drug candidates. Patent CN111423381B introduces a groundbreaking preparation method for 2-trifluoromethyl substituted imidazole compounds, addressing critical limitations in current synthetic routes. This innovation leverages a transition metal palladium-catalyzed carbonylation series reaction, utilizing cheap and easily obtained starting materials such as trifluoroethylimidoyl chloride, propargylamine, and diaryl iodonium salts. Unlike traditional methods that often require harsh conditions or unstable reagents, this novel approach operates efficiently at a mild temperature of 30°C, ensuring high reaction efficiency and exceptional substrate compatibility. For R&D directors and process chemists, this represents a significant leap forward in accessing diverse molecular scaffolds essential for modern medicinal chemistry programs.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Historically, the synthesis of nitrogen-containing heterocycles bearing trifluoromethyl functional groups has relied heavily on direct reactions between suitable substrates and specialized trifluoromethyl synthons. The literature predominantly cites the use of trifluorodiazoethane or similar reactive species, which present substantial challenges for industrial application. These reagents are often unstable, potentially explosive, and require stringent safety protocols that complicate scale-up efforts. Furthermore, conventional pathways frequently suffer from narrow substrate scope, failing to tolerate sensitive functional groups commonly found in complex pharmaceutical intermediates. The reliance on high-pressure carbon monoxide gas for carbonylation steps also introduces significant engineering hurdles and safety risks in a manufacturing environment. Consequently, there has been a persistent demand for a safer, more versatile, and operationally simple alternative that can deliver high-purity products without compromising on yield or safety standards.

The Novel Approach

The methodology disclosed in the patent fundamentally shifts the paradigm by employing a three-component coupling strategy that is both atom-economical and operationally straightforward. By utilizing trifluoroethylimidoyl chloride as a stable trifluoromethyl source, the process eliminates the hazards associated with diazo compounds. The reaction proceeds through a sophisticated palladium-catalyzed cycle where formic acid and acetic anhydride act as an in situ carbon monoxide surrogate, thereby removing the need for external CO gas infrastructure. This allows the reaction to proceed smoothly at 30°C in common organic solvents like tetrahydrofuran (THF). The versatility of this approach is demonstrated by its ability to synthesize variously substituted imidazole compounds through simple substrate design. As illustrated in the general reaction scheme below, the convergence of these three distinct building blocks offers a modular platform for generating chemical diversity.

Mechanistic Insights into Pd-Catalyzed Carbonylation Cyclization

Understanding the mechanistic underpinnings of this transformation is crucial for optimizing process parameters and ensuring consistent quality in commercial production. The reaction initiates with the formation of an intermolecular carbon-nitrogen bond promoted by the alkaline additive, sodium bicarbonate, leading to a trifluoroacetamidine intermediate. This species undergoes isomerization before engaging with the palladium catalyst. The propargylamine component is subjected to palladation, generating an alkenyl palladium intermediate which subsequently isomerizes to a more stable alkyl palladium species. The critical carbonylation step occurs under the action of carbon monoxide released from the formic acid and acetic anhydride mixture, forming an acyl palladium intermediate. Finally, oxidative addition of the diaryl iodonium salt generates a tetravalent palladium intermediate, which undergoes reductive elimination to release the final 2-trifluoromethyl-substituted imidazole product while regenerating the active catalyst. This intricate cycle ensures high turnover and minimizes the formation of side products.

From an impurity control perspective, the mild reaction temperature of 30°C plays a vital role in maintaining product integrity. High-temperature processes often lead to the decomposition of sensitive intermediates or the formation of polymeric byproducts, which are difficult to remove during purification. By operating under these gentle conditions, the process inherently suppresses thermal degradation pathways. Additionally, the use of specific ligands like triphenylphosphine helps stabilize the palladium center, preventing the formation of palladium black and ensuring a homogeneous catalytic environment. The compatibility with various substituents on the aryl rings of both the imidoyl chloride and the iodonium salt—ranging from electron-donating methyl groups to electron-withdrawing nitro and halogen groups—demonstrates the robustness of the catalytic system. This broad tolerance allows for the synthesis of a wide array of derivatives, as shown in the specific examples below, facilitating rapid structure-activity relationship (SAR) studies.

How to Synthesize 2-Trifluoromethyl Imidazoles Efficiently

The practical implementation of this synthesis route is designed for ease of execution in both laboratory and pilot plant settings. The procedure involves a one-pot reaction where all reagents are combined in a specific molar ratio, typically favoring a slight excess of the trifluoroethylimidoyl chloride and diaryl iodonium salt relative to the propargylamine to drive the reaction to completion. The choice of solvent is critical, with tetrahydrofuran (THF) identified as the preferred medium due to its ability to effectively dissolve all starting materials and promote high conversion rates. Post-reaction processing is equally streamlined, involving simple filtration followed by standard column chromatography purification. This simplicity reduces the operational burden on technical teams and accelerates the timeline from synthesis to isolation. For detailed standardized operating procedures and specific stoichiometric ratios tailored to your specific target molecule, please refer to the comprehensive guide below.

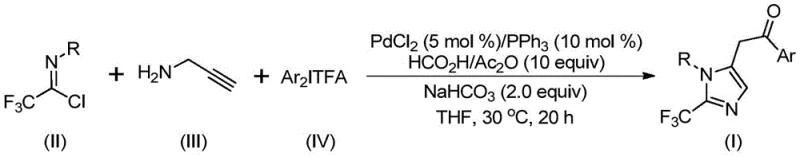

1. Combine palladium chloride, triphenylphosphine, sodium bicarbonate, acetic anhydride, formic acid, trifluoroethylimidoyl chloride, propargylamine, and diaryl iodonium salt in an organic solvent such as THF.
2. Stir the reaction mixture at a mild temperature of 30°C for a duration of 16 to 24 hours to ensure complete conversion.
3. Upon completion, filter the mixture, mix with silica gel, and purify via column chromatography to isolate the target 2-trifluoromethyl substituted imidazole compound.

Commercial Advantages for Procurement and Supply Chain Teams

For procurement managers and supply chain heads, the adoption of this novel synthetic route offers compelling economic and logistical benefits that directly impact the bottom line. The shift away from hazardous and specialized reagents towards commodity chemicals significantly de-risks the supply chain. Trifluoroethylimidoyl chlorides and diaryl iodonium salts are derived from widely available aromatic amines and boronic acids, ensuring a stable and competitive supply base. This accessibility translates into reduced raw material costs and mitigates the risk of supply disruptions that often plague niche chemical markets. Furthermore, the elimination of high-pressure gas handling equipment reduces capital expenditure requirements for reactor infrastructure, making the technology accessible for a wider range of manufacturing facilities without the need for specialized high-pressure autoclaves.

• Cost Reduction in Manufacturing: The economic viability of this process is driven by the use of inexpensive catalysts and ligands, specifically palladium chloride and triphenylphosphine, which are used in relatively low loadings. The avoidance of expensive and dangerous trifluorodiazoethane removes a major cost driver associated with safety containment and specialized waste disposal. Additionally, the mild reaction conditions (30°C) result in substantially lower energy consumption compared to traditional high-temperature reflux methods. The high reaction efficiency and yields reported in the patent data imply less raw material waste and higher throughput per batch, leading to significant overall cost optimization in API intermediate manufacturing.
• Enhanced Supply Chain Reliability: The reliance on stable, shelf-stable starting materials enhances supply chain resilience. Unlike unstable diazo compounds that may require on-demand generation or cold chain logistics, the key reagents here can be stocked in bulk, allowing for just-in-time manufacturing strategies. The robustness of the reaction across a wide range of substrates means that a single manufacturing line can be adapted to produce multiple different imidazole derivatives with minimal changeover time. This flexibility is crucial for CDMOs managing diverse portfolios, as it allows for rapid response to changing client demands without the need for extensive process re-validation or new equipment installation.
• Scalability and Environmental Compliance: Scaling this process from gram to multi-ton levels is facilitated by the homogeneous nature of the reaction and the absence of gaseous reagents. The use of formic acid as a CO surrogate is a greener alternative to carbon monoxide gas, aligning with increasingly stringent environmental regulations regarding toxic gas emissions. The post-treatment process is straightforward, involving standard filtration and chromatography, which simplifies waste stream management. The high atom economy of the three-component coupling minimizes the generation of byproduct waste, supporting sustainability goals and reducing the environmental footprint associated with the production of complex fluorinated heterocycles.

Frequently Asked Questions (FAQ)

To assist technical decision-makers in evaluating the feasibility of this technology for their specific applications, we have compiled answers to common inquiries based on the patent specifications. These questions address critical aspects such as catalyst selection, reaction conditions, and substrate limitations. Understanding these nuances is essential for successful technology transfer and process optimization. The following insights are derived directly from the experimental data and technical disclosures provided in the source documentation, ensuring accuracy and relevance for your process development teams.

Q: What are the key advantages of this palladium-catalyzed method over traditional trifluoromethylation techniques?

A: This method avoids the use of hazardous and unstable reagents like trifluorodiazoethane. Instead, it utilizes stable, commercially available trifluoroethylimidoyl chlorides and operates under mild conditions (30°C), offering superior safety profiles and broader substrate compatibility for complex API intermediates.

Q: What is the role of formic acid and acetic anhydride in this reaction system?

A: Formic acid and acetic anhydride serve as an in situ carbon monoxide (CO) surrogate. This eliminates the need for handling high-pressure CO gas cylinders, significantly simplifying the reactor setup and enhancing operational safety for large-scale manufacturing processes.

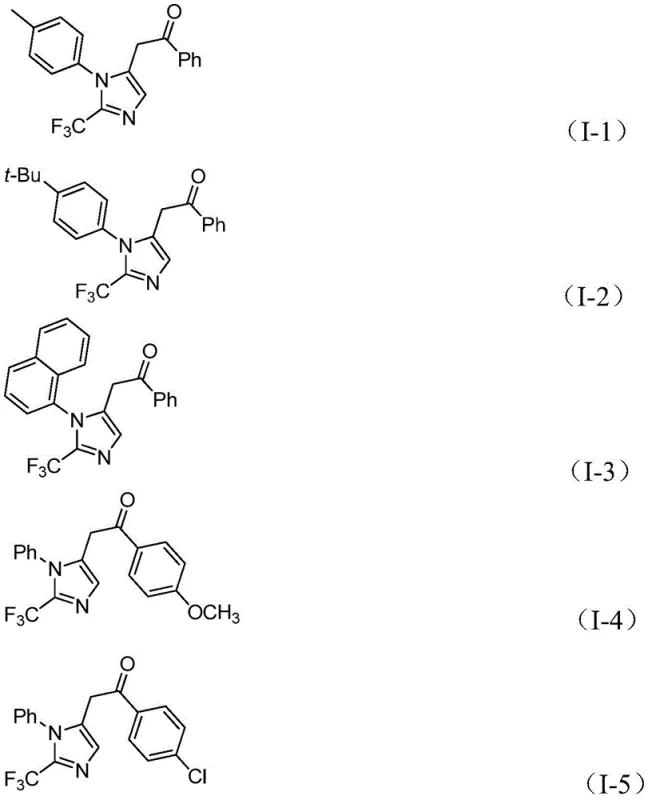

Q: Can this synthesis protocol accommodate diverse functional groups on the aromatic rings?

A: Yes, the protocol demonstrates excellent functional group tolerance. It successfully accommodates electron-donating groups like methyl and methoxy, as well as electron-withdrawing groups such as halogens, nitro, and trifluoromethyl substituents, yielding products with high efficiency (up to 97% yield in optimized cases).

Partnering with NINGBO INNO PHARMCHEM: Your Reliable 2-Trifluoromethyl Imidazole Supplier

At NINGBO INNO PHARMCHEM, we recognize the strategic importance of efficient fluorination technologies in the development of next-generation therapeutics. Our team of expert process chemists possesses extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that innovative laboratory methods like the one described in CN111423381B can be seamlessly translated into robust industrial processes. We maintain stringent purity specifications and operate rigorous QC labs to guarantee that every batch of 2-trifluoromethyl imidazole intermediate meets the exacting standards required by global regulatory bodies. Our commitment to quality and consistency makes us a trusted partner for pharmaceutical companies seeking to secure their supply chains for critical fluorinated building blocks.

We invite you to collaborate with us to leverage this advanced synthetic methodology for your specific project needs. Whether you require custom synthesis of novel derivatives or large-scale production of established intermediates, our technical procurement team is ready to provide a Customized Cost-Saving Analysis tailored to your volume requirements. Contact us today to request specific COA data and route feasibility assessments, and let us demonstrate how our expertise in palladium-catalyzed carbonylation can accelerate your drug development timeline while optimizing your manufacturing costs.
