Advanced Rhodium-Catalyzed Synthesis of Benzocycloheptenones for Commercial Pharmaceutical Manufacturing

Introduction to Novel Benzocycloheptenone Synthesis Technology

The pharmaceutical and fine chemical industries are constantly seeking efficient routes to construct complex polycyclic scaffolds, particularly seven-membered rings which are prevalent in bioactive natural products and drug candidates. A significant breakthrough in this domain is detailed in Chinese Patent CN113620795B, which discloses a robust transition metal-catalyzed method for synthesizing benzocycloheptenone compounds. This technology leverages a rhodium-catalyzed C-H activation strategy coupled with the unique reactivity of cyclopropenones to forge the seven-membered ring in a single operational step. For R&D directors and process chemists, this represents a paradigm shift from laborious multi-step constructions to a streamlined annulation protocol. The ability to generate these valuable cores from simple 2-biphenylboronic acids and disubstituted cyclopropenones under mild conditions addresses critical bottlenecks in lead optimization and process development. As a reliable pharmaceutical intermediate supplier, understanding such patented methodologies is essential for evaluating the feasibility of scaling these high-value structures for commercial applications.

The Limitations of Conventional Methods vs. The Novel Approach

The Limitations of Conventional Methods

Traditionally, the construction of benzocycloheptenone frameworks has been fraught with synthetic challenges that hinder efficient manufacturing. Classical approaches often rely on intramolecular Friedel-Crafts acylations or ring-expansion reactions that require harsh acidic conditions, high temperatures, and specialized precursors that are difficult to source commercially. These conventional pathways frequently suffer from poor regioselectivity, leading to complex mixtures of isomers that are arduous to separate, thereby drastically reducing the overall yield and purity of the final API intermediate. Furthermore, many existing methods necessitate the use of stoichiometric amounts of toxic heavy metals or explosive diazo compounds, posing significant safety and environmental hazards in a production setting. The lack of functional group tolerance in older methodologies often requires extensive protecting group strategies, adding unnecessary steps, time, and cost to the synthesis. For procurement managers, these inefficiencies translate into higher raw material costs and longer lead times, making the supply chain vulnerable to disruptions.

The Novel Approach

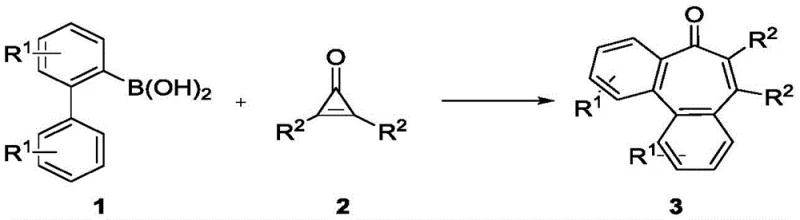

In stark contrast, the methodology described in patent CN113620795B offers a transformative solution by utilizing a Cp*Rh(III)-catalyzed oxidative annulation. This novel approach employs readily available 2-biphenylboronic acids and disubstituted cyclopropenones as building blocks, which are significantly easier to prepare and handle than traditional precursors. The reaction proceeds through a clever mechanism where the strained three-membered ring of the cyclopropenone undergoes cleavage to regenerate the seven-membered ring of the product, effectively using ring strain as a driving force. This one-pot transformation occurs under remarkably mild conditions, typically at 60°C in common solvents like ethyl acetate, and crucially, it operates under an air atmosphere without the need for inert gas protection. This simplicity not only enhances safety but also drastically reduces the equipment requirements for scale-up. The broad substrate scope allows for the introduction of diverse functional groups such as halogens, trifluoromethyl, and alkoxy groups, enabling medicinal chemists to rapidly explore structure-activity relationships (SAR) without redesigning the synthetic route. This level of efficiency and versatility makes it an ideal candidate for cost reduction in pharmaceutical intermediate manufacturing.

Mechanistic Insights into Rhodium-Catalyzed C-H Activation and Ring Expansion

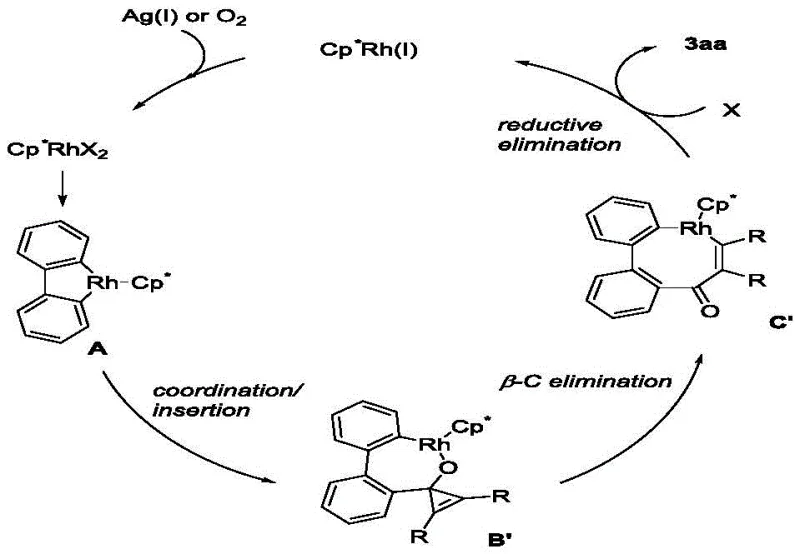

For the technical team, understanding the catalytic cycle is vital for troubleshooting and optimization. The reaction initiates with the generation of the active cationic Rh(III) species from the dimeric precursor [Cp*RhCl2]2 in the presence of a silver salt oxidant like AgOAc. The catalyst then coordinates to the biphenyl substrate, facilitating a directed C-H activation at the ortho-position to form a stable five-membered rhodacycle intermediate. This step is the turnover-limiting phase in many C-H functionalization reactions, but the use of the boronic acid directing group ensures high regioselectivity. Subsequently, the disubstituted cyclopropenone coordinates to the rhodium center and inserts into the Rh-C bond. A distinctive feature of this mechanism is the subsequent beta-carbon elimination step, where the strained C-C bond of the cyclopropenone ring cleaves. This ring-opening event expands the metallacycle from five members to seven, setting the stage for the formation of the benzocycloheptenone skeleton. Finally, reductive elimination releases the desired product and regenerates the Rh(I) species, which is re-oxidized by the silver salt to close the catalytic cycle. This elegant sequence avoids the formation of hazardous by-products and ensures high atom economy. From an impurity control perspective, the high selectivity of the C-H activation step minimizes the formation of regioisomers, while the mild oxidative conditions prevent the degradation of sensitive functional groups, resulting in a cleaner crude profile that simplifies downstream purification.

How to Synthesize Benzocycloheptenone Efficiently

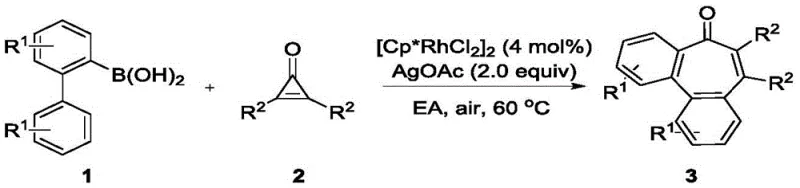

Implementing this synthesis in a laboratory or pilot plant setting is straightforward due to the robustness of the reaction conditions. The protocol typically involves mixing the 2-biphenylboronic acid and the cyclopropenone derivative in a molar ratio of approximately 1.2:1.0 to ensure complete consumption of the more valuable coupling partner. The catalyst loading is kept low at 4 mol% of [Cp*RhCl2]2, and silver acetate is used as the terminal oxidant in a 2.0 equivalent excess to drive the reaction to completion. The reaction is conducted in ethyl acetate, a green solvent preferred for industrial applications, at a moderate temperature of 60°C. Monitoring via TLC indicates that the reaction typically reaches completion within 12 hours. Workup involves simple aqueous quenching and extraction, followed by standard silica gel column chromatography to isolate the pure benzocycloheptenone product. The detailed standardized synthesis steps are provided in the guide below.

1. Combine 2-biphenylboronic acid compound and disubstituted cyclopropenone compound in an organic solvent such as ethyl acetate.
2. Add [Cp*RhCl2]2 catalyst (4 mol%) and silver salt oxidant (e.g., AgOAc, 2.0 equiv) to the reaction mixture.
3. Heat the sealed reaction tube to 60°C under air atmosphere for 12 hours, then purify via column chromatography.

Commercial Advantages for Procurement and Supply Chain Teams

From a commercial perspective, this patented technology offers substantial benefits that align with the strategic goals of procurement and supply chain management. The shift towards this Rh-catalyzed method eliminates the need for expensive and hazardous reagents often found in traditional seven-membered ring syntheses, directly contributing to cost reduction in manufacturing. By utilizing air-stable catalysts and operating under ambient pressure, the process reduces the capital expenditure associated with specialized high-pressure or inert atmosphere reactors. Furthermore, the high yields reported across a wide range of substrates mean less raw material waste and higher throughput per batch, optimizing the utilization of production assets.

• Cost Reduction in Manufacturing: The use of commercially available starting materials like 2-biphenylboronic acids and the avoidance of cryogenic conditions or exotic reagents significantly lowers the bill of materials. The catalytic nature of the rhodium complex, despite the metal cost, is offset by the low loading (4 mol%) and the high value of the final product. Additionally, the simplified workup procedure reduces solvent consumption and labor hours, leading to substantial cost savings in the overall production budget without compromising quality.
• Enhanced Supply Chain Reliability: The robustness of the reaction under air atmosphere removes the dependency on nitrogen or argon supplies, which can be a logistical bottleneck in some regions. The broad substrate tolerance ensures that supply chain disruptions for specific substituted precursors can be mitigated by switching to alternative analogs without re-validating the entire process. This flexibility enhances the resilience of the supply chain, ensuring consistent delivery of high-purity pharmaceutical intermediates to downstream clients.
• Scalability and Environmental Compliance: The reaction has been demonstrated to be scalable, as evidenced by successful gram-scale experiments in the patent data. The use of ethyl acetate as a solvent aligns with green chemistry principles, facilitating easier regulatory approval and waste disposal. The absence of toxic by-products and the high atom economy of the ring-expansion strategy minimize the environmental footprint, helping manufacturers meet increasingly stringent environmental compliance standards while maintaining high production volumes.

Frequently Asked Questions (FAQ)

The following questions address common technical and commercial inquiries regarding the implementation of this benzocycloheptenone synthesis technology. These answers are derived directly from the experimental data and specifications outlined in the patent documentation to provide clarity for potential partners and technical stakeholders.

Q: What are the key advantages of this Rh-catalyzed method over traditional synthesis?

A: This method utilizes readily available 2-biphenylboronic acids and cyclopropenones under mild conditions (60°C, air atmosphere) to achieve high yields in a single step, avoiding complex multi-step sequences.

Q: Is the reaction sensitive to oxygen or moisture?

A: No, the reaction proceeds efficiently under air atmosphere without the need for inert gas protection or strictly anhydrous conditions, simplifying operational requirements.

Q: What is the substrate scope for this benzocycloheptenone synthesis?

A: The method tolerates a wide range of substituents including halogens (F, Cl, Br), trifluoromethyl groups, alkyl chains, and alkoxy groups on both the biphenyl and cyclopropenone substrates.

Partnering with NINGBO INNO PHARMCHEM: Your Reliable Benzocycloheptenone Supplier

At NINGBO INNO PHARMCHEM, we recognize the transformative potential of advanced C-H activation technologies in accelerating drug discovery and development. Our team of expert chemists possesses extensive experience scaling diverse pathways from 100 kgs to 100 MT/annual commercial production, ensuring that innovative academic protocols like the one described in CN113620795B can be successfully translated into robust industrial processes. We are committed to delivering high-purity benzocycloheptenone intermediates that meet stringent purity specifications, supported by our rigorous QC labs and state-of-the-art analytical capabilities.

We invite pharmaceutical companies and research institutions to collaborate with us to leverage this efficient synthetic route for their pipeline projects. Whether you require custom synthesis services or bulk supply of these specialized intermediates, our technical procurement team is ready to assist. Please contact us to request a Customized Cost-Saving Analysis for your specific project needs. We encourage you to reach out to our technical procurement team to obtain specific COA data and route feasibility assessments tailored to your manufacturing requirements.
